150213-0005: DescriptionHeaders and Wire Housings TPA Retainer 3.00mm 5 Ckt Glow Black; CategoryThe connector Header and line shell; File Size167KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

150213-0005 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	150213-0005	-	-	View	Buy Now

150213-0005 Overview

Headers and Wire Housings TPA Retainer 3.00mm 5 Ckt Glow Black

150213-0005 Parametric

Parameter Name	Attribute value
Maker	Molex
Product Category	Headers and wire housings
product	Accessories
type	-
Number of locations	5 Position
Pitch	3 mm
Number of rows	1 Row
Installation style	-
Termination type	-
Installation angle	-
Contact type	-
Contact plating	-
Matching column length	-
Termination post length	-
series	150213
Attachment type	Terminal Position Assurance (TPA)
Contact type	-
Current rating	-
Shell material	Polyamide (PA)
Voltage rating	-
Contact material	-
Flammability rating	UL 94 V-2
line spacing	-
Plastic shell interface type	-
Maximum operating temperature	+ 105 C
Minimum operating temperature	- 40 C
Factory packaging quantity	550

Preview

Download Datasheet

View All

10

9

8

7

6

5

4

3

2

1

F

A

3.0

PITCH

7.6

5.13

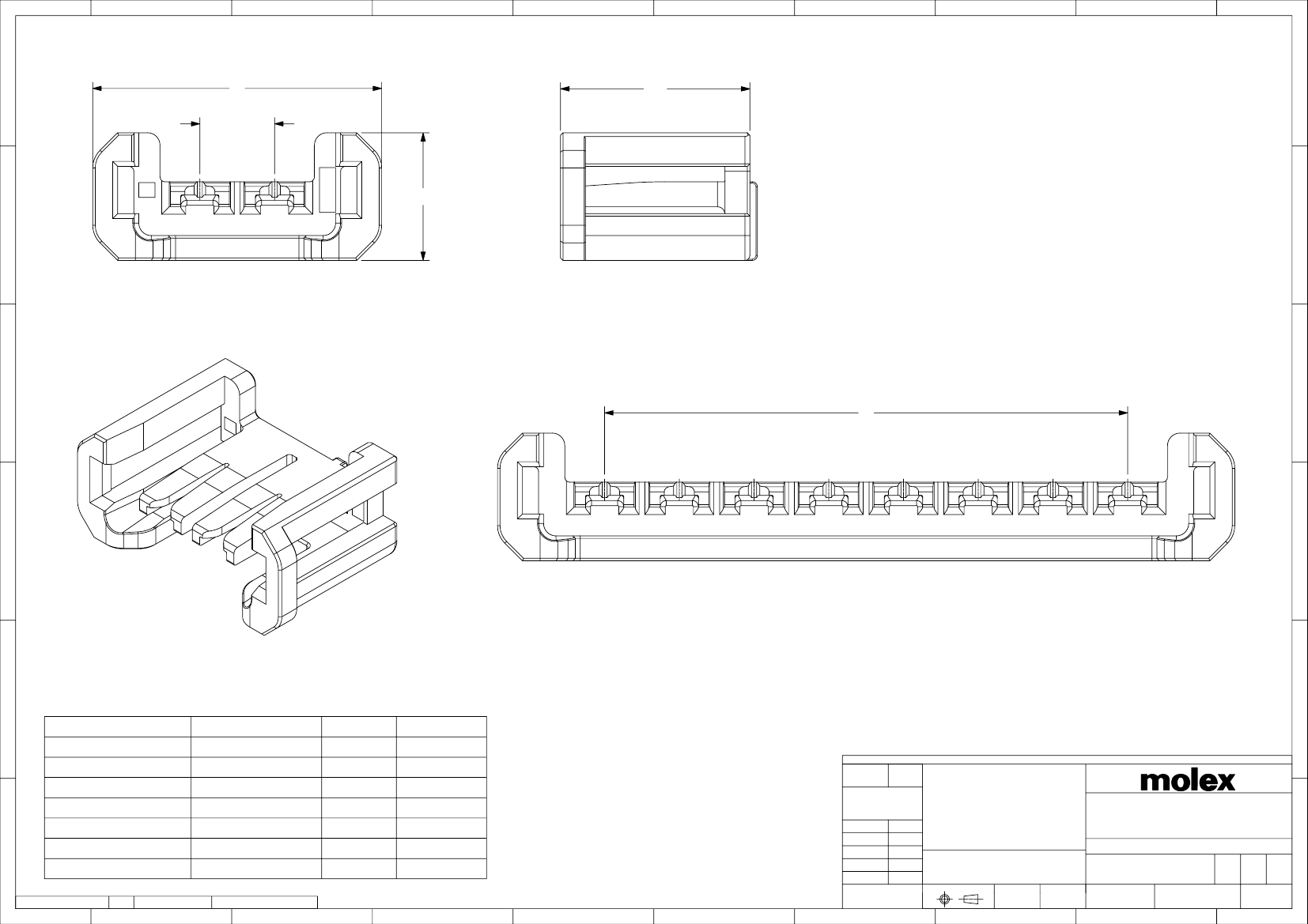

NOTES:

1. MATERIAL:

PA6

UL RATED 94V-2

COLOR: BLACK

2. 150213 SERIES PARTS ARE USED WITH 150201

HOUSING SERIES.

3. PRODUCT SPECIFICATION PS-150197-0000

4. PACKAGING SPECIFICATION PK-150212-0000

5. COSMETIC SPECIFICATION: PS-45499-002 CLASS B

F

E

D

B

D

C

B

A

PART NUMBER

1502130002

1502130003

1502130004

1502130005

1502130006

1502130007

1502130008

DOCUMENT STATUS

FORMAT: master-tb-prod-A3

REVISION: H

DATE: 2018/01/18

CIRCUIT SIZE

2

3

4

5

6

7

8

2018/05/31

12:36:22

A

11.6

14.6

17.6

20.6

23.6

26.6

29.6

B

3.0

6.0

9.0

12.0

15.0

18.0

21.0

7

6

5

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

DIMENSION UNITS

SCALE

CURRENT REV DESC: DOC TYPE MODIFIED

mm

ANGULAR TOL

±

8:1

0.5 °

GENERAL TOLERANCES

(UNLESS SPECIFIED)

EC NO:

177380

4 PLACES

3 PLACES

2 PLACES

1 PLACE

0 PLACES

0.13

0.25

DRWN:

NCSR

CHK'D: NCSR

APPR:

NCSR

INITIAL REVISION:

DRWN:

GES

APPR:

KPRASAD

THIRD ANGLE PROJECTION

DRAWING

2018/05/29

2018/05/31

2015/04/03

2014/04/14

SERIES

SALES DRAWING

TPA V-2, DITTO INTERCONNECTS

PRODUCT CUSTOMER DRAWING

DOCUMENT NUMBER

DOC TYPE

DOC PART

REVISION

A

SD-150213-0000

MATERIAL NUMBER

CUSTOMER

PSD

001

A1

P1

RELEASE DATE

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

SHEET NUMBER

A3-SIZE

150212

SEE TABLE

GENERAL MARKET

1 OF 1

10

9

8

4

3

2

1

150213-0005 Related Products

	150213-0005	150213-0002	150213-0003	150213-0004	150213-0008	150213-0007	150213-0006
Description	Headers and Wire Housings TPA Retainer 3.00mm 5 Ckt Glow Black	Headers and Wire Housings TPA Retainer 3.00mm 2 Ckt Glow Black	Headers and Wire Housings TPA Retainer 3.00mm 3 Ckt Glow Black	Headers and Wire Housings TPA Retainer 3.00mm 4 Ckt Glow Black	Headers and Wire Housings TPA Retainer 3.00mm 8 Ckt Glow Black	Headers and Wire Housings TPA Retainer 3.00mm 7 Ckt Glow Black	Headers and Wire Housings TPA Retainer 3.00mm 6 Ckt Glow Black
Maker	Molex	Molex	Molex	Molex	Molex	Molex	Molex
Product Category	Headers and wire housings	Headers and wire housings	Headers and wire housings	Headers and wire housings	Headers and wire housings	Headers and wire housings	Headers and wire housings
product	Accessories	Accessories	Accessories	Accessories	Accessories	Accessories	Accessories
Number of locations	5 Position	2 Position	3 Position	4 Position	8 Position	7 Position	6 Position
Pitch	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm
Number of rows	1 Row	1 Row	1 Row	1 Row	1 Row	1 Row	1 Row
series	150213	150213	150213	150213	150213	150213	150213
Attachment type	Terminal Position Assurance (TPA)	Terminal Position Assurance (TPA)	Terminal Position Assurance (TPA)	Terminal Position Assurance (TPA)	Terminal Position Assurance (TPA)	Terminal Position Assurance (TPA)	Terminal Position Assurance (TPA)
Shell material	Polyamide (PA)	Polyamide (PA)	Polyamide (PA)	Polyamide (PA)	Polyamide (PA)	Polyamide (PA)	Polyamide (PA)
Flammability rating	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2
Maximum operating temperature	+ 105 C	+ 105 C	+ 105 C	+ 105 C	+ 105 C	+ 105 C	+ 105 C
Minimum operating temperature	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C
Factory packaging quantity	550	1000	850	700	200	300	400
