CA-628485-A32: DescriptionNetwork cable/network cable RJ45 Copper Test Cbl for D38999 Conn, 15'; CategoryWire/cable Cable package Internet/network connections; File Size212KB，6 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

CA-628485-A32 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CA-628485-A32	-	-	View	Buy Now

CA-628485-A32 Overview

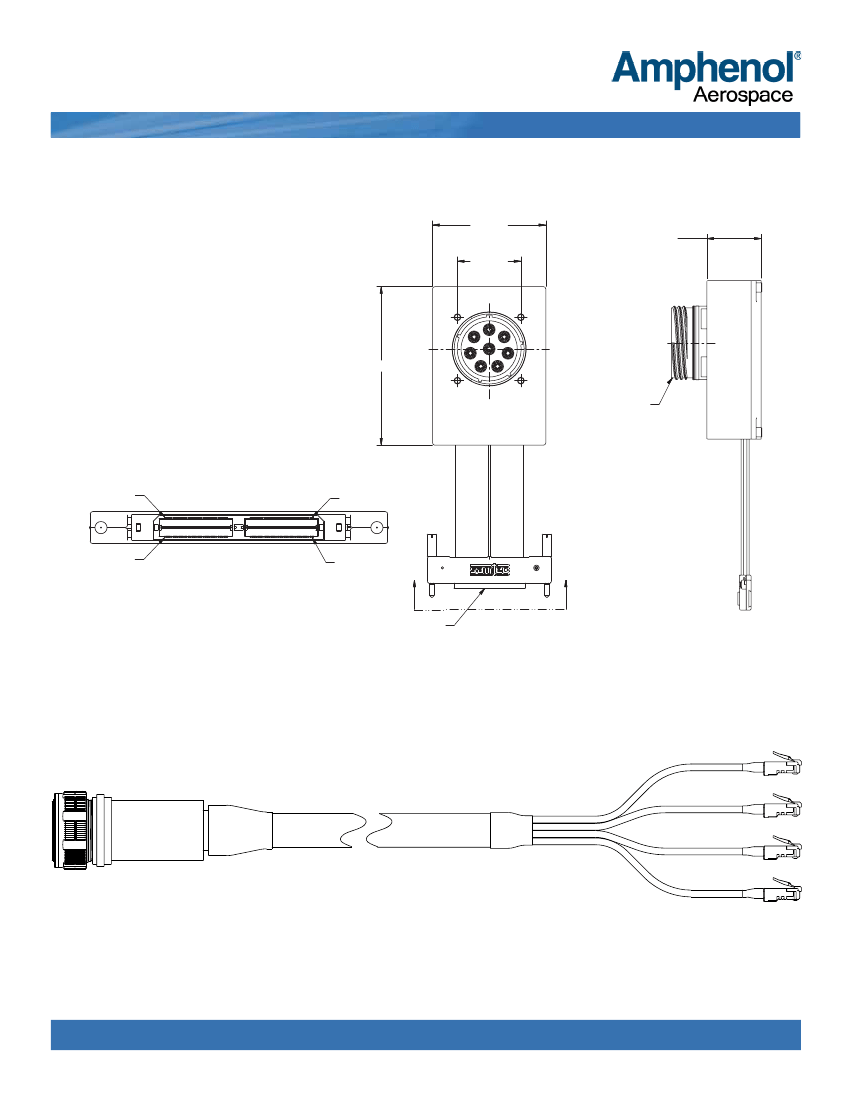

Network cable/network cable RJ45 Copper Test Cbl for D38999 Conn, 15'

CA-628485-A32 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Product Category	Network cable/network connection cable
type	10Gb Ethernet and Fiber
Connector port A	Circular
Connector Port A Pin Count	8 Position
Connector port B	RJ45
Connector Port B Pin Count	8 Position
length	15 ft
Description/Function	4 x RJ45 Connectors
USOC code	RJ45

Preview

Download Datasheet

View All

PDS-248-2

Quad 10GBASE-T to XAUI Converter

CTC-ENET-QUAD-10G

FEATURES

+ (4) 10G Ethernet Channels

+ Protocol conversion between

10GBASE-T and XAUI

+ Perfect for routing multiple 10 Gigabit

Ethernet connections into systems and

to and from circuit boards

+ Compliant with IEEE 802.3an Ethernet

Standards and Specifications

+ Hermetic option available with a helium

leak rate of 10-4 cc/sec

10GBASE-T COPPER INTERFACE

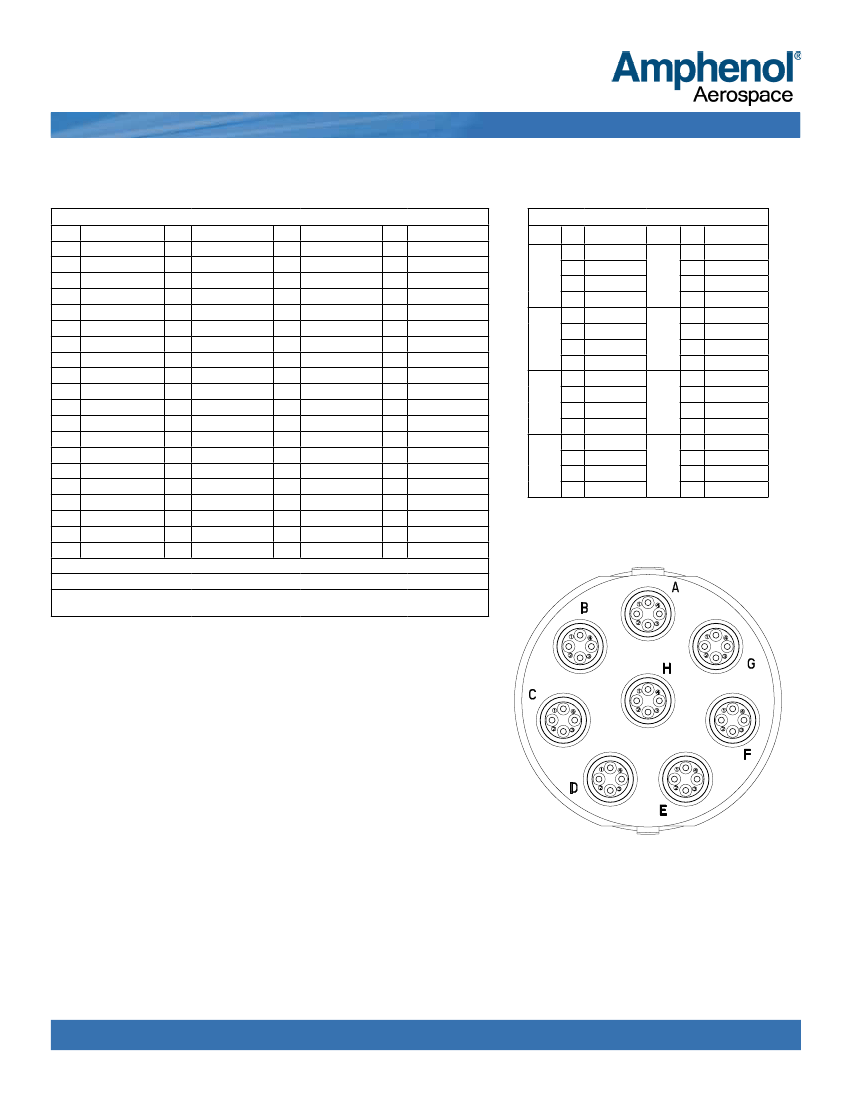

+ D38999 Shell Size 25 with standard

rotations available

+ 8 High speed split-pair quadrax

contacts capable of 6.25Gbps

+ Allows for (4) ports of

10 gigabit ethernet

XAUI INTERFACE

+ Samtec Q Series®

High Speed Cable Assembly

+ Consult factory for

specific type required

POWER SPECIFICATIONS

+ 5V power connection in Samtec

connector flexible ribbon cable

+ Low power consumption

- Less than 5 watts

RUGGEDIZATION

+ Natural convection cooled (no fan or

cold plate required)

+ Operational temperature

-40°C to +85°C

+ Storage temperature

-50°C to +125°C

+ EMI/EMC compatible

+ Refer to page 5 for additional details

OVERVIEW

Amphenol Aerospace adds 10GBASE-T to XAUI Converter to the Integrated

Electronic Products line. This product line is rugged, flexible, and affordable

with many options available.

This 10GBASE-T to XAUI converter couples SerDes technology and

transformer coupling, which allows for protocol conversion with a new level

of ruggedization. This product takes a high speed signal in an electrical

backplane and convert it to a protocol that allows for signal transmission

over 100 meters between devices.

Jared Sibrava

E-mail: jsibrava@amphenol-aao.com

Phone: 607-643-1845

Call 800-678-0141 or visit us at www.amphenol-aerospace.com

AMPHENOL INTEGRATED ELECTRONIC

PRODUCTS RUGGEDIZATION DESIGN

PDS-248-2

Overview

Amphenol integrated electronic products are designed and manufactured to our Ruggedization guidelines listed below. These guidelines

ensure years of reliable operation in harsh environment applications where extreme operating temperatures, shock, vibration and

corrosive atmospheres are regularly experienced

Temperature

• Operating Temperature - Thermal Cycles between -40°C and 85°C while device is operating

• Temperature is measured at chassis housing or card edge

• Storage Temperature - Thermal Cycles between -55°C and 125°C

Humidity

• Operating Humidity – Humidity cycle between 0-100% non-condensing humidity while device is operating

• Storage Humidity – Humidity cycle between 0-100% condensing humidity

Sealing

• Sealing can be optionally provided at the MIL-DTL-38999 interface with up to 10-5 cc/sec performance

Fluids Susceptibility

• MIL-DTL-38999 receptacle interface per EIA-364-10E

Vibration & Shock

• Sine Vibration – 10 g Peak, 5-2,000Hz

-Based on a sine sweep duration of 10 minutes per axis in each of three mutually perpendicular axes. May be

displacement limited from 5 to 44 Hz, depending on specific test.

• Random Vibration - 0.005@5Hz, 0.1@15Hz, 0.1@2,000Hz

-60 minutes per axis, in each of three mutually perpendicular axes.

• 40 G Peak Shock Cycle

-Three hits in each axis, both directions, ½ sine and terminal-peak saw tooth, Total 36 hits.

Altitude

• -1,500 to 60,000 ft Altitude Testing w/ Rapid Depressurization

Electromagnetic Compatibility

• Designed to comply with MIL-STD-461E

Printed Circuit Board Assemblies

• Conformal Coat

-Amphenol performs Conformal Coating to both sides of printed circuit board assemblies using HUMISEAL IB31

in accordance with IPC-610, Class 3.

• Printed Circuit Board Rigidity

-Amphenol printed circuit boards are fabricated in accordance with IPC-6012, Class 3.

• Printed Circuit Board Fabrication

-Amphenol printed circuit boards acceptance criteria is in accordance with IPC-610, Class 3.

Reliability Predictions (MTBF)

Amphenol can perform Mean Time Between Failure (MTBF) reliability analysis in full compliance with MIL-HDBK-217F-1 Parts Count Pre-

diction and MIL-HDBK-217F-1 Parts Stress Analysis Prediction. We can also perform reliability analyses in full compliance of ANSI/VITA

51.1 if it is required or preferred over the later method.

Jared Sibrava

E-mail: jsibrava@amphenol-aao.com

Phone: 607-643-1845

Notice: Specifications are subject to change without notice. Contact your nearest Amphenol Corporation Sales Office for the latest specifications. All statements, information and data given

herein are believed to be accurate and reliable but are presented without guarantee, warranty, or responsibility of any kind, expressed or implied. Statements or suggestions concerning pos-

sible use of our products are made without representation or warranty that any such use is free of patent infringement and are not recommendations to infringe any patent. The user should

assume that all safety measures are indicated or that other measures may not be required. Specifications are typical and may not apply to all connectors.

AMPHENOL is a registered trademark of Amphenol Corporation.

REV:3/3/2015

Call 800-678-0141 or visit us at www.amphenol-aerospace.com
