Automation Controls Catalog
Power Relays (Over 2A)
HE-N
RELAYS

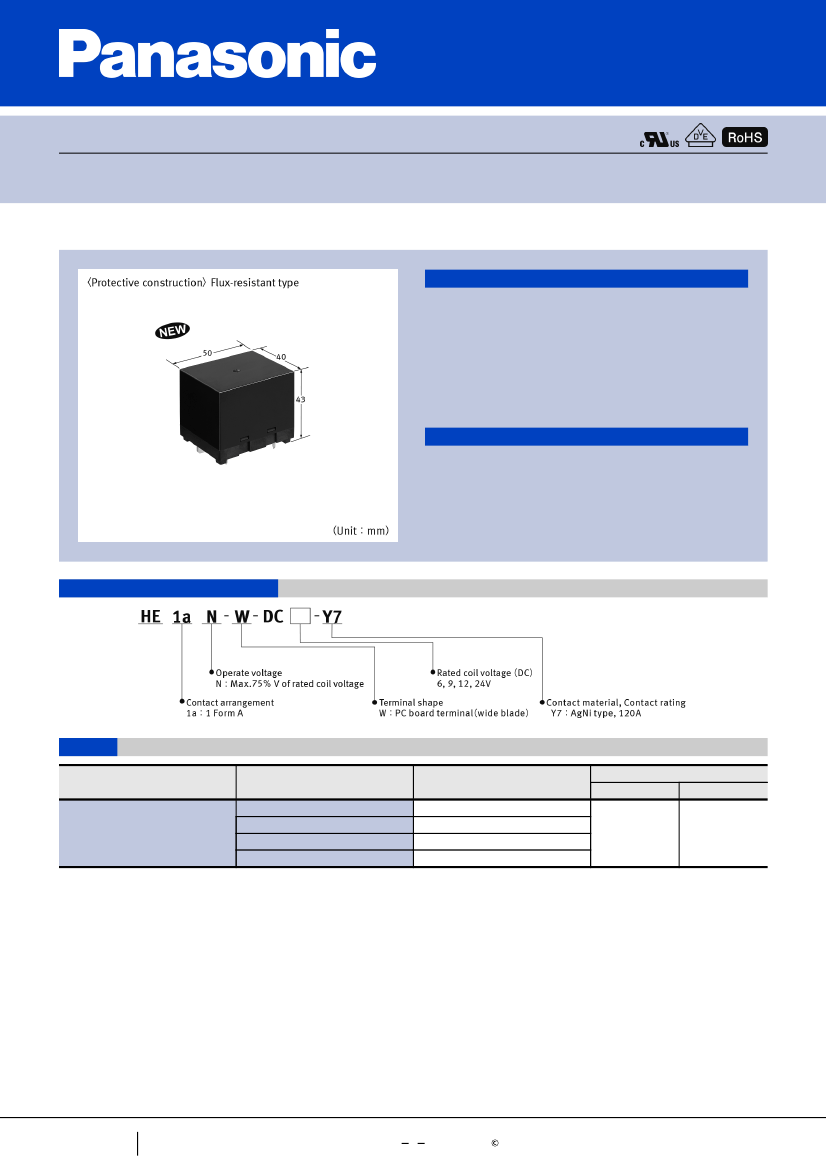

High capacity 120A 480V AC 1 Form A power relay
FEATURES
1. High capacity : Max. switching current 120A
2.
Compact Size : W ( 50mm ) x L ( 40mm ) x H ( 43mm )
3. Contact GAP : Min.3.6
㎜
( Initial )
4.
Insulation distance ( Initial ) : Min.10.5mm ( Clearance & Creepage )
5. Contributes to energy saving in devices by reducing coil
holding voltage
*
. Coil holding power : 400mW
*Coil holding voltage : the coil voltage after applying 100ms of the reted coil voltage
APPLICATIONS
1. Inverter
2. Battery storage system
3. Stationary charging stand
4. Industrial equipment
ORDERING INFORMATION (TYPE NO.)
TYPES
Contact arrangement
Rated coil voltage
6 V DC
1 Form A
9 V DC
12 V DC
24 V DC
Type No.
HE1aN-W-DC6V-Y7
HE1aN-W-DC9V-Y7
HE1aN-W-DC12V-Y7
HE1aN-W-DC24V-Y7
10 pieces
50 pieces
Standard packing
Carton
Outer carton
©
‒‒
2018.09
industrial.panasonic.com/ac/e/
1
Panasonic Corporation 2018
ASCTB405E 201809
Power Relays (Over 2A) HE-N RELAYS
RATING
Coil data
• Operating characteristics such as ‘Operate voltage’ and ‘Release voltage’ are influenced by mounting conditions, ambient
temperature, etc.
Therefore, please use the relay within ± 5% of rated coil voltage.
• ‘Initial’ means the condition of products at the time of delivery.
Rated coil voltage
6 V DC
9 V DC
12 V DC
24 V DC
*square, pulse drive
Operate voltage
*
(at 20°C)
Max.75% V of
Rated coil voltage
(Initial)
Release voltage
*
(at 20°C)
Min.5% V of
Rated coil voltage
(Initial)
Rated operating current
(±10%, at 20°C)
417 mA
278 mA
208 mA
104 mA
Coil resistance
(±10%, at 20°C)
14.4 Ω
32.4 Ω
57.6 Ω
230
Ω
Rated operating power
Max. allowable voltage
(at55°C)
110% V of
Rated coil voltage
2,500 mW
Specifications
Item
Contact arrangement
Contact resistance (initial)
Specifications
1 Form A
Max.10 mΩ (by voltage drop 5 V DC 20 A)
AgNi type
120
Ａ
480 V AC
57,600 VA
800 V AC
120 A (AC)
100 mA 5 V DC
Min.1,000 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)
2,000 Vrms for 1 min. (detection current: 10 mA)
5,000 Vrms for 1 min. (detection current: 10 mA)
10,000 V
40 to 100% V (contact carrying current: 120 A, at 20°C)
50 to 60% V (contact carrying current: 120 A, at 85°C)
Contact material
Contact data
Contact rating (resistive)
Max. switching power (resistive)
Max. switching voltage
Max. switching current
Min. switching load (reference value)
*1
Insulation resistance (initial)
Dielectric strength
(initial)
Surge breakdown voltage (initial)
*2
Between open contacts
Between contact and coil
Between contact and coil
Coil holding voltage
*3
Time characteristics
(initial)
Shock resistance
Vibration resistance
Operate time
Release time
Functional
Destructive
Functional
Destructive
Mechanical
Max.30 ms (at rated coil voltage at 20°C, without bounce)
Max.10 ms (at rated coil voltage at 20°C, without bounce, without diode)
98 m/s
2
(half-sine shock pulse: 11 ms, detection time: 10 μs)
980 m/s
2
(half-sine shock pulse: 6 ms)
10 to 55 Hz (at double amplitude of 1.0 mm, detection time: 10 μs)
10 to 55 Hz (at double amplitude of 1.5 mm)
Min. 1 ×10
6
ope. (at 180 times/min.)
Ambient temperature: -40 to +55°C (When coil holding voltage is 40 to 100% V of rated voltage.)
-40 to +85°C (When coil holding voltage is 50 to 60% V of rated voltage or storage.)
Humidity: 5 to 85％ R.H. (Avoid icing when using at temperatures lower than 0°C.)
Approx. 115 g
Expected switching life
Conditions
Unit weight
Condition for use,
transportation and
storage
*4
*1.This value can change due to the switching frequency, environmental conditions, and desired reliability level, therefore it is recommended to check this with the actual load.
*2.Wave is standard shock voltage of ±1.2×50µs according to JEC-212-1981.
*3.Coil holding voltage is the coil voltage after 100 ms following application of the rated coil voltage.
*4.The upper operation ambient temperature limit is the maximum temperature that can satisfy the coil temperature rise value. Refer to "1. Usage, transport and storage conditions" in NOTES.
Expected electrical life
Conditions：Resistive load
Type
Switching capacity
120 A 480 V AC
1 Form A
55 A 800 V AC
Number of operations
Min. 1,000 ope.
(at 85°C, ON:OFF = 1 s:9 s)
Min.10,000 ope.
(at 85°C, ON:OFF = 1 s:9 s)
Panasonic Corporation Electromechanical Control Business Division
industrial.panasonic.com/ac/e/
©
‒‒
2
Panasonic Corporation 2018
ASCTB405E 201809
Power Relays (Over 2A) HE-N RELAYS

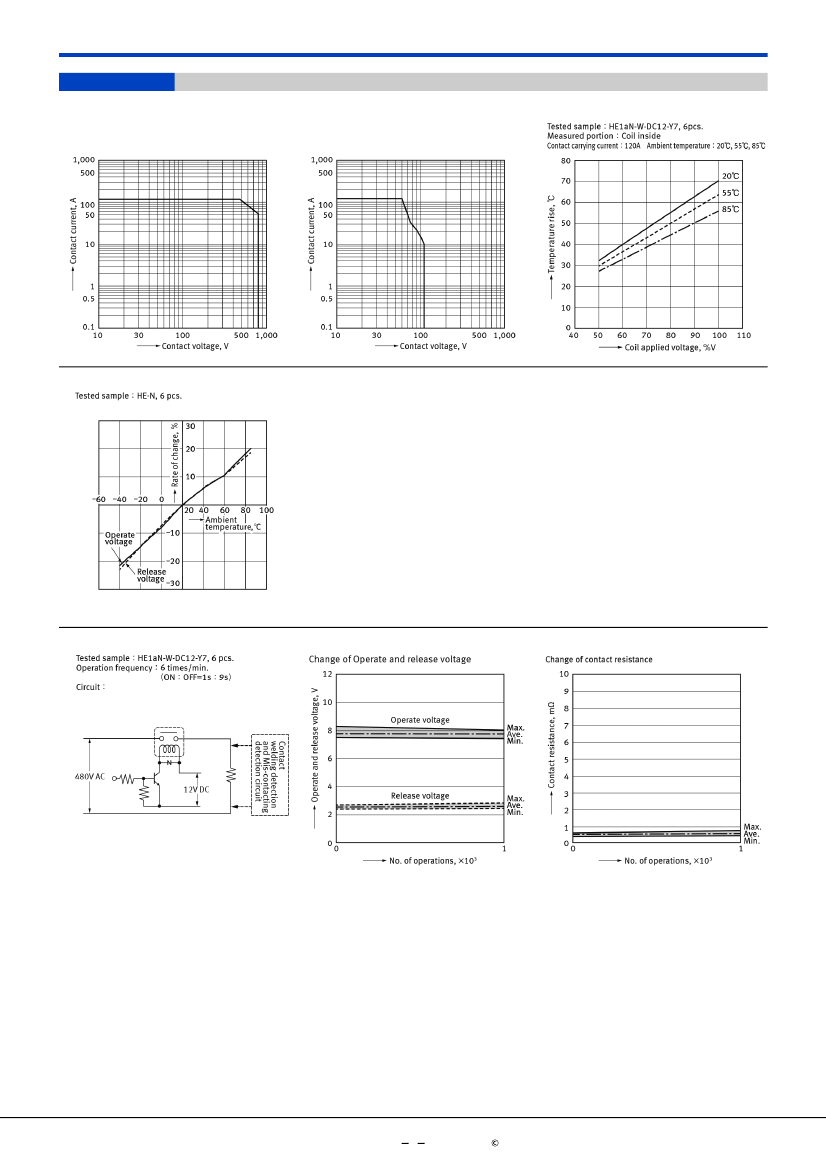

REFERENCE DATA
1-1.Max. switching capacity（AC resistive load） 1-2.Max. switching capacity（DC resistive load） 2.Coil temperature characteristics (Average)
3.Ambient temperature characteristics
4.Electrical life test（Resistive load 480V AC 120A, at 85°C
）
Panasonic Corporation Electromechanical Control Business Division
industrial.panasonic.com/ac/e/
©
‒‒
3
Panasonic Corporation 2018
ASCTB405E 201809
Power Relays (Over 2A) HE-N RELAYS

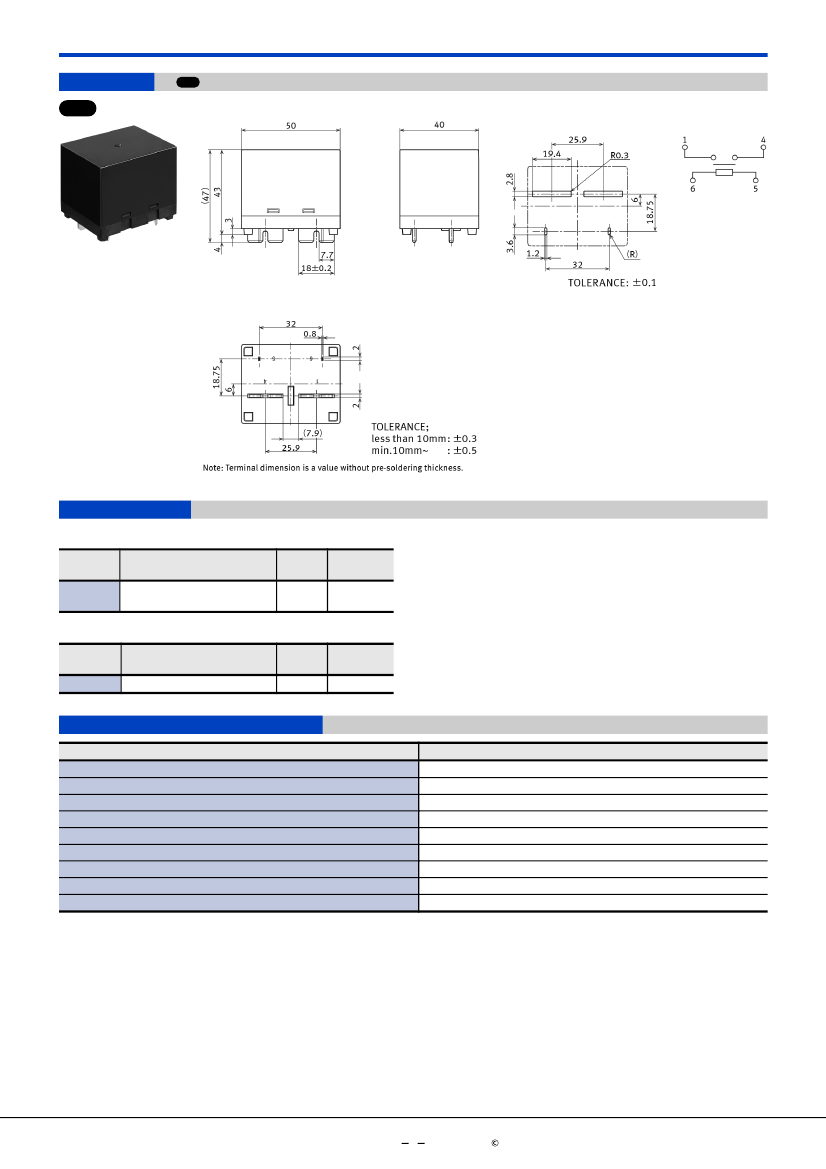

DIMENSIONS
CAD
CAD
The CAD data of the products with a "CAD" mark can be downloaded from our Website.
Unit: mm
Schematic
(BOTTOM VIEW)
External Dimensions
Recommended PC board pattern
(BOTTOM VIEW)
SAFETY STANDARDS
UL/C-UL (Recognized)
File No.
E43028
Contact rating (Recognized)
Making and Breaking 55 A,
Carrying 120 A 600 V AC
Cycles
6×10
3
Ambient
temperature
85°C
CSA (Certified)
CSA standard certified by C-UL
VDE (Certified)
File No.
40006681
Contact rating (Certified)
120 A 800 V AC (cosφ=1.0)
Cycles
10
3
Ambient
temperature
85°C
INSULATION CHARACTERISTICS (IEC61810-1)
Item
Clearance/Creepage distance (IEC61810-1)
Category of protection (IEC61810-1)
Tracking resistance (IEC60112)
Insulation material group
Over voltage category
Rated voltage
Pollution degree
Type of insulation (Between contact and coil)
Type of insulation (Between open contact)
Note: Actual value
Characteristics
Min. 5.5mm/8mm
RT II
PTI 175
III a
III
800V
2
Basic insulation
micro disconnection
Panasonic Corporation Electromechanical Control Business Division
industrial.panasonic.com/ac/e/
©
‒‒
4
Panasonic Corporation 2018
ASCTB405E 201809
Power Relays (Over 2A) HE-N RELAYS
NOTES
For cautions for use, please read “GENERAL APPLICATION GUIDELINES”.
HE-N Relays Cautions for use
Condition for use, storage and transportation
1. Ambient temperature：
-40〜+55°C
（When
coil holding voltage is 40 to 100%V of rated voltage.）
-40〜+85°C
（When
coil holding voltage is 50 to 60%V of rated voltage or
storage.）
2. Humidity：5〜85%RH
(Avoid icing when using at temperatures lower than 0°C.)

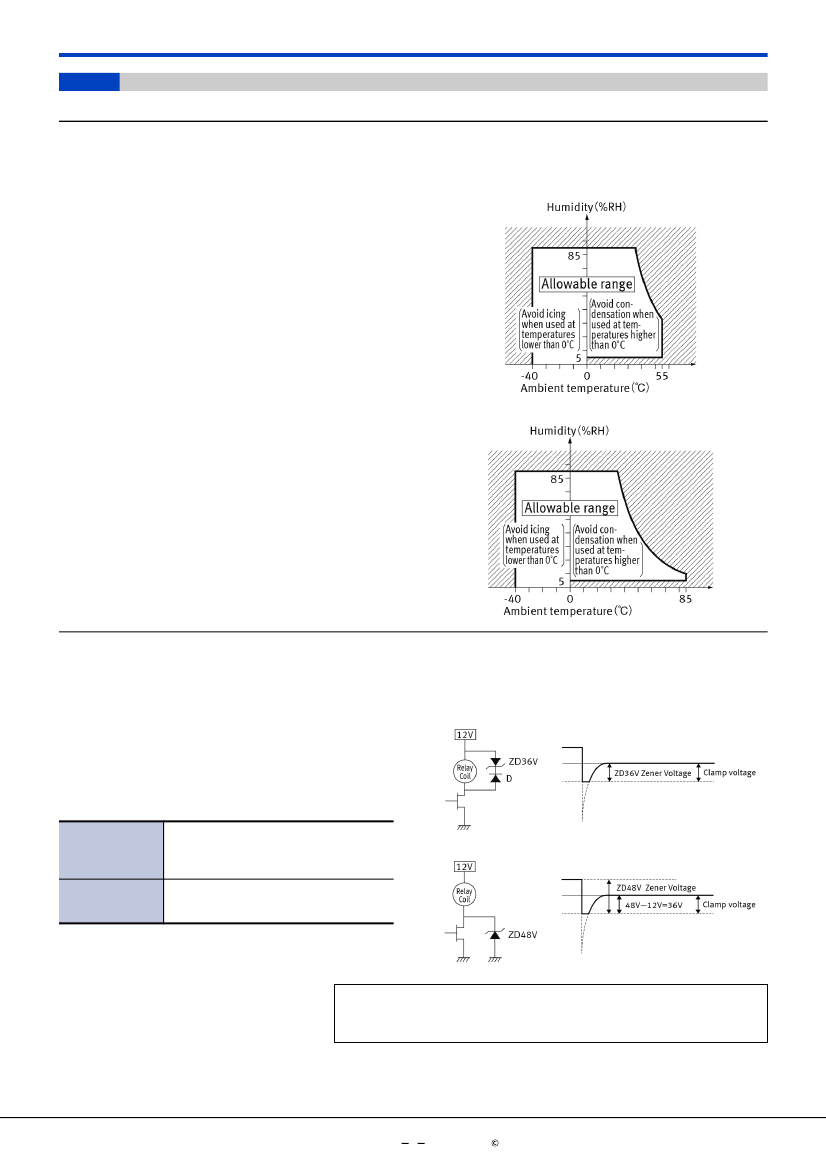

Note: In addition the humidity range depends on temperature.The allowable ranges are as
shown in the figure.
Temperature and humidity range for usage, storage and transport
［Coil
holding voltage 40〜100%V½
［Coil
holding voltage 50〜60％V½
Coil surge absorber
Please use a Varistor (ZNR) or Zener diode (ZD) which the
clamp voltage is at least 3 times larger than the rated voltage
for the purpose of the coil surge absorber.
If the clamp voltage is less than 3 times larger than the rated
voltage, electrical life of the relay specified in the
specifications shall not be secured because the contact
release speed becomes slower.
[Example 1: When Varistor (ZNR) is use]
Recommended
Varistor
Energy capability: Min. 1 J
（However,
please set up the value with
consideration of the worst value in use
condition.）
Min. 300% of rated voltage
(Recommended Varistor voltage is at 36 V or
more when the coil rated voltage is at 12 V.)
[Example 2: When Zener diode (circuit) is use]
(Set the clamp voltage at 36 V or more when the coil 1 rated
voltage is at 12 V.)
［1½
［2½
Varistor Voltage
Please refer to "the
latest product specifications"
when designing your product.
• Requests to customers :
https://industrial.panasonic.com/ac/e/salespolicies/
Panasonic Corporation Electromechanical Control Business Division
industrial.panasonic.com/ac/e/
©
‒‒
5
Panasonic Corporation 2018
ASCTB405E 201809
