1400
TM
SERIES
Externally mounted
AudioNav keypad
AudioNav is an ADA compliant assistive
USB device offering menu navigation
by means of audible content
description.
Users with impaired vision, reading difficulties or
impaired fine motor skills can navigate through
menus or directories that would typically be
presented on a visual display or touch screen.
Screen content is represented and summarised
by recorded or synthesized language via a
headset or handset.
AudioNav is intended for use as the tactile/audio
interface for any accessible self-service
application such as kiosks, ticketing machines,
vending machines, voting terminals etc.
This externally mounted version of
the AudioNav provides options for
manufacturers and operators to
permanently affix an AudioNav device
to the outer casing of a host terminal
or to adjacent surfaces such as walls
or service counters. This is especially
useful when existing self-service
installations must be upgraded to meet
current accessibility mandates.

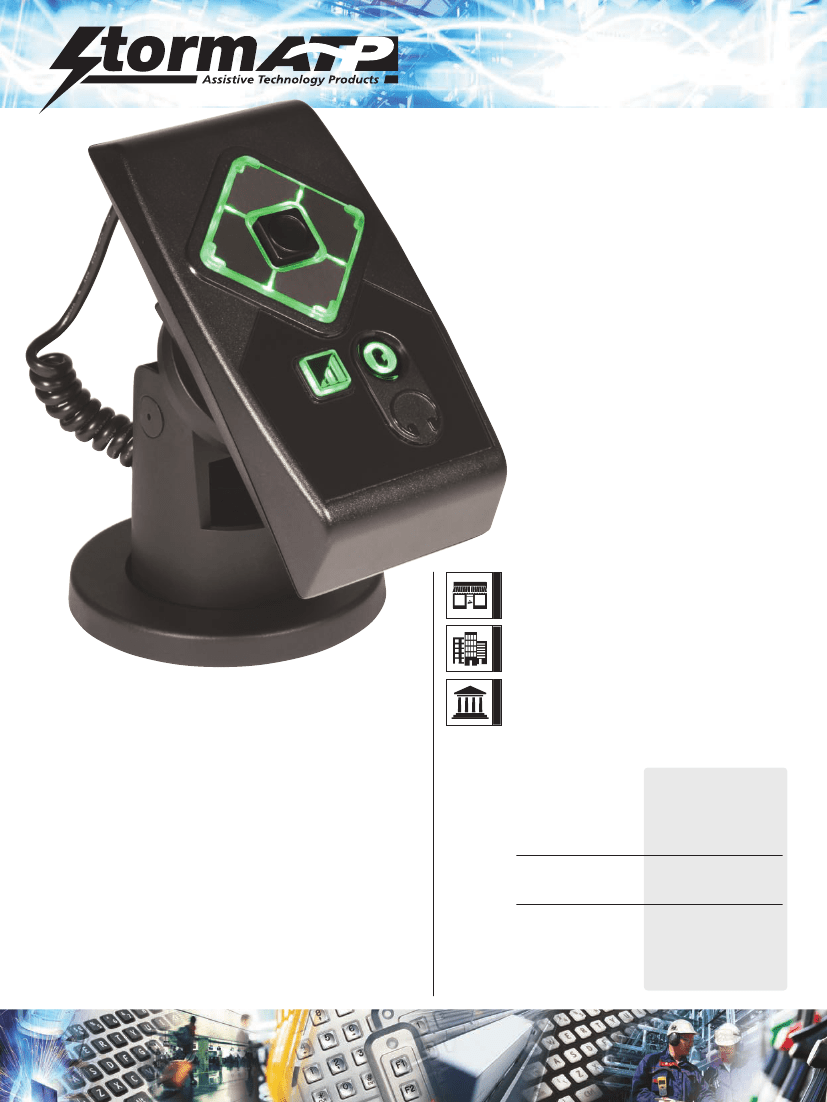

RETAIL
Stand is not
included. Shown
for illustrative
puposes only.
An optional ‘Quick Release Cradle’ allows
the AudioNav to be detached from the host
system for use as a hand-held device. In this
hand-held configuration AudioNav can, if
required, be passed directly to any user with
limited reach or impaired dexterity.
Used in combination with SpacePole
products this externally mounted version of
the AudioNav can be conveniently positioned
and adjusted to ensure maximum accessibility.
TM
• Enumerates as a combination HID keyboard / advanced
USB audio device.
• Highly visible with integrated illumination for those
with ‘low vision’.
• Highly tactile for ease of use by those with ‘no vision’.
• Keytop surfaces, with embossed tactile symbols,
are raised above surrounding surfaces.
• Responsive keys move with a positive tactile dynamic.
• 3.5mm audio jack socket, illuminated for ease of location.
• Integrated sound processor with push button
volume control.
• Connection to the host system is via a single factory
fitted USB cable with a USB 2.0, type A, male connector.
• Compliant with current accessibility mandates.
Storm Assistive Technology Products are recognised by the Royal National Institute
for Blind People as part of their
‘RNIB Tried and Tested’
program.
CIVIC
CORPORATE
Performance
Vibration & Shock:
Impact Resistance:
Certification:
EMC:
ESD Immunity:
ADA:
ETSI 6M3
IK08 (5J Rating)
CE / FCC / UL
EN55022 Class B
15kV Contact and Air
ADA Compliant
-20ºC to +70ºC (dry)
IP54
Environmental
Operational temperature:
Weather Resistance:
Specification
Rating:
USB Connection:
Audio Connection:
5V + 0.25V (USB 2.0)
2m
USB 2.0 cable with
type A, male connector
3.5mm Audio Jack Socket
(Illuminated)
1400

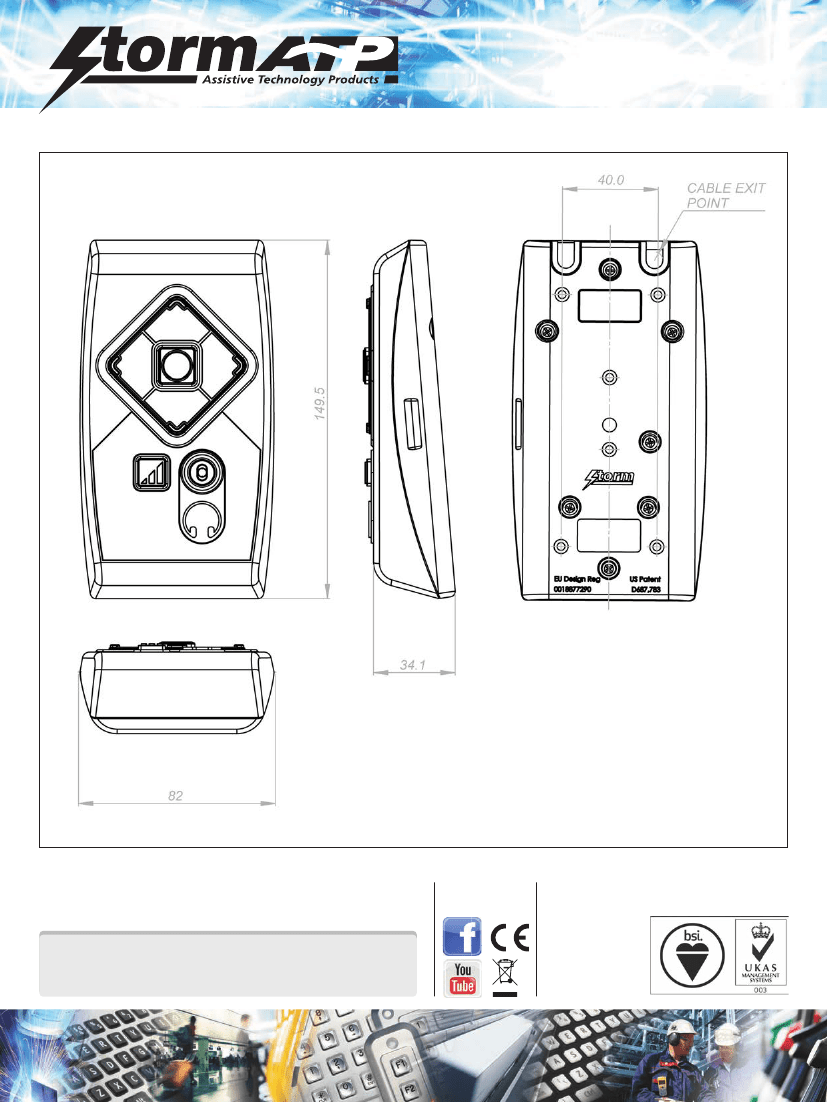

Overall Dimensions
SERIES
Storm Interface products are developed and tested primarily for use with current and supported Microsoft Windows
®
platforms. If you are
developing with a non-Windows
®
platform, please contact Storm Interface for advice; as compatibility with non-Windows® platforms or
operating systems cannot be guaranteed.
SpacePole is a registered trademark of Ergonomics Solutions Limited.
This product is licensed under NCR’s design rights, including NCR U.S. Design Patent D687,783 and European Design Registration 001887290.
It includes proprietary technology and intellectual property retained by Keymat Technology Ltd (trading as Storm Interface).
Whilst every effort is made to
ensure details are correct at time
of print, specifications are subject
to change without notice.
www.storm-interface.com
Storm Interface products include
proprietary technology and
copyright material retained by
Keymat Technology Ltd.
All rights reserved.
Storm is a trademark
of Keymat Technology Ltd
Storm Interface is a trading name
of Keymat Technology Ltd
For more information & to order:
Audio-Nav
Externally mounted Audio-Nav device
Quick release cradle kit
Part Numbers
1406-33002
1406-QR000
ATP1400EM Jan 2018
