TL3312NF235Q: DescriptionTactile switch 50mA 12VDC .25mm H 235gf SPST 3.7x3.7mm; CategoryMechanical and electronic products switch The sense of touch switch; File Size622KB，3 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com; Environmental Compliance

Download Datasheet Parametric Compare View All

TL3312NF235Q Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TL3312NF235Q	-	-	View	Buy Now

TL3312NF235Q Overview

Tactile switch 50mA 12VDC .25mm H 235gf SPST 3.7x3.7mm

TL3312NF235Q Parametric

Parameter Name	Attribute value
Maker	E-Switch
Product Category	Tactile switch
Shipping restrictions	Mouser does not currently sell this product.
illumination	Non-Illuminated
lighting color	-
Lamp type	-
Installation style	SMD/SMT
Installation direction	Straight
Actuator	Round
switch function	ON - OFF
work force	235 gf
Current rating	50 mA
Voltage ratingDC	12 VDC
Voltage ratingAC	-
Contact form	SPST
Termination type	Solder Pad
length	3.7 mm
width	3.7 mm
high	0.35 mm
series	TL3312
Encapsulation	Reel
journey	0.15 mm
Maximum operating temperature	+ 85 C
Minimum operating temperature	- 40 C

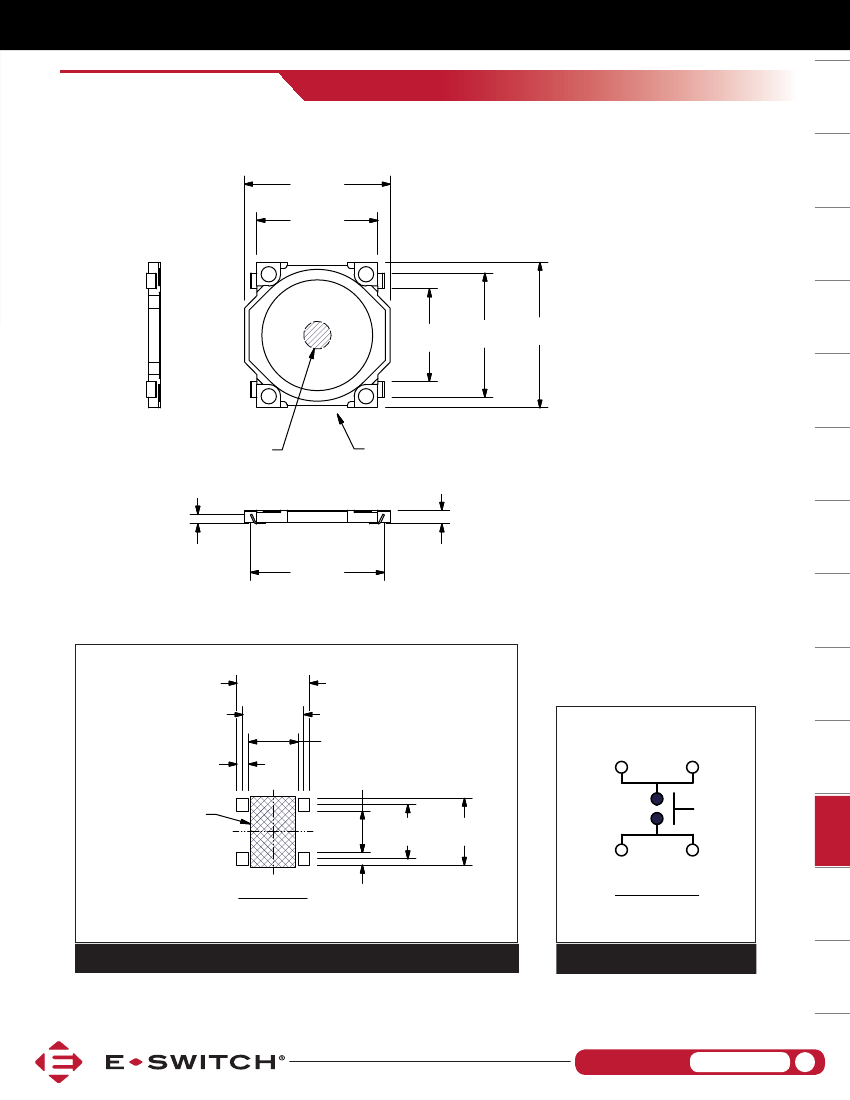

Preview

Download Datasheet

View All

TL3312 Series Tact Switch

ANTI-VANDAL

SWITCHES

Applications / Markets

DETECTOR

SWITCHES

Wearable Electronics

Computer Peripherals

Consumer Electronics

KEYLOCK

SWITCHES

DIP

SWITCHES

Instrumentation

Telecommunication

Handheld Devices

NAVIGATION

SWITCHES

RoHS

Specifications

Electrical Rating:

50mA @ 12VDC

Contact Resistance:

100mΩ Max. initial

Insulation Resistance:

100MΩ at 100VDC

Dielectric Strength:

100VAC for 1 min.

Operating Life:

500,000 Cycles for 160gf

50,000 Cycles for 235gf

Operating Temperature:

-40°C to 85°C

Storage Temperature:

-40°C to 85°C

Operating Force:

160gf

235gf

Travel:

0.15mm

Contact Arrangement:

SPST

Features & Benefits

• Ultra-miniature - 3.7mm x 3.7mm

• Surface mount termination

•

Very low profile - 0.35mm

SLIDE

SWITCHES

ROTARY

SWITCHES

ROCKER

SWITCHES

PUSHBUTTON

SWITCHES

Part Number Configurator

Series

Model

Actuator

Option

N - None

Actuation

Force

Contact

Material

Q -

Silver

SNAP ACTION

SWITCHES

TL

3312

F160

- 160gf

F235

- 235gf

TOGGLE

SWITCHES

TACTILE

SWITCHES

CAP

OPTIONS

Specifications subject to

subject to change without notice

Specifications

change without notice 6.27.2018

www.e-switch.com

800.867.2717

1
