A2W-TC-WC1 US2BY datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> Push button switch> A2W-TC-WC1 US2BY

A2W-TC-WC1 US2BY: DescriptionWireless PB Slave button, Full Guard Black, Yellow Flange, US or Canada, 922.5 MHz frequency; CategoryMechanical and electronic products switch Push button switch; File Size805KB，15 Pages; ManufacturerOMRON; Websitehttps://www.omron.com

Download Datasheet Parametric View All

A2W-TC-WC1 US2BY Overview

Wireless PB Slave button, Full Guard Black, Yellow Flange, US or Canada, 922.5 MHz frequency

A2W-TC-WC1 US2BY Parametric

Parameter Name	Attribute value
Maker	OMRON
Product Category	power switch button
type	Wireless
illumination	Non-Illuminated
Lamp type	-
IP rating	IP65
series	A2W
Maximum operating temperature	+ 55 C
Minimum operating temperature	- 10 C
Factory packaging quantity	1

Preview

Download Datasheet

View All

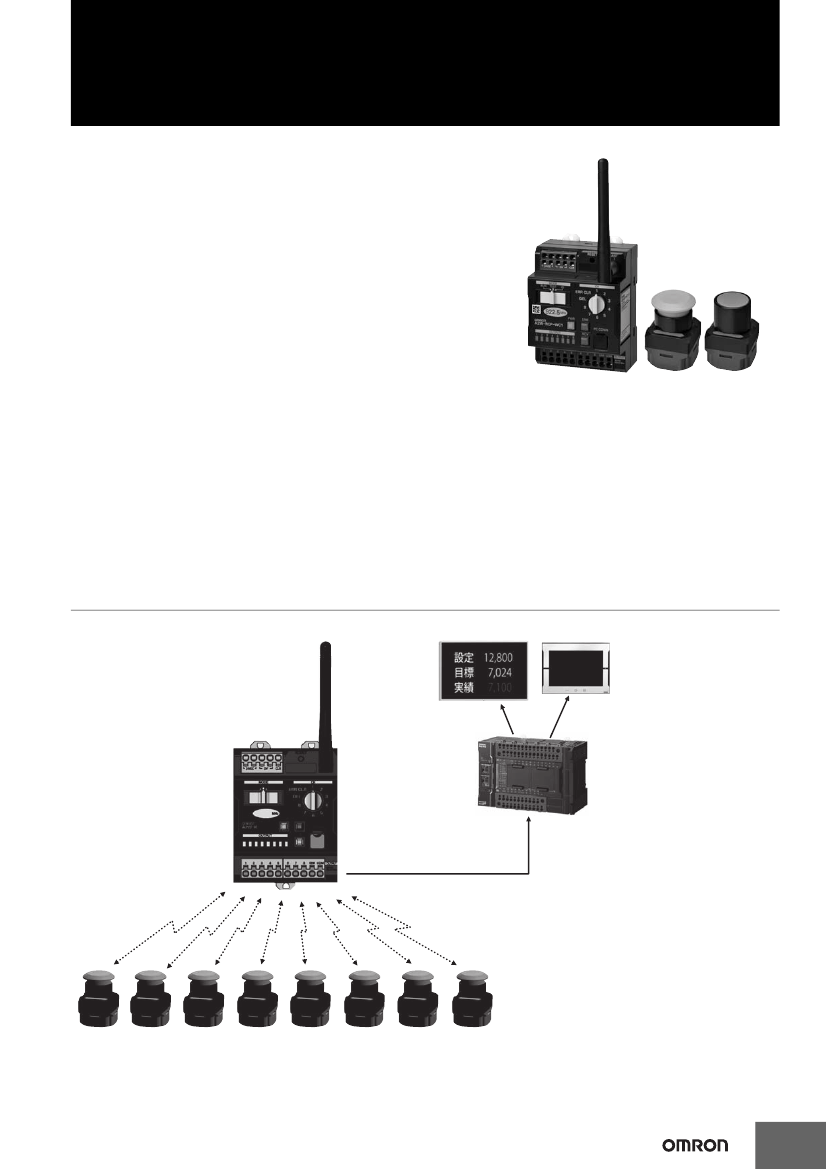

Wireless Pushbutton Switch

A2W

Wireless switch using sub-GHz band

Combines wireless reliability and

ease-of-use in consideration of work

environments

• Sub-GHz band for reduced interference and better signal

propagation to difficult-to-reach areas

• Visualization of impedance to wireless transmission because of

damage or noise, using Master Unit error output

• Visualization of Slave button reception status using reception

confirmation LEDs

• Transmission distance independent of the transmission

For the most recent information on models that have been certified for

safety standards, refer to your OMRON website.

position of the Slave button

• Visualization of configuration using PC tools

that avoid

erroneous ID registration

• Visualization of signal quality in display and usage environments using PC tools

• 8 outputs with focus on decentralized control

• Self-power generation eliminates battery replacement and enhances safety and energy saving in the Slave button

• Slave button's shape allows easy use of buttons

Release planned for April 2018

System Components

Display board or PT, etc.

Master Unit A2W-R@@-WC1

PLC, etc.

Transistor output

Up to 8 points

The Slave button transmits an operation

signal to the Master Unit, and the Master

Unit responds a reception confirmation

signal to the Slave button.

Wireless

Slave button A2W-T@-WC1 (Up to 8 points)
