Multi-channel programmable DC power supplies
•
Dual and triple output
models with two 30V/1.5A
(45W) channels and a 6V/5A
(30W) channel on the triple
output supply
•
All channels are independently
controlled and have isolated
outputs for maximum flexibility
•
All channels have remote
sensing to ensure that
programmed voltage is
accurately applied to the load
•
Two 30V channels can be
combined either in series to
double output voltage or in
parallel to double output current
•
0.03% basic voltage output
accuracy and 0.1% current
accuracy ensure quality test data
•
Low noise, linear regulation with
<3mVpp ripple and noise
•
Voltage and current outputs
for all channels are displayed
simultaneously for easy
observation of each output state
•
Keypad entry allows fast, precise
entry of output values
•
USB interface standard on all
versions for remote control; “G”
versions include USB and GPIB
interfaces
The Models 2220, 2220G, 2230, and 2230G Multi-Channel Programmable DC Power Supplies com-
bine two and three channels of output power to cost-effectively characterize and test a wide range of
devices, circuit boards, modules, and products that require more than one power source. The Models
2220-30-1 and 2220G-30-1 supplies provide two channels, with each channel capable of outputting
up to 30V and up to 1.5A. The Models 2230-30-1 and 2230G-30-1 include two 30V/1.5A channels
and add a 6V channel with up to 5A output for powering digital circuits. These multi-channel power
supplies offer an excellent combination of performance, versatility, and ease of use to maximize the
information from characterization or test as quickly and as easily as possible. They perform as effec-
tively in automated test systems as they do in manual instrument configurations. The USB interface is
standard on all models; the “G” versions add a GPIB interface.
Independent and Isolated Outputs
Since each channel in these multi-channel power supplies is completely independent and isolated
from each other, these power supplies can be used to provide power to two circuits that are optically
isolated or transformer-isolated from each other and have different reference points. Their isolated
channels eliminate the need for a second power supply to power one of the isolated circuits.
Additionally, each channel can be independent-
ly controlled, so channels can be individually
turned on and turned off at any time. Thus,
these power supplies can be used to power up a
circuit with multiple voltage levels (such as a dig-
ital circuit) that must be turned on in a specified
time sequence. Furthermore, the timer capability
allows you to set up unattended tests that turn
off the channels after a programmed time inter-
val to protect a device-under-test (DUT) from
potential damage due to the continuous appli-
cation of power beyond a recommended time
interval. Both isolated and independent chan-
nels provide excellent versatility and flexibility to
address a wide range of test applications.

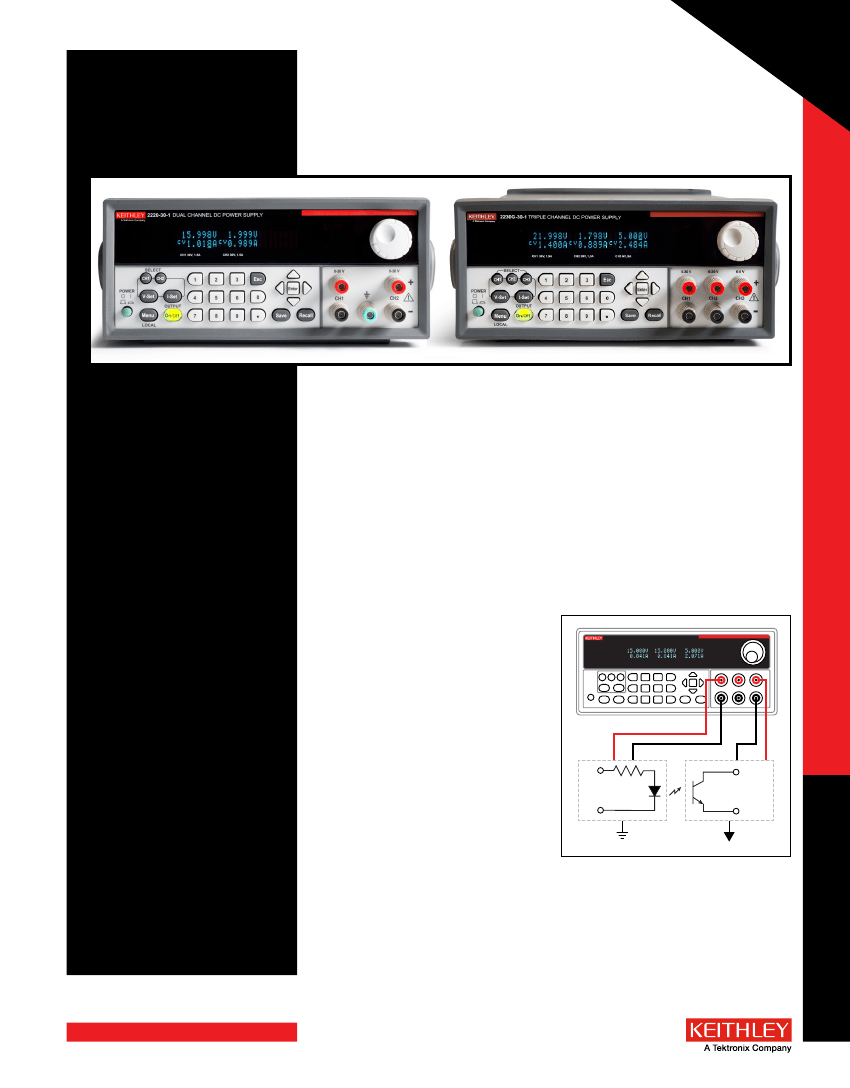

2230-30-1
TRIPLE CHANNEL DC POWER SUPPLY
CH1 0-30V
CH2 0-30V
CH3 0-5.5V
+
–
–
+
1.888.KEITHLEY
(U.S. only)
www.keithley.com
A Greater Measure of Confidence
DC POWER SUPPLIES
Accurate Power Delivery to the Load
With basic voltage setting accuracy and voltage
Power two isolated circuits with isolated
readback accuracy of 0.03% for each channel,
output channels.
the exact voltage programmed for any channel
is applied at the output terminals. Plus, the

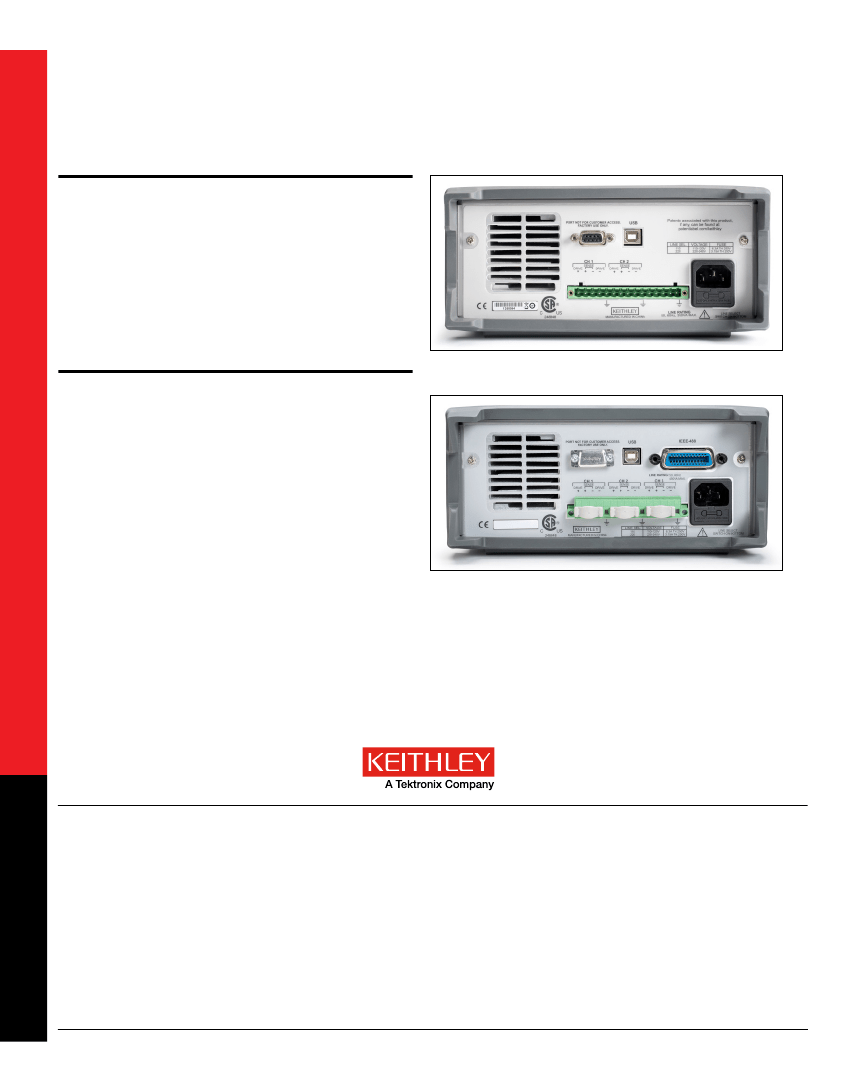

rear panel connections for each channel include remote sense terminals that compensate for voltage
drops in the power supply leads. This helps to ensure that the correct voltage is delivered accurately
to the load terminals of the DUT. Many other multi-channel power supplies do not provide remote
sensing, which reduces overall system accuracy.
Multi-channel programmable DC power supplies
2220, 2220G,
2230, 2230G
Ordering Information
2220-30-1
Programmable Dual Channel
DC Power Supply
2220G-30-1
Programmable Dual Channel DC
Power Supply with GPIB Interface
2220J-30-1
Programmable Dual Channel
DC Power Supply for Japan
2220GJ-30-1
Programmable Dual Channel
DC Power Supply with GPIB
Interface for Japan
2230-30-1
Programmable Triple
Channel DC Power Supply
2230G-30-1
Programmable Triple Channel DC
Power Supply with GPIB Interface
2230J-30-1
Programmable Triple Channel
DC Power Supply for Japan
2230GJ-30-1
Programmable Triple Channel
DC Power Supply with GPIB
Interface for Japan
Multi-Channel USB and USB/GPIB
Programmable DC Power Supplies
Great accuracy is not limited to voltage; the basic current setting and readback accuracy is 0.1%, pro-
viding high quality load current measurements. Also, with less than 3mV p-p noise, the power applied
to the DUT’s load terminals is both accurate and of high quality.
Excellent accuracy, remote sensing, and a wide power output range make the Series 2200 Multi-
Channel DC Power Supplies essential test instruments both on the bench and in test systems. Their
ability to generate a wide range of output power and measure a wide range of load currents is
supported with:
•
•
•
•
Maximum output power of 45W on the 30V channels
Maximum output power of 30W on the 6V channel
Voltage setting and reading resolution of 1mV
Current setting and reading resolution of 1mA
Multi-channel programmable DC power supplies
Configure the Channels to Double Output Voltage or
Current or Create Bipolar Power Supplies
The two 30V channels can be combined if more than 30V or more than 1.5A is required. The two
30V outputs can be wired in series to enable an output of 60V with a maximum current output of
1.5A or can be wired in parallel to get up to 3A at 30V. In series or parallel configurations, the power
supplies offer special display modes that indicate the actual voltage and current for the combined
pair. It’s also easy to wire the outputs to make a ±30V bipolar supply and to maintain a user-defined
ratio between the two outputs when using Tracking mode. These modes of operation extend the per-
formance of the power supplies, while the display shows the actual outputs in these special modes to
avoid any confusion or incorrect interpretation of the displayed data.
Accessories Supplied
CS-1655-15 Rear Panel Mating
Connector for Models 2220 and 2230
Multi-Channel DC Power Supplies
Documentation and Driver CD
Channel 1
Power
Supply
Channel 1
+
–
0-30V
0-30V
0-6V
+
V
1
Device
Under
Test
+
Device
Under
Test
–
V+
Load
(Device, Circuit,
Module)
V–
–
+
0-30V
0-30V
0-6V
+
V
2
V
1
+ V
2
–
ACCeSSORIeS AVAILABLe
CS-1655-15
Rear Panel Mating Connector for
Series 2200 Power Supplies
Model Number
JUMPER
(example: 2230-30-1 JUMPER)
Shorting Jumper for CS-1655-15 Connector
4299-7
Universal Fixed Rack Mount Kit
RMU2U
Fixed Rack Mount Kit
386-7598-xx
RMU2U Rack Mount Cosmetic Filler Panel
USB-1-1
USB Cable
KPCI-488LPA
IEEE-488.2 Interface Board for the PCI Bus
7007-05
Double Shielded Premium IEEE-488 Interface
Cables, 0.5m (1.6 ft)
7007-1
Double Shielded Premium IEEE-488 Interface
Cables, 1m (3.2 ft)
7007-2
Double Shielded Premium IEEE-488 Interface
Cables, 2m (6.5 ft)
7007-3
Double Shielded Premium IEEE-488 Interface
Cables, 3m (10 ft)
7007-4
Double Shielded Premium IEEE-488 Interface
Cables, 4m (13 ft)
Channel 2
(relative to
circuit common)
Power
Supply
Channel 2
–
Device
Under
Test
V
1
I
1
+ I
2
V
2
Device
Under
Test
Use the two 30V channels to test a bipolar
integrated circuit or a bipolar module over its
specified voltage operating range.
Combine two channels in series to output up
to 60V or combine two channels in parallel
to output up to 3A. The Model 2220/2230
display will show the combined value.
DC POWER SUPPLIES
Convenience Features Help Get Results More Quickly
These multi-channel power supplies offer a number of features that return results quickly and easily:
• A rotary knob, with user-selectable step size, makes it easy to check circuit response to changing
voltage or current. Alternatively, a direct-entry numeric keypad can be used to simplify setting
precise voltage and current values.
• Each channel has its own readout on the display. The voltage and current being delivered to each
channel are visible at a glance. A bright vacuum fluorescent display provides excellent readability
at a distance, at an angle, or under dim lighting conditions.
1.888.KEITHLEY
(U.S. only)
www.keithley.com
A Greater Measure of Confidence
Multi-channel programmable DC power supplies
2220, 2220G,
2230, 2230G
• To save time when repeating tests, instrument
settings can be saved in one of 30 internal
memory locations by simply pressing the Save
button. To recall that setting, just push the
Recall button, and choose the desired setup.
Protection for your Device-Under-Test
These multi-channel power supplies include
maximum voltage settings that prevent volt-
age from being accidentally adjusted above
user-specified limits. Independent outputs allow
a different limit to be specified for each output
channel. With the numeric keypad, a current
limit can be quickly and precisely specified
before a test is started. In addition, a user-
definable password allows the front panel
to be locked to prevent unwanted adjustment
during critical tests.
easy Test Automation
Two interface choices are available to enable
PC control from a user-preferred programming
environment. A USB TMC-compliant device port
is included on all versions of these power sup-
plies. The “G” versions add the GPIB interface
for the flexibility of either USB or GPIB control.
LabView and IVI drivers are provided to facilitate
instrument control, data logging, and analysis.
With these drivers, the power supplies can be
controlled from most commercially-available
software packages such as MatLab. Thus, these
power supplies can be controlled as a single unit
or as part of an automated test system.
APPLICATIOnS
Typical applications include:
• Circuit design
• electrial engineering student labs
• Materials research
• Automated test
Multi-Channel USB and USB/GPIB
Programmable DC Power Supplies
Specifications
2230-30-1, 2230J-30-1,
2230G-30-1, 2230GJ-30-1
DC OUTPUT RATInG
Voltage
Current
MAxIMUM POWeR
LOAD ReGULATIOn
Voltage
Current
LIne ReGULATIOn
Voltage
Current
RIPPLe AnD nOISe
Voltage (7MHz)
Current (20MHz)
SeTTInG ReSOLUTIOn
Voltage
Current
< 1 mV rms
< 3 mV p-p
< 5 mA rms
1 mV
1 mA
< 1 mV rms
< 3 mV p-p
< 5 mA rms
1 mV
1 mA
± 0.03% + 10 mV
± 0.1% + 5 mA
1 mV
1 mA
± 0.03% + 10 mV
± 0.1% + 5 mA
< 1 mV rms
< 3 mV p-p
< 6 mA rms
1 mV
1 mA
± 0.03% + 10 mV
± 0.1% + 5 mA
1 mV
1 mA
± 0.03% + 10 mV
± 0.1% + 5 mA
< 1 mV rms
< 3 mV p-p
< 5 mA rms
1 mV
1 mA
± 0.03% + 10 mV
± 0.1% + 5 mA
1 mV
1 mA
± 0.03% + 10 mV
± 0.1% + 5 mA
< 1 mV rms
< 3 mV p-p
< 5 mA rms
1 mV
1 mA
± 0.03% + 10 mV
± 0.1% + 5 mA
1 mV
1 mA
± 0.03% + 10 mV
± 0.1% + 5 mA
< 0.01% + 3 mV
< 0.01% + 3 mA
< 0.01% + 3 mV
< 0.1% + 3 mA
0 to 30 V
0 to 1.5 A
0 to 30 V
0 to 1.5 A
120 W
< 0.01% + 3 mV
< 0.01% + 3 mA
< 0.01% + 3 mV
< 0.1% + 3 mA
0 to 6 V
0 to 5 A
2220-30-1, 2220J-30-1,
2220G-30-1, 2220GJ-30-1
0 to 30 V
0 to 1.5 A
90 W
0 to 30 V
0 to 1.5 A
Models 2220 and 2230 specifications
< 0.01% + 3 mV
< 0.1% + 3 mA
< 0.01% + 3 mV
< 0.1% + 3 mA
< 0.01% + 3 mV
< 0.1% + 3 mA
SeTTInG ACCURACy
± 0.03% + 10 mV
Voltage
± 0.1% + 5 mA
Current
MeTeR ReSOLUTIOn
Voltage
Current
MeTeR ACCURACy
Voltage
Current
1 mV
1 mA
± 0.03% + 10 mV
± 0.1% + 5 mA
SeRVICeS AVAILABLe
1 additional year of factory warranty
2 additional years of factory warranty
beyond the standard 3-year warranty
C/Model
Number-3Y-STD
3 calibrations within 3 years of purchase
C/Model
Number-3Y-DATA
3 (ANSI-Z540-1 compliant)
calibrations within 3 years of purchase
C/Model
Number-5Y-STD
5 calibrations within 5 years of purchase
C/Model
Number-5Y-DATA
5 (ANSI-Z540-1 compliant)
calibrations within 5 years of purchase
Model Number*-EW
Model Number-5Y-EW
* Replace “Model Number” with a power supply model number.
For example: if the 2230GJ-30-1 is selected, then the part
number for the -EW, one year of additional warranty option,
is
2230GJ-30-1-EW.
NOTE: the “J” versions truncate the “A” in DATA.
Example: C/222GJ-30-1-3Y-dat
1.888.KEITHLEY
(U.S. only)
www.keithley.com
A Greater Measure of Confidence
DC POWER SUPPLIES
IsolatIon VoltagE, oUtPUt to CHassIs:
Any output
can be floated up to 240V (DC + peak AC with AC limited to
a maximum of 3Vpk-pk and a maximum frequency of 60Hz)
relative to earth ground terminal.
IsolatIon VoltagE, oUtPUt to oUtPUt:
Any output can
be floated up to 240V (DC + peak AC with AC limited to a
maximum of 3Vpk-pk and a maximum frequency of 60Hz)
relative to any other output terminal.
VoltagE tRansIEnt REsPonsE sEttlIng tIME, load
CHangE (typical):
<150ms to within 75mV following
a change from 0.1A to 1A.
VoltagE tRansIEnt REsPonsE sEttlIng tIME, sEttIng
CHangE, RIsIng (typical):
<150ms to within 75mV
following a change from 1V to 11V into a 10W resistor (Ch. 1,
2); from 0.4V to 4V into a 4W resistor (ch. 3.)
VoltagE tRansIEnt REsPonsE sEttlIng tIME, sEttIng
CHangE, FallIng (typical):
<150ms to within 75mV
following a change from 11V to 1V into a 10W resistor (Ch. 1,
2); from 0.4V to 4V into a 4W resistor (ch. 3.)
dIsPlay:
Vacuum fluorescent display.
MEMoRy:
30 setup memories.
tRaCkIng and CoMbInatIon ModEs:
tracking Mode:
Maintains the ratio on the two 30V output
channels that is present when the control is activated.
Combination V1+V2 series Mode:
Deliver up to 60 V when
CH1 and CH2 are wired in series. Meter reads back com-
bined voltage.
Combination I1+12 Parallel Mode:
Deliver up to 3 A when
CH1 and CH2 are wired in parallel. Meter reads back
combined current.
REaR
PanEl ConnECtIons:
USB Device Port, Type B
connector, USBTMC compatible. 2220G and 2230G versions
include a GPIB interface, IEEE-488.2 compliant.
POWeR SOURCe
aC InPUt:
Non-“J” versions: Switchable between 120VAC or
240VAC, nominal (different fuse required for each voltage).
“J” Versions: 100VAC, nominal.
FREQUEnCy:
50/60Hz
PowER ConsUMPtIon:
Dual Channel Versions: 350VA.
Triple Channel Versions: 450VA.
PHySICAL CHARACTeRISTICS
PRotECtIVE boots and HandlE InstallEd:
Height:
105.3mm (4.15 in.)
width:
241.8mm (9.52 in.)
depth:
384.0mm (15.12 in.)
PRotECtIVE boots and HandlE REMoVEd:
Height:
90.7mm (3.57 in.)
width:
217.2mm (8.55 in.)
depth:
361.6mm (14.24 in.)
nEt wEIgHt:
2220-30-1:
8.2 kg (18 lb.)
2230-30-1:
8.5 kg (19 lb.)
sHIPPIng wEIgHt:
2220-30-1:
11 kg (24 lb.)
2230-30-1:
11 kg (24 lb.)
Models 2220 and 2230 specifications
< 0.01% + 3 mV
< 0.01% + 3 mA
< 0.01% + 3 mV
< 0.01% + 3 mA
< 0.01% + 3 mV
< 0.01% + 3 mA
2220, 2220G,
2230, 2230G
enVIROnMenTAL AnD SAFeTy
Temperature:
Multi-Channel USB and USB/GPIB
Programmable DC Power Supplies
Models 2220 and 2230 specifications
eLeCTROMAGneTIC COMPATIBILITy
European Union: Complies with European Union Low Voltage Directive.
Australia: EMC Framework, demonstrated per Emission Standard AS/NZS 2064 (Industrial,
Scientific, and Medical Equipment).
Model 2220-30-1 rear panel. The Model 2220G-30-1 adds a GPIB
connector.
Model 2230G-30-1 rear panel. The Model 2230-30-1 does not have the
GPIB connector.
Specifications are subject to change without notice. All Keithley trademarks and trade names are the property of Keithley Instruments, Inc.
All other trademarks and trade names are the property of their respective companies.
A Greater Measure of Confidence
KEITHLEY INSTRUMENTS, INC.
■
28775 AURORA RD.
■
CLEVELAND, OH 44139-1891
■
440-248-0400
■
Fax: 440-248-6168
■
1-888-KEITHLEY
■
www.keithley.com
DC POWER SUPPLIES
BENELUX
+31-40-267-5506
www.keithley.nl
BRAZIL
55-11-4058-0229
www.keithley.com
CHINA
86-10-8447-5556
www.keithley.com.cn
FRANCE
+33-01-69-86-83-60
www.keithley.fr
GERMANY
+49-89-84-93-07-40
www.keithley.de
INDIA
080-30792600
www.keithley.in
ITALY
+39-049-762-3950
www.keithley.it
JAPAN
81-120-441-046
www.keithley.jp
KOREA
82-2-6917-5000
www.keithley.co.kr
MALAYSIA
60-4-643-9679
www.keithley.com
MEXICO
52-55-5424-7907
www.keithley.com
RUSSIA
+7-495-664-7564
www.keithley.ru
SINGAPORE
01-800-8255-2835
www.keithley.com.sg
TAIWAN
886-3-572-9077
www.keithley.com.tw
UNITED KINGDOM
+44-1344-39-2450
www.keithley.co.uk
For further information on how to purchase or to locate a sales partner please visit
www.keithley.com/company/buy
© Copyright 2013 Keithley Instruments, Inc.
Printed in the U.S.A
No. 3187
11.15.13
Models 2220 and 2230 specifications
operating:
0° to +40°C.
storage:
–20° to +70°C.
Relative Humidity (non-condensing):
Operating: 5% to 95% relative humidity at up to +40°C.
Storage: 5% to 95% relative humidity at up to +40°C. 5% to 60% RH above +40°C up to +70°C, non
condensing.
Altitude:
Operating: Up to 2000m.
Storage: Up to 4000m.
Safety:
European Union: Complies with European Union EMC Directive.
USA: Nationally recognized testing laboratory listing UL61010-1-2004.
Canada: CAN/CSA C22.2 No. 61010-1 2004.
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Keithley Instruments, Inc.
:
2230-30-1 2220-30-1 2230G-30-1 2220G-30-1 2230G-30-3 2230G-60-3 2230G-30-6
京公网安备 11010802033920号
EEWORLD
