RSCS 8/9 single pk of 1: DescriptionRing Metric Connector; CategoryThe connector Circular connector The annular metric connector; File Size934KB，3 Pages; ManufacturerLumberg Automation; Websitehttp://www.lumberg-automation.com; Environmental Compliance

Download Datasheet Parametric Compare View All

RSCS 8/9 single pk of 1 Overview

Ring Metric Connector

RSCS 8/9 single pk of 1 Parametric

Parameter Name	Attribute value
Maker	Lumberg Automation
Product Category	Ring Metric Connector
Number of contacts	8 Contact
Thread size	M12
Termination type	Screw
Current rating	2 A
Voltage rating	36 V
IP rating	IP67
Subject type	Straight
Description/Function	Field Attachable Connectors
diameter	20 mm
Type	Male
Shell material	GD-Zinc Aluminium (GD-Gadolinium)
Contact type	Pin (Male)

Preview

Download Datasheet

View All

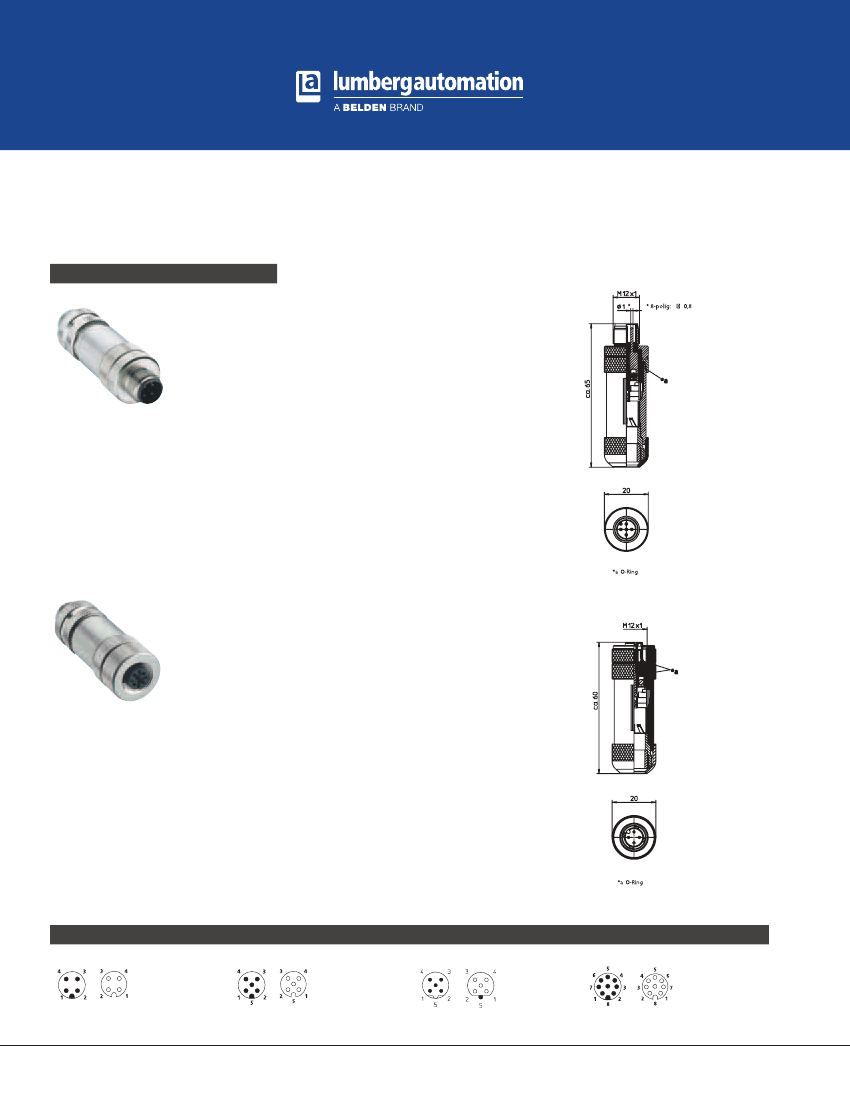

M12 Field Attachable Connectors

RSCS | 0976 PMC 101 | RKCS | 0976 PFC 101

Male, 4-, 5-, and 8-Pole

Field attachable connector, M12 male connector

4-, 5-, and 8-pole with threaded joint,

shieldable, assembling with screw terminals.

– 0976 PMC 101: 5 poles, B coding, especially

suitable for Profibus signal cable 0975 254

000/... M –

RSCS | 0976 PMC 101

Female, 4-, 5-, and 8-Pole

Field attachable connector, M12 female

connector 4-, 5-, and 8-pole with threaded

joint, shieldable, assembling with screw

terminals.

– 0976 PFC 101: 5 poles, B coding, especially

suitable for Profibus signal cable 0975 254

000/... M –

RKCS | 0976 PFC 101

Pin Assignments

Face Views / M12, Male / Female

4 pole

5 pole

5 pole B coding

8 pole

320

1.800.Belden1 |

1-717-217-2299

www.lumberg-automationusa.com
