KUSBX-SMT-CS2-BTR: DescriptionUSB connectorTOP MNT USB 3.1 C 2R BLK INSL GLD FLASH; CategoryThe connector The USB connector; File Size650KB，2 Pages; ManufacturerKycon; Environmental Compliance

Download Datasheet Parametric Compare View All

KUSBX-SMT-CS2-BTR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KUSBX-SMT-CS2-BTR	-	-	View	Buy Now

KUSBX-SMT-CS2-BTR Overview

USB connectorTOP MNT USB 3.1 C 2R BLK INSL GLD FLASH

KUSBX-SMT-CS2-BTR Parametric

Parameter Name	Attribute value
Maker	Kycon
Product Category	USB connector
product	USB Type C Connectors
Type	Female
standard	USB 3.1 Gen 2
Termination type	SMD/SMT
Number of contacts	24 Contact
Number of ports	1 Port
Current rating	3 A
Installation angle	Right Angle
Installation style	SMD/SMT
IP rating	-
Encapsulation	Cut Tape
Encapsulation	Reel
Contact plating	Gold
type	Type C
Voltage rating	100 V
Contact material	Copper Alloy
Flammability rating	UL 94 V-0
Insulator color	Black
Shell plating	Nickel
Insulation resistance	100 MOhms
Maximum operating temperature	+ 85 C
Minimum operating temperature	- 30 C
Factory packaging quantity	900

Preview

Download Datasheet

View All

2D Drawing

Solder Profile

Certificate of Origin

IGES

CofC RoHS Compliant

Check Stock

STEP

CofC REACH Compliant

Request a Sample

3D PDF

UL Plastic File

Send Us An Email

Generated Part Number

KUSBX-SMT-CS2-B30TR

Part Number Builder

KUSBX-SMT

CS2

Type

B

Insulator

Color

30

Plating

TR

Packaging

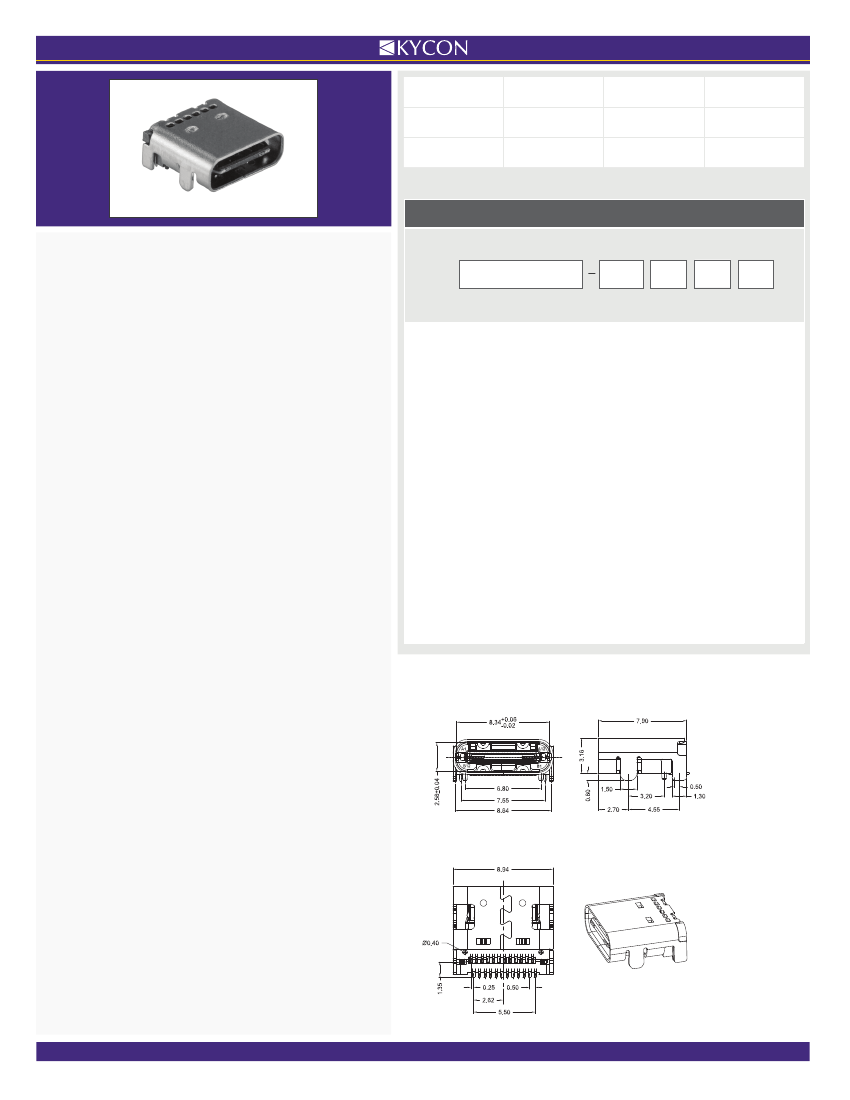

UNIVERSAL SERIAL BUS:

KUSBX-SMT Series

USB Type C Top Mount - Dual Row SMT Contacts

Product Features

USB Version 3.1 - Gen2 (10Gbps)

Dual Row SMT Contacts with Through Hole Shield Tabs

Series

KUSBX-SMT -

USB Top Mount - Dual Row Contacts

Type

CS2 -

C Type

Insulator Color Option

B -

Black

W -

White

Performance Specifications

Materials and Finish

Insulator

High Temperature, UL94V-0 Rated,

Color Black, White avilable with mins

Contact Material:

Copper Alloy

Plating:

Gold

30µ"

plated on both Contact Area and on Solder Tails.

Shield:

Stainless Steel, Min. 50µ" Nickel Plated

Plating Option

30

-

30µ" Gold Plating

Packaging

TR

- Tape and Reel

Electrical Characteristics

Rated Voltage:

100V AC

Current Rating

VBUS Pins, GND Pins : 3A

VCONN 1.25A

Other Pins 0.25A

Contact Resistance

40 milliohms Max.

Insulation Resistance

100 Megohms Min.

Contact Kycon for more options

KUSBX-SMT

Dimensions in mm

Dielectric Withstanding Voltage

100V AC RMS For 1 Minute

Mechanical Characteristics:

Insertion Force:

5N- 20N

Extraction

Force:

8N - 20N

Durability

10000 Mating Cycles Min.

Operating Temperature:

-30°C to +85°C

Phone: +1.408.494.0330

l

Fax: +1.408.494.0325

l

WWW.KYCON.COM

l

0417
