DF63-2P-7.92DSA datasheet, PDF

Datasheet> All Categories > The connector> The power connector> The power to the board> DF63-2P-7.92DSA

DF63-2P-7.92DSA: DescriptionPower to board; CategoryThe connector The power connector The power to the board; File Size824KB，9 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DF63-2P-7.92DSA Overview

Power to board

DF63-2P-7.92DSA Parametric

Parameter Name	Attribute value
Maker	Hirose
Product Category	power to board
Shipping restrictions	Mouser does not currently sell this product.
series	DF63
Factory packaging quantity	100

Preview

Download Datasheet

View All

15A 3.96mm pitch Wire-to-Board Connectors for Internal Power Supply

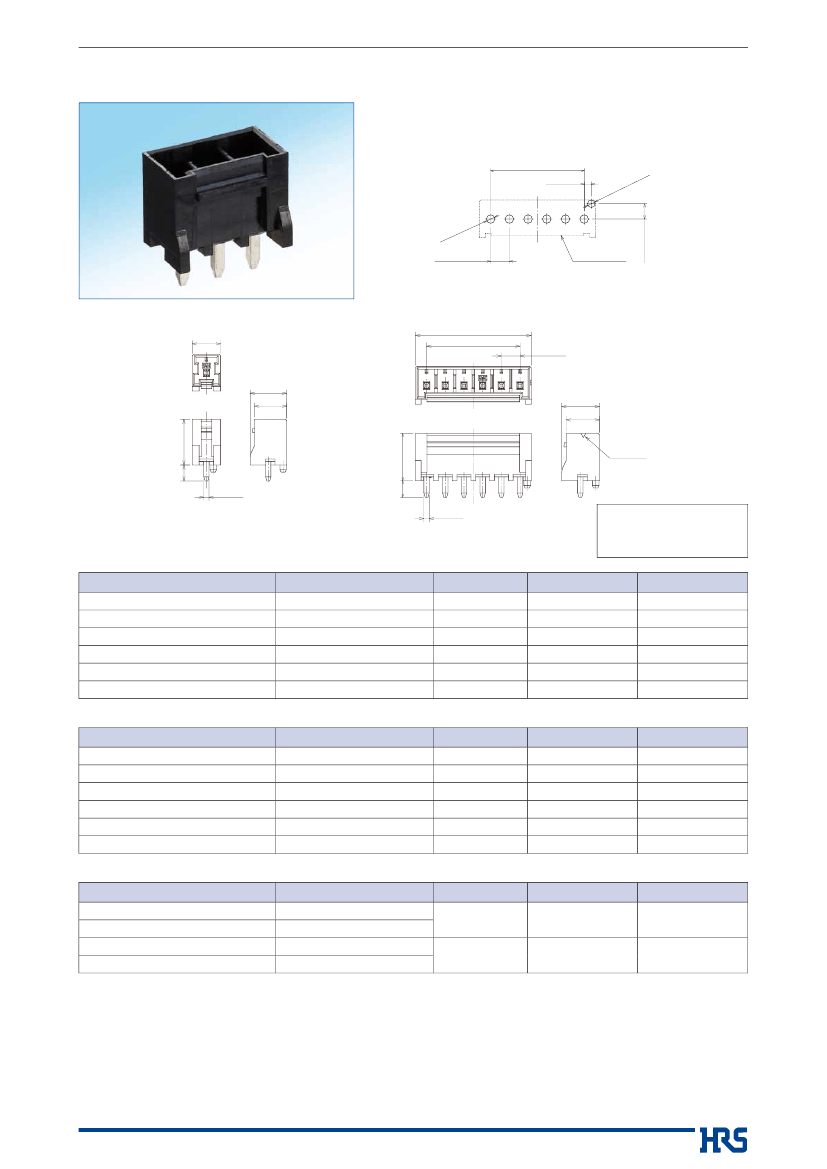

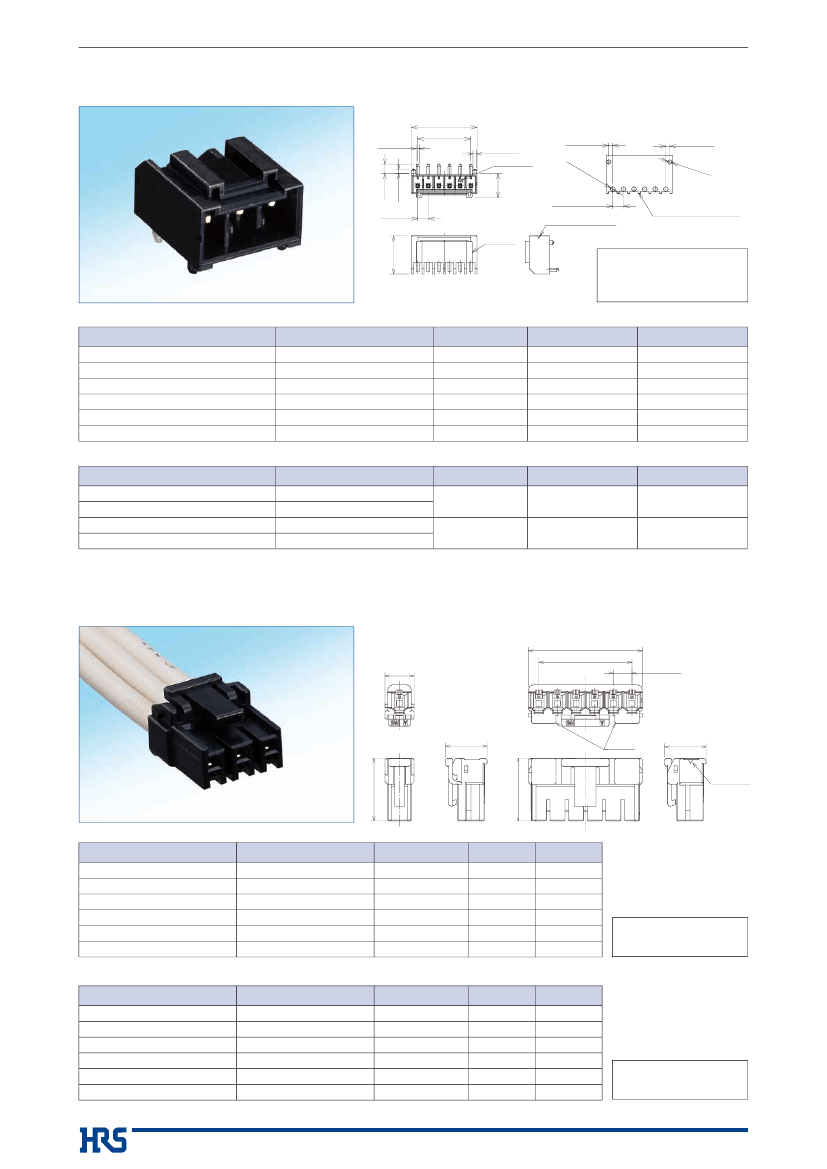

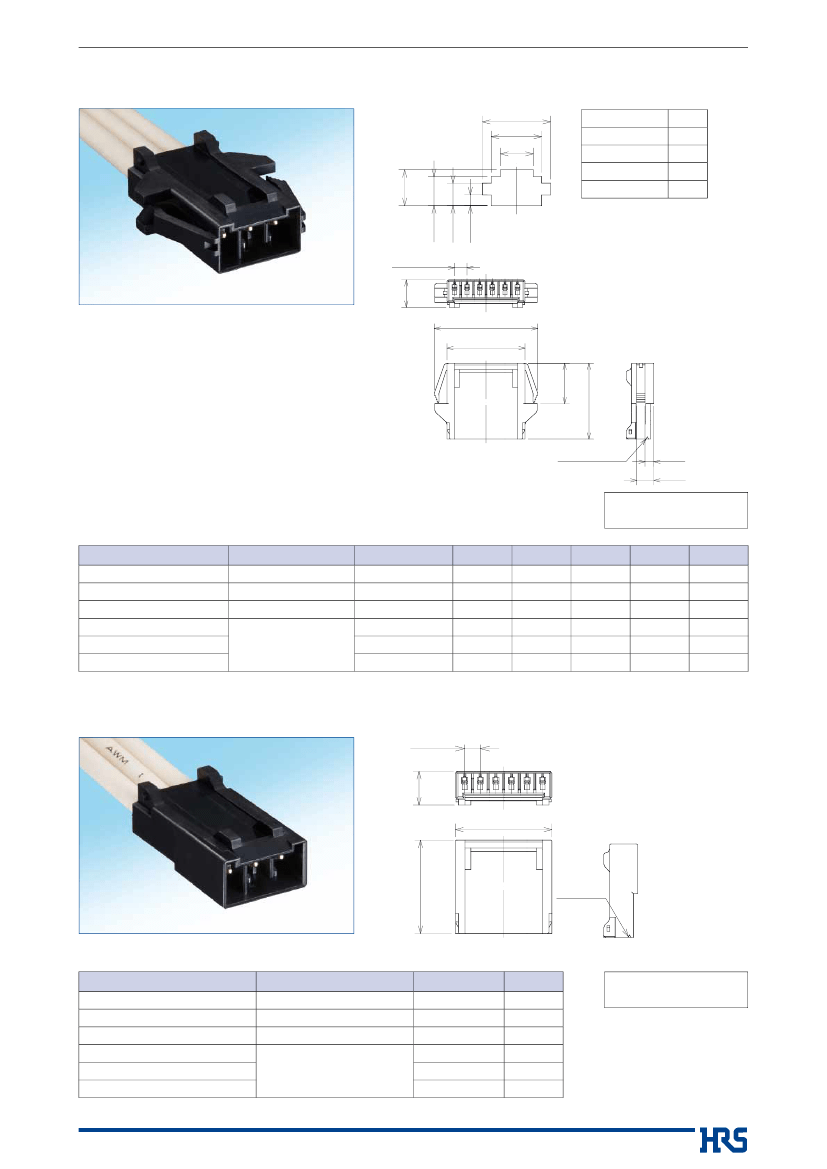

DF63 Series

(UL, C-UL, TÜV, Listed)

Unique locking

mechanism is

contained inside

the header

Socket and header

design avoids

short-circuit between

adjacent contacts.

Guide keys

prevent incorrect

insertion

Guide pins

temporarily hold

and assure proper

orientation of the

connector.

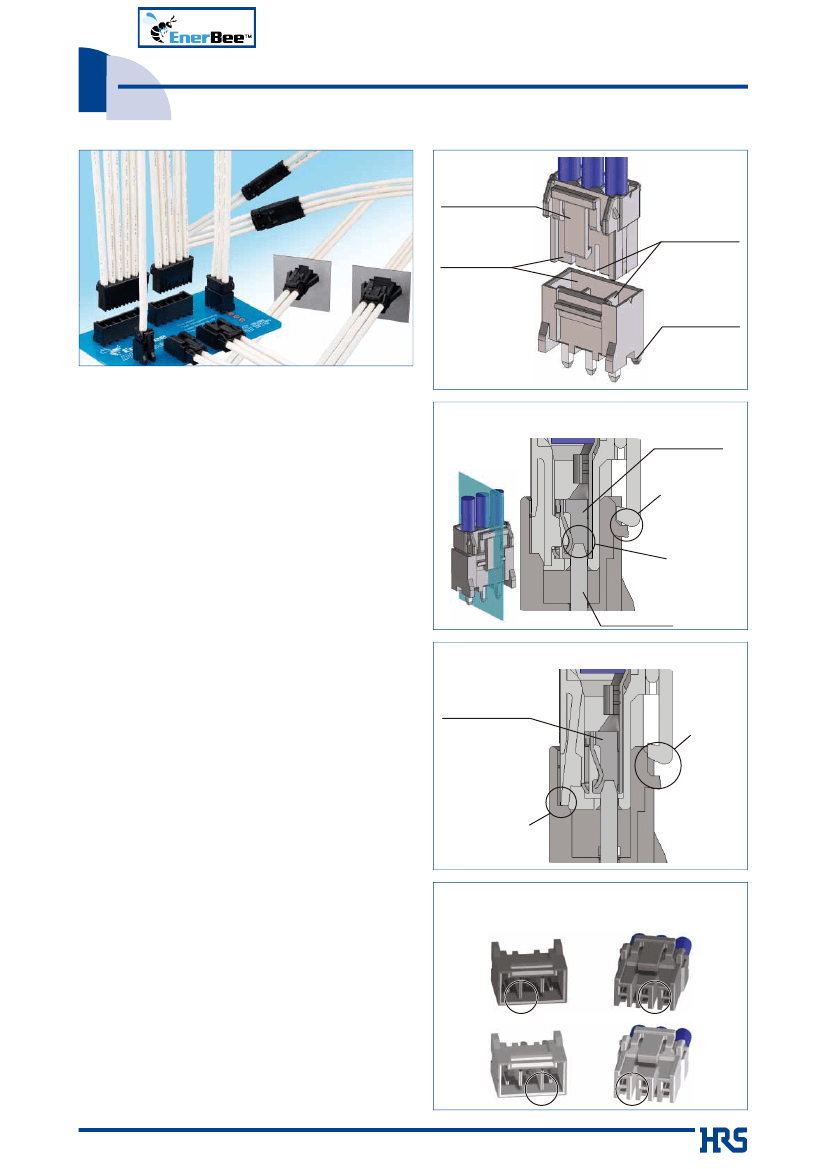

■Features

1. Rated for up to 15A

DF63 has the capacity to handle a max of 15A when

using 16 AWG wire.

(Please refer to the chart for the rated current in other pin counts.)

Fig.1

Lock structure

［

−

Crimp contact

Lock portions of the

plug and the header

start to engage.

→

2. Secure mating and clear tactile click

The locking mechanism delivers a clear and tactile

click, which prevents incomplete mating. (Fig.2)

→

3. Prevents incomplete insertion of the crimp contact

A structure to prevent incomplete insertion of the

crimp contacts is provided. (Fig.3)

No contact yet

4. Prevents incorrect mating

A mechanism has been added to prevent reverse

mating and incorrect mating between different number

of positions. (Fig.4)

Header contact

Fig.2

Prevention of insufficient insertion of the crimp contact

Crimp contact

(insufficiently inserted)

5. Reverse mounting prevention to PCB

The pin header is equipped with a guide post to

prevent reverse insertion on the PCB. (Fig.1)

6. Molded lance design

The lance is actually part of the housing instead of being a part

of the terminal. This prevents tangled wires during assembly.

Lock does

not work.

7. Short-circuit prevention

The wall structure between the contacts helps to isolate the

contacts and prevents short circuits between contacts. (Fig.1)

8. Suitable for potting

Capable of being potted, up to 5mm.

Lance and header

protection mechanism

meet.

Fig.3

9. Solder crack prevention

Glass-reinforced resin is used on the pin header to

prevent solder cracks due to thermal contraction.

Keying options are available to prevent incorrect connections

due to the use of multiple connectors on the same board.

■Standard

type (color : black)

10. Glow Wire compliance (Compliant with IEC 60695-2-11)

＊

Keying options were provided to prevent incorrect connections.

Keying options prevent incorrect connections due to the use of multiple

connectors on the same board. When using identical pin counts, two

versions are available with different keying options.(Fig.4)

■R-type

(color : white)

＊

Supports 7.92mm pitch

Also supports 7.92mm pitch with 2 or 3 pos. without pins

Note 1 :

means the product will be available upon request.

Please contact Hirose representative.

Fig.4

2017.1e

DF63-2P-7.92DSA Related Products

	DF63-2P-7.92DSA	DF63R-2S-3.96C	DF63R-3S-3.96C	DF63-6P-3.96DS	DF63A-3EP-3.96C	DF63R-3P-7.92DSA(01)
Description	Power to board	Power to board	Power to board	Power to board	Power to board	Power to board
Maker	Hirose	Hirose	Hirose	Hirose	Hirose	Hirose
Product Category	power to board	power to board	power to board	power to board	power to board	power to board
series	DF63	DF63	DF63	DF63	DF63	DF63
Factory packaging quantity	100	100	100	100	100	100
