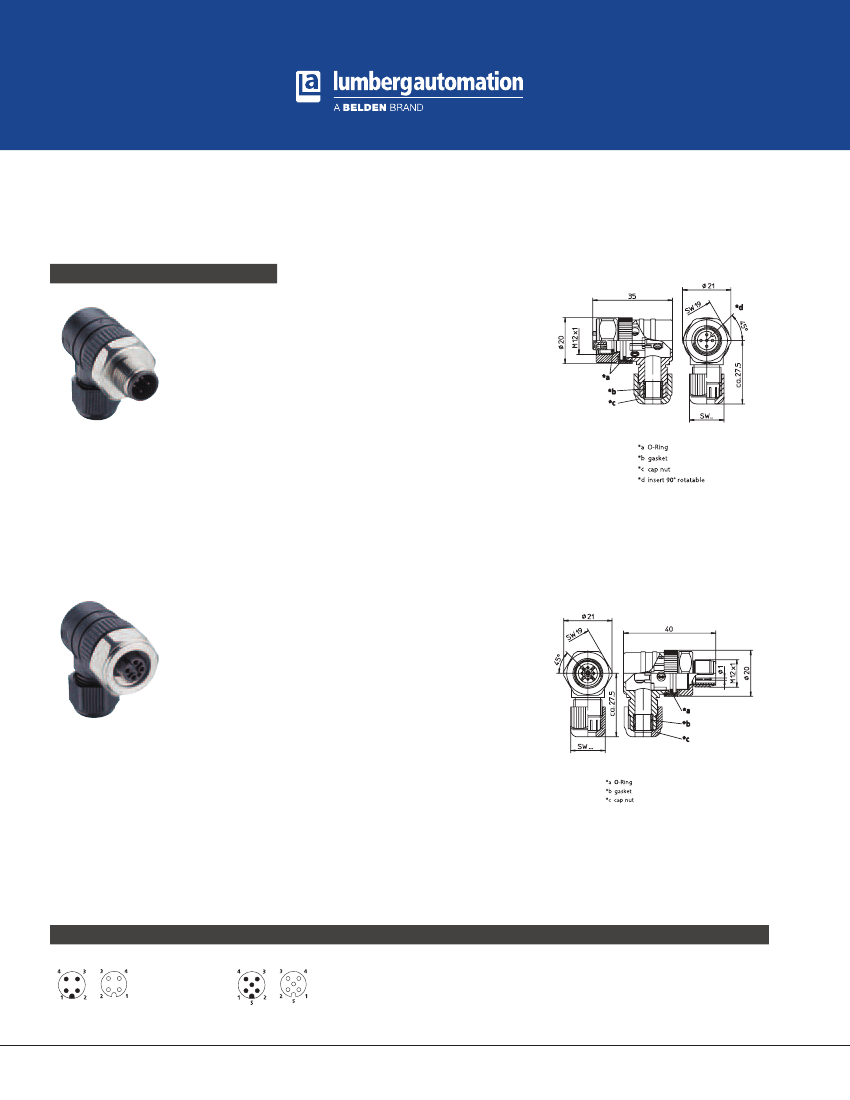

M12 Field Attachable Connectors (Stainless Steel Hardware)
RSCWN | RKCWN
Male, 4- and 5-Pole (90°)
Field attachable connector, M12 male right
angle connector, 4- and 5-pole with stainless
steel hexagon threaded joint, assembling with
screw terminals.
– especially designed for use in food
processing equipment –
RSCWN
Female, 4- and 5-Pole
Field attachable connector, M12 female right
angle connector, 4- and 5-pole with stainless
steel hexagon threaded joint, assembling with
screw terminals.
– especially designed for use in food
processing equipment –
RKCWN
Pin Assignments
Face Views / M12, Male / Female
4 pole
5 pole
314
1.800.Belden1 |
1-717-217-2299
www.lumberg-automationusa.com
www.lumberg-automationusa.com
Field Attachable
Connectors
Be Certain with Belden
M12 Field Attachable Connectors (Stainless Steel Hardware)
RSCWN | RKCWN
Technical Data
Environmental
Degree of protection
Operating temperature range
Mechanical
Housing / Molded body
Insert
Contact
Receptacle shell
O-ring
Mode of connection
Connectable conductor
Electrical
Contact resistance
Nominal current at 40°C
Nominal voltage
Rated voltage
Test voltage
Insulation resistance
Pollution degree
IP 67 / NEMA 6P
-25°C (-13°F) / +85°C (+185°F)
PBT
PBT
CuZn, pre-coppered, CuSnZn
8-poles pre-nickeled, gold-plated
stainless steel
FKM
Screw terminals
4–5 poles max. 0.75 mm
2
8 poles max. 0.50 mm
2
≤
5 mΩ
4–5 poles 4 A
8 poles 2 A
4 poles 240 V
5 poles 60 V
8 poles 30 V
4 poles 250 V
5 poles 63 V
8 poles 36 V
4 poles 2.0 kV eff. / 60 s
5 poles 1.5 kV eff. / 60 s
8 poles 0.9 kV eff. / 60 s
> 109
Ω
3
Part Number
Male
RSCWN 4/7
RSCWN 4/9
RSCWN 5/7
RSCWN 5/9
Female
RKCWN 4/7
RKCWN 4/9
RKCWN 5/7
RKCWN 5/9
Pins
Cable Diameter Range
Characteristics
Field Attachable
Connectors
4
Ø
3.0-6.5 mm /SW 15
Ø
4.0-8.0 mm /SW 19
5
Ø
3.0-6.5 mm /SW 15
Ø
4.0-8.0 mm /SW 19
www.lumberg-automationusa.com
1.800.Belden1 |
www.lumberg-automationusa.com
1-717-217-2299
315
