I/O Card Interface Connectors
NX Series
3. ESD Secure
Thermoplastic molded covers assures insulation
of the connections and shields from ESD.
4. Secure Latching
A built-in latch assures correct and secure
mating of connector.
5. Reliable Conductor Termination
Reliable termination of conductors
accomplished by proven IDC termination.
is
6. Sequential Mating
The 0.8mm pitch contacts are engaging the
corresponding parts in sequence: Ground-
Power & Signal
7. Rugged Construction

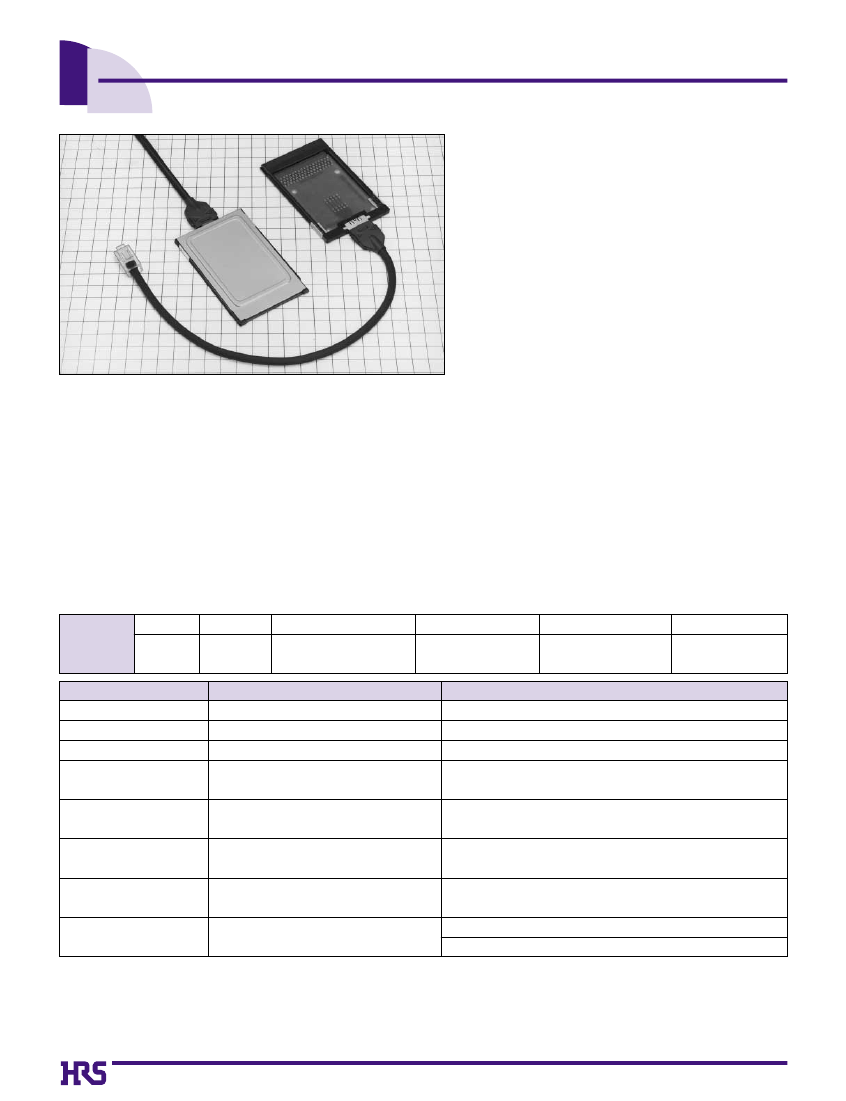

sFeatures
1. Low Profile
Protorusion above the PCB board is only 2.9mm, and the
connectors can be mounted to type I and II I/O cards.
Securely attached to the board with optional
screws.
8. Card Frame Kits
Available as a separate part number.
2. EMI/RFI protection
Full metal shielding. Shield connects first, ahead of
contacts.
sApplications
Used with I/O cards, portable personal computers,and the external connections of various small-sized portable
terminals.
sSpecifications
Current rating 0.5 A
Ratings
Voltage rating 125 V AC
Item
1. Insulation resistance
2. Withstanding voltage
3. Contact resistance
4. Vibration
250 Mø min.
No flashover or insulation breakdown.
40 mø max.
No electrical discontinuity of 10µs or
more
Operating temperature
Operating humidity
-30ç to +70ç (Note 1) Storage temperature range -10ç to +60ç (Note 2)
95% R.H. or less
(No condensation)
Specification
100 V DC
300 V AC / 1 minute
100 mA
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm,
2 hours in each of the 3 directions.
96 hours at temperature of 60ç and humidity of 90% to 95%
-55ç, 30 min./15 to 30ç, within 5 min/85ç, 30 min
/15
to 35ç, within 5 min, for 5 cycles
3000 cycles
Storage humidity range
Conditions
40 to 70% (Note 2)
5. Humidity (Steady state)
Insulation resistance: 100 Mø min.
6. Temperature cycle
7. Durability
(Insertion/withdrawal)
8. Resistance to
Soldering heat
No damage, cracks, or parts looseness.
60 mø max.
No deformation of components affecting
Reflow: At the recommended temperature profile
performance.
Manual soldering: 300ç for 3 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature
Range and Humidity range covers non- conducting condition of installed connectors in storage, shipment or during
transportation.
B8
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
sMaterials
Item
Insulator
Receptacle Contacts
Body
Plug unit
Plug cover
Insulator
Contacts
Cover
Body
Material
Thermoplastic Compound
Copper alloy
Stain less
Thermoplastic Compound
Copper alloy
Thermoplastic Compound
Stainless Steel
Black
Selective gold plating
Solder Plating
Black
Black
-
Finish
Remarks
UL94V-0
----
----
----
----
UL94V-0
B
Applicable Cable
I/O cable
Conductor size
Jacket outer
diameter
Cable style
AWG # 28(7/0.127)
0.58mm
UL20276 and
UL2789
0.62mm
UL2990
Selective gold plating UL94V-0

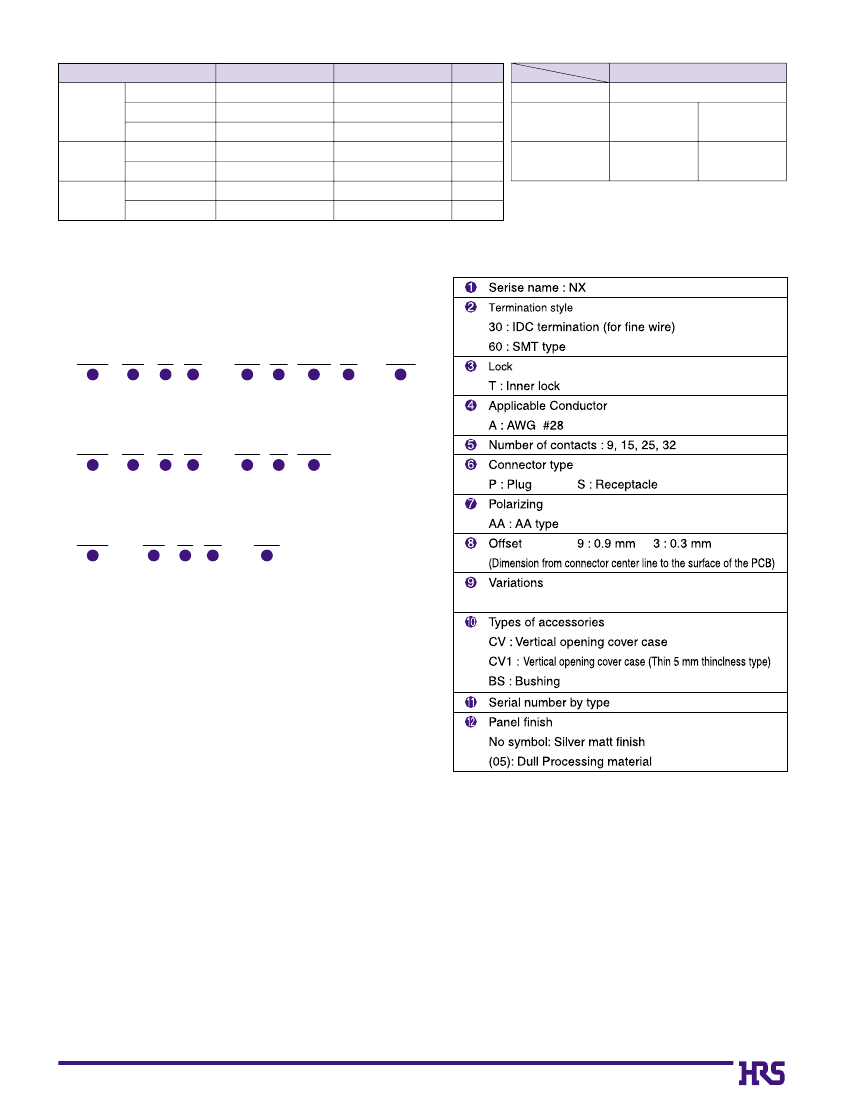

sOrdering
Information
qReceptacle
NX 60 T A - 15 S AA 9 - SP
1
2
3
11
5
6
7
8
9
qPlug
NX 30 T A - 15 P AA
1
2
3
4
5
6
7
qPlug
Covers
NX - 15 T A - CV
1
5
3
11
10
SP : Compliant mounting bracket (for cards use)
B9
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

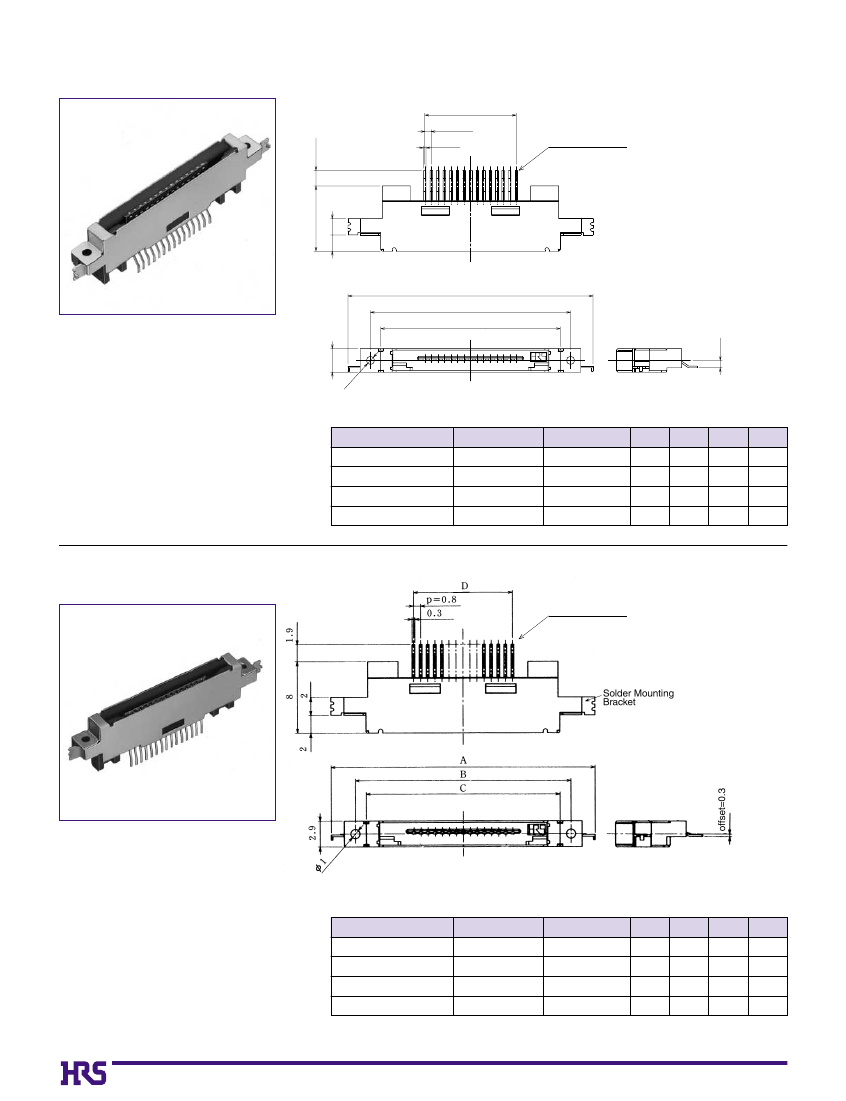

sPlug
units
NX30TA-15PAA
CL234-0005-8
Contact No.1
Unit: mm
Part Number
NX30TA-09PAA
NX30TA-15PAA
NX30TA-25PAA
NX30TA-32PAA
CL No.
234-0002-0
234-0005-8
234-0008-6
234-0024-2
Number of contacts
09
15
25
32
A
14.6
19.4
27.4
33.0
B
14.1
18.9
26.9
32.5

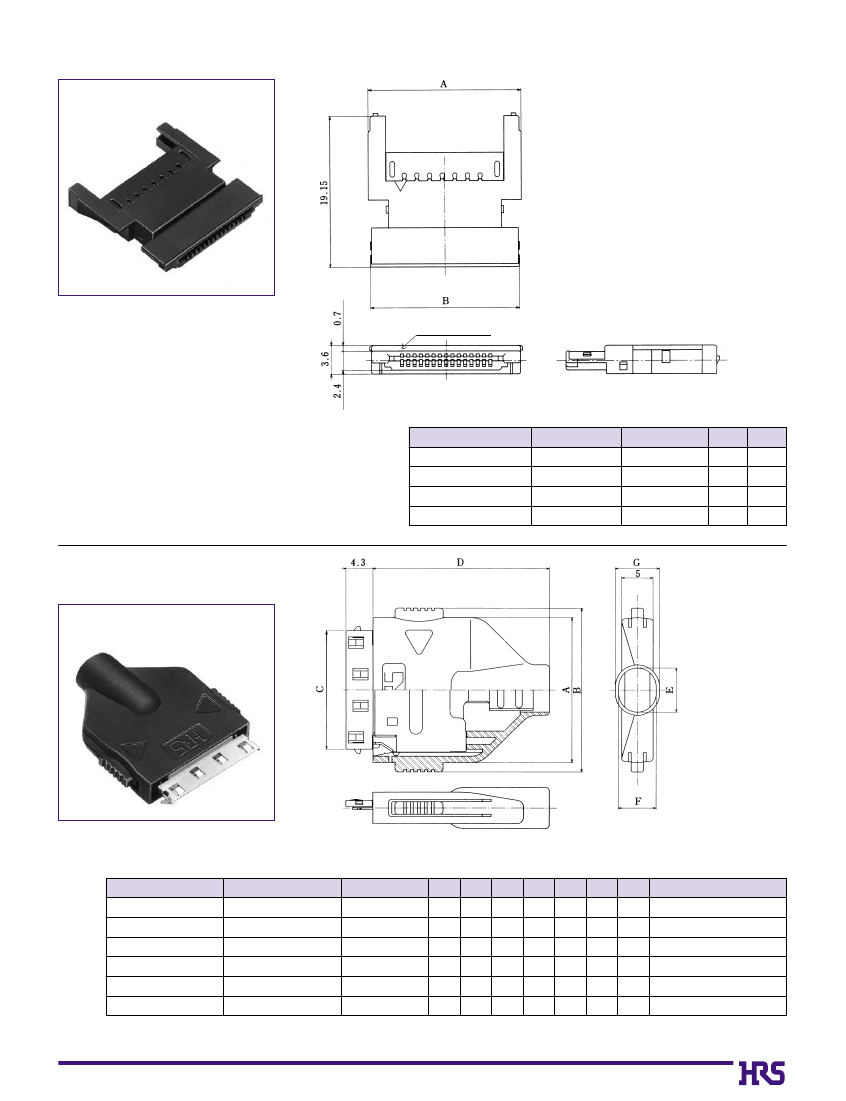

sPlug
Covers
NX-15T-CV
CL234-0006-0
Unit: mm
Part Number
NX-09T-CV
NX-15T-CV
NX-15T-CV1
NX-25T-CV
NX-25TA-CV1
CL No.
234-0003-2
234-0006-0
234-0017-7
234-0009-9
234-0039-0
Number of contacts
09
15
15
25
25
A
B
C
D
E
F
G
6.5
7.0
5.0
7.5
5.0
Outer diameter of cable
less than
Ø
5.5
less than
Ø
6.0
less than
Ø
4.0
less than
Ø
6.5
less than
Ø
6.5(Note)
18.2 21.2 14.0 26
06.0
5.5
23.0 26.0 18.8 28
07.0
6.0
23.0 26.0 18.8 28
05.0
4.0
31.0 34.0 26.8 30
08.0
6.5
31.0 34.0 26.8 32 13.0 4.0
NX-32TA-CV1
234-0025-5
32
36.6 40.6 32.4 32 16.2 4.2 5.0
less than
Ø
7.5(Note)
Note: Designed for flat cable use. when round cable is used, clamp portion shall be made flat, adjusting exclusive use bushing.
B11
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
sBushing
NX-32T-BS
CL234-0055-6
Part Number
NX-25T-BS
NX-32T-BS
CL No.
234-0074-0
234-0055-6
Number of contacts
25
32

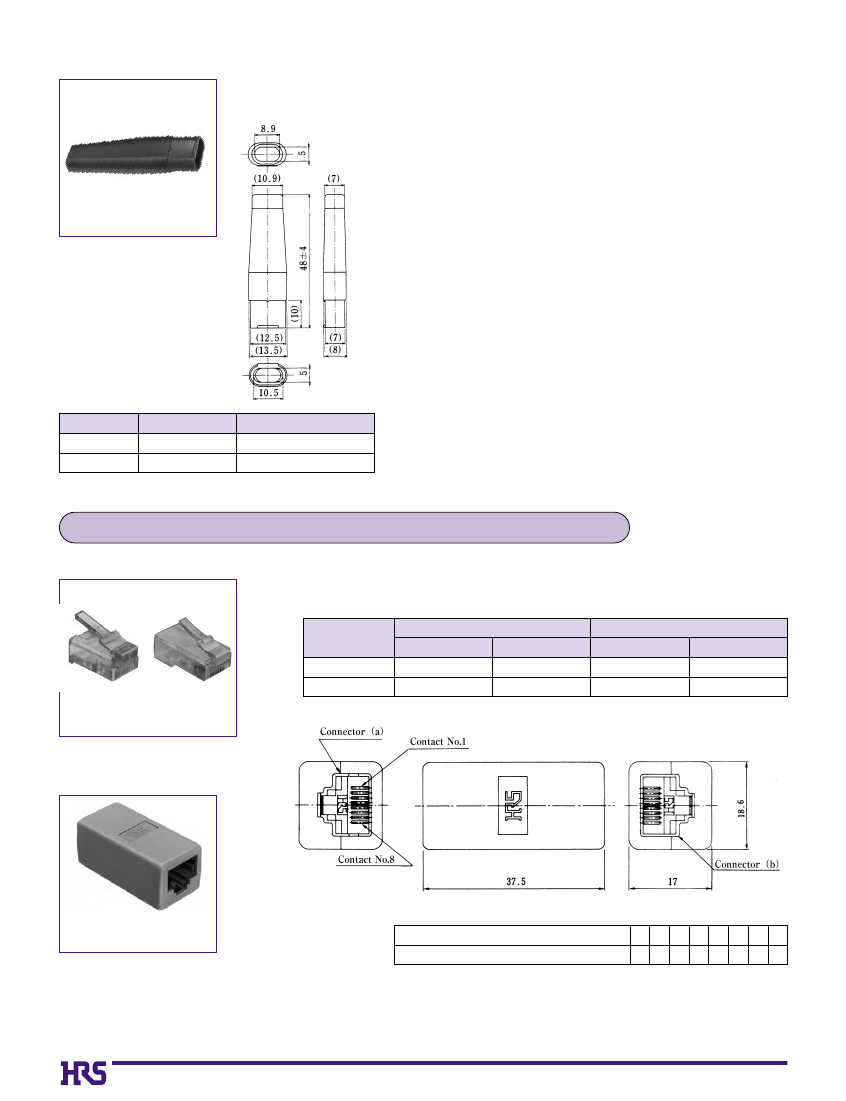

Applications for Connections of I/O Card Connectors
sModular
plugs for round cable (AWG #28) connector
No. of contacts
6
8
6 Contacts
8 Contacts
Modular Plug
Manual Wiring Tool
Part Number
TM30P-66P
TM30P-88P
CL No.
222-2684-2
222-2685-5
Part Number
TC1-TM30P-66P
TC1-TM30P-88P
CL No.
250-0145-6
250-0146-9
s8-Contact
adapter
Lead Number Reference Table
TM5RL-88-JJ
CL222-3798-7
Connector (a) Contact number TM5RL-88 1
Connector (b) Contact number TM5RL-88 1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
B12
