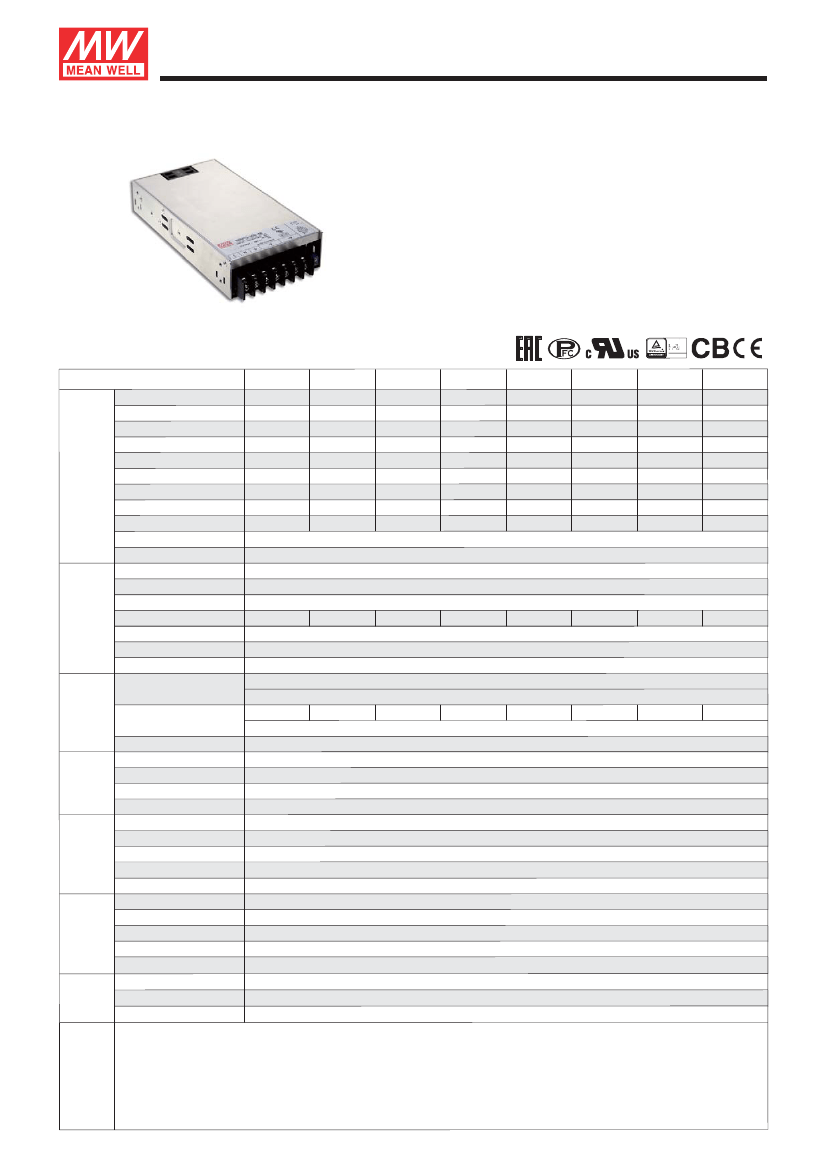

300W Single Output with PFC Function
HRPG-300
series
■
Features :
Universal AC input / Full range
Built-in active PFC function, PF>0.95
High efficiency up to 89%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in constant current limiting circuit
1U low profile 41mm
Built-in cooling fan ON-OFF control
Built-in DC OK signal
Built-in remote ON-OFF control
Standby 5V@0.3A
Built-in remote sense function
No load power consumption<0.5W (Note.6)
5 years warranty
Bauar t gepruft
Sicherheit
egel ma ge
od
o s
be wac
g
SPECIFICATION
MODEL
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER
OUTPUT
HRPG-300-3.3 HRPG-300-5
3.3V
60A
0 ~ 60A
198W
5V
60A
0 ~ 60A
300W
90mVp-p
4.3 ~ 5.8V
±2.0%
±0.5%
±1.0%
7.5V
40A
0 ~ 40A
300W
100mVp-p
6.8 ~ 9V
±2.0%
±0.5%
±1.0%
12V
27A
0 ~ 27A
324W
120mVp-p
10.2 ~ 13.8V
±1.0%
±0.3%
±0.5%
15V
22A
0 ~ 22A
330W
150mVp-p
13.5 ~ 18V
±1.0%
±0.3%
±0.5%
24V
14A
0 ~ 14A
336W
150mVp-p
21.6 ~ 28.8V
±1.0%
±0.2%
±0.5%
36V
9A
0 ~ 9A
324W
www. tuv.com
ID 2000000000
HRPG-300-7.5 HRPG-300-12 HRPG-300-15 HRPG-300-24 HRPG-300-36 HRPG-300-48
48V
7A
0 ~ 7A
336W
250mVp-p
40.8 ~ 55.2V
±1.0%
±0.2%
±0.5%
RIPPLE & NOISE (max.)
Note.2
80mVp-p
VOLTAGE ADJ. RANGE
2.8 ~ 3.8V
VOLTAGE TOLERANCE
Note.3
±2.5%
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
±0.5%
±1.0%
16ms/230VAC
250mVp-p
28.8 ~ 39.6V
±1.0%
±0.2%
±0.5%
1000ms, 50ms/230VAC
2500ms, 50ms/115VAC at full load
16ms/115VAC at full load
120 ~ 370VDC
PF>0.99/115VAC at full load
86%
88%
88%
87%
88%
89%
1.8A/230VAC
70A/230VAC
VOLTAGE RANGE
Note.5
85 ~ 264VAC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
INPUT
EFFICIENCY (Typ.)
AC CURRENT (Typ.)
INRUSH CURRENT (Typ.)
LEAKAGE CURRENT
OVERLOAD
PROTECTION
OVER VOLTAGE
OVER TEMPERATURE
5V STANDBY
FUNCTION
DC OK SIGNAL
REMOTE CONTROL
FAN CONTROL (Typ.)
WORKING TEMP.
PF>0.95/230VAC
80%
3.5A/115VAC
35A/115VAC
<1.2mA / 240VAC
82%
105 ~ 135% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
6 ~ 7V
9.4 ~ 10.9V
14.4 ~ 16.8V 18.8 ~ 21.8V 30 ~ 34.8V
41.4 ~ 48.6V
3.96 ~ 4.62V
Protection type : Shut down o/p voltage, re-power on to recover
Shut down o/p voltage, recovers automatically after temperature goes down
5VSB : 5V@0.3A ; tolerance
±
5%, ripple : 50mVp-p(max.)
PSU turns on : 3.3 ~ 5.6V ; PSU turns off : 0 ~ 1V
RC+ / RC-: 4 ~ 10V or open = power on ; 0 ~ 0.8V or short = power off
Load 35
±
15% or RTH2
≧
50
℃
Fan on
-40 ~ +70
℃
(Refer to "Derating Curve")
57.6 ~ 67.2V
20 ~ 90% RH non-condensing
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
-40 ~ +85
℃
, 10 ~ 95% RH
TEMP. COEFFICIENT
±
0.03%/
℃
(0 ~ 50
℃
)
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY STANDARDS
SAFETY & WITHSTAND VOLTAGE
ISOLATION RESISTANCE
EMC
(Note 4)
EMC EMISSION
EMC IMMUNITY
MTBF
OTHERS
NOTE
UL60950-1, TUV EN60950-1,
EAC TP TC 004
approved
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25
℃
/ 70% RH
Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2,
heavy industry level, criteria A, EAC TP TC 020
176K hrs min.
MIL-HDBK-217F (25
℃
)
199*105*41mm (L*W*H)
0.95Kg;15pcs/15.3Kg/0.69CUFT
DIMENSION
PACKING
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25
℃
of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on
a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to
perform these EMC tests, please refer to EMI testing of component power supplies. (as available on http://www.meanwell.com)
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. No load power consumption<0.5W when RC- & RC+ (CN100 pin4,6) 0 ~ 0.8V or short.
7. The ambient temperature derating of 3.5
℃
/1000m with fanless models and of 5
℃
/1000m with fan models for operating altitude higher than 2000m(6500ft)
.
File Name:HRPG-300-SPEC 2018-01-12
300W Single Output with PFC Function
Function Description of CN100
HRPG-300
series
Pin No. Function Description
Auxiliary voltage output, 4.75~5.25V, reference to pin 2(AUXG). The maximum load current is 0.3A. This output is not controlled by the
1
AUX "remote ON/OFF control".
2
3
4
5
6
7
8
AUXG
DC-OK
RC-
GND
RC+
+S
-S
Auxiliary voltage output ground. The signal return is isolated from the output terminals (+V & -V).
DC-OK signal is a TTL level signal, referenced to pin5(DC-OK GND). High when PSU turns on.
Remote control ground.
This pin connects to the negative terminal(-V). Return for DC-OK signal output.
Turns the output on and off by electrical or dry contact between pin 4 (RC-), Short: Power OFF, Open: Power ON.
Positive sensing. The +S signal should be connected to the positive terminal of the load. The +S and -S leads should be twisted in pair to
minimize noise pick-up effect. The maximum line drop compensation is 0.5V.
Negative sensing. The -S signal should be connected to the negative terminal of the load. The -S and +S leads should be twisted in pair to
minimize noise pick-up effect. The maximum line drop compensation is 0.5V.
Function Manual
1.Remote Sense
The remote sensing compensates voltage drop on the
load wiring up to 0.5V.
CN100
1
AUX DC-OK GND
RC+
+S
-S
7
8
1
2
3
4
5
6
7 CN100
2 AUXG RC-
1 7
2 8
-S
(Pin8)
LOAD
-
+
+S
(Pin7)
Sense lines should
be twisted in pairs
Fig 1.1
2.DC-OK Signal
DC-OK signal is a TTL level signal. High when PSU turns on.
Between DC-OK(pin3) and GND(pin5)
3.3 ~ 5.6V
0 ~ 1V
Output Status
ON
OFF
CN100
1
2
3
4
5
6
7 CN100
1
AUX DC-OK GND
RC+
+S
-S
7
8
2 AUXG RC-
1 7
2 8
Fig 2.1
File Name:HRPG-300-SPEC 2018-01-12
