LSEM-120-03.0-F-DV-A-N-K-TR datasheet, PDF

Datasheet> All Categories > The connector> The connector> LSEM-120-03.0-F-DV-A-N-K-TR

LSEM-120-03.0-F-DV-A-N-K-TR: DescriptionBoard-to-Board and Mezzanine Connectors 0.80 mm Razor Beam High-Speed Hermaphroditic Terminal/Socket Strip; CategoryThe connector The connector; File Size957KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

LSEM-120-03.0-F-DV-A-N-K-TR Overview

Board-to-Board and Mezzanine Connectors 0.80 mm Razor Beam High-Speed Hermaphroditic Terminal/Socket Strip

LSEM-120-03.0-F-DV-A-N-K-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	8 weeks
Other features	RAZOR BEAM
Board mount options	PEG
body width	0.196 inch
subject depth	0.175 inch
body length	0.803 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL (50)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	HERMAPHRODITIC
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.032 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.7084 mm
Plating thickness	3u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1.8 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	40
Base Number Matches	1

Preview

Download Datasheet

View All

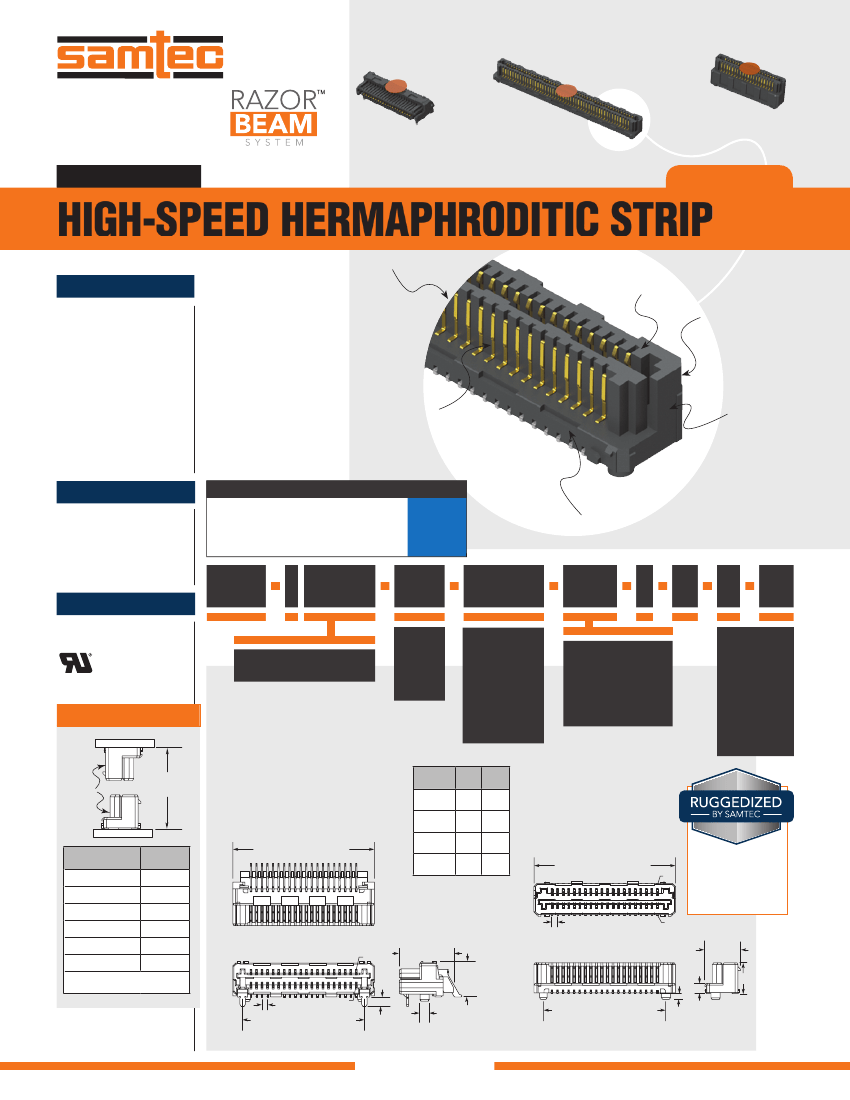

F-219

LSEM–150–03.0–F–DV–A–N–K–TR

LSEM–120–06.0–F–DV–A–N–K–TR

LSEM–120–01–L–DH–A–N–K–TR

(0.80 mm) .0315"

LSEM SERIES

HIGH-SPEED HERMAPHRODITIC STRIP

High-speed/High-density

SPECIFICATIONS

For complete specifications and

recommended PCB layouts see

www.samtec.com?LSEM

Insulator Material:

Black Liquid Crystal Polymer

Contact Material:

Phosphor Bronze

Plating:

Au or Sn over

50 µ" (1.27 µm) Ni

Current Rating:

1.8 A per pin

(2 adjacent pins powered)

Operating Temp Range:

-55 °C to +125 °C

RoHS Compliant:

Yes

Mates with:

LSEM

Audible click when

properly mated

Self-mating

system can

reduce

inventory costs

Low cost

Blade &

Beam

contact

Mated height

variety/flexibility

PROCESSING

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0.10 mm) .004" max

Board Stacking:

For applications requiring two

or more connectors per board,

contact ipg@samtec.com

HIGH-SPEED CHANNEL PERFORMANCE

LSEM-DV/LSEM-DV @ 10 mm Mated Stack Height

Rating based on Samtec reference channel.

For full SI performance data visit Samtec.com

or contact SIG@samtec.com

G b p s

Slim

row-to-row

design

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

FILE NO. E111594

LSEM

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

PLATING

OPTION

TAIL

OPTION

–K

20, 30, 40, 50

= Gold flash

on contact,

Matte Tin on tail

–F

–L

= Vertical

–DV

APPLICATION

=10 µ" (0.25 µm)

Gold on contact,

Matte Tin on tail

= Right-angle

(Lead style –01 only)

–DH

= (5.50 mm)

.217" DIA

Polyimide

film Pick &

Place Pad

= Tape &

Reel

–TR

LSEM

MATED

HEIGHT

LEAD

STYLE

(-DH only)

(4.45)

.175

(5.45)

.215

(7.45)

.293

(1.50)

.059

(2.50)

.098

(4.50)

.177

–01

–03.0

LEAD STYLE

MATED

HEIGHT*

(6.00) .236

(7.00) .276

(8.00) .315

(9.00) .354

(10.00) .394

(12.00) .472

No. of positions x

(0.80) .0315 + (4.40) .173

–04.0

–06.0

–03.0 & –03.0

–03.0 & –04.0

–04.0 & –04.0

–03.0 & –06.0

–04.0 & –06.0

–06.0 & –06.0

No. of positions x

(0.80) .0315 + (4.40) .173

• High retention

contacts

• Audible click

when mated

• Shrouded

(0.80) .0315

(7.80) .307

(5.13)

.202

(0.80) .0315

No. of positions x

(0.80) .0315 + (1.70) .067

(4.98)

.196

*Processing conditions will

affect mated height.

No. of positions x

(0.80) .0315 + (1.70) .067

(0.85)

.033

Note:

Some lengths, styles and

options are non-standard,

non-returnable.

(1.40)

.055

(1.32)

.052

DIA

–DH

Due to technical progress, all designs, specifications and components are subject to change without notice.

–DV

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Samtec

LSEM-120-04.0-F-DV-A-N-K-TR LSEM-140-04.0-L-DV-A-N-K-TR LSEM-120-06.0-F-DV-A-N-K-TR LSEM-130-06.0-

L-DV-A-N-K-TR LSEM-150-03.0-L-DV-A-N-K-TR LSEM-150-04.0-L-DV-A-N-K-TR LSEM-120-06.0-L-DV-A-N-K-TR

LSEM-120-03.0-F-DV-A-N-K-TR LSEM-130-04.0-L-DV-A-N-K-TR LSEM-150-03.0-F-DV-A-N-K-TR LSEM-130-03.0-L-

DV-A-N-K-TR LSEM-130-06.0-F-DV-A-N-K-TR LSEM-120-01-L-DH-A-N-K-TR LSEM-120-04.0-L-DV-A-N-K-TR

LSEM-120-03.0-L-DV-A-N-K-TR LSEM-140-03.0-L-DV-A-N-K-TR LSEM-140-06.0-L-DV-A-N-K-TR LSEM-130-06.0-L-

DV-A-N-TR LSEM-130-01-L-DH-A-N-K-TR LSEM-130-04.0-F-DV-A-N-TR LSEM-140-03.0-F-DV-A-N-K-TR LSEM-

120-01-S-DH-A-N-K-TR LSEM-140-03.0-S-DV-A-S-K-TR LSEM-140-03.0-L-DV-A-N-TR LSEM-150-04.0-L-DV-A-N-TR

LSEM-150-06.0-F-DV-A-N-TR LSEM-020-06.0-L-DV-A LSEM-040-04.0-L-DV-A-N LSEM-040-04.0-L-DV-A-N-K-TR

LSEM-130-06.0-F-DV-A-N-TR LSEM-030-04.0-L-DV-A LSEM-050-03.0-L-DV-A-N LSEM-030-06.0-L-DV-A LSEM-

050-03.0-L-DV-A-N-K-TR LSEM-050-04.0-L-DV-A-N LSEM-120-06.0-F-DV-A-N-TR LSEM-030-03.0-L-DV-A-N-K-TR

LSEM-030-04.0-L-DV-A-N LSEM-030-04.0-L-DV-A-N-K-TR LSEM-050-04.0-L-DV-A LSEM-020-04.0-L-DV-A-N

LSEM-020-04.0-L-DV-A-N-K-TR LSEM-140-06.0-F-DV-A-N-TR LSEM-020-04.0-L-DV-A LSEM-040-03.0-L-DV-A-N-K-

TR LSEM-040-04.0-L-DV-A LSEM-140-01-F-DH-A-N-TR LSEM-120-03.0-L-DV-A-N-TR LSEM-140-03.0-F-DV-A-N-TR

LSEM-140-06.0-L-DV-A-N-TR LSEM-120-06.0-L-DV-A-N-TR LSEM-130-04.0-L-DV-A-N-TR LSEM-140-04.0-L-DV-A-

N-TR LSEM-150-04.0-F-DV-A-N-K-TR LSEM-150-06.0-L-DV-A-N-TR LSEM-020-06.0-L-DV-A-N-K-TR LSEM-020-

03.0-L-DV-A-N LSEM-030-03.0-L-DV-A-N LSEM-050-06.0-L-DV-A LSEM-020-03.0-L-DV-A LSEM-020-03.0-L-DV-A-

N-K-TR LSEM-040-03.0-L-DV-A LSEM-050-06.0-L-DV-A-N LSEM-030-06.0-L-DV-A-N-K-TR LSEM-040-03.0-L-DV-A-

N LSEM-050-06.0-L-DV-A-N-K-TR LSEM-140-01-F-DH-A-N-K-TR LSEM-120-01-F-DH-A-N-TR LSEM-130-03.0-F-DV-

A-N-TR LSEM-130-04.0-F-DV-A-N-K-TR LSEM-120-03.0-S-DV-A-S-K-TR LSEM-120-03.0-F-DV-A-N-TR LSEM-130-

01-F-DH-A-N-K-TR LSEM-150-03.0-L-DV-A-N-TR LSEM-150-06.0-L-DV-A-N-K-TR LSEM-120-04.0-L-DV-A-N-TR

LSEM-150-01-F-DH-A-N-K-TR LSEM-150-01-L-DH-A-N-K-TR LSEM-150-01-L-DH-A-N-TR LSEM-150-03.0-F-DV-A-N-

TR LSEM-030-03.0-L-DV-A LSEM-120-01-L-DH-A-N-TR LSEM-130-03.0-F-DV-A-N-K-TR LSEM-130-03.0-L-DV-A-N-

TR LSEM-140-04.0-F-DV-A-N-K-TR LSEM-140-04.0-F-DV-A-N-TR LSEM-150-06.0-F-DV-A-N-K-TR LSEM-020-06.0-

L-DV-A-N LSEM-030-06.0-L-DV-A-N LSEM-040-06.0-L-DV-A-N LSEM-050-03.0-L-DV-A LSEM-050-04.0-L-DV-A-N-K-

TR LSEM-120-01-F-DH-A-N-K-TR LSEM-130-01-L-DH-A-N-TR LSEM-140-01-L-DH-A-N-K-TR LSEM-140-06.0-F-DV-

A-N-K-TR LSEM-150-04.0-F-DV-A-N-TR LSEM-040-06.0-L-DV-A LSEM-040-06.0-L-DV-A-N-K-TR LSEM-120-04.0-F-

DV-A-N-TR
