SW-04-04-T-S-350-120 datasheet, PDF

Datasheet> All Categories > The connector> The power connector> The power to the board> SW-04-04-T-S-350-120

SW-04-04-T-S-350-120: DescriptionPower to board; CategoryThe connector The power connector The power to the board; File Size481KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

SW-04-04-T-S-350-120 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SW-04-04-T-S-350-120	-	-	View	Buy Now

SW-04-04-T-S-350-120 Overview

Power to board

SW-04-04-T-S-350-120 Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Product Category	power to board
Shipping restrictions	Mouser does not currently sell this product.
series	SW
Encapsulation	Bulk
Factory packaging quantity	1

Preview

Download Datasheet

View All

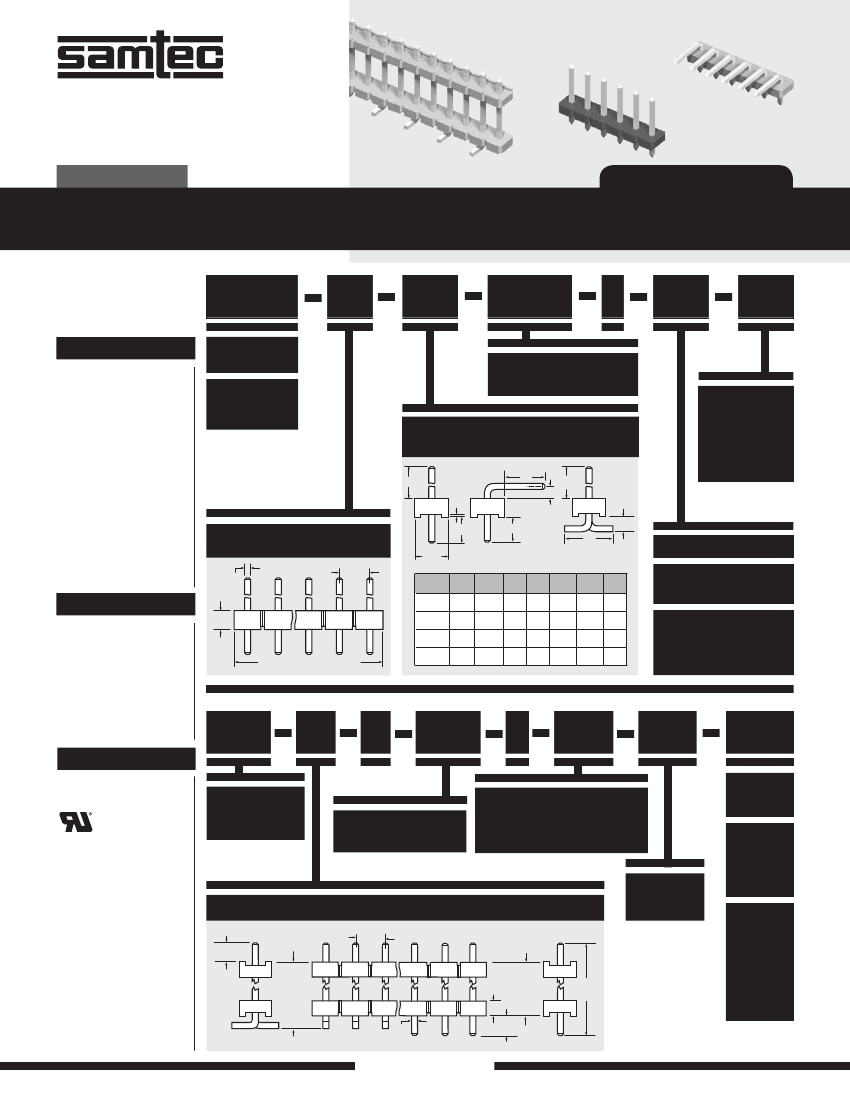

F-219 SUPPLEMENT

HFWS–06–02–T–S–RA

FWS–06–01–T–S

(5.08 mm) .200"

SW–10–04–T–S–350–150

FWS, HFWS, SW SERIES

POWER TERMINAL STRIP

FWS, HFWS Mates with:

PSS, HPF

SW Mates with:

PSS, HPF

TYPE

STRIP

NO.

PINS

LEAD

STYLE

PLATING

OPTION

TAIL

OPTION

OTHER

OPTION

SPECIFICATIONS

For complete specifications

see www.samtec.com?FWS

www.samtec.com?HFWS or

www.samtec.com?SW

Insulator Material:

Glass Filled

Polyester (FWS, SW-TH)

Liquid Crystal

Polymer (HFWS, SW-VS)

Terminal Material:

Phosphor Bronze

Plating:

Sn over 50 µ" (1.27 µm) Ni

Current Rating (FWS/PSS):

11.4 A per pin

(1 pin powered)

Operating Temp Range:

-55 °C to +105 °C

Voltage Rating:

500 VAC mated with PSS

RoHS Compliant:

Yes

= Standard Header

FWS

HFWS

= High Temp

Header

= Matte Tin

= Surface

Mount with

Pick & Place Pad

(3 Pos. min.)

(6.98 mm) .275"

min. post height

–T

–VS–P

Specify LEAD STYLE

from chart below.

(0.51)

.020

–RA

01 thru 20

(1.14)

.045

(5.08)

.200

TYP

(6.35)

.250

–VS

(2.54)

.100

Leave blank for Through-hole

LEAD

STYLE

(4.57)

.180

(4.57)

.180

(4.09)

.161

(4.57)

.180

PROCESSING

Lead–Free Solderable

(HFWS–VS, SW-VS):

Yes

SMT Lead Coplanarity

(FWS, HFWS):

(0.20 mm) .008" max (02-15)*

(0.25 mm) .010" max (16-20)*

SMT Lead Coplanarity (SW):

(0.25 mm) .010" max*

*(.004" stencil solution

may be available; contact

IPG@samtec.com)

–01

–02

–04

No. of Positions X (5.08) .200

(2.54)

.100

–05

(11.94) —

—

— (10.72) (8.64)

.470

.422 .340

(13.21) (2.54) (4.57) (8.08) (12.24) (8.38)

.520 .100 .180 .318 .482 .330

(21.06) (4.95) (3.96) (13.82) —

—

.829 .195 .156 .544

(3.81) —

—

.150

= Right-angle

–RA

–VS

= Surface Mount

(2 pins/row minimum)

Requires HFWS

TYPE

STRIP

NO.

PINS

PLATING

OPTION

STACK

HEIGHT

POST

HEIGHT

TAIL

OPTION

Leave

blank for

Through-hole

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

= Standard

Stacker

FILE NO. E111594

= Matte Tin

–T

= Stacker Height (in inches)

(0.13 mm) .005" increments

Example: –250 = (6.35 mm) .250"

–“XXX”

02 thru 20

(5.08)

.200

TYP

POST

HEIGHT

(0.00)

.000

MIN

STACK

HEIGHT

(22.61) .890

MAX WITH

(0.00) .000

POST

(7.62) .300

MIN

STACK

HEIGHT

(2.54) (20.83) .820

.100

MAX

(5.08) .200

MIN

(1.14)

.045

(2.29)

.090

(25.91)

1.02

MAX

–“XXX”

= Post Height

(in inches)

=Surface

Mount

(2 pins/row

minimum)

–VS

–VS–P

= Surface

Mount with

Pick &

Place Pad

(3 Pos. min.)

(6.98 mm)

.275" max.

post height

Note:

Some lengths, styles and

options are non-standard,

non-returnable.

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Samtec

SW-02-04-T-S-270-640 SW-09-04-T-S-470-090 SW-06-04-T-S-563-105 SW-02-04-T-S-220-415 SW-04-04-T-S-250-

195 SW-08-04-T-S-460-150 SW-08-04-T-S-600-200 SW-12-04-T-S-400-300 SW-20-04-T-S-625-150 SW-10-04-T-S-

380-105 SW-05-04-T-S-200-300 SW-05-04-T-S-400-090 SW-10-04-T-S-220-105 SW-10-04-T-S-400-150 SW-02-04-

T-S-400-200 SW-03-04-T-S-550-200-VS SW-04-04-T-S-300-128 SW-06-04-T-S-250-190 SW-10-04-T-S-500-150-VS

SW-02-04-T-S-270-200 SW-04-04-T-S-300-300-VS-P SW-06-04-T-S-300-300-VS-P SW-06-04-T-S-425-150 SW-08-

04-T-S-535-150 SW-05-04-T-S-300-105 SW-10-04-T-S-245-150 SW-10-04-T-S-250-110 SW-05-04-T-S-625-100

SW-10-04-T-S-400-150-VS SW-02-04-T-S-220-450 SW-09-04-T-S-430-140-VS SW-02-04-T-S-585-150 SW-02-04-T-

S-625-150 SW-06-04-T-S-660-080 SW-07-04-T-S-780-110-VS SW-08-04-T-S-250-105 SW-12-04-T-S-632-188 SW-

20-04-T-S-245-150 SW-03-04-T-S-250-150 SW-03-04-T-S-300-500 SW-08-04-T-S-459-150 SW-12-04-T-S-488-198

SW-20-04-T-S-435-125 SW-02-04-T-S-200-415 SW-04-04-T-S-340-230 SW-06-04-T-S-325-150 SW-03-04-T-S-220-

150 SW-12-04-T-S-690-150 SW-04-04-T-S-500-150 SW-02-04-T-S-580-120-VS SW-06-04-T-S-200-200 SW-16-04-

T-S-200-266 SW-20-04-T-S-300-170 SW-20-04-T-S-360-150 SW-02-04-T-S-250-170 SW-05-04-T-S-560-160 SW-

20-04-T-S-200-150 SW-20-04-T-S-300-175 SW-07-04-T-S-375-100 SW-08-04-T-S-290-170 SW-04-04-T-S-240-120

SW-05-04-T-S-200-200 SW-20-04-T-S-690-150 SW-02-04-T-S-585-200 SW-06-04-T-S-200-300 SW-02-04-T-S-210-

200 SW-02-04-T-S-400-250 SW-03-04-T-S-535-198 SW-05-04-T-S-400-400-VS SW-05-04-T-S-540-157 SW-06-04-

T-S-500-150 SW-06-04-T-S-540-194 SW-07-04-T-S-540-195 SW-06-04-T-S-250-200 SW-05-04-T-S-625-150 SW-

06-04-T-S-200-195 SW-10-04-T-S-540-195 SW-12-04-T-S-540-194 SW-12-04-T-S-591-118 SW-06-04-T-S-530-150

SW-07-04-T-S-540-194 SW-02-04-T-S-260-120 SW-10-04-T-S-350-470 SW-14-04-T-S-500-400-VS SW-04-04-T-S-

350-120 SW-05-04-T-S-250-150 SW-07-04-T-S-560-150 SW-08-04-T-S-300-100 SW-10-04-T-S-300-500 SW-03-04-

T-S-400-090 SW-10-04-T-S-350-120-VS SW-20-04-T-S-200-090 SW-02-04-T-S-490-175 SW-03-04-T-S-270-200

SW-12-04-T-S-380-120 SW-02-04-T-S-230-200 SW-02-04-T-S-350-120 SW-03-04-T-S-540-157 SW-05-04-T-S-260-

260 SW-05-04-T-S-537-150
