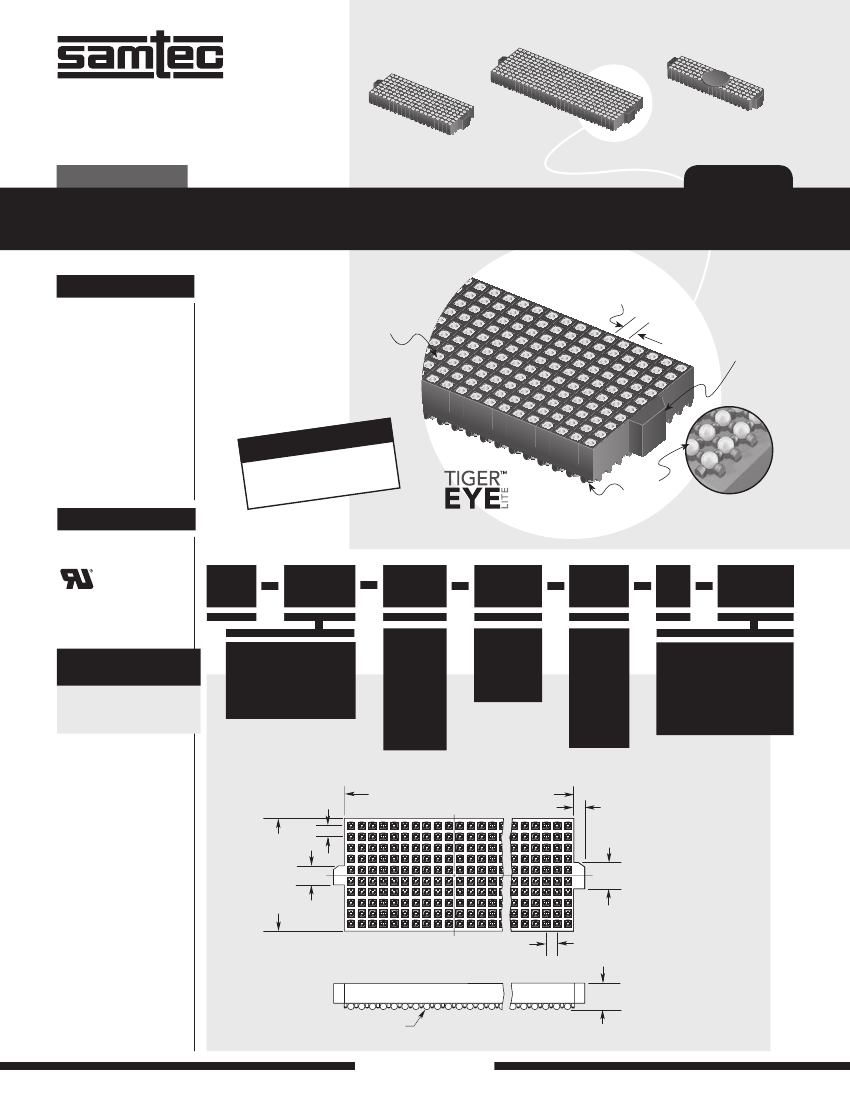

F-219 SUPPLEMENT
YFS–20–03–H–05–SB–K
YFS–20–03–H–08–SB
YFS–30–03–H–10–SB
(1.27 mm) .050"
YFS SERIES
LOW-PROFILE OPEN-PIN-FIELD SOCKET
SPECIFICATIONS
For complete specifications and
recommended PCB layouts see
www.samtec.com?YFS
Insulator Material:
Black Liquid Crystal Polymer
Contact Material:
Phosphor Bronze
Plating:
Au over 50 µ" (1.27 µm) Ni
Operating Temp Range:
-55 °C to +125 °C
Working Voltage:
275 VAC when mated
with YFT
Mated Cycles:
200 with YFT
RoHS Compliant:
No
Lead-Free Solderable:
No
Mates with:
YFT, YFW
High-reliability
Tiger Eye
™
contacts
(1.27 mm) .050"
micro pitch
Polarized
notches
0 year m
Passed 2 gas testing.
flowing
YFS
tec.com?
www.sam
Go to:
ULTS
ST RES
TE
ixed
Tin-Lead
Solder Balls
RECOGNITIONS
For complete scope of
recognitions see
www.samtec.com/quality
FILE NO. E111594
YFS
NO. PINS
PER ROW
LEAD
STYLE
PLATING
OPTION
ROW
OPTION
SB
OTHER
OPTION
ALSO AVAILABLE
(MOQ Required)
• 30, 40 & 50 positions
in 5 & 8 rows
• 3 & 6 rows
= –05, –08, and –10 row
–20
=Standard
Insertion
Force
– 03
–30, –40, –50
= –10 row only
=Low
Insertion
Force
– L3
=30 µ"
(0.76 µm)
Gold on
contact area
–H
=Five Row
– 05
– 08
– 10
=Polyimide film Pick
& Place Pad
–K
=Eight Row
=Tape & Reel
– TR
=Ten Row
(1.27)
.050
No. of
rows
x
(1.27) (2.41)
.050 .095
+
(0.51)
.020
500
No. of positions x (1.27) .050 + (0.51) .020
(1.27) .050 TYP
10
(3.68)
.145
491
(1.27) .050
01
Note:
Some sizes, styles and
options are non-standard,
non-returnable.
(0.76)
.030
DIA
Due to technical progress, all designs, specifications and components are subject to change without notice.
(3.40)
.134
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
WWW.SAMTEC.COM
