HCSD-20-D-24.00-01-N-D10 datasheet, PDF

Datasheet> All Categories > Wire/cable> Cable package> Flat cable/IDC data line> HCSD-20-D-24.00-01-N-D10

HCSD-20-D-24.00-01-N-D10: DescriptionFlat data cable/IDC data cable.100" Double Row IDC Ribbon Cable Assembly, Socket; CategoryWire/cable Cable package Flat cable/IDC data line; File Size892KB，3 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

HCSD-20-D-24.00-01-N-D10 Overview

Flat data cable/IDC data cable.100" Double Row IDC Ribbon Cable Assembly, Socket

HCSD-20-D-24.00-01-N-D10 Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Product Category	Flat data cable/IDC data cable
Shipping restrictions	Mouser does not currently sell this product.
product	IDC Ribbon Cable Assemblies
Encapsulation	Bulk
series	HCSD
Factory packaging quantity	1

Preview

Download Datasheet

View All

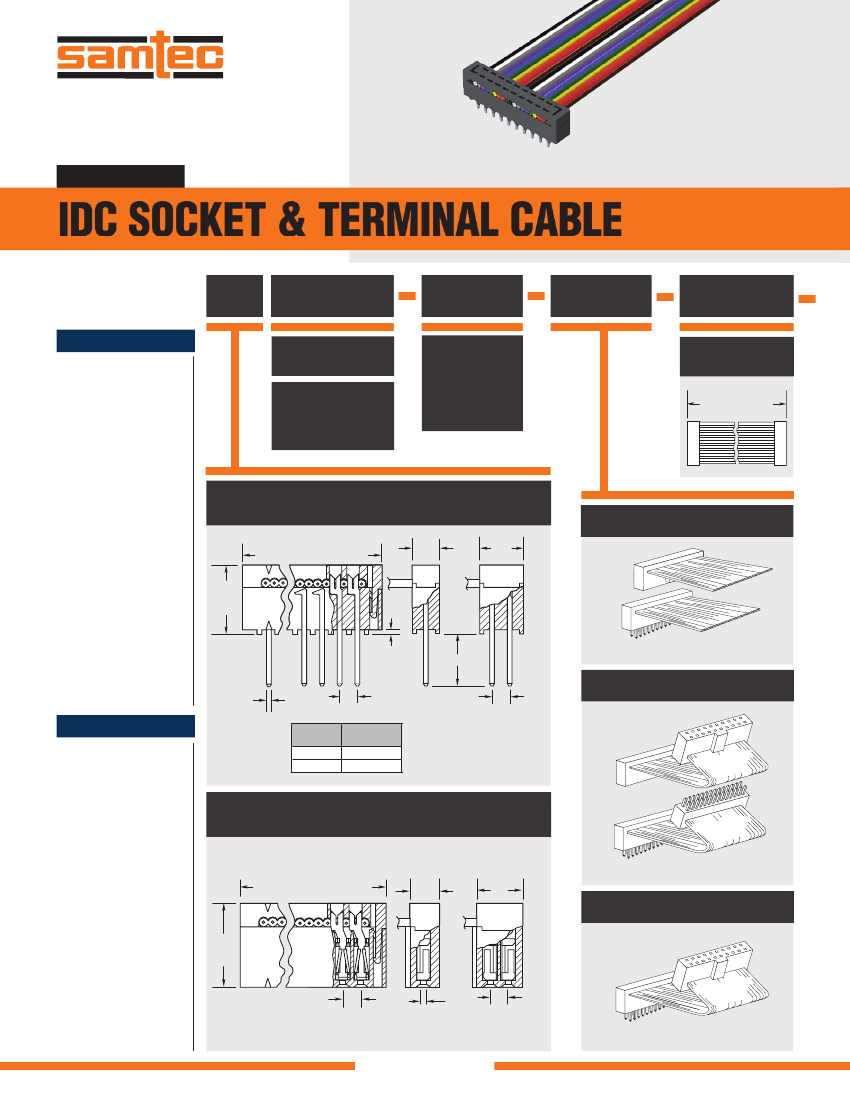

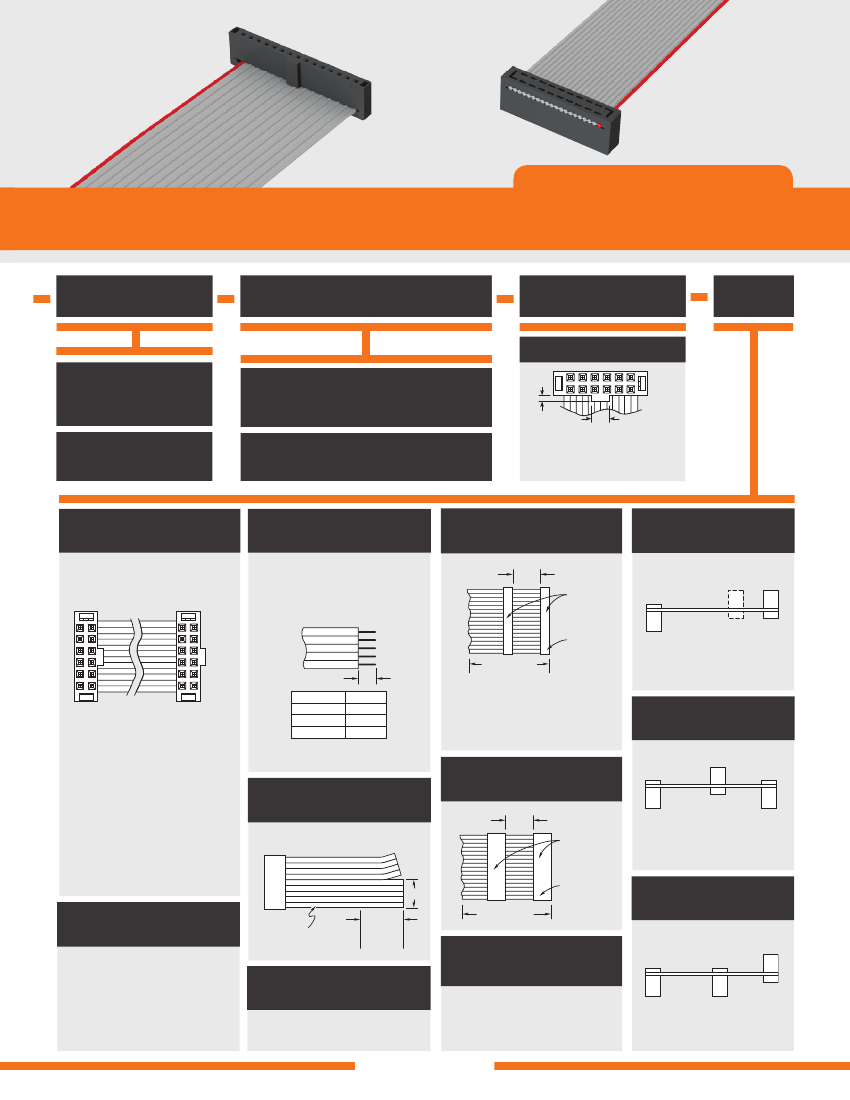

F-219

HCMD–10–S–03.00–01

(2.54 mm) .100"

IDC SOCKET & TERMINAL CABLE

Mates with:

TSW, MTSW, TST, EW,

BST, ZST, MTLW, TSM,

EJH-02 (HCSD only)

TYPE

STRIP

ROW

OPTION

NO. PINS

PER ROW

END

ASSEMBLY

ASSEMBLED

LENGTH

SPECIFICATIONS

For complete specifications and

recommended PCB layouts

see www.samtec.com?HCSD

or www.samtec.com?HCSS

= Single

HCSD, HCSS

Insulator Material:

Black Liquid Crystal Polymer

Flammability Rating:

UL 94V-O

Insulation Resistance:

5000 MΩ

Temperature Range:

-20 °C to +105 °C

(Rainbow Cable)

-40 °C to +105 °C (Gray Cable)

Withstanding Voltage:

1000 VRMS @ 60 Hz

Contact:

Phosphor Bronze

Plating:

10 µ" (0.25 µm) Au on

contact area, 150 µ" (3.81 µm)

Sn on balance over

50 µ" (1.27 µm) Ni.

Lead Size Range:

.024" (0.61 mm) SQ to

.026" (0.66 mm) SQ

Lead Insertion Depth:

.185" (4.70 mm) to

.250" (6.35 mm)

Wire:

28 AWG 7/36 stranded

Tinned Copper

RoHS Compliant:

Yes

= Double

(Color coded cable N/A

for 36 pins/row.

See –G option.)

–05, –08,

–10, –12,

–13, –15,

–17, –20

= Assembled Length

–“XX.XX”

Assembled Length in

INCHES (±1/8")

2 inches minimum

= Male Strip

(3.30)

.130

(5.08)

.200

HCM

–S

= Single End

No. of Positions x .100 (2.54)

+ .180 (4.57)

(7.87)

.310

REF

(0.51)

.020

(0.64)

.025

TYP

(2.54)

.100

(2.54)

.100

Double

(HCMD)

Socket or Male Plug on one end

Single

(HCMS)

–D

= Double End

SPECIFICATIONS

For complete specifications and

recommended PCB layouts

see www.samtec.com?HCMD

or www.samtec.com?HCMS

LEAD

STYLE

–01

–02

(3.05) .120

(5.84) .230

HCMD, HCMS

Insulator Material:

Black Liquid Crystal Polymer

Flammability Rating:

UL 94V-O

Insulation Resistance:

5000 MΩ

Temperature Range:

-20 °C to +105 °C

(Rainbow Cable)

-40 °C to +105 °C (Gray Cable)

Withstanding Voltage:

1000 VRMS @ 60 Hz

Terminal:

Phosphor Bronze

Plating:

Sn over 50 µ" (1.27 µm) Ni

Wire:

28 AWG 7/36 stranded

Tinned Copper

RoHS Compliant:

Yes

Note:

IDC assemblies are

non-standard, non-returnable.

= Socket Strip

HCS

Socket or Male Plug on each end

No. of Positions x .100 (2.54)

+ .180 (4.57)

(3.30)

.130

(5.08)

.200

–T

= Transfer End

(9.53)

.375

REF

(0.76)

.030

SQ.

Single

TYP.

(HCSS)

(2.54)

.100

(2.54)

.100

Double

(HCSD)

Male Plug on one end with socket on other.

Begin part number with HCM.

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Samtec

HCSD-17-D-12.00-01-N HCSD-05-D-11.40-01-N-G-R HCSD-05-D-06.00-01-N HCSD-05-D-10.00-01-N HCSD-02-S-

06.00-01-ST8 HCSD-02-S-03.00-01-ST8 HCSD-25-D-09.00-01-G-D05 HCSD-25-D-10.60-01-N HCSD-25-S-36.00-01-

T-G HCSD-30-D-20.00-01-T-R HCSD-32-D-04.20-01-N-G-R HCSD-32-D-10.00-01-G HCSD-32-D-24.00-01-G

HCSD-32-D-36.00-01-G HCSD-32-D-60.00-01-N-G HCSD-32-S-03.00-01-G HCSD-36-D-04.00-01-N-G-R HCSD-36-

D-10.00-01-G HCSD-36-D-18.00-01-N-G HCSD-30-D-06.00-01 HCSD-30-S-12.00-01 HCSD-30-S-18.00-01 HCSD-

30-S-18.00-01-N-G HCSD-32-D-05.00-01-N-G HCSD-32-S-48.00-01-N-G HCSD-36-D-03.80-01-N-G-R HCSD-36-D-

04.00-01-G HCSD-36-D-40.00-01-N-G HCSD-05-D-16.00-01-G-RW HCSD-08-D-11.00-01-N-R HCSD-13-D-36.00-01-

T HCSD-32-D-18.00-01-N-G-R HCSD-32-D-20.00-01-N-G HCSD-32-S-18.00-01-G HCSD-32-S-24.00-01-G HCSD-

36-D-03.75-01-N-G-R HCSD-36-D-30.00-01-N-G HCSD-22-D-10.00-01 HCSD-25-D-08.00-01-N HCSD-25-D-11.00-

01 HCSD-25-D-11.75-01-N HCSD-25-D-12.00-01-D02-M HCSD-25-D-12.00-01-N HCSD-25-S-02.00-01-N HCSD-25-

S-02.40-01-N-ST4 HCSD-25-S-02.40-01-ST4 HCSD-25-S-18.00-01 HCSD-25-S-20.00-01 HCSD-25-S-36.00-01

HCSD-30-D-02.00-01-T-R HCSD-32-D-11.00-01-G HCSD-32-D-40.00-01-N-G HCSD-36-D-02.00-01-N-G HCSD-36-

S-15.00-01-N-G HCSD-05-S-12.00-01-T-N-ST8 HCSD-20-S-04.00-01-T-N-G-RW HCSD-25-S-05.00-01-N-G-ST2

HCSD-20-D-04.00-01-T-N-G-RW HCSD-32-S-36.00-01-G HCSD-36-D-04.00-01-G-R HCSD-36-D-30.00-01-G HCSD-

36-D-36.00-01-G HCSD-10-D-06.00-01-T-G-RW HCSD-15-D-50.00-01-N-G HCSD-17-D-02.00-01-G-RW HCSD-17-

D-08.00-01-T-G-RW HCSD-32-D-42.00-01-N-G HCSD-36-D-12.00-01-N-G HCSD-36-D-13.50-01-N-G HCSD-36-S-

24.00-01-N-G HCSD-36-S-42.00-01-G HCSD-17-D-02.00-01-T-N-G-RW HCSD-36-D-12.00-01-G HCSD-36-D-18.00-

01-G HCSD-36-S-16.00-01-G HCSD-30-D-04.00-01 HCSD-30-D-09.00-01-N HCSD-30-D-18.00-01 HCSD-32-D-

04.00-01-G HCSD-32-D-12.00-01-T-N-G HCSD-36-D-02.50-01-G HCSD-36-S-14.00-01-N-G HCSD-20-D-02.00-01-N-

R HCSD-13-S-36.00-01-T-N HCSD-25-D-07.00-01-G HCSD-30-D-10.00-01-D04 HCSD-32-D-03.00-01-N-G-R

HCSD-32-D-10.00-01-N-G HCSD-32-D-12.00-01-N-G-D06 HCSD-32-D-13.00-01-N-G HCSD-32-D-24.00-01-N-G

HCSD-32-D-72.00-01-N-G HCSD-32-S-16.00-01-G HCSD-36-D-02.40-01-N-G HCSD-36-D-24.00-01-N-G HCSD-10-

S-20.00-01-N-G-ST4 HCSD-13-S-03.00-01-T HCSD-17-D-13.78-01-N-G HCSD-08-D-60.00-01-N-G HCSD-10-D-

16.00-01-N-B10
