TFSST-25-28-G-10.00-T-NUS datasheet, PDF

Datasheet> All Categories > Wire/cable> Cable package> Flat cable/IDC data line> TFSST-25-28-G-10.00-T-NUS

TFSST-25-28-G-10.00-T-NUS: DescriptionFlat Data Cable/IDC Data Cable.050" Tiger Eye Single Row Discrete Wire Teflon Cable Assembly, Terminal; CategoryWire/cable Cable package Flat cable/IDC data line; File Size823KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

TFSST-25-28-G-10.00-T-NUS Overview

Flat Data Cable/IDC Data Cable.050" Tiger Eye Single Row Discrete Wire Teflon Cable Assembly, Terminal

TFSST-25-28-G-10.00-T-NUS Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Product Category	Flat data cable/IDC data cable
Shipping restrictions	Mouser does not currently sell this product.
Encapsulation	Bulk
series	TFSST
Factory packaging quantity	1

Preview

Download Datasheet

View All

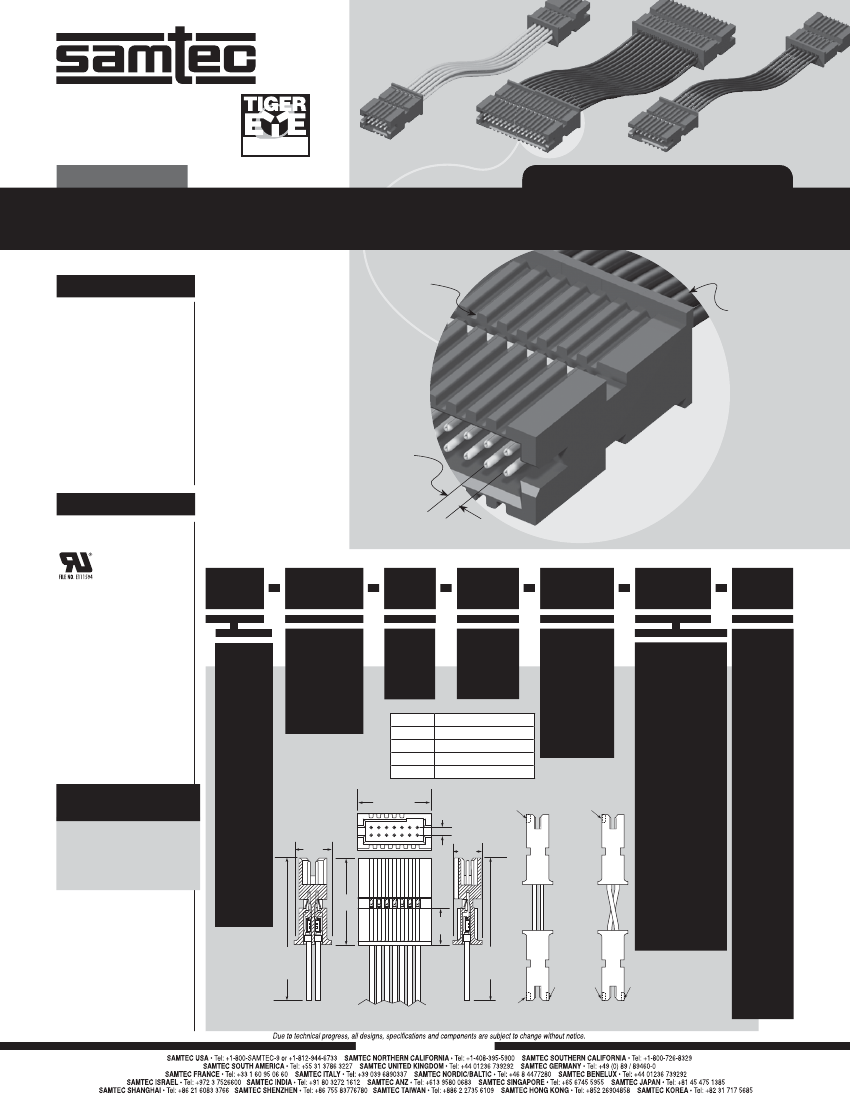

F-214 SUPPLEMENT (Rev 13MAY14)

TFSDT–05–30–G–05.00–D–NUS

™

•

(1,27 mm) .050"

TFSD–15–30–G–05.00–D–NUX

TFSS–07–30–G–05.00–D–NUS

TFSS, TFSST, TFSD, TFSDT SERIES

TIGER EYE DISCRETE CABLE ASSEMBLY

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?TFSS,

www.samtec.com?TFSD,

www.samtec.com?TFSDT, or

www.samtec.com?TFSST

Insulator Material:

Black LCP

Contact Material:

BeCu

Plating:

Au over 50µ" (1,27 µm) Ni

Operating Temp Range:

-10°C to +80°C (PVC)

-40°C to +125°C (*Teﬂon

)

Wire:

28 or 30 AWG

RoHS Compliant:

Yes

™

Mates with:

SFM, SFC (–TR requires

TFM–WT option),

SFML (–XL end option

required)

Single or

Double

Ended

28 or 30

AWG

(1,27 mm)

.050"

pitch

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

TYPE

STRIP

POSITIONS

PER ROW

WIRE

GAUGE

PLATING

OPTION

ASSEMBLED

LENGTH

END

OPTION

END 2

OPTION

Requires

–D, –TF

or –TR

(End 1 Notch

Down).

TFSS

= Single

Row

PVC

Cable

–03, –04,

–05, –07,

–10, –15,

–20, –25,

–40, –50

(Standard sizes)

–30

= 30 AWG

–G

= 10µ"

(0,25 µm)

Gold on

contact

END OPTION

Pin 1 to Pin N

Pin 1 to Pin 1

Pin 1 and Pin N-1

Pin 1 to Pin 2

End 1 Notch

(Always Down)

–“XX.XX”

= Assembled

Length in

Inches

(76,20 mm)

03.00" min. for

–S end option

(82,60 mm)

03.25" min. for

–D end option

–S

= Single Ended

–28

= 28 AWG

END 2

T-NUS

T-NDS

T-NUX

T-NDX

No. of Positions x

(1,27) .050

+ (2,54) .100

–D

= Double Ended

= Transfer End

Terminal on End 1

Socket on End 2

(See chart for

End 2 option)

–NUS

= Notch up,

straight

(Pin 1 to

Pin 2)

TFSST

= Single

Row

*Teﬂon

Cable

–T

–NDS

= Notch down,

straight

(Pin 1 to

Pin N-1)

ALSO AVAILABLE

(MOQ Required)

• Color coded cable

(*Teﬂon

N/A)

• Other plating options

Contact Samtec.

*DuPont

™

Teflon

is a

registered trademark of the

E.I. du Pont de Nemours

and Company or its affiliates.

Note:

For wiring option and pin

position location information,

refer to drawings on web.

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

TFSD

= Double

Row

PVC

Cable

(6,10)

.240

(1,27)

.050

End 1 Notch

(Always Down)

–TF*

= Transfer End

with Friction Lock

(4,83)

.190

TFSDT

= Double

Row

*Teﬂon

Cable

(14,26)

.562

(6,05)

.238

Assembled

Length

± (3,18)

.125

Assembled

Length

± (3,18)

.125

= Transfer End

with Retention Latch

(TFM –WT option

required for mating)

*–05 & –07 positions

not available.

TFSD, TFSDT only

End 2

Notch

(NUS)

End 2

Notch

(NDX)

End 2

Notch

(NUX)

–TR

–NUX

= Notch up,

crossed

(Pin 1 to

Pin 1)

(TFSD/

TFSDT only)

–NDX

= Notch down,

crossed

(Pin 1 to

Pin N)

(TFSD/

TFSDT only)

TFSD

TFSS

End 2

Notch

(NDS)

–NDS

or –NUS

–NDX

or –NUX

WWW.SAMTEC.COM
