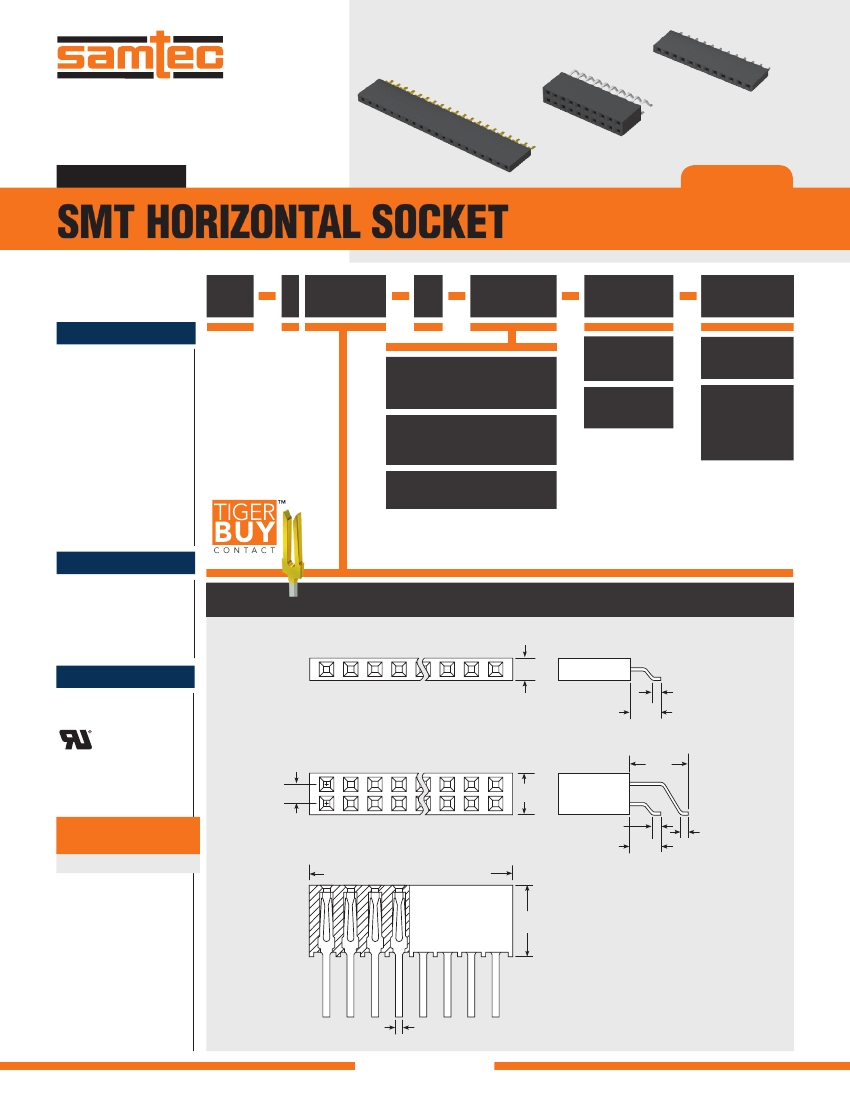

F-219
SMH–110–02–L–D
SMH–112–02–L–S
SMH–120–02–G–S
(2.54 mm) .100"
SMH SERIES
SMT HORIZONTAL SOCKET
Mates With:
TSW, MTSW, MTLW,
EW, ZW, TSS, ZSS, TSM
SMH
1
NO. PINS
PER ROW
02
PLATING
OPTION
ROW
OPTION
OTHER
OPTION
SPECIFICATIONS
For complete specifications
and recommended PCB layouts
see www.samtec.com?SMH
Insulator Material:
Black LCP
Contact Material:
Phosphor Bronze
Plating:
Au or Sn over
50 µ" (1.27 µm) Ni
Operating Temp Range:
-55 °C to +125 °C with Gold
-55 °C to +105 °C with Tin
Insertion Depth:
(3.68 mm) .145" to
(6.35 mm) .250"
Max Cycles:
100 with 10 µ" (0.25 µm) Au
RoHS Compliant:
Yes
= 10 µ" (0.25 µm) Gold on contact,
Matte Tin on tail
–L
= Single Row
–S
= Polarized Position
–“XX”
–TR
= 20 µ" (0.51 µm) Gold on contact,
Gold flash on tail
–G
–T
= Double Row
–D
= Tape & Reel
Packaging
(02-29 positions
only)
= Matte Tin
PROCESSING
Lead–Free Solderable:
Yes
SMT Lead Coplanarity:
(0.15 mm) .006" max (02-24)
(0.20 mm) .008" max (25-36)*
*(.004" stencil solution
may be available; contact
IPG@samtec.com)
02 thru 36
RECOGNITIONS
For complete scope of
recognitions see
www.samtec.com/quality
(2.41)
.095
01
(3.43)
.135
(1.14)
.045
FILE NO. E111594
02
(2.54)
.100
(4.95)
.195
01
(1.14)
.045
(3.43)
.135
(No. of Positions x (2.54) .100) + (0.51) .020
(7.24)
.285
ALSO AVAILABLE
(MOQ Required)
• Other platings
(0.71)
.028
(8.51)
.335
Important Note:
SMH mated to TSM–DH/–SH
not coplanar, SSM–DH/–SH
recommended for coplanar
applications.
Note:
Some lengths, styles and
options are non-standard,
non-returnable.
(0.79) x(0.41)
.031 .016
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
