ECM Flat Radial Coil
RC0910 Series
§
§
§
§
Ultra Slim Radial Design
Low Cost
Excellent Current Handling
Typical Pack Size 1000pcs
ECM’s flat radial choke coil, type RC0910 offers aproximatly twice the inductance and ‘Q’ value as most
axial inductors of the same current handling.
The unique compact design, and use of high quality materials, means these parts are suited to high
density printed circuit board applications.
Suitable applications include, Television and Audio equipment, Personal Computers, and RF and other
Filter applications.

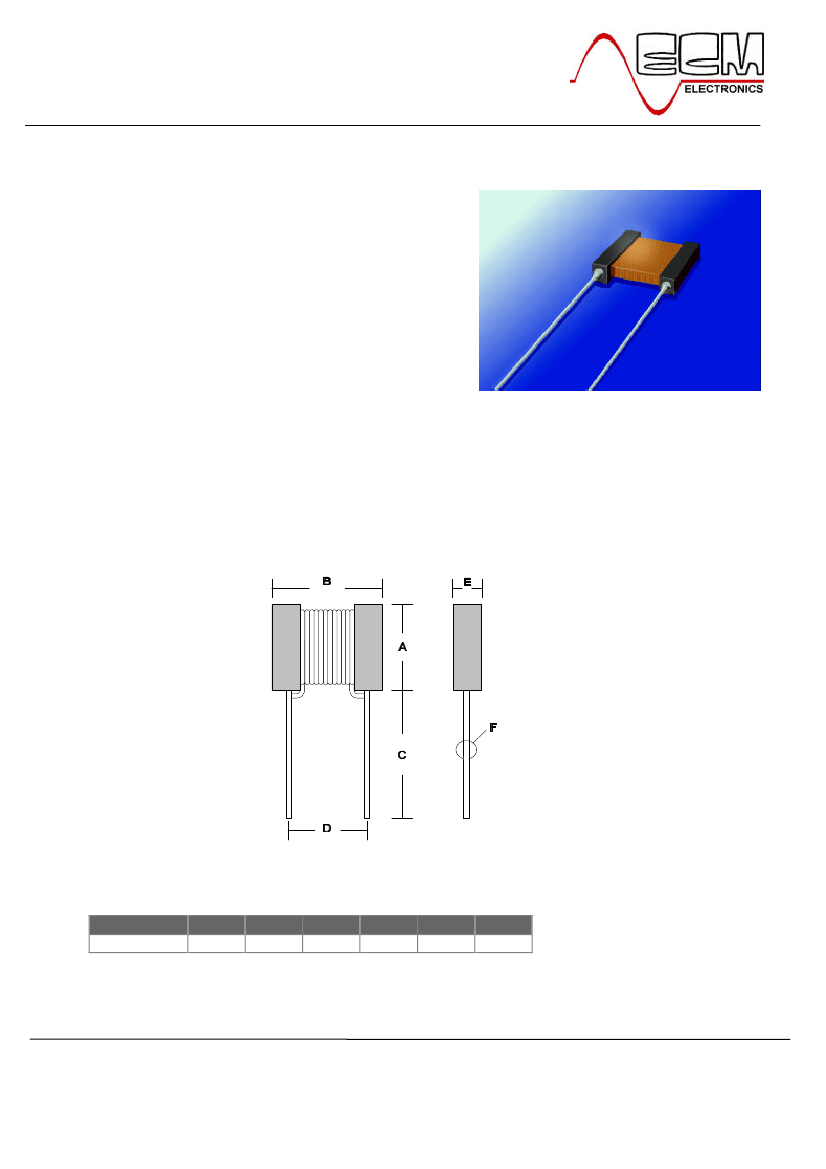

COMPONENT OUTLINE
DIMENSIONS (mm)
TYPE
RC0910
a
8.89
b
10.16
c
12.70
d
7.62
e
3.81
f
0.50
ECM Electronics Limited, Penmaen House, Ashington, West Sussex, RH20 3JR, UK
Tel: +44(0)1903 892810: Fax: +44(0)1903 892738. Email: ecm@ecmelectronics.co.uk
Although we have attempted to accurately reflect the products we market. ECM reserve the right without prior notice to
discontinue any product or make design changes we believe necessary.
Issue 1
ECM Flat Radial Coil
ECM
Part
RC0910-1R0
RC0910-1R2
RC0910-1R5
RC0910-1R8
RC0910-2R2
RC0910-2R5
RC0910-2R7
RC0910-3R3
RC0910-3R9
RC0910-4R7
RC0910-5R0
RC0910-5R6
RC0910-6R8
RC0910-7R5
RC0910-8R2
RC0910-100
RC0910-120
RC0910-150
RC0910-180
RC0910-220
RC0910-250
RC0910-270
RC0910-330
RC0910-390
RC0910-470
RC0910-500
RC0910-560
RC0910-680
RC0910-750
RC0910-820
RC0910-101
RC0910-121
RC0910-151
RC0910-181
RC0910-221
RC0910-251
L
(µH)
µ
1.0 @7.96MHz
1.2 @7.96MHz
1.5 @7.96MHz
1.8 @7.96MHz
2.2 @7.96MHz
2.5 @7.96MHz
2.7 @7.96MHz
3.3 @7.96MHz
3.9 @7.96MHz
4.7 @7.96MHz
5.0 @7.96MHz
5.6 @7.96MHz
6.8 @7.96MHz
7.5 @7.96MHz
8.2 @7.96MHz
10 @2.52MHz
12 @2.52MHz
15 @2.52MHz
18 @2.52MHz
22 @2.52MHz
25 @2.52MHz
27 @2.52MHz
33 @2.52MHz
39 @2.52MHz
47 @2.52MHz
50 @2.52MHz
56 @2.52MHz
68 @2.52MHz
75 @2.52MHz
82 @2.52MHz
100 @0.796MHz
120 @0.796MHz
150 @0.796MHz
180 @0.796MHz
220 @0.796MHz
250 @0.796MHz
Tol
%
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
Q Min. R
DC
(**MHz) MAX
(Ω)
Ω
40
39
33
37
38
41
43
35
37
40
35
30
40
32
44
46
55
52
46
51
50
52
47
46
48
45
40
44
41
48
53
76
77
79
68
63
0.015
0.012
0.014
0.020
0.025
0.030
0.028
0.036
0.050
0.053
0.080
0.092
0.113
0.110
0.116
0.19
0.14
0.16
0.18
0.23
0.50
0.27
0.37
0.37
0.51
1.10
0.68
0.89
1.18
1.20
1.50
1.73
1.85
2.07
2.19
2.70
I
DC
I
N
(A)
7.00
6.00
5.00
4.80
4.40
4.10
4.00
3.70
3.40
3.20
2.90
2.90
2.60
2.50
2.20
2.10
2.00
1.60
1.50
1.40
1.30
1.25
1.20
1.10
1.05
1.00
0.95
0.90
0.86
0.85
0.70
0.65
0.60
0.58
0.49
0.48
TOLERANCE; K=10%.
** = Test Frequency as specified in ‘L’ column
ECM Electronics Limited, Penmaen House, Ashington, West Sussex, RH20 3JR, UK
Tel: +44(0)1903 892810: Fax: +44(0)1903 892738. Email: ecm@ecmelectronics.co.uk
Although we have attempted to accurately reflect the products we market. ECM reserve the right without prior notice to
discontinue any product or make design changes we believe necessary.
Issue 1
ECM Flat Radial Coil
ECM
Part
RC0910-271
RC0910-331
RC0910-391
RC0910-471
RC0910-501
RC0910-561
RC0910-681
RC0910-751
RC0910-821
RC0910-102
RC0910-122
RC0910-152
RC0910-182
RC0910-222
RC0910-252
RC0910-272
RC0910-332
RC0910-392
RC0910-472
RC0910-502
RC0910-752
RC0910-103
L
(µH)
µ
270 @0.796MHz
330 @0.796MHz
390 @0.796MHz
470 @0.796MHz
500 @0.796MHz
560 @0.796MHz
680 @0.796MHz
750 @0.796MHz
820 @0.796MHz
1000 @0.252MHz
1200 @0.252MHz
1500 @0.252MHz
1800 @0.252MHz
2200 @0.252MHz
2500 @0.252MHz
2700 @0.252MHz
3300 @0.252MHz
3900 @0.252MHz
4700 @0.252MHz
5000 @0.252MHz
7500 @0.252MHz
10000 @0.252MHz
Tol
%
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
Q Min. R
DC
(**MHz) MAX
(Ω)
Ω
69
58
60
76
71
68
64
62
60
65
70
72
73
74
75
72
71
70
63
45
25
25
2.53
3.34
3.45
5.29
3.30
5.40
5.93
4.20
6.34
8.60
10.0
14.2
15.8
17.6
18.0
19.3
21.7
26.1
29.8
31.2
50.0
70.0
I
DC
I
N
(A)
0.45
0.41
0.39
0.35
0.34
0.31
0.29
0.28
0.27
0.25
0.21
0.19
0.17
0.15
0.14
0.14
0.13
0.12
0.11
0.10
0.08
0.07
TOLERANCE; K=10%.
** = Test Frequency as specified in ‘L’ column
ECM Electronics Limited, Penmaen House, Ashington, West Sussex, RH20 3JR, UK
Tel: +44(0)1903 892810: Fax: +44(0)1903 892738. Email: ecm@ecmelectronics.co.uk
Although we have attempted to accurately reflect the products we market. ECM reserve the right without prior notice to
discontinue any product or make design changes we believe necessary.
