RBU405M: DescriptionSINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 4.0 Ampere; File Size177KB，3 Pages; ManufacturerRectron Semiconductor; Websitehttp://www.rectron.com/

Download Datasheet Compare View All

RBU405M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RBU405M	-	-	View	Buy Now

RBU405M Overview

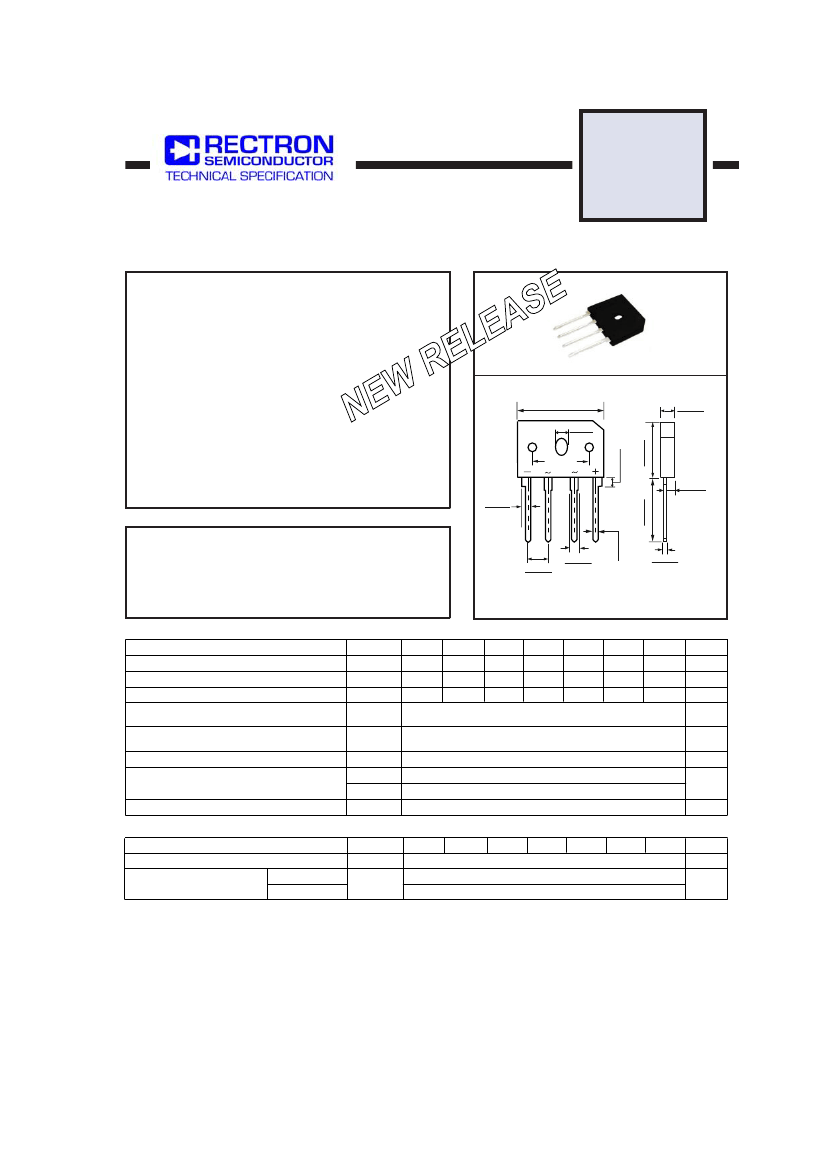

SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 4.0 Ampere

Preview

Download Datasheet

View All

VOLTAGE RANGE 50 to 1000 Volts CURRENT 4.0 Ampere

FEATURES

* Ideal for printed circuit board

* Surge overload rating: 130 amperes peak

* Mounting position: Any

SINGLE-PHASE GLASS PASSIVATED

SILICON BRIDGE RECTIFIER

RBU401M

THRU

RBU407M

RBU

MECHANICAL DATA

.880 (22.3)

.860 (21.8)

.160 (4.1)

.140 (3.5)

.080 (2.03)

.060 (1.52)

.740 (18.8)

.720 (18.3)

.140 (3.56)

.130 (3.30)

* UL listed the recognized component directory,file #E252754

* Epoxy: Device has UL flammability classification 94V-O

.512 (13.0)

.085 (2.16)

.075 (1.90)

.710 (18.0)

.690 (17.5)

.050 (1.27)

.040 (1.02)

.210 (5.33)

.190 (4.83)

.080 (2.03)

.065 (1.65)

.022 (0.56)

.018 (0.46)

.100 (2.54)

.085 (2.16)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25

C ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

Dimensions in inches and (millimeters)

MAXIMUM RATINGS

(@ T

=25

C unless otherwise noted)

RATINGS

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Maximum Average Forward Rectified Current

at T

= 50

Peak Forward Surge Current 8.3 ms single half sine-wave

superimposed on rated load (JEDEC method)

Typical Junction Capacitance (Note 3)

Typical Thermal Resistance (Note 1)

Operating and Storage Temperature Range

SYMBOL

RRM

RMS

FSM

, T

STG

RBU401M RBU402M RBU403M RBU404M RBU405M RBU406M RBU407M

100

200

140

200

400

280

400

4.0

130

4.2

-55 to + 150

UNITS

Volts

Amps

C/ W

600

420

600

800

560

800

1000

700

1000

ELECTRICAL CHARACTERISTICS

(@T

=25

C unless otherwise noted)

CHARACTERISTICS

Maximum Instantaneous Forward Voltage at 4.0A DC

Maximum DC Reverse Current

at Rated DC Blocking Voltage

= 25 C

= 125 C

SYMBOL

RBU401M RBU402M RBU403M RBU404M RBU405M RBU406M RBU407M

1.1

2.0

500

UNITS

Volts

mAmps

2006-12

NOTES : 1. Thermal Resistance : Heat-sink case mounted or if PCB mounted.

2. "Fully ROHS compliant", "100% Sn plating (Pb-free)".

3. Measured at 1MHz and applied reverse voltage of 4.0 voltage.

4. Equivalent to Vishay's GBU4 Series.

RBU405M Related Products

	RBU405M	RBU406M	RBU404M	RBU403M	RBU402M	RBU401M
Description	SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 4.0 Ampere	SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 4.0 Ampere	SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 4.0 Ampere	SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 4.0 Ampere	SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 4.0 Ampere	SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 4.0 Ampere
Is it lead-free?	-	Lead free	Lead free	-	Lead free	Lead free
Is it Rohs certified?	-	conform to	conform to	-	conform to	conform to
Maker	-	Rectron Semiconductor	Rectron Semiconductor	-	Rectron Semiconductor	Rectron Semiconductor
package instruction	-	R-PSFM-T4	R-PSFM-T4	-	R-PSFM-T4	R-PSFM-T4
Contacts	-	4	4	-	4	4
Reach Compliance Code	-	_compli	_compli	-	_compli	not_compliant
Other features	-	UL RECOGNIZED	UL RECOGNIZED	-	UL RECOGNIZED	UL RECOGNIZED
Minimum breakdown voltage	-	800 V	400 V	-	100 V	50 V
Configuration	-	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	-	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	-	SILICON	SILICON	-	SILICON	SILICON
Diode type	-	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	-	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
JESD-30 code	-	R-PSFM-T4	R-PSFM-T4	-	R-PSFM-T4	R-PSFM-T4
JESD-609 code	-	e3	e3	-	e3	e3
Maximum non-repetitive peak forward current	-	130 A	130 A	-	130 A	130 A
Number of components	-	4	4	-	4	4
Phase	-	1	1	-	1	1
Number of terminals	-	4	4	-	4	4
Maximum operating temperature	-	150 °C	150 °C	-	150 °C	150 °C
Minimum operating temperature	-	-55 °C	-55 °C	-	-55 °C	-55 °C
Maximum output current	-	4 A	4 A	-	4 A	4 A
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	-	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	-	FLANGE MOUNT	FLANGE MOUNT	-	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	-	265	265	-	265	265
Certification status	-	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	-	800 V	400 V	-	100 V	50 V
surface mount	-	NO	NO	-	NO	NO
Terminal surface	-	Matte Tin (Sn)	Matte Tin (Sn)	-	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	-	THROUGH-HOLE	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE
Terminal location	-	SINGLE	SINGLE	-	SINGLE	SINGLE
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
