MTSW-108-22-T-D-330-RA datasheet, PDF

Datasheet> All Categories > The connector> Header and line shell> MTSW-108-22-T-D-330-RA

MTSW-108-22-T-D-330-RA: DescriptionHeader and Wire Housing.100" Variable Post Height Terminal Strip; CategoryThe connector Header and line shell; File Size928KB，3 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

MTSW-108-22-T-D-330-RA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MTSW-108-22-T-D-330-RA	-	-	View	Buy Now

MTSW-108-22-T-D-330-RA Overview

Header and Wire Housing.100" Variable Post Height Terminal Strip

MTSW-108-22-T-D-330-RA Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Product Category	Headers and wire housings
Shipping restrictions	Mouser does not currently sell this product.
product	Headers
type	Pin Strip
Pitch	2.54 mm
Installation style	Straight Pin
Termination type	Through Hole
Contact type	Pin (Male)
series	MTSW
Encapsulation	Bulk
Contact type	-
Shell material	Polyester
Contact material	Phosphor Bronze
Flammability rating	UL 94 V-0
Plastic shell interface type	-
Locking type	Unlatched
Minimum operating temperature	- 55 C
Factory packaging quantity	1

Preview

Download Datasheet

View All

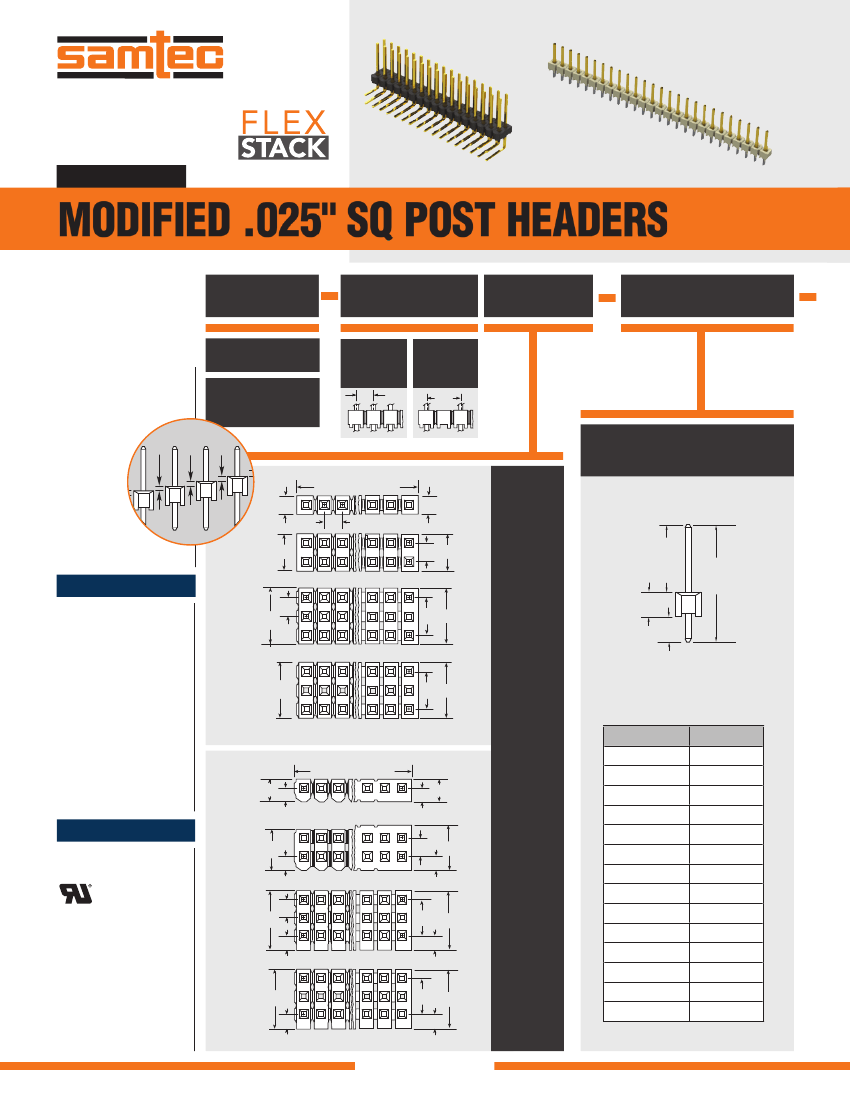

F-219

HMTSW–126–23–L–S–237

(2.54 mm) .100"

MTSW–117–09–G–D–383–RA

MODIFIED .025" SQ POST HEADERS

Board Mates:

SSW, SSQ, ESW,

ESQ, BCS, BSW

CES, SLW, HLE, SSM

Cable Mates:

IDSD, IDSS

TYPE

STRIP

PIN PITCH

NO. PINS

PER ROW

LEAD STYLE

Modified .025"

strips permit

custom post

heights.

(0.13)

.005

Samtec offers

the greatest

stacking

flexibility in

the industry.

The “M” stands

for Modified.

You tell us the

post height you need

and we’ll deliver it.

= Modified Strip

MTSW

= (2.54 mm)

.100" Pitch

(2.54)

.100

–1

HMTSW

= Hi-Temp

Modified Strip

(0.13)

.005

(0.13)

.005

= (5.08 mm)

.200" Pitch

(5.08)

.200

–2

SPECIFY “LEAD STYLE”

FROM CHART

(2.54) .100 x No. of Positions

(2.54)

.100

(2.54)

.100

100

(2.54) (5.02)

.100 .198

(2.54)

.100

150

(2.48)

.098

–S

–D

POST

(0.00)

.000

MIN

MTSW

SPECIFICATIONS

For complete specifications

see www.samtec.com?MTSW

or www.samtec.com?HMTSW

Insulator Material:

MTSW: Black Glass

Filled Polyester

HMTSW: Natural Liquid

Crystal Polymer

Terminal Material:

Phosphor Bronze

Plating:

Au or Sn over

50 µ" (1.27 µm) Ni

Operating Temp Range:

-55 °C to +125 °C with Gold

-55 °C to +105 °C with Tin

RoHS Compliant:

Yes

Lead–Free Solderable:

MTSW: No, Lead Wave Only

HMTSW: Yes

Straight

Versions

(5.08)

.200

OVERALL

LENGTH

(OAL)

(7.62)

.300

(5.08) (7.56)

.200 .298

–T

148

150

(7.62)

.300

(5.08) (7.56)

.200 .298

–Q

= (2.54 mm)

.100"

Center

Version

thru

(2.54)

.100

TAIL

(0.00).000

MIN

MTSW

HMTSW

148

(2.54) .100 x No. of Positions

Right

(3.02) (1.78)

.119

.070

Angle

Versions

(3.09)

(1.78) .120

.070

100

–S

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

HMTSW

–S & –D

(5.56)

.219

(1.78)

= 36

.070

positions

maximum

(2.54)

.100

(2.54)

.100

(6.10)

.240

(1.78)

.070

–D

= (5.08 mm)

.200"

Center

Version

thru

LEAD STYLE

–06

–07

–08

–09

–10

–11

–12

–13

–21

–22

–23

–24

–27

–28

OAL

(7.62) .300

(10.92) .430

(13.46) .530

(18.54) .730

(21.08) .830

(23.62) .930

(26.16) 1.030

(31.24) 1.230

(36.32) 1.430

(16.00) .630

(11.30) .445

(12.19) .480

(33.78) 1.330

(28.70) 1.130

150

FILE NO. E111594

(8.12)

.320

(5.08)

.200

(8.10)

.319

–T

(1.78)

.070

148

150

(1.78)

.070

(8.12)

.320

(1.78)

.070

(5.08)

.200

(8.10)

.319

–Q

Note:

These Series are

non-standard, non-returnable.

(1.78)

.070

MTSW

HMTSW

148
