SSW-104-22-F-S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> SSW-104-22-F-S

SSW-104-22-F-S: DescriptionHeaders & Wire Housings .100" Tiger Buy Socket Strip; CategoryThe connector The connector; File Size775KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

SSW-104-22-F-S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SSW-104-22-F-S	-	-	View	Buy Now

SSW-104-22-F-S Overview

Headers & Wire Housings .100" Tiger Buy Socket Strip

SSW-104-22-F-S Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Samacsys Description	4 Position, .100" Tiger Buy™ Socket Strip
Other features	TIGER BUY CONTACT
body width	0.095 inch
subject depth	0.335 inch
body length	0.42 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH (3)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	3u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	6.3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.194 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

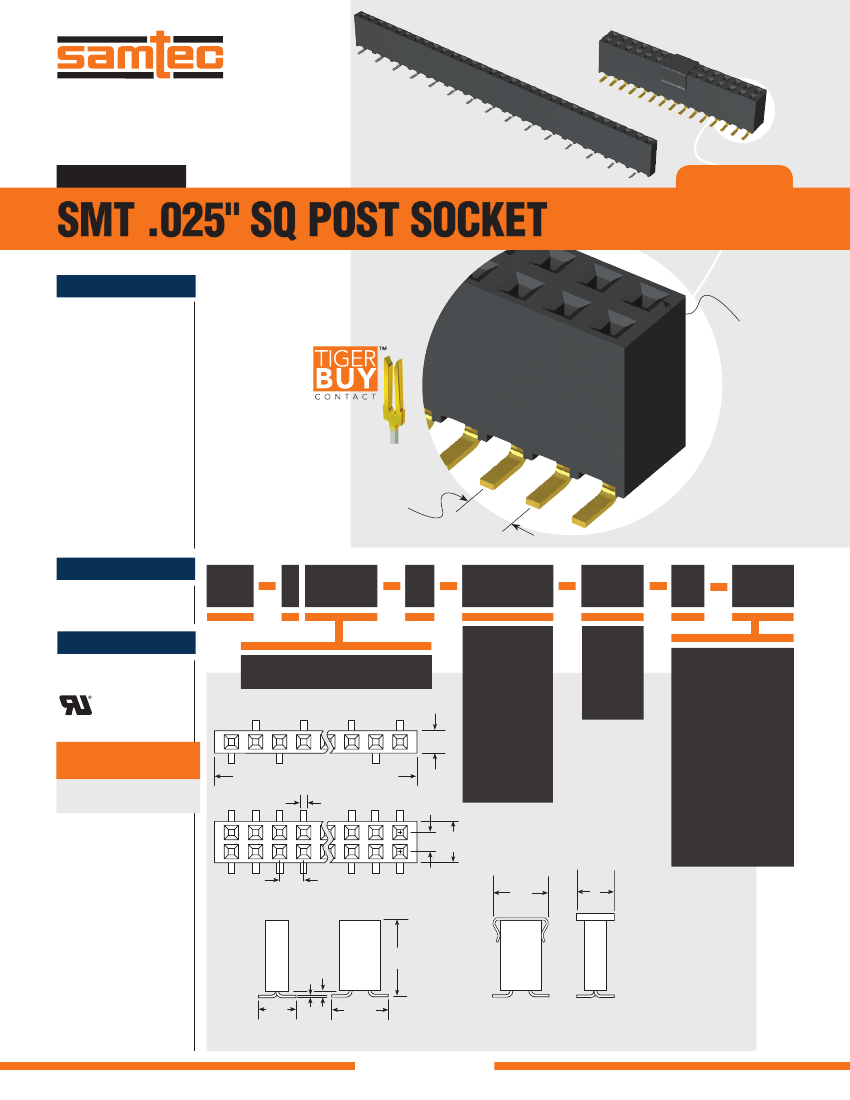

F-219

SSW–115–22–G–D–VS-P

SSW–130–22–L–S–VS

(2.54 mm) .100"

SSW SERIES

SMT .025" SQ POST SOCKET

SPECIFICATIONS

For complete specifications

and recommended PCB layouts

see www.samtec.com?SSW

Insulator Material:

Black LCP

Contact Material:

Phosphor Bronze

Plating:

Au or Sn over

50 µ" (1.27 µm) Ni

Current Rating (SSW/TSM):

4.7 A per pin

(2 pins powered)

Operating Temp Range:

-55 °C to +125 °C with Gold

-55 °C to +105 °C with Tin

Insertion Depth:

(3.68 mm) .145" to

(6.35 mm) .250"

Max Cycles:

100 with 10 µ" (0.25 µm) Au

Voltage Rating:

465 VAC / 655 VDC

RoHS Compliant:

Yes

Mates With:

TSW, MTSW, HTSW,

HMTSW, MTLW, EW, ZW,

TSS, HTSS, ZSS, TSM,

TSSH, DW, HW

Tiger Buy

contacts

(2.54 mm)

.100"

PROCESSING

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0.10 mm) .004" max

SSW

NO. PINS

PER ROW

PLATING

OPTION

ROW

OPTION

OTHER

OPTION

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

02 thru 36

(2.41)

.095

= Gold flash

on contact,

Matte Tin on tail

–F

–L

= Single

Row

–S

FILE NO. E111594

= 10 µ" (0.25 µm)

Gold on contact,

Matte Tin on tail

= 20 µ" (0.51 µm)

Gold on contact,

Gold flash on tail

= Double

Row

–D

= Polarized Position

–“XX”

–K

ALSO AVAILABLE

(MOQ Required)

(2.54) .100 x No. of Positions + (0.51) .020

(0.79)

.031

–G

= –S: (3.50 mm) .138" DIA,

–D: (6.50 mm) .256" DIA

Polyimide film Pick

& Place Pad

(03 positions min.)

• Other platings

• Notch option

= Pick & Place Pad

(05 positions min.)

–P

(2.54) (4.95)

.100 .195

(2.54)

.100

(7.11)

.280

(5.72)

.225

(4.95)

.195

(10.03)

.395

= Tape & Reel Packaging

(–02 thru –28)

–TR

(1.27)

.050

(9.78)

.385

(5.16)

.203

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

(0.41)

.016

(7.87)

.310

–P

OPTION

–S

–D

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM

Recommended Resources

TTL and CMOS interface circuit b

60 watt laptop battery charger circuit

Wanbao BCD-235 refrigerator circuit

LA4555 power amplifier circuit diagram

Making a solar cell phone charger circuit diagram

DC power supply undervoltage alarm circuit
