SEAFP-10-05.0-S-04 datasheet, PDF

Datasheet> All Categories > The connector> The connector> SEAFP-10-05.0-S-04

SEAFP-10-05.0-S-04: DescriptionBoard-to-Board & Mezzanine Connectors.050" SEARAY High-Speed Open-Pin-Field Array Socket, Press-Fit; CategoryThe connector The connector; File Size645KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

SEAFP-10-05.0-S-04 Overview

Board-to-Board & Mezzanine Connectors.050" SEARAY High-Speed Open-Pin-Field Array Socket, Press-Fit

SEAFP-10-05.0-S-04 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	3 weeks
Is Samacsys	N
Board mount options	HOLE .086-.098
body width	0.221 inch
subject depth	0.197 inch
body length	0.729 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
Insulator color	NATURAL
insulator material	NYLON
JESD-609 code	e3
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1.9 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.048 inch
Terminal pitch	1.27 mm
Termination type	PRESS FIT
Total number of contacts	40
Base Number Matches	1

Preview

Download Datasheet

View All

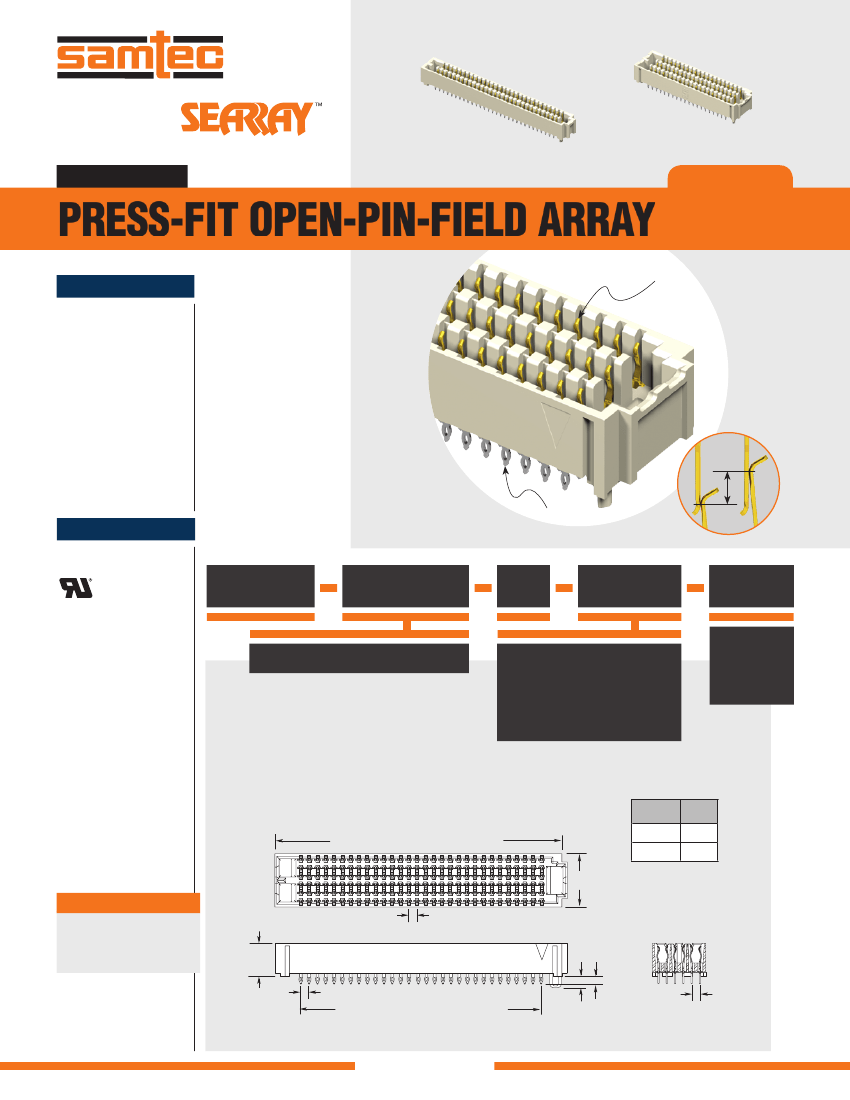

F-219

SEAFP–20–05.0–S–06

SEAFP–30–05.0–L–04

(1.27 mm) .050"

SEAFP SERIES

PRESS-FIT OPEN-PIN-FIELD ARRAY

SPECIFICATIONS

For complete specifications and

recommended PCB layouts see

www.samtec.com?SEAFP

Insulator Material:

Natural High

Temperature Nylon

Contact Material:

BeCu Alloy

Plating:

Au or Sn over

50 µ" (1.27 µm) Ni

Operating Temp Range:

-55 °C to +125 °C

Current Rating

(SEAFP/SEAM):

1.9 A per pin

(6 adjacent pins powered)

Working Voltage:

250 VAC

RoHS Compliant:

Yes

Board Mates:

SEAM, SEAM-RA, SEAMP

Cable Mates:

SEAC

Low insertion/extraction force

(1.40 mm)

.055"

NOMINAL

WIPE

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

FILE NO. E111594

Press-fit

tails

SEAFP

NO. OF POSITIONS

PER ROW

05.0

PLATING

OPTION

NO. OF

ROWS

–10, – 20, – 30, –40, –50

= 10 µ" (0.25 µm) Gold on contact area,

Matte Tin on solder tail

–L

= Four Rows

– 04

– 06

= 30 µ" (0.76 µm) Gold on contact area,

Matte Tin on solder tail

–S

= Six Rows

NO. OF

ROWS

No. of positions x (1.27) .050 + (5.82) .229

(5.61)

.221

(8.15)

.321

–04

–06

TOOLING

• Compliant pin fixture

CAT-SEAFP-XX-XX

For more information, visit

www.samtec.com/tooling

(1.27) .050

(5.00)

.197

(1.27) .050

(1.78)

.070

Notes:

Patented

Some sizes, styles and

options are non-standard,

non-returnable.

No. of positions x (1.27) .050 - (1.27) .050

(1.23)

.048

(1.27)

.050

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
