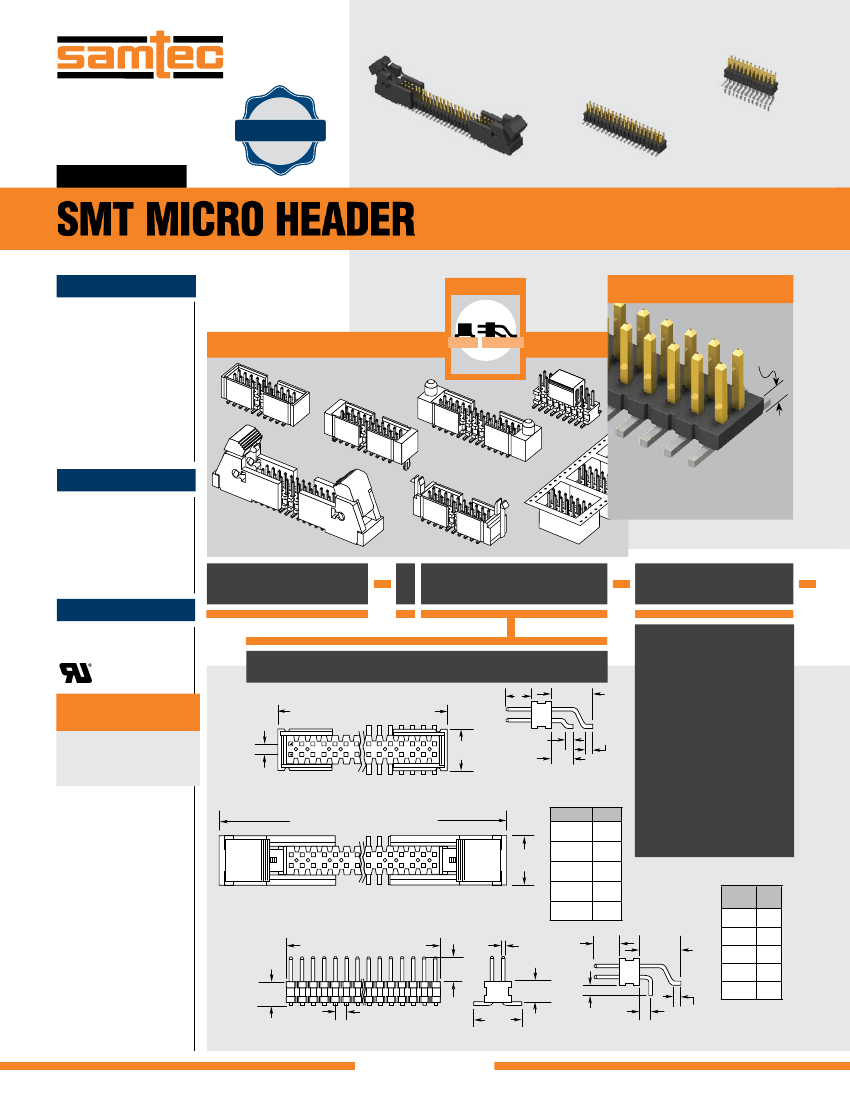

F-219 (Rev 02NOV18)
FTSH–112–01–L–MT
EXTENDED LIFE
PRODUCT
HIGH MATING
CYCLES
10 YEAR MFG
WITH 30 µ" GOLD
FTSH–125–01–L–DV–EJ
FTSH–120–01–F–DV
(1.27 mm) .050"
SMT MICRO HEADER
SPECIFICATIONS
For complete specifications and
recommended PCB layouts
see www.samtec.com?FTSH
Insulator Material:
Black Liquid Crystal Polymer
Terminal Material:
Phosphor Bronze
Plating:
Sn or Au over 50 µ" (1.27 µm) Ni
Current Rating (FTSH/CLP):
3.4 A per pin
(2 pins powered)
Operating Temp Range:
-55 °C to +125 °C
RoHS Compliant:
Yes
Board Mates:
CLP, FLE
Cable Mates:
FFSD, FFTP
APPLICATIONS
CLP FTSH
OTHER SOLUTIONS
OPTIONS
–ES OPTION
–EC OPTION
HORIZONTAL
–P OPTION
(1.27 mm)
.050"
–EP OPTION
PROCESSING
Lead-Free Solderable:
Yes
SMT Lead Coplanarity:
–MT & –DV Tail Option:
(0.10 mm) .004" max (02-25)
–MT & –DH Tail Option:
(0.15 mm) .006" max (26-50)*
*(.004" stencil solution
may be available; contact
IPG@samtec.com)
Ultra-low profile option available.
End Shrouds available.
Call for FTS Series specifications.
–EJ OPTION
–EL OPTION
–TR OPTION
FTSH
1
NO. PINS
PER ROW
LEAD
STYLE
RECOGNITIONS
For complete scope of
recognitions see
www.samtec.com/quality
= (3.05 mm) .120" Post
(Mates with FFSD, CLP–DH)
–01
02 thru 50
FILE NO. E111594
ALSO AVAILABLE
(MOQ Required)
• Molded Pick & Place pads
• Latches
• Other platings
A
No. of positions x (1.27) .050 + Z
02
100
(5.33)
.210
= (1.91 mm) .075" Post
(Mates with FLE)
–02
–03
–04
–05
(4.78)
.188
(1.27)
.050
01
–EX OPTION SHOWN
99
(0.81)
(0.51)
.032
.020
(2.29)
.090
–DH
(Styles –01, –02, –04 only)
= (1.65 mm) .065" Post
(Mates with CLP–D)
= (3.81 mm) .150" Post
OPTION
– ES
(5.64)
.222
No. of positions x (1.27) .050 + Z
Z
(2.57)
.101
(15.77)
.621
(3.33)
.131
(5.87)
.231
(6.53)
.257
–EJ
–EC
–EP
–EL
= (4.32 mm) .170" Post
(Mates with CLP–BE)
–EJ OPTION SHOWN
LEAD
STYLE
– 01
– 02
(5.08)
.200
A
(3.05)
.120
(1.91)
.075
(1.65)
.065
(3.81)
.150
(4.32)
.170
No. of positions x (1.27) .050
(0.40)
.016
SQ
A
– 03
– 04
A
Notes:
Some sizes, styles and
options are non-standard,
non-returnable.
See SFM/TFM for positive
alignment feature.
(2.92)
.115
(1.27) .050
(5.84)
.230
– DV
(2.51)
.099
(1.27)
(0.81)
(2.29) .050
.032
.090
–MT
(Styles –01, –02 & –04 only)
– 05
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
WWW.SAMTEC.COM

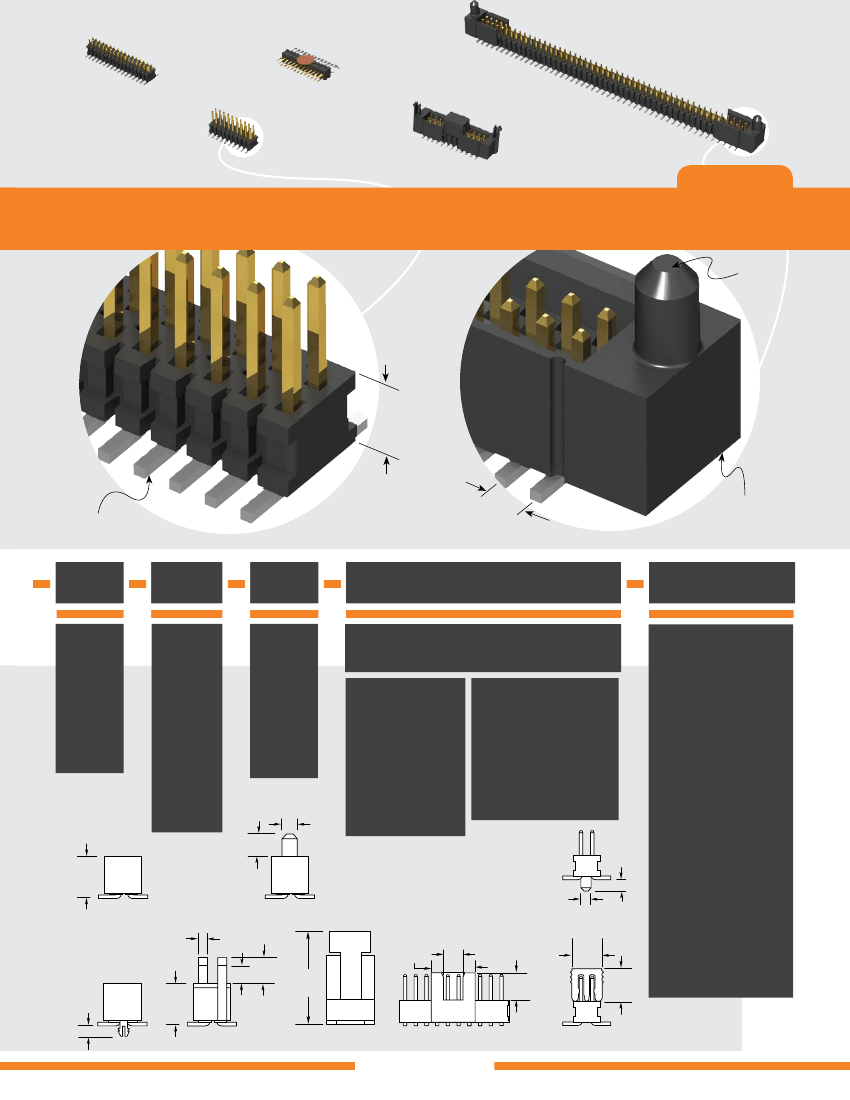

FTSH–150–02–L–DV–EP
FTSH–117–02–L–DV
FTSH–113–02–L–DH–C
FTSH–110–04–F–DV
FTSH–112–03–L–DV–EP–P
FTSH SERIES
Optional
guide
post
(2.92 mm)
.115"
Surface mount
(1.27 mm) .050"
micro pitch
Optional end
shrouds and
ejector shrouds
PLATING
OPTION
TAIL
OPTION
OPTION
FLEX SHROUD
OPTIONS
(Style –02 & –03 only, –DH & –MT not available)
9 pins/row minimum
(Other positions available. Call Samtec.)
OTHER
OPTIONS
= Gold flash
on post,
Matte Tin
on tail
= 10 µ"
(0.25 µm)
Gold on post,
Matte Tin
on tail
–F
= Double
Vertical
–DV
Leave Blank
for -DH & -MT
–L
= Double
Horizontal
(Styles
–01, –02 &
–04 only)
–DH
= Mixed
Technology
(Styles
–01, –02 &
–04 only)
(3.05)
.120
(4.83)
.190
–MT
= Polarized
Position
(Specify
position of
omitted pin)
(Not available
with -EX
options)
–“XXX”
= End Shroud
–ES
= End Shroud
with Locking Clip
(Manual placement
required)
–EC
= End Shroud with Board Lock
(Boards are positively locked
and cannot be unmated)
= Ejector Shroud
(Style –01 only)
–DH & –MT not available
10 pins/row minimum
25 pins/row maximum
–EL
–EJ
= Keying Shroud
(For mating with FFSD
Style –01 only and
05, 08, 10, 13, 17, 20 & 25
pins/row only. 13, 17, 20 & 25
pins/row only with –EJ option)
(–DV only)
–K
(1.91)
.075
DIA
= End Shroud
with Guide Post
–EP
= Alignment Pin
(–DV 3 positions min.)
(–DH 5 positions min.)
(Metal or plastic at
Samtec discretion)
–A
= (5.00 mm) .197" DIA
Polyimide film
Pick & Place Pad
(–DH only)
(0.89)
.035
DIA
(3.30)
.130
x
(5.08)
.200
–C
–ES
(1.17)
.046
(3.05)
.120
(1.22)
.048
(4.83)
.190
(2.29)
.090
–EP
–A
(0.86)
.034
= Pick & Place Pad
(–DV 4 positions min.)
(–DH & –MT not available)
–P
(5.08)
.200
(11.18)
.440
(2.16)
.085
(3.20)
.126
(4.10)
.160
= Tape & Reel Packaging
(Flex Shroud options not
available except –ES & –EJ)
–TR
– EC
–EL
–EJ
–K
–P
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
WWW.SAMTEC.COM
