8WZ-32.768KBE-T Overview

Crystal 32.768kHz 3.3V 50ppm -40C +85C

8WZ-32.768KBE-T Parametric

Parameter Name	Attribute value
Maker	TXC Corporation
Product Category	crystal
Termination type	SMD/SMT
load capacitance	15 pF
frequency	32.768 kHz
frequency stability	50 PPM
Minimum operating temperature	- 40 C
Maximum operating temperature	+ 85 C
length	2.5 mm
width	2 mm
high	0.8 mm
series	8WZ
Encapsulation	Cut Tape
Encapsulation	MouseReel
Encapsulation	Reel
product	Crystals
type	Crystal Oscillators
Installation style	SMD/SMT
Factory packaging quantity	3000

Preview

Download Datasheet

View All

SMD RTC

Crystal Oscillators

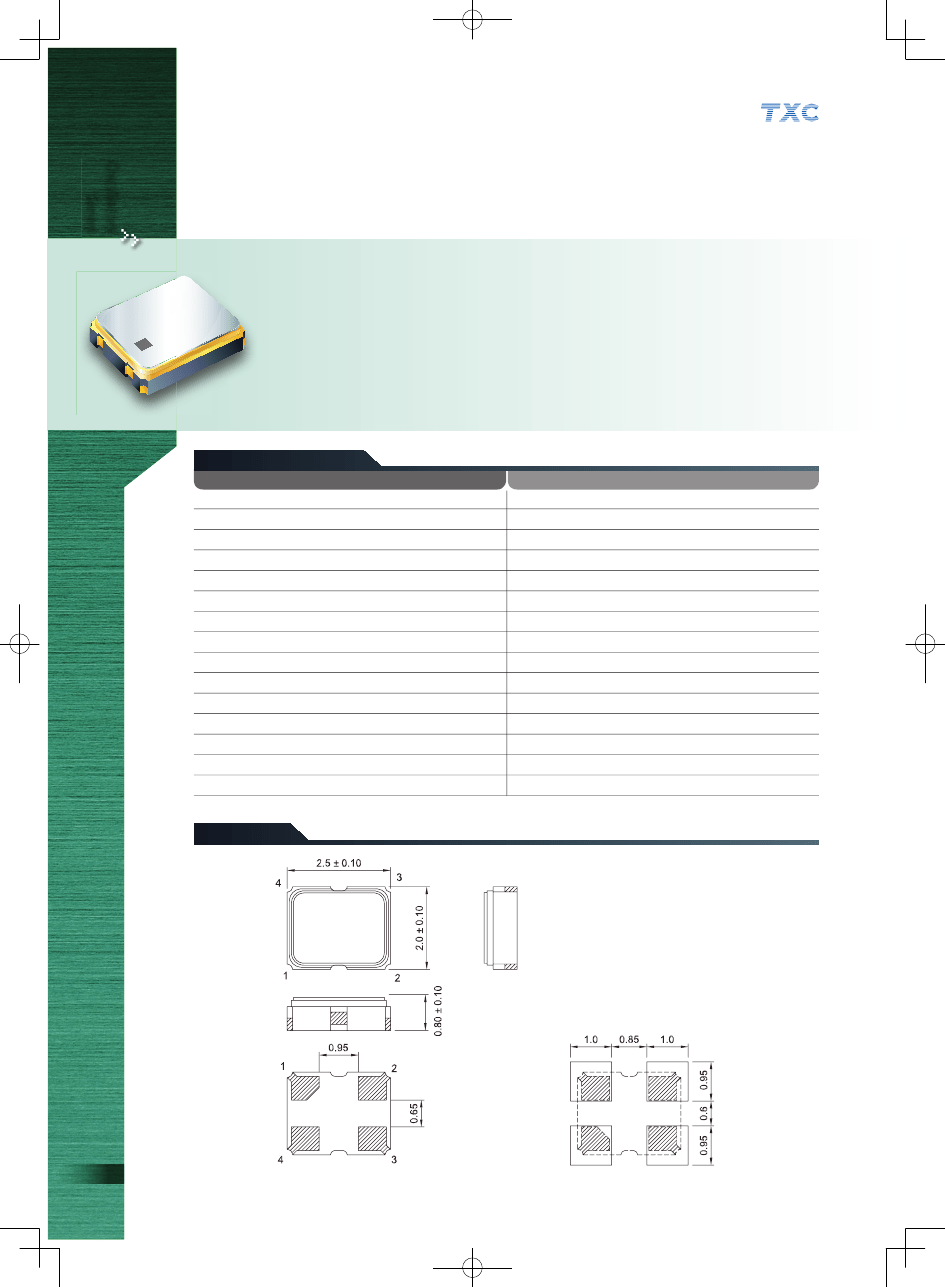

2.5 x 2.0 x 0.8 mm 8WZ Series

Features

Think of Frequency Think of

come visit our site http://www.txccorp.com

Oscillators

Series

．

Ultra small 32.768 kHz RTC oscillator in seam sealed ceramic package.

．

4 pads design to achieve good soldering contact on PCB.

．

Use AT crystal as the resonator for good temperature performance.

．

Tri-State function available for power saving.

．

RoHS Compliant / Pb Free.

Electrical Speciﬁcations

Item / Type

Remark : Speciﬁcation subject to change without prior notice. Please conﬁrm with our sales. http://www.txccorp.com

8WZ

32.768 kHz

AT Fundamental

CMOS

15 pF, or specify

1.8 V , 2.5V , 2.8 V , 3.3 V

25 ppm ,

50 ppm ,

100 ppm

Norminal Frequency

Oscillation Mode

Output Type

Output Load

Supply Voltage

Frequency Stability

Operating Temperature Range

Storage Temperature Range

Voltage Vol ( Max. ) / Voh ( Min. )

Rise ( Tr ) / Fall ( Tf ) Time

Current Consumption

Symmetry

Start-up Time

Tri-state Voltage Vol (Max.) / Voh (Min.)

Aging ( at 25

℃

)

- 10 ~ + 70

℃

, - 40 ~ + 85

℃

- 55 ~ + 125

℃

0.1 VDD / 0.9 VDD

200 ns Max.

3 mA Max.

45 ~ 55 %

10 ms Max.

0.3 VDD / 0.7 VDD

5 ppm at ﬁrst year.

Dimensions

PAD FUNCTION:

1:ENABLE CONTROL

2:GND

3:OUT

4:VDD

Suggested Layout

Units: mm
