PA4342.222NLT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> PA4342.222NLT

PA4342.222NLT: DescriptionFixed Inductor 2.2uH 12A 4mm 20% Low Prof; CategoryPassive components inductor; File Size252KB，4 Pages; ManufacturerPulse Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

PA4342.222NLT Overview

Fixed Inductor 2.2uH 12A 4mm 20% Low Prof

PA4342.222NLT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Pulse Electronics
package instruction	CHIP, 4541
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
uppercase and lowercase codes	4541
structure	Shielded
DC Resistance	0.007 Ω
Nominal inductance(L)	2.2 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	4 mm
Package length	11.5 mm
Package form	SMT
Package width	10.3 mm
method of packing	TR, 13 Inch
Maximum rated current	12 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

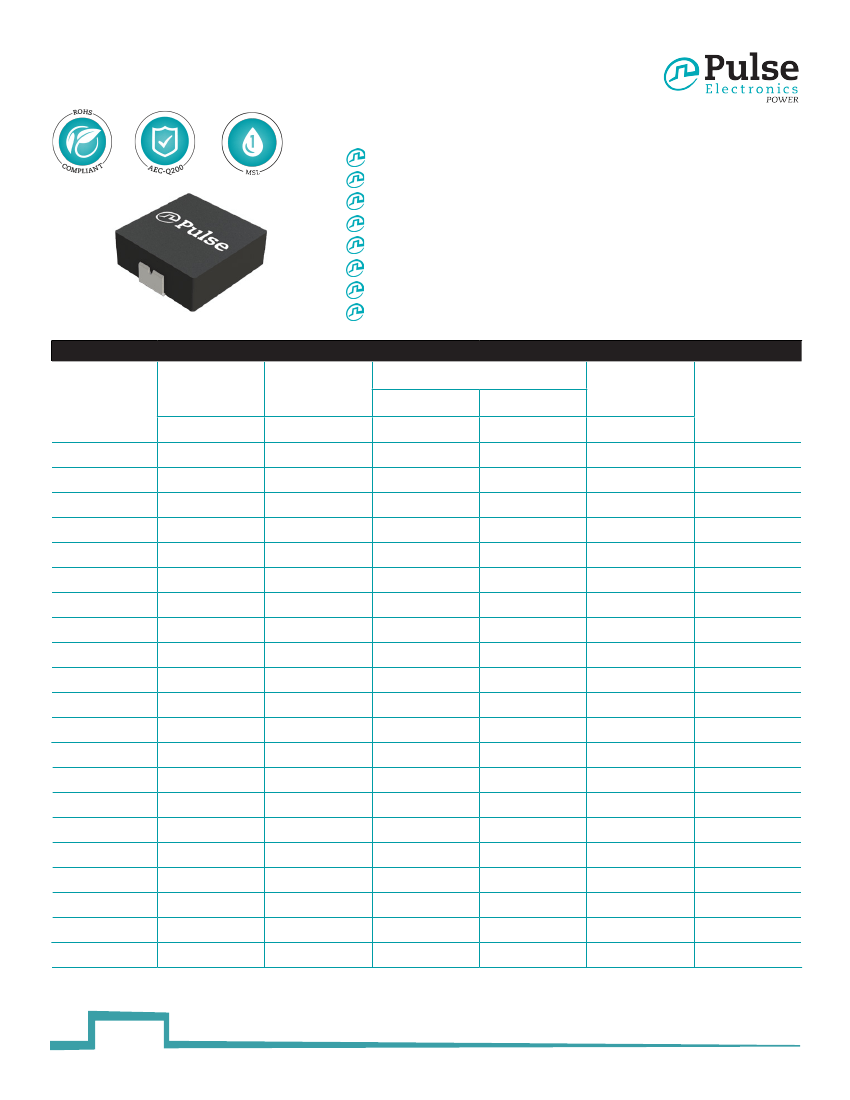

SMT Power Inductors

High Current Molded Power Inductor - PA4342.XXXNLT Series

Height:

4.0mm Max

Footprint:

11.5mm x 10.3mm Max

Current Rating:

up to 43.0A

Inductance Range:

0.15uH to 68.0uH

Shielded construction and compact design

High current, low DCR, and high efficiency

Minimized acoustic noise and minimized leakage flux

200Vdc Isolation between terminal and core

Electrical Specifications @ 25°C - Operating Temperature -55°C to +125°C

Part

Number

PA4342.151NLT

PA4342.221NLT

PA4342.271NLT

PA4342.331NLT

PA4342.361NLT

PA4342.391NLT

PA4342.451NLT

PA4342.471NLT

PA4342.561NLT

PA4342.681NLT

PA4342.881NLT

PA4342.102NLT

PA4342.122NLT

PA4342.152NLT

PA4342.222NLT

PA4342.252NLT

PA4342.332NLT

PA4342.402NLT

PA4342.472NLT

PA4342.562NLT

PA4342.682NLT

Inductance

100KHz, 1V

0.15*

0.22

0.27

0.33

0.36

0.39

0.45

0.47

0.56

0.68

0.88

1.00

1.20

1.50

2.20

2.50

3.30

4.00

4.70

5.60

6.80

Rated

Current

11.5

10.2

9.0

8.5

DC Resistance

TYP.

mΩ

0.5

0.8

0.82

1.0

1.05

1.1

1.3

1.6

2.4

2.5

3.0

3.3

4.0

6.5

7.9

10.8

17.5

MAX.

mΩ

0.6

1.0

1.2

1.3

1.5

1.8

2.7

2.9

3.3

3.8

4.6

7.0

8.7

11.8

15.5

19.3

23.3

Saturation

Current

13.5

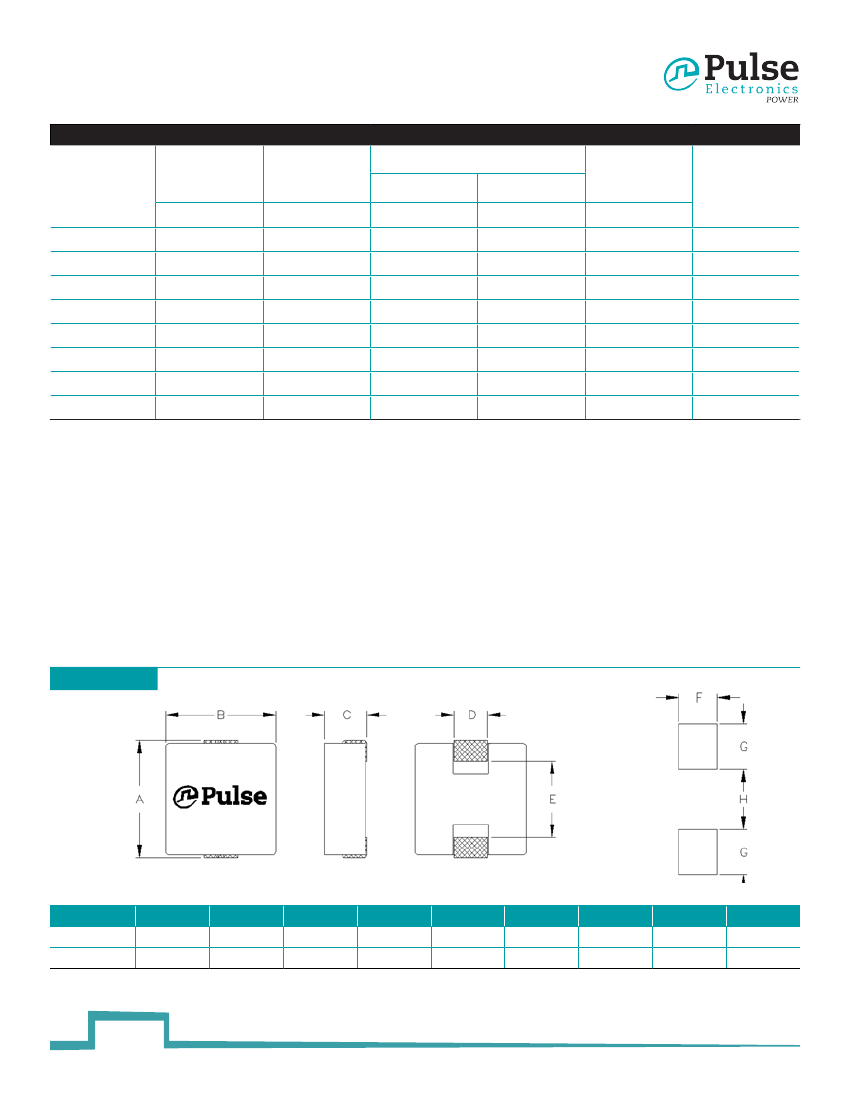

Mechanical

Footprint 1

Footprint 2

power.pulseelectronics.com

P769. J (07/18)

http://www.power.pulseelectronics.com/contact

PA4342.222NLT Related Products

	PA4342.222NLT	PA4342.391NLT	PA4342.822NLT	PA4342.472NLT	PA4342.151NLT
Description	Fixed Inductor 2.2uH 12A 4mm 20% Low Prof	Fixed Inductor 0.39uH 30A 4mm 20% Low Prof	Fixed Inductor 8.2uH 8A 4mm 20% Low Prof	Fixed Inductor 4.7uH 10A 4mm 20% Low Prof	Fixed Inductor 0.15uH 43A 4mm 30% Low Prof
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
package instruction	CHIP, 4541	4541	CHIP, 4541	4541	CHIP, 4541
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Factory Lead Time	12 weeks	10 weeks	12 weeks	12 weeks	10 weeks
uppercase and lowercase codes	4541	4541	4541	4541	4541
structure	Shielded	Shielded	Shielded	Shielded	Shielded
DC Resistance	0.007 Ω	0.0013 Ω	0.0255 Ω	0.0155 Ω	0.0006 Ω
Nominal inductance(L)	2.2 µH	0.39 µH	8.2 µH	4.7 µH	0.15 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package height	4 mm	4 mm	4 mm	4 mm	4 mm
Package length	11.5 mm	11.5 mm	11.5 mm	11.5 mm	11.5 mm
Package form	SMT	SMT	SMT	SMT	SMT
Package width	10.3 mm	10.3 mm	10.3 mm	10.3 mm	10.3 mm
method of packing	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch
Maximum rated current	12 A	30 A	8 A	10 A	43 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	YES	YES	YES	YES
surface mount	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	20%	20%	20%	20%	30%
Maker	Pulse Electronics	-	Pulse Electronics	-	Pulse Electronics
