202H-1AH-F-S-12VDC datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> relay> General relay> 202H-1AH-F-S-12VDC

202H-1AH-F-S-12VDC: DescriptionUniversal Relay 5A, Genereal Purpose Relay; CategoryMechanical and electronic products relay General relay; File Size469KB，5 Pages; ManufacturerSong Chuan; Environmental Compliance

Download Datasheet Parametric Compare View All

202H-1AH-F-S-12VDC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	202H-1AH-F-S-12VDC	-	-	View	Buy Now

202H-1AH-F-S-12VDC Overview

Universal Relay 5A, Genereal Purpose Relay

202H-1AH-F-S-12VDC Parametric

Parameter Name	Attribute value
Maker	Song Chuan
Product Category	General purpose relay
Shipping restrictions	Mouser does not currently sell this product.
series	202H
Factory packaging quantity	20

Preview

Download Datasheet

View All

202

SONG CHUAN

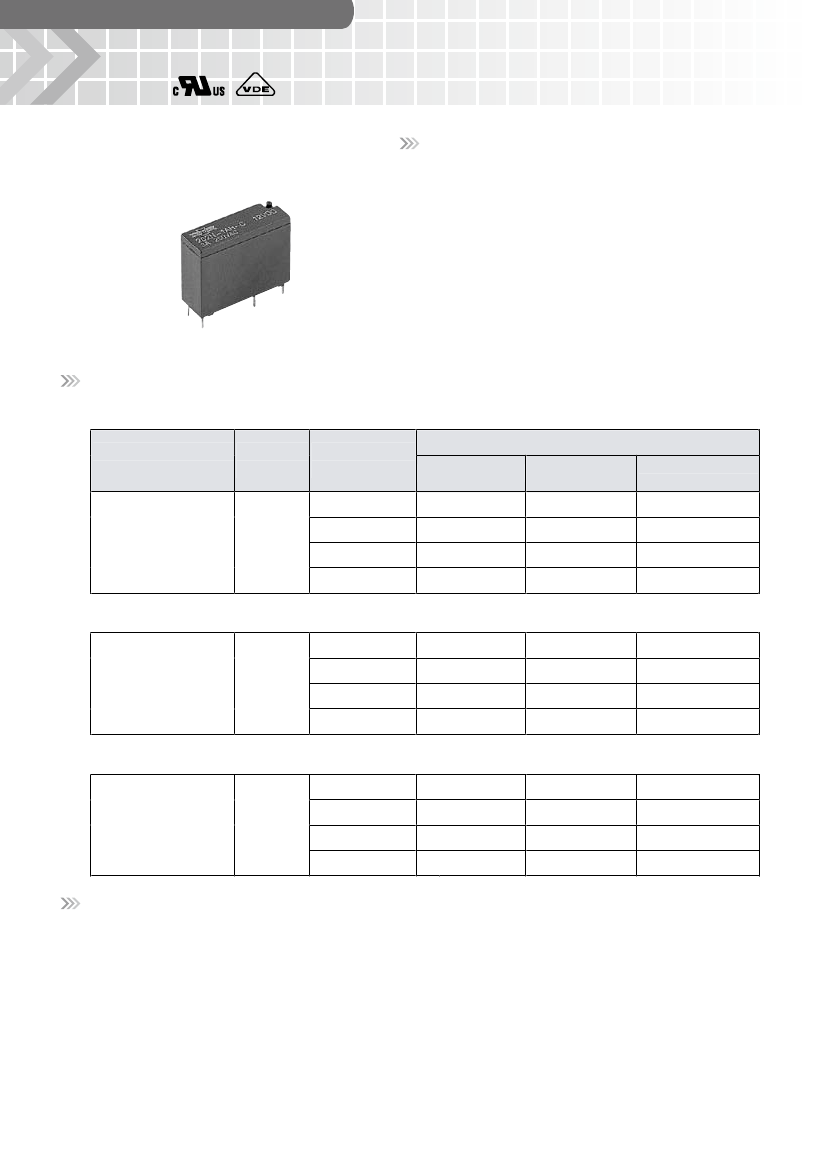

Features

□

Low cost miniature PCB Power Relays slim type 7mm

width.

□

5A 250VAC suitable for PLC and heating element

controls.

□

High sensitivity coil 200mW, 10KV impulse surge.

□

SPST-NO cadmium free contacts.

□

Optional for sealed flux free and sealed washable

versions.

□

Comply with RoHS-Directive 2002/95/EC.

Type List

◆

Standard Type

Terminal

style

Contact

form

UL Insulation

system approval

----------

PCB terminal

(SPNO)

----------

Designation (provided with)

Flux tight

202-1AC-C

202-1AC-F-C

202-1AH-C

202-1AH-F-C

Sealed type

202-1AC-V

202-1AC-F-V

202-1AH-V

202-1AH-F-V

Sealed type

washable

202-1AC-S

202-1AC-F-S

202-1AH-S

202-1AH-F-S

◆

High Power Type

----------

PCB terminal

(SPNO)

----------

202H-1AC-C

202H-1AC-F-C

202H-1AH-C

202H-1AH-F-C

202H-1AC-V

202H-1AC-F-V

202H-1AH-V

202H-1AH-F-V

202H-1AC-S

202H-1AC-F-S

202H-1AH-S

202H-1AH-F-S

◆

High Sensitivity Type

----------

PCB terminal

(SPNO)

----------

202N-1AC-C

202N-1AC-F-C

202N-1AH-C

202N-1AH-F-C

202N-1AC-V

202N-1AC-F-V

202N-1AH-V

202N-1AH-F-V

202N-1AC-S

202N-1AC-F-S

202N-1AH-S

202N-1AH-F-S

Ordering Information

202

1. 202

3. Blank -- Standard type (360mW)

-- High sensitivity type (200mW)

(only for 202 type)

4. 1A

-- Single pole normally open

-- Basic series designation

2. Blank -- Standard type

-- High power type

202H-1AH-F-S-12VDC Related Products

	202H-1AH-F-S-12VDC	202N-1AC-F-S-12VDC	202-1AH-F-S-12VDC	202-1AC-S-12VDC	202-1AH-F-C-12VDC	202N-1AH-F-S-12VDC	202N-1AH-F-S-24VDC	202H-1AH-F-S-24VDC	202N-1AC-F-C-12VDC
Description	Universal Relay 5A, Genereal Purpose Relay	Universal Relay 5A, Genereal Purpose Relay	Universal Relay 5A, Genereal Purpose Relay	Universal Relay 5A, Genereal Purpose Relay	Universal Relay 5A, Genereal Purpose Relay	Universal Relay 5A, Genereal Purpose Relay	Universal Relay 5A, Genereal Purpose Relay	Universal Relay 5A, Genereal Purpose Relay	Universal Relay 5A, Genereal Purpose Relay
Maker	Song Chuan	Song Chuan	Song Chuan	Song Chuan	Song Chuan	Song Chuan	Song Chuan	Song Chuan	Song Chuan
Product Category	General purpose relay	General purpose relay	General purpose relay	General purpose relay	General purpose relay	General purpose relay	General purpose relay	General purpose relay	General purpose relay
series	202H	202	202	202	202	202	202	202H	202
Factory packaging quantity	20	20	20	20	20	20	20	20	20
Shipping restrictions	Mouser does not currently sell this product.	-	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	-
