RFSW8009
11a/b/g/n/ac Wi-Fi SPDT SWITCH
0.5 to 6.0GHz
The RFSW8009 is a high power single-pole double-throw (SPDT)
switch designed for high performance wireless applications. This
wideband switch has been designed for use from 0.5 to 6GHz, where
high linearity, high isolation, low insertion loss, and small package
size are required. Switching for the RFSW8009 is controlled via two
control voltage inputs. The RFSW8009 is manufactured in a pHEMT
GaAs process and packaged in a 6-pin, 1.5 x 1.86mm Laminate
package.

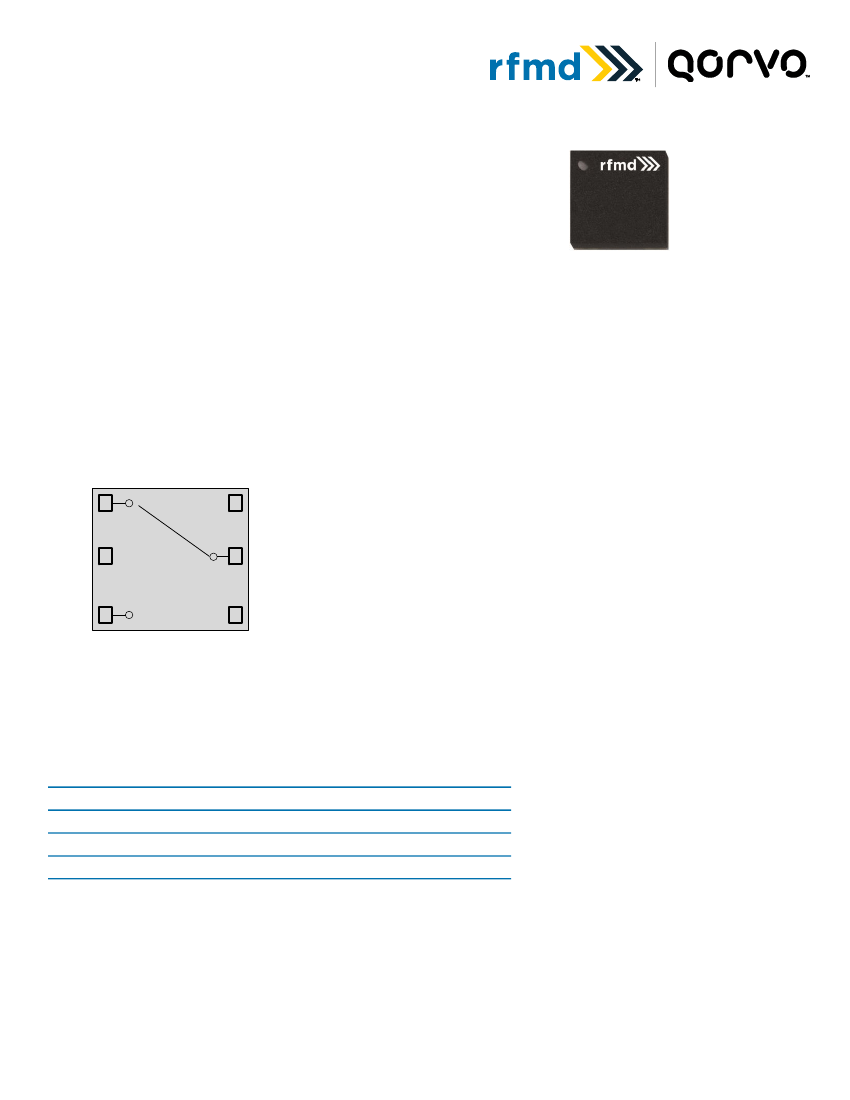

RFSW8009
Package: Laminate 6-pin
1.5mm x 1.86mm x 0.59mm
Features
■
■
Control Voltage: 2.7V to 5.3V
Insertion Loss:
■
0.45dB @ 2.5GHz
0.65dB @ 6.0GHz.
Isolation:
28dB @ 2.5GHz
26dB @ 6.0GHz
RF1
1
6
Vcont1
■
GND
Input P0.1dB:
32dBm @ 2.0-6.0GHz, 3V
2
5
RFC
Applications
RF2
3
4
Vcont2
■
■
■
■
IEEE 802.11 Wi-Fi Systems
IEEE 802.15.4 ZigBee Systems
Customer Premise Equipment
(CPE)
Wireless Access Points, Gateways
and Router Applications
ISM Band Transmitter Applications
Functional Block Diagram (Top View)
Ordering Information
RFSW8009SB
RFSW8009SQ
RFSW8009SR
RFSW8009TR7
RFSW8009PCK-410
RFSW8009PCK-411
Standard 5 piece bag
Standard 25 piece bag
Standard 100 piece reel
Standard 2500 piece reel
Evaluation board sample 0.5 – 2.5GHz
Evaluation board sample 2.5 – 6GHz
■
Revision DS20151202
© 2015 RF Micro Devices, Inc.
1 of 11
Disclaimer: Subject to change without notice
www.rfmd.com
/
www.qorvo.com
RFSW8009
RFMD + TriQuint = Qorvo
Absolute Maximum Ratings
Parameter
Control Voltage
Operating Ambient Temperature
Storage Temperature
Input RF Power (VCTL High = 3.0V)
Input RF Power (VCTL High = 5.0V)
Rating
6.0
-45 to +85
-55 to +150
+34
+35
Unit
V
ºC
ºC
dBm
dBm
Caution!
ESD sensitive device.
RFMD Green: RoHS status based on EU
Directive 2011/65/EU (at time of this
document revision), halogen free per IEC
61249-2-21, < 1000ppm each of antimony
trioxide in polymeric materials and red
phosphorus as a flame retardant, and
<2% antimony in solder.
Exceeding any one or a combination of the Absolute
Maximum Rating conditions may cause permanent
damage to the device. Extended application of Absolute
Maximum Rating conditions to the device may reduce
device reliability. Specified typical performance or
functional operation of the device under Absolute
Maximum Rating conditions is not implied.
Electrical Characteristics
Specification
Parameter
Min
Operating Parameters
Frequency
Switch Control Voltage: High
Switch Control Voltage: Low
0.5
2.7
-0.2
-
Insertion Loss
-
-
-
25
Isolation
25
25
22
15
Return Loss
15
10
-
Input P0.1dB
-
-
Input P1dB
Input IP3
2
nd
Harmonic
3
rd
Harmonic
Switch Control Current; High
Revision DS20151202
© 2015 RF Micro Devices, Inc.
-
-
-
-
-
-
3.0
0
0.40
0.45
0.55
0.65
28
28
28
26
20
20
15
+32
+32
+35
+34
+34
+60
80
80
0.1
6.0
5.3
0.20
0.65
0.70
0.80
0.90
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
10
GHz
V
V
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dBm
dBm
dBm
dBm
dBm
dBm
dBc
dBc
µA
0.5 to 2.0GHz; DC blocking capacitors = 56pF
2.0 to 2.5GHz; DC blocking capacitors = 56pF
2.5 to 3.8GHz; DC blocking capacitors = 8pF
3.8 to 6.0GHz; DC blocking capacitors = 8pF
0.5 to 2.0GHz; DC blocking capacitors = 56pF
2.0 to 2.5GHz; DC blocking capacitors = 56pF
2.5 to 3.8GHz; DC blocking capacitors = 8pF
3.8 to 6.0GHz; DC blocking capacitors = 8pF
0.5 to 2.0GHz; DC blocking capacitors = 56pF
2.0 to 2.5GHz; DC blocking capacitors = 56pF
2.5 to 6.0GHz; DC blocking capacitors = 8pF
0.5 to 2.5GHz; DC blocking capacitors = 56pF
2.5 to 6.0GHz; DC blocking capacitors = 8pF
0.5 to 6.0GHz; Vcont high = 5V.
0.5 to 2.5GHz; DC blocking capacitors = 56pF
2.5 to 6.0GHz; DC blocking capacitors = 8pF
Freq=2.5GHz; Input Power = +20dBm
Freq=2.5GHz; Input Power = +20dBm
Freq=2.5GHz; Input Power = +20dBm
No RF input ; All Modes
Unit
Typ
Max
Condition
Vcont High = 3.0V; Vcont Low = 0V; Temp = 25ºC;
Unless noted otherwise.
2 of 11
Disclaimer: Subject to change without notice
www.rfmd.com
/
www.qorvo.com
RFSW8009
RFMD + TriQuint = Qorvo
Specification
Parameter
Min
Switch Control Speed
-
Unit
Typ
50
Condition
50% of control to 90/10% of RF; All Modes
Max
250
ns
Logic Control Table
Mode
RF1 – RFC
RF2 – RFC
Vcont1
1
0
Vcont2
0
1
Application Schematic
C2
1nF
J1
RF1
1
6
Vcont1
C4
2
5
C3
J2
RF2
3
4
J3
RFC
Vcont2
C1
1nF
C5
Note: C3, C4, and C5 Values
0.5 to 2.5 GHz = 56pF
2.5 to 6.0GHz = 8pF
Capacitor values are based on Qorvo evaluation board. Final values for a system board will depend on PCB
characteristics, parasitics, waveform and switching speed requirements
Revision DS20151202
© 2015 RF Micro Devices, Inc.
3 of 11
Disclaimer: Subject to change without notice
www.rfmd.com
/
www.qorvo.com
RFSW8009
RFMD + TriQuint = Qorvo
Pin Out
RF1
1
6
Vcont1
GND
2
5
RFC
RF2
3
4
Vcont2
Pin Description Table
Pin
1
2
3
4
5
6
Name
RF1
GND
RF2
Vcont2
RFC
Vcont1
Description
RF Port-1. External DC blocking required.
Ground.
RF Port-2. External DC blocking required.
Control voltage to enable RF2 port (RF2-RFC).
Common RF Port. External DC blocking required.
Control voltage to enable RF1 port (RF1-RFC).
Revision DS20151202
© 2015 RF Micro Devices, Inc.
4 of 11
Disclaimer: Subject to change without notice
www.rfmd.com
/
www.qorvo.com
