REVISION AC
DO NOT
SCALE FROM
THIS PRINT
NOTES:
1. HIDDEN LINES ARE USED TO SHOW POLARIZATION
AC
WHEN USING -N OPTION.
2.
C
REPRESENTS A CRITICAL DIMENSION.
3. FFSD CABLE ASSEMBLIES ARE LEAD FREE.
4. ALL ASSEMBLIES TO BE 100% ELECTRICALLY TESTED
FOR SHORTS AND OPENS.
5. ALL ASSEMBLIES TO BE 100% HI-POT TESTED AT 630V.
C3
6. STRAIN RELIEF TO WITHSTAND 5LB[22N] STRAIGHT PULL.
No OF POSITIONS
AC
7. NOTE DELETED.
-02 THRU -25
8. WHEN CUTTING CABLE TO LENGTH, CONDUCTORS MAY NOT EXTEND PAST THE CABLE INSULATION.
(PER ROW)
FFSD-XX-X-XX.XX-01-X-X-XXX
OPTION
-RW: REVERSE WIRING
(NOT AVAILABLE WITH -RN1 OR -RN2)
-D"XX": DAISY CHAIN (MINIMUM 2.00[50.8],
1.00[25.4] INCREMENTS)
-R: REVERSED
-RN1: REVERSE POLARIZATION NOTCH
(NOT AVAILABLE WITH -RW OR -RN2)
-RN2: REVERSE POLARIZATION NOTCH
(NOT AVAILABLE WITH -RW OR -RN1)
-M: MIDDLE REVERSE
-O: OUTSIDE REVERSE
-SR: STRAIN RELIEF
(NOT AVAILABLE WITH -O, -M,
-R, OR -DXX)
(SOLD AS ASSEMBLIES ONLY)
STANDARD POLARIZATION NOTCH
-N: POLARIZATION NOTCH
(NOT AVAILABLE IN -02 THRU -04)
(LEAVE BLANK FOR -02, -03, -04)

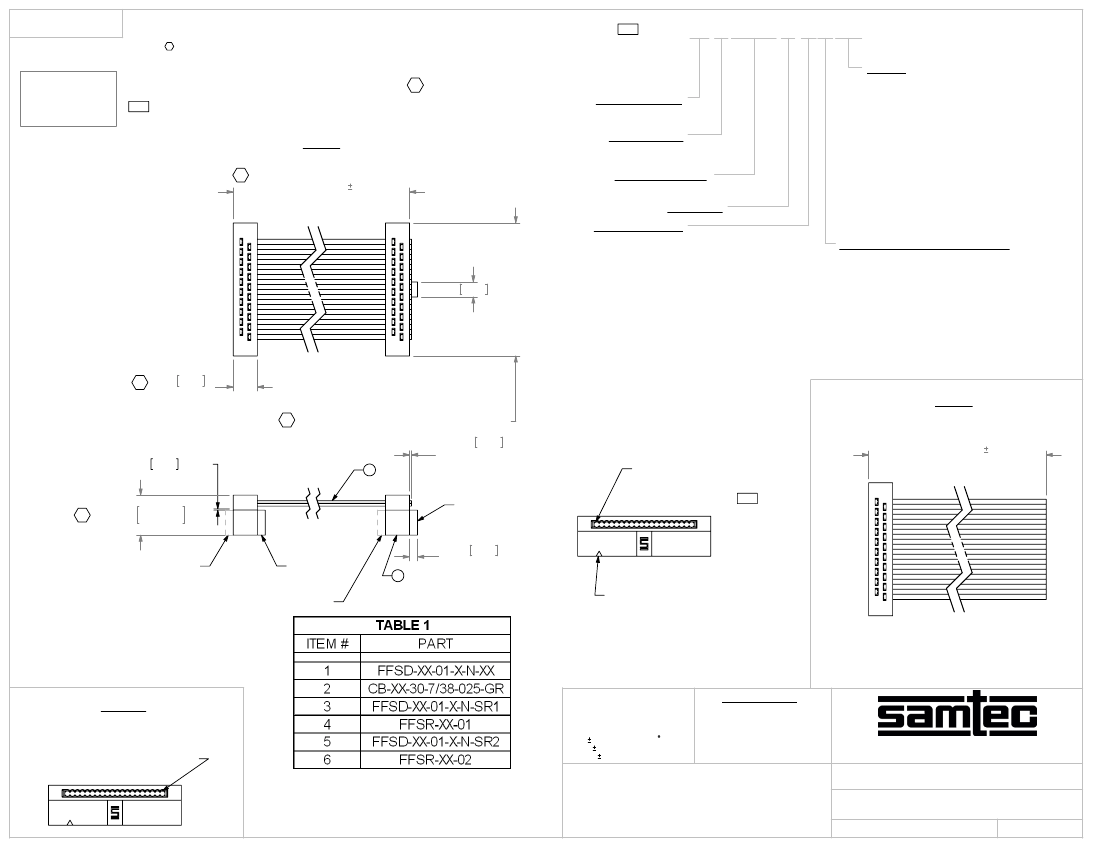

(FFSD-10-D-XX.XX-01-X-N SHOWN)
C1
FIG. 1
END ASSEMBLY
-S: SINGLE END
-D: DOUBLE END
ASSEMBLY LENGTH
(2.00[50.8] MINIMUM)
LEAD STYLE
PLATING OPTIONS
- LEAVE BLANK FOR STANDARD, USE C-67-L
-S: USE C-67-S
-F: USE C-67-F
.075 1.91 REF
XX.XX[XX.X x 25.4] .13[3.2]
(SEE NOTE 8)
C5
.120 3.05
REF
C4
(No OF POS x .050[1.27]) + .165[4.19] REF
.010 0.25 MAX
CABLE OVERHANG
(SEE NOTE 8)
-N OPTION
(FFSD-10-S-XX.XX-01-X-N SHOWN)
(SAME AS FIG. 1, DIFFERENT AS SHOWN)
XX.XX[XX.X x 25.4] .13[3.2]
(SEE NOTE 8)
FIG. 2
.006 0.15 MAX
2
COLORED WIRE TO SIDE
OF FIRST POS. INDICATOR
AC
+.006
C2
.200
- .003
+0.15
5.08
- 0.08
-RN1 OPTION
-N OPTION
-RN2 OPTION
1
.040 1.02
REF
NOTCH DENOTES
FIRST POSITION
(FFSD-10-X-XX.XX-01-X-N-RW SHOWN)
COLORED WIRE TO OPPOSITE
SIDE OF FIRST POS. INDICATOR
FIG. 11
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
INSULATORS: PBT, COLOR: BLACK
CONTACT: BeCu
CABLE: TINNED COPPER, COLOR: GRAY
PLATING: .000010 GOLD OVER .000050 NICKEL
REMAINDER: .000200 REF TIN OVER .000050 NICKEL
F:\DWG\MISC\Mktg\FFSD-XX-X-XX.XX-01-X-X-XXX-MKT.SLDDRW
.050 x .050 DOUBLE ROW FEMALE IDC ASSEMBLY
DWG. NO.
FFSD-XX-X-XX.XX-01-X-X-XXX
02/15/2008
SHEET
1
OF
3
BY:
T NEWTON
REVISION AC

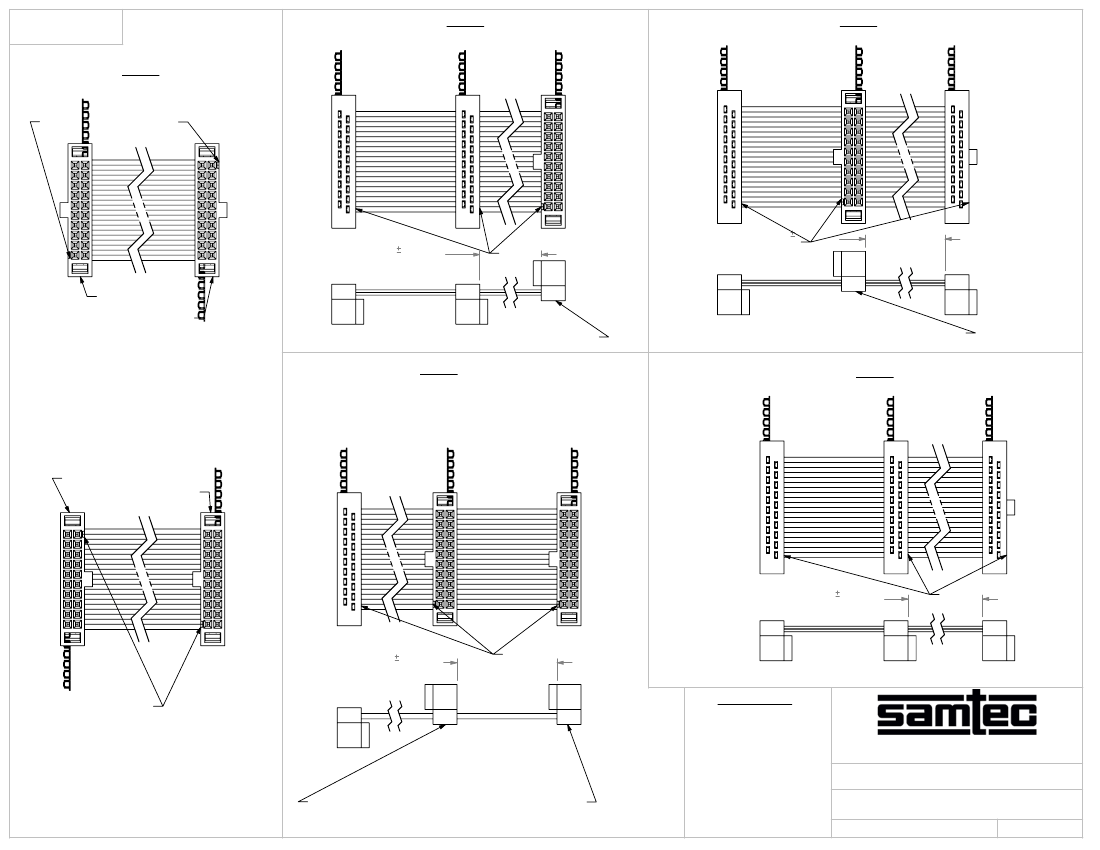

(FFSD-10-D-XX.XX-01-X-N-RN1 SHOWN)
(SAME AS FIG. 1, DIFFERENT AS SHOWN)
FIRST POSITION INDICATOR
FIG. 3
(FFSD-10-D-XX.XX-01-X-N-DXX-O SHOWN)
(SAME AS FIG. 1, DIFFERENT AS SHOWN)
(2.00[50.8] MINIMUM, 1.00[25.4] INCREMENTS)
FIG, 4
(FFSD-10-D-XX.XX-01-X-N-DXX-M SHOWN)
(SAME AS FIG. 1, DIFFERENT AS SHOWN)
(2.00[50.8] MINIMUM, 1.00[25.4] INCREMENTS)
FIG. 5
XX.XX[XX.X x 25.4] .13[3.2]
(MIN 2")
FIRST CONNECTOR
SECOND CONNECTOR
FIRST POSITION INDICATOR
XX.XX[XX.X x 25.4] .13[3.2]
FIRST POSITION INDICATOR
(MIN 2")
OUTSIDE CONNECTOR REVERSED WHEN DAISY CHAINED
MIDDLE CONNECTOR REVERSED WHEN DAISY CHAINED
(FFSD-10-D-XX.XX-01-X-N-RN2 SHOWN)
(SAME AS FIG. 1, DIFFERENT AS SHOWN)
FIRST CONNECTOR
SECOND CONNECTOR
(FFSD-10-D-XX.XX-01-X-N-DXX-R SHOWN)
(SAME AS FIG. 1, DIFFERENT AS SHOWN)
(NOT AVAILABLE WITH -RN1 OR -RN2 OPTION)
(2.00[50.8] MINIMUM, 1.00[25.4] INCREMENTS)
FIG. 6
(FFSD-10-D-XX.XX-01-X-N-DXX SHOWN)
(SAME AS FIG. 1, DIFFERENT AS SHOWN)
(2.00[50.8] MINIMUM, 1.00[25.4] INCREMENTS)
FIG. 7
XX.XX[XX.X x 25.4] .13[3.2]
(MIN 2")
FIRST POSITION INDICATOR
XX.XX[XX.X x 25.4] .13[3.2]
(MIN 2")
FIRST POSITION INDICATOR
NOTE:
-RN1 = REVERSE NOTCH ON 1ST CONNECTOR ONLY
( NOT AVAILABLE WITH -R OPTION)
-RN2 = REVERSE NOTCH ON 2ND CONNECTOR ONLY
(NOT AVAILABLE WITH -R OPTION)
(REVERSE NOTCH NOT AVAILABLE WITH -RW OR ANY
DAISY CHAIN OPTIONS)
FIRST POSITION INDICATOR
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
.050 x .050 DOUBLE ROW FEMALE IDC ASSEMBLY
BOTH CONNECTORS REVERSED WHEN DAISY CHAINED
F:\DWG\MISC\Mktg\FFSD-XX-X-XX.XX-01-X-X-XXX-MKT.SLDDRW
SHEET SCALE: 2:1
FFSD-XX-X-XX.XX-01-X-X-XXX
02/15/2008
SHEET
2
OF
3
BY:
T NEWTON
REVISION AC

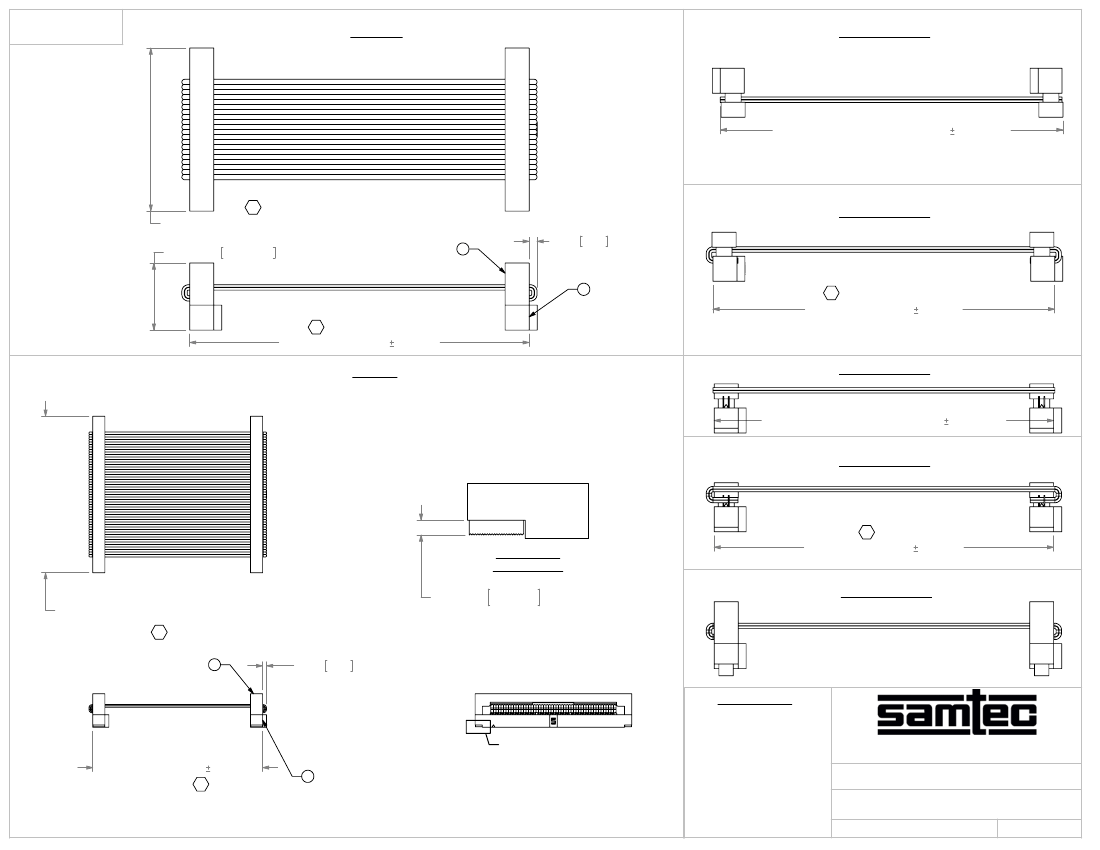

STRAIN RELIEF OPTION (POS 2-15 ONLY)
(FFSD-10-D-XX.XX-01-X-N-SR SHOWN)
(SAME AS FIG. 1, DIFFERENT AS SHOWN)
FIG. 9
(2-15 POS -SR ONLY)
IN-PROCESS 1
XX.XX[XX.X x 25.4] + .4375[11.113] .125[3.18]
C6
(No. OF POS. x .050[1.27]) + .315[8.00] REF
.335±.010 8.51±0.25
4
.039 1.00
(2-15 POS -SR ONLY)
IN-PROCESS 2
3
C1
C1
(XX.XX[XX.XX x 25.4] .13[3.2]
(XX.XX[XX.XX x 25.4] .13[3.2]
STRAIN RELIEF OPTION (POS 16-25 ONLY)
(FFSD-25-D-XX.XX-01-X-N-SR SHOWN)
(SAME AS FIG. 2, DIFFERENT AS SHOWN)
SCALE 1 : 1
FIG. 10
(16-25 POS -SR ONLY)
XX.XX[XX.XX x 25.4] +.4375[11.113] .125[3.18]
IN-PROCESS 1
(16-25 POS -SR ONLY)
IN-PROCESS 2
C1
DETAIL 'A'
SCALE 8 : 1
No. OF POS. x .050[1.27] + .315[8.00] REF
C6
XX.XX[XX.XX x 25.4] .13[3.2]
.0184
- .000
0.47
+.002
+0.051
0.000
(16-25 POS -SR ONLY)
IN-PROCESS 3
6
.039 1.00
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
'A'
XX.XX[XX.XX x 25.4] .13[3.2]
C1
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
5
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
F:\DWG\MISC\Mktg\FFSD-XX-X-XX.XX-01-X-X-XXX-MKT.SLDDRW
.050 x .050 DOUBLE ROW FEMALE IDC ASSEMBLY
FFSD-XX-X-XX.XX-01-X-X-XXX
02/15/2008
SHEET
3
OF
3
BY:
T NEWTON
