Product Brief – JN5139-xxx-Myy
IEEE802.15.4/ZigBee Module Family
Overview
The JN5139-xxx-Myy family is a range of surface mount modules that enables users
to implement systems using Jennic’s own JenNet networking stack, IEEE802.15.4 or
ZigBee with minimum time to market and at the lowest cost. They remove the need
for expensive and lengthy development of custom RF board designs and test suites.
The modules use Jennic’s JN5139 wireless microcontroller to provide a
comprehensive solution with high radio performance and all RF components are
included. All that is required to develop and manufacture wireless control or sensing
products is to connect a power supply and peripherals such as switches, actuators
and sensors, considerably simplifying product development.
Three basic hardware module variants are available: JN5139-xxx-M00 with an
integrated antenna, JN5139-xxx-M01/M03 with an antenna connector and JN5139-
xxx-M02/M04 with a power amplifier and LNA for extended range. Each variant can
be provided pre-programmed with a ZigBee network stack (JN5139-Z01-Myy).
Features: Module
•
•
•
•
2.4GHz IEEE802.15.4 and ZigBee
compatible
2.7-3.6V operation
Sleep current (with active sleep
timer) 2.6µA
JN5139-xxx-M00/01/03
up to 1km range
M00: on board antenna
M01: SMA connector
M03: uFl connector
o
Receiver sensitivity -96dBm
o
TX power +2.5dBm
o
TX current 37mA
o
RX current 37mA
o
18x30mm
JN5139-xxx-M02/04
up to 4km range
M02: SMA connector
M04: uFl connector
o
Receiver sensitivity -100dBm
o
TX power +19dBm
o
TX current 125mA
o
RX current 45mA
o
18x41mm
Module Block Diagram
128kB Serial Flash
Memory
XTAL
•
Ceramic Antenna
Balun
M00 Option
2.4GHz
Radio
JN5139 chip
O-QPSK
Modem
RAM
96kB
ROM
192kB
SPI
2-wire serial
RISC CPU
External
Antenna
Connector
Balun
M01/03 Option
IEEE802.15.4
MAC
Accelerator
Timers
UARTs
12-bit ADC,
comparators
Connector
Balun
PA / LNA
Power
Management
128-bit AES
Encryption
Accelerator
Features: Microcontroller
•
Power
M02/04 Option
11-bit DACs,
temp sensor
16MHz 32-bit RISC CPU
96kB RAM, 192kB ROM
4-input 12-bit ADC, 2 11-bit DACs,
2 comparators, temperature
sensor
2 Application timer/counters,
3 system timers
2 UARTs (one for in-system
debug)
SPI port with 5 selects
2-wire serial interface
21 GPIO
•
•
Benefits
•
•
•
•
•
Microminiature module solutions
Ready to use in products
Minimises product development
time
No RF test required for systems
Compliant with FCC part 15
rules, ETSI ETS 300-328 and
Japan ARIB STD-T66
Production volumes supplied
pre-programmed with
application software
Applications
•
•
Robust and secure low power
wireless applications
Wireless sensor networks,
particularly IEEE802.15.4 /
ZigBee systems
Home and commercial building
automation
Home networks
Toys and gaming peripherals
Industrial systems
Telemetry and utilities
(e.g. AMR)
•
•
•
•
•
•
•
•
•
•
•
•
Evaluation kits available with full,
unlimited, Software Development
Kit
Temperature range
-20° to +70°
C
C
Lead-free and RoHS compliant
JN5139-MO-PB v1.3
© NXP Laboratories UK Ltd
Page 1 of 2
These modules are based on Jennic’s JN5139 low power,
low cost IEEE802.15.4 compliant wireless microcontroller.
This device combines an on chip 32-bit RISC core, a high
performance 2.4GHz IEEE802.15.4 transceiver, 192kB of
ROM and 96kB of RAM and provides a versatile low cost
solution for wireless sensor networking applications. The
high level of integration helps to reduce the overall system
cost. In particular, the ROM enables integration of point-
to-point and mesh network stack protocols, and the RAM
allows support of router and controller functions, as well as
the application, without the need for additional external
memory. The JN5139 uses hardware MAC and highly
secure AES encryption accelerators for low power and
minimum processor overhead. Integrated sleep oscillator
and power saving facilities are provided, giving low system
power consumption. The device also incorporates a wide
range of digital and analogue peripherals for the user to
connect to their application.

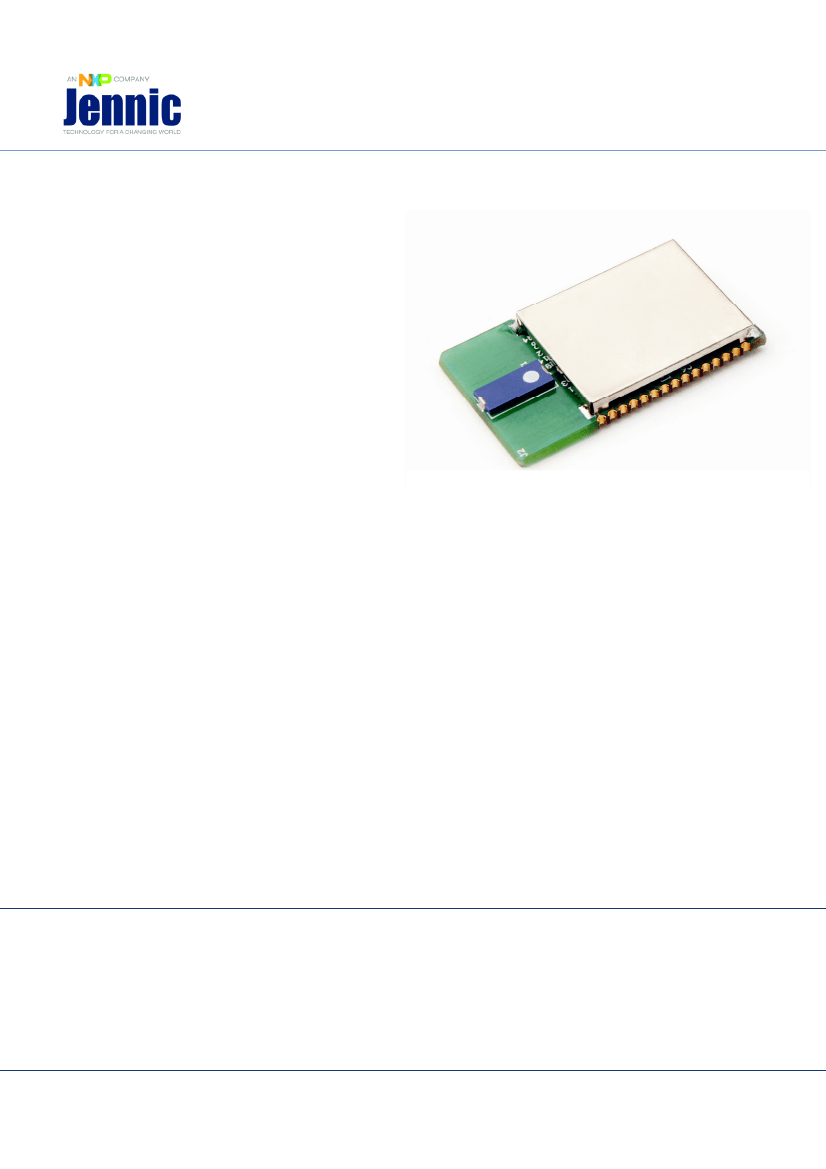

JN5139-001-M00
Evaluation Kits
Jennic provides a full evaluation kit to enable the user to quickly, easily and effectively develop applications for wireless sensor
networks. The evaluation kit allows development of applications using mesh network stacks and includes a controller board,
four sensor boards and a USB interface cable to the PC-based development tools. Applications developed using these kits
can be directly downloaded onto the modules, providing a simple two step route to volume production.
A Software Developer Kit (SDK), free from Jennic’s website, provides a comprehensive Integrated Development Environment
(IDE) to facilitate the development of application code. The kit includes a C compiler, graphical and command-line debuggers,
assembler/linker and flash programmer.
Libraries are included with the SDK that drive the peripherals of the JN5139 wireless microcontroller. They enable applications
to call library functions via a simple Application Programming Interface (API). Applications developed on this kit can be directly
loaded onto the module memory to implement production solutions.
Wireless Protocol Stacks
A library is provided as standard for an IEEE802.15.4 compliant protocol stack suitable for point-to-point, star or tree
networks. Libraries are also available for mesh network stacks such as JenNet, IPV6 and ZigBee.
Radio Standards Compliance
Jennic modules are designed and manufactured to ISO9001 quality standards. The modules are also tested and qualified to
worldwide government agency radio standards, which allows products using them to inherit the same approvals.
NXP Laboratories UK Ltd
Furnival Street
Sheffield S1 4QT
United Kingdom
Tel: +44 (0) 114 281 2655
Fax: +44 (0) 114 281 2951
E-mail: info@jennic.com
www.jennic.com
JN5139-MO-PB v1.3
© NXP Laboratories UK Ltd
Page 2 of 2
