iQ7-BT-E38251W2-R10 datasheet, PDF

Datasheet> All Categories > Embedded solution> To calculate> Single board computer> iQ7-BT-E38251W2-R10

iQ7-BT-E38251W2-R10: DescriptionSingle Board Computer Micro ATX Motherboard supports 22nm LGA1150 Intel Core i7/i5/i3 CPU per Intel H81, DDR3, VGA, Dual Intel PCIe GbE, USB 2.0, PCI, COM, LPT, SATA 3Gb/s, HD Audio, iRIS and RoHS; CategoryEmbedded solution To calculate Single board computer; File Size592KB，2 Pages; ManufacturerIEI; Environmental Compliance

Download Datasheet Parametric Compare View All

iQ7-BT-E38251W2-R10 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	iQ7-BT-E38251W2-R10	-	-	View	Buy Now

iQ7-BT-E38251W2-R10 Overview

Single Board Computer Micro ATX Motherboard supports 22nm LGA1150 Intel Core i7/i5/i3 CPU per Intel H81, DDR3, VGA, Dual Intel PCIe GbE, USB 2.0, PCI, COM, LPT, SATA 3Gb/s, HD Audio, iRIS and RoHS

iQ7-BT-E38251W2-R10 Parametric

Parameter Name	Attribute value
Maker	IEI
Product Category	single board computer
Shipping restrictions	Mouser does not currently sell this product.
series	iQ7-BT
Factory packaging quantity	1

Preview

Download Datasheet

View All

Single Board Computer

Computer on Modules

w w w.ieiworld.com

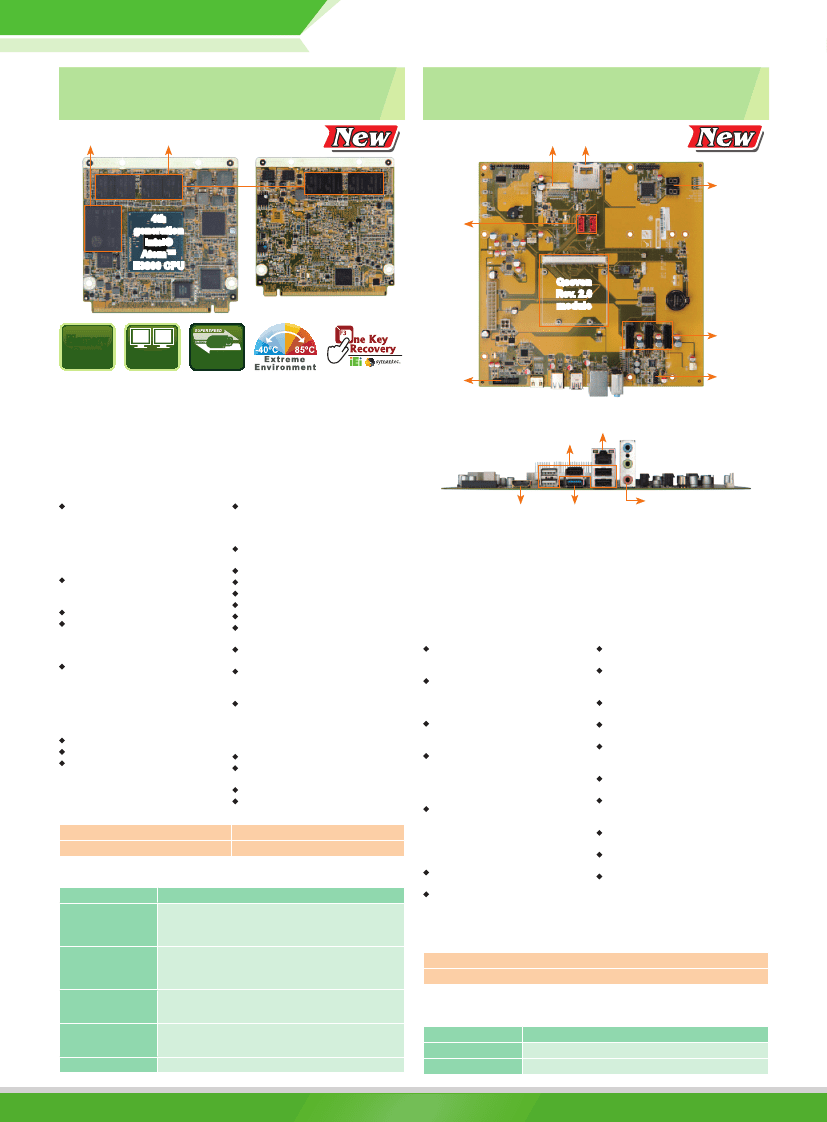

Qseven Rev. 2.0 Module Supports 4th generation Intel® Atom™ Processor,

LVDS, DDI, GbE, SATA 3Gb/s, USB 3.0, SDIO, Audio, -40°C~85°C and RoHS

On-board SSD

(optional)

On-board memory

iQ7-BTW2/iQ7-BT

iQ7-DB-MATX

Baseboard for Qseven Rev. 2.0 Module

Dual-channel LVDS

SD card

Port 80 display

4th

generation

Intel®

Atom™

E3800 CPU

2 x SATA

Bottom side

Qseven

Rev. 2.0

module

3 x PCIe x1

Memory

Down

Dual

Display

USB

USB 3.0

iDP

Front audio

Features

● 22nm Intel® Atom™ on-board SoC supported

● Qseven connector pinout according to Qseven Specification Revision 2.0

● Supports 2 GB 1066/1333 MHz DDR3L memory (4 GB optional)

● Optional soldered-down 2 GB~64 GB SSD

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

LAN

5 x USB 2.0

Specifications

CPU

Intel® Atom™ E3845 on-board SoC

(1.91GHz, quad-core, 2MB cache,

TDP=10W)

Intel® Atom™ E3825 on-board SoC

(1.33GHz, dual-core, 1MB cache,

TDP=6W)

Memory

2 GB soldered-down 1066/1333 MHz

DDR3L memory (up to 4 GB)

BIOS: UEFI BIOS

Graphics Engine

Intel® HD Graphics Gen 7 Engine with 4

execution units support DX11.1, OpenGL

4.2 and OpenCL1.2

Display Output

Dual independent display

1 x 18/24-bit dual-channel LVDS by

CH7511B DP to LVDS converter (up to

1920x1200@60Hz)

1 x DDI (DP/HDMI, max. resolution

2560x1600/1920x1080)

Ethernet: Intel® I210 GbE controller

Embedded Controller: ITE IT8528E/FX

I/O Interface

6 x USB 2.0 signal to baseboard

1 x USB 3.0 signal to baseboard

Storage

2 x SATA 3Gb/s signal to baseboard

Optional soldered-down 4 GB SSD (SATA

port 2)

Audio

High-definition Audio interface to baseboard

SMBus: Yes, to baseboard

I²C: Yes, to baseboard

LPC: Yes, to baseboard

SDIO: One 8-bit SDIO 2.0, to baseboard

SPI: Yes, to baseboard

Serial port: One serial port to baseboard

(form EC)

Expansion

3 x PCIe x1 signal to baseboard

Watchdog Timer

Software programmable supports 1~255

sec. system reset (form EC)

Power Consumption

3.3V@0.13A, 5V@0.13A, 12V@1.35A,

5VSB@0.12A

(Intel® Atom™ E3845 CPU with 2 GB on-

board memory)

Operating Temperature: -40°C ~ 85°C

Operating Humidity: 5% ~ 95%, non-

condensing

Dimensions: 70 mm x 70 mm

Weight: GW: 300g / NW: 150g

HDMI

USB 3.0

Audio

Features

● mATX form factor baseboard for Qseven Rev. 2.0 module

● Supports three PCIe x1

● 18/24-bit dual-channel LVDS

● Supports iRIS-2400/iRIS-2100

Specifications

COM Express Type

mATX form factor baseboard for Qseven

Rev. 2.0 module

Display Interfaces

1 x LVDS

1 x HDMI

1 x iDP

Audio

Realtek ALC662 HD Audio codec (Line-in,

Line-out, Mic)

Internal I/O Interface

1 x LPC

1 x SD card socket

2 x SATA port

3 x PCIe x1

Rear IO

1 x Audio jack (Line-in, Line-out, Mic)

1 x HDMI

1 x USB 3.0

5 x USB 2.0

1 x RJ-45

Front Audio

1 x Front audio (2x5 pin)

TPM

1 x TPM (2x10 pin)

Port 80 Display

2 x 7-segment display

Front Panel

1 x Front panel (power LED, HDD LED,

buzzer speaker, power button, reset button)

I²C

3 x I²C (1x4 pin)

SMBus

1 x SMBus (1x4 pin)

Watchdog Timer

Software programmable, supports 1~255 sec.

system reset

Power Supply

ATX power supply, ATX/AT mode support

Fan Connector

1 x CPU smart fan (1x4 pin)

1 x System fan (1x3 pin)

Temperature

-40°C ~ 85°C

Humidity

5% ~ 95%, non-condensing

Dimensions

243.8 mm x 243.8 mm

Packing List

1 x iQ7-BT single board computer

1 x Heatsink

1 x QIG (Quick Installation Guide)

1 x Utility CD

Ordering Information

Part No.

iQ7-BT-E38451W2-R10

Description

Qseven Rev. 2.0 module supports Intel® Atom™ processor

E3845 (quad core, 10W), on-board 2 GB DDR3L, LVDS, DDI,

GbE, SATA 3Gb/s, SDIO, USB 3.0, Audio, -40°C~85°C and

RoHS

Qseven Rev. 2.0 module supports Intel® Atom™ processor

E3825 (dual core, 6W), on-board 2 GB DDR3L, LVDS, DDI,

GbE, SATA 3Gb/s, SDIO, USB 3.0, Audio, -40°C~85°C and

RoHS

Qseven Rev. 2.0 module supports Intel® Atom™ processor

E3845 (quad core, 10W), on-board 2 GB DDR3L, LVDS, DDI,

GbE, SATA 3Gb/s, SDIO, USB 3.0, Audio, and RoHS

Qseven Rev. 2.0 module supports Intel® Atom™ processor

E3825 (dual core, 6W), on-board 2 GB DDR3L, LVDS, DDI,

GbE, SATA 3Gb/s, SDIO, USB 3.0, Audio, and RoHS

Baseboard for Qseven Rev. 2.0 module

Packing List

1 x Qseven® baseboard

1 x QIG

iQ7-BT-E38251W2-R10

iQ7-BT-E38451-R10

Ordering Information

Part No.

iQ7-DB-MATX-R10

32102-000100-200-RS

Description

Baseboard for Qseven Rev. 2.0 module

SATA power cable, 150mm, P=5.08

iQ7-BT-E38251-R10

iQ7-DB-MATX-R10

Note: Models with other CPUs not listed in the table are requested by MOQ - 100 pcs/lot.

iQ7-BT-2016-V10

iQ7-BT-E38251W2-R10 Related Products

	iQ7-BT-E38251W2-R10	iQ7-BT-E38451-R10
Description	Single Board Computer Micro ATX Motherboard supports 22nm LGA1150 Intel Core i7/i5/i3 CPU per Intel H81, DDR3, VGA, Dual Intel PCIe GbE, USB 2.0, PCI, COM, LPT, SATA 3Gb/s, HD Audio, iRIS and RoHS	Single board computer Qseven Rev. 2.0 module supports Intel Atom quad-core processor E3845 (10W), On-board 2GB DDR3L, LVDS, DDI, GbE, SATA 3Gb/s, USB 3.0, SDIO, Audio and RoHS
Maker	IEI	IEI
Product Category	single board computer	single board computer
Shipping restrictions	Mouser does not currently sell this product.	Mouser does not currently sell this product.
series	iQ7-BT	iQ7-BT
Factory packaging quantity	1	1
