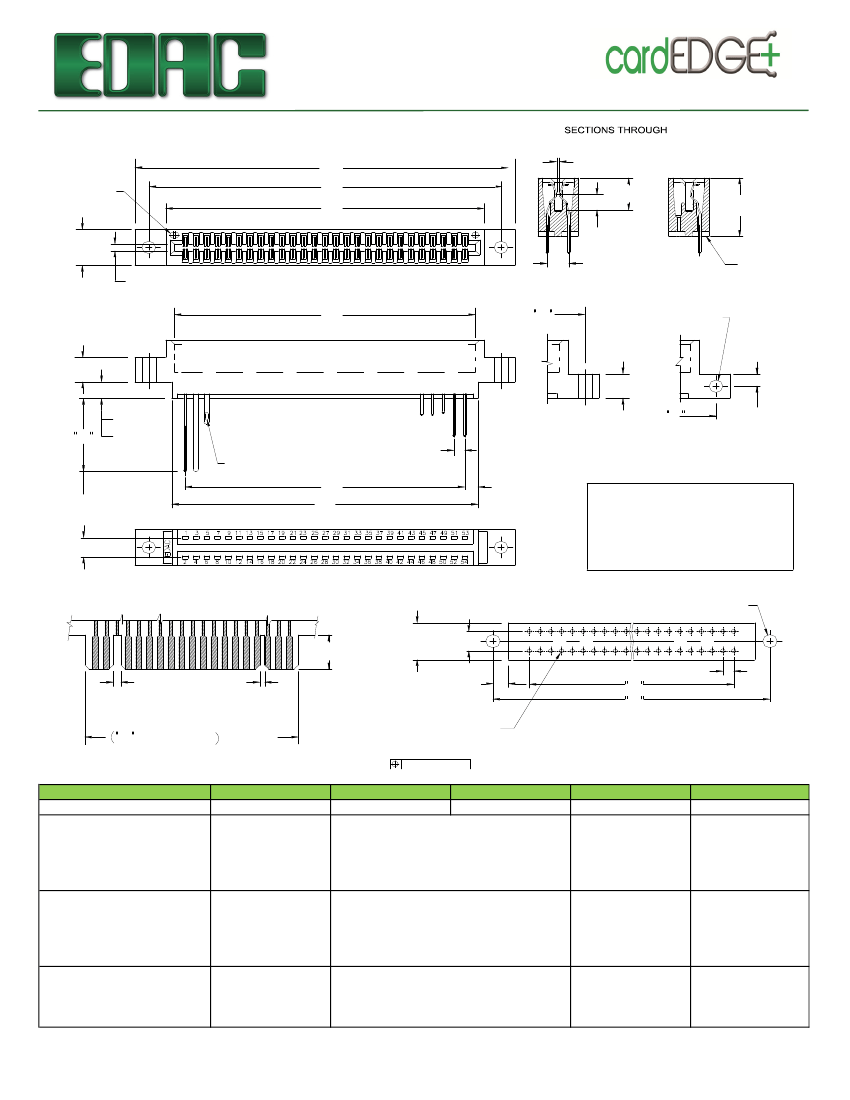

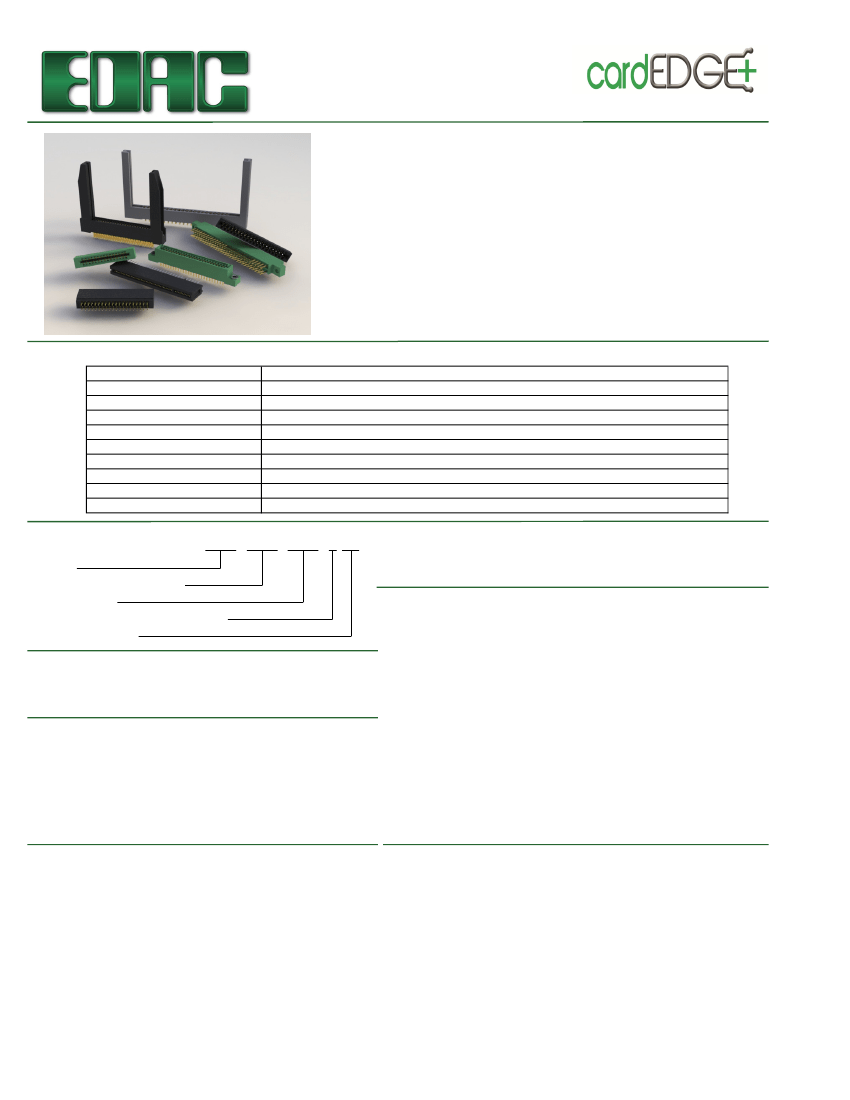

345/395 SERIES
Card Edge Connector 0.100" (2.54mm) Pitch
•
FEATURES:
•
•
•
•
•
•
•
•
•
•
.100" (2.54mm) Contact Spacing x .200" (5.08mm) Row Spacing
Accepts .062" (1.57mm) Nominal Thickness P.C. Board
High Profile Insulator Body, .600" (15.24mm)
Contact Termination Options include P.C. Tail, Wire Wrap, 90
Degree Bends and Extender Board Bends
Single or Dual Row Configurations
Large Variety of Mounting Options, Flush or Offset Lugs
Accepts between Contact and In-Contact Polarizing Keys
Pre-assembled Card Guides are available
Automatic Wire Wrap Positioning Holes
RoHS Compliant & UL Recognized
Specifications:
Insulator Material
Contact Material
Contact Plating
Current Rating
Contact Resistance
Dielectric Withstand Voltage
Insulation Resistance
Operating Temperature
Insertion Force
Withdrawal Force
Example Part Number:
Series
Total Number of Contacts
Contact Code
Contact Rows and Insulator Style
Mounting Options
UL 94V-0 Thermoplastic Polyester
Copper Alloy
Gold Plating on mating area and Tin Plating on tails with Nickel underplating all over
3 Amperes
10 milliohms maximum
1200 VAC rms at sea level between adjacent contacts
5000 Megohms minimum
-40°C to +105°C
16oz (4.45N) maximum per contact pair when tested with .070" (1.78mm) thick gauge
1oz (0.28N) minimum per contact pair when tested with .054" (1.37mm) thick gauge
345-050-520-202
Series:
345
395
Insulator Color
Thermoplastic Polyester, Green
Thermoplastic Polyester, Black
Contact Code
500
520
521
523
524
525
540
541
542
544
555
556
558
559
560
Description & Tail Size
Tail Length "G"
.260 (6.60)
.175 (4.45)
.150 (3.81)
.390 (9.91)
.175 (4.45)
.150 (3.81)
.560 (14.22)
.750 (19.05)
.645 (16.38)
.750 (19.05)
Total Number of Contacts:
005, 006, . . . . 072
010, 012, . . . . 144
Contact Rows
Single Row
Dual Row
Contact Rows & Insulator Style
1
2
4
5
6
8
Description
Single Row, Flush Mounting Lugs
Dual Row, Flush Mounting Lugs
Single Row, .110 (2.79) Offset Lugs
Dual Row, .110 (2.79) Offset Lugs
Single Row, .170 (4.32) Offset Lugs
Dual Row, .170 (4.32) Offset Lugs
Wire Hole
.050 x .025 (1.27 x 0.64)
P.C. Tail
.030 x .018 (0.76 x 0.46)
P.C. Tail
.025 Square (0.64 Square)
P.C. Tail
.025 Square (0.64 Square)
P.C. Tail
.018 Square (0.46 Square)
P.C. Tail
.018 Square (0.46 Square)
Wire Wrap
.025 Square (0.64 Square)
Wire Wrap
.025 Square (0.64 Square)
Wire Wrap
.025 Square (0.64 Square)
Wire Wrap
.050 x .025 (1.27 x 0.64)
EXTENDER BOARD BEND (CODE 500 CONTACTS)
EXTENDER BOARD BEND (CODE 520 CONTACTS)
90 DEGREE BEND (CODE 541 CONTACTS)
90 DEGREE BEND (CODE 541 CONTACTS)
EXTENDER BOARD BEND (CODE 523 CONTACTS)
Mounting Options:
01
02
03
04
07
08
12
58
78
88
Description
Ordering Code Notes:
1) All connector sizes up to 72 contacts single row / 144 contacts dual
row are available upon request.
2) The 500 contact code is only available in the 345 series. Green
polyphenylene sulphide insulator material will be supplied.

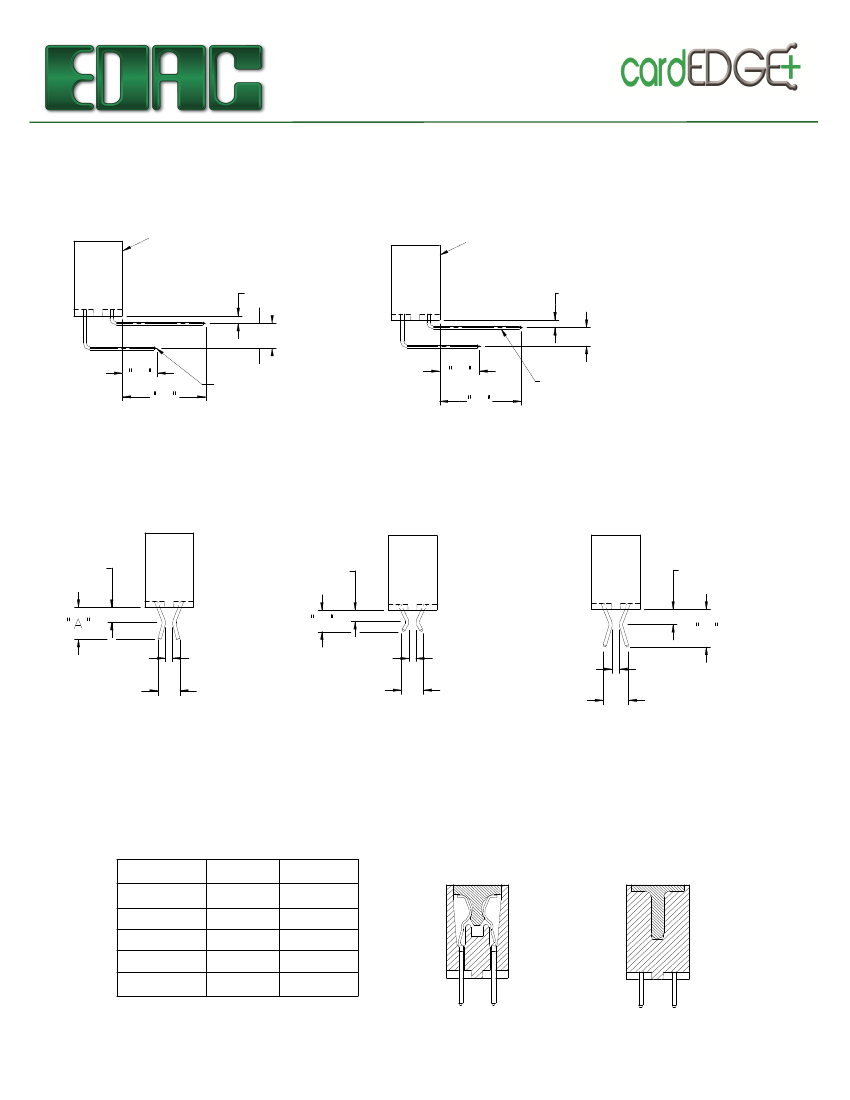

3) For details of the extender board and 90 degree bends refer to next
pages.
4) For lug-less connectors, code 01 mounting, specify contact row code
1 or 2.

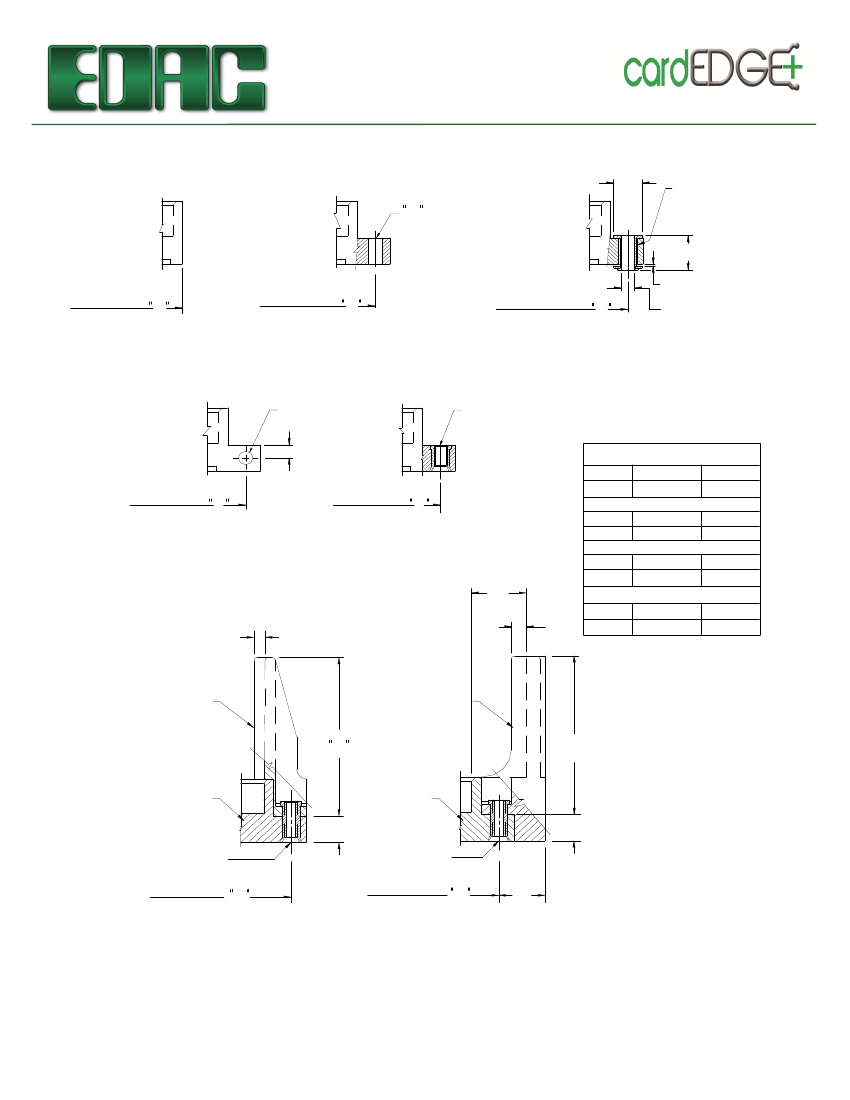

5) For details of the mounting options refer to next pages.
No Mounting Lug
Ø.128" (Ø3.25mm) Mounting Holes
Ø.116" (Ø2.95mm) I.D. Floating Eyelets
Ø.156" (Ø3.96mm) Mounting Holes
M3-0.5 Metric Threaded Inserts
#4-40 Unified Threaded Inserts
Ø.128" (Ø3.25mm) Side Mounting Holes
.468" (11.89mm) Offset Card Guides
In-Line Card Guides 2.750" (69.85mm) Long
In-Line Card Guides 1.250" (31.75mm) Long
www.edac.net
Page 1
345/395 SERIES
Card Edge Connector 0.100" (2.54mm) Pitch
CONTACT POSITION
DUAL ROW
SINGLE ROW
0.025±0.005
(NOSE GAP)
.330 (8.38)
CARD SLOT
.600
(15.24)
AUTOMATIC
WIRE WRAP
POSITIONING
HOLE AND SLOT
"A"
"B"
"C"
.370
(9.40)
CARD SLOT ACCEPTS .054 (1.37)
TO .070 (1.78) THICK P.C. BOARD
.160 (4.06) POINT
OF CONTACT
0.200(5.08)
EVEN
NUMBERED
SIDE OF
CONNECTOR
(2,4,6,8...)
"D"
B
.128 (3.25) DIA
THROUGH HOLES
.250
(6.35)
.250 (6.35)
G
.170 (4.32)
OR
.110 (2.79)
OFFSET LUGS
.030 (0.76) X .080
(2.03) WIRE HOLE
"E"
FLUSH MTG. LUG
.100 (2.54)
B
0.125(3.18)
FOR RIGHT ANGLE MOUNTING
WITH FLUSH OR OFFSET LUGS
.125 (3.18)
SEE SHEET 3
"F"
.200 (5.08)
FOR CONTACT CODES, DESCRIPTION
AND TAIL SIZES, SEE SHEET 1
FOR 90° EXTENDER BOARD BENDS
,
CONTACTS, SEE SHEET 3
FOR IN CONTACTS AND BETWEEN
CONTACTS POLARIZING KEYS PART NO.,
SEE SHEET 1
.136 (3.45)
DIA REF
.400 (10.16)
.350
(8.89)
.080
(2.03)
CUT OUT FOR
IN-CONTACT
POLARIZING KEY.
.042
(1.07)
CUT OUT FOR
BETWEEN CONTACT
POLARIZING KEY.
PANEL MOUNT
(5.08)
CUT OUT
.200
.100 (2.54)
.140 (3.56)
PANEL MOUNT
.042 (1.07) +.004 (0.10)/-.000
FOR ALL P.C. TAILS
EXCEPT CODE 524
.031 (0.79) +.004 (0.10)/-.000
FOR CODE 524 P.C. TAIL
.008 (0.20) DIA
E
B
CONNECTOR MOUNTING PATTERN
+.000
D MINUS .012 (0.30) -.015 (0.38)
RECOMMENDED DAUGHTER BOARD
NUMBER OF CONTACTS
Single
Double
5
10
10
20
13
26
15
30
18
36
22
44
31
62
30
60
35
70
36
72
43
86
50
100
60
120
72
144
"A"
Inch
1.335
1.835
2.135
2.335
2.635
3.035
3.335
3.835
3.935
4.435
5.135
5.835
6.835
8.035
mm
33.91
46.61
54.23
59.31
66.93
77.09
84.71
97.41
99.95
112.65
130.43
148.21
173.61
204.09
Inch
1.075
1.575
1.875
2.075
2.375
2.775
3.075
3.575
3.675
4.175
4.875
5.575
6.575
7.775
"B"
mm
27.31
40.01
47.63
52.71
60.33
70.49
78.11
90.81
93.35
106.05
123.83
141.61
167.01
197.49
Inch
0.760
1.260
1.560
1.760
2.060
2.460
2.760
3.260
3.360
3.860
4.560
5.260
6.260
7.460
"C"
mm
19.30
32.00
39.62
44.70
52.32
62.48
70.10
82.80
85.34
98.04
115.82
133.60
159.00
189.48
Inch
0.600
1.100
1.400
1.600
1.900
2.300
2.600
3.100
3.200
3.700
4.400
5.100
6.100
7.300
"D"
mm
15.24
27.94
35.56
40.64
48.26
58.42
66.04
78.74
81.28
93.98
111.76
129.54
154.94
185.42
Inch
0.400
0.900
1.200
1.400
1.700
2.100
2.400
2.900
3.000
3.500
4.200
4.900
5.900
7.100
"E"
mm
10.16
22.86
30.48
35.56
43.18
53.34
60.96
73.66
76.20
88.90
106.68
124.46
149.86
180.34
www.edac.net
Page 2
