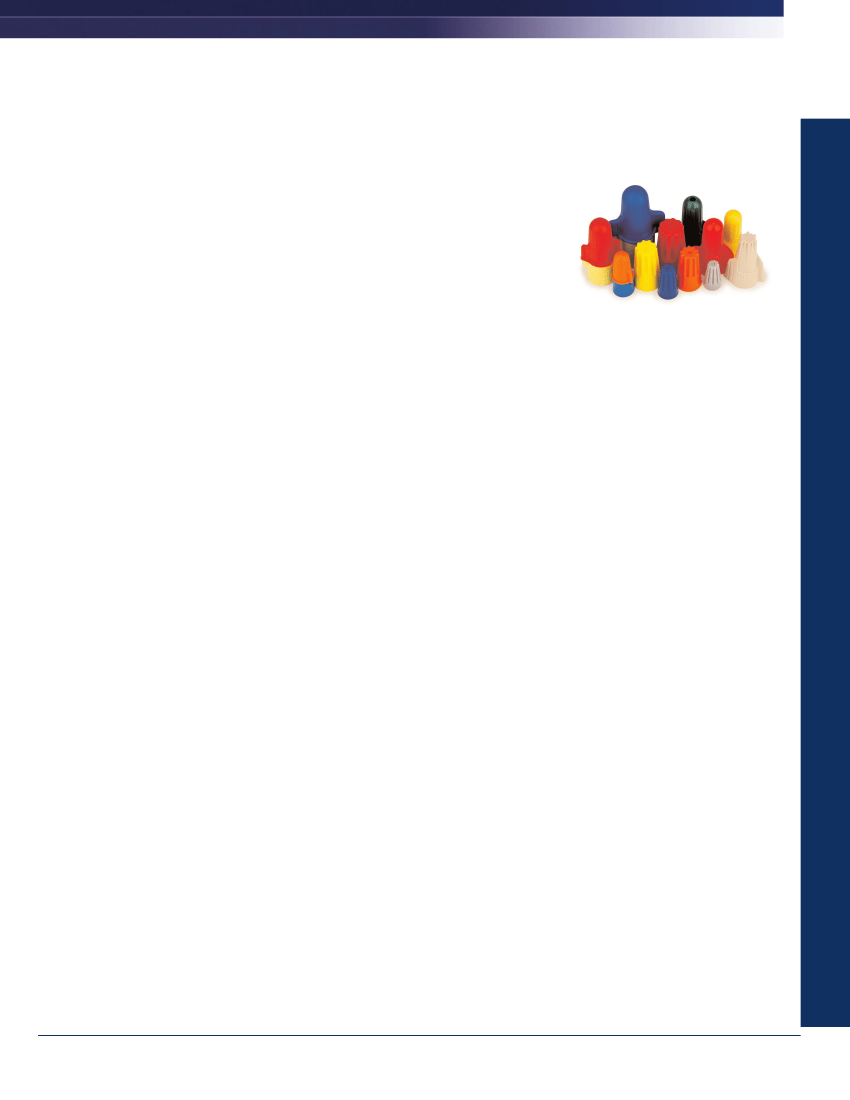

SPRING
CONNECTORS
FEATURES
Wires feed
deeper
Wide wire ranges
Flexible
skirt
New internal
design
ADVANTAGES
Increases level of pull-out
Three connectors replace
seven
Covers overstripped wires
Smoother
and faster installation
BENEFITS
Security
Saves
time and cost effective
Safety
Improves quality and
saves
time
3M™ PERFORMANCE PLUS WIRE CONNECTORS (T/R+,T/Y+, O/B+, R/Y+, B/G+)
3M ELECTRICAL SPRING AND GROUNDING CONNECTORS (312, 412, 512, 512G)
Hard
shell
Wings
Easy to
grip
Easy to turn
Easy to use
Easy to use
3M HIGHLAND
™
WIRE CONNECTORS (H-29, H-30, H-31, H-33, H-35)
Low price
Economical
Cost effective

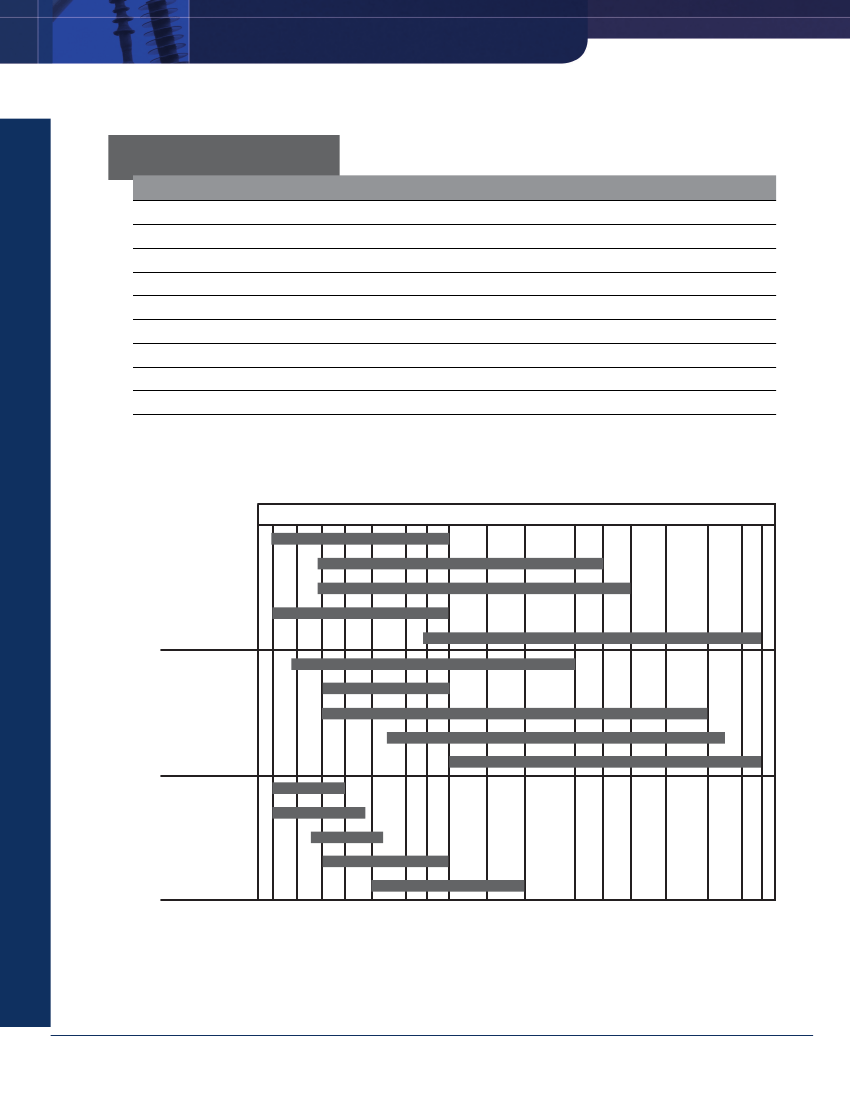

Wire Range for 3M Performance Plus Wire Connectors
2#22 2#20 2#18 2#16 2#14 2#12 4#14 3#12
6#14
4#12
3#10 5#12 2#8
6#12
4#10
5#10 2#6
Performance
Plus
O/B +
T/R +
R/Y +
T/Y +
B/G +
Electrical Wire Connectors and Tools
Tan 341
Competitor’s
Wing Style
Yellow 451
Red 452
Gray 342
Blue 454
Gray 71B
Competitor’s
Nut Style
Blue 72B
Orange 73B
Yellow 74B
Red 76B
64
FAX: 800-245-0329
Spring Connectors and Tools
3M™ Performance Plus Wire Connectors

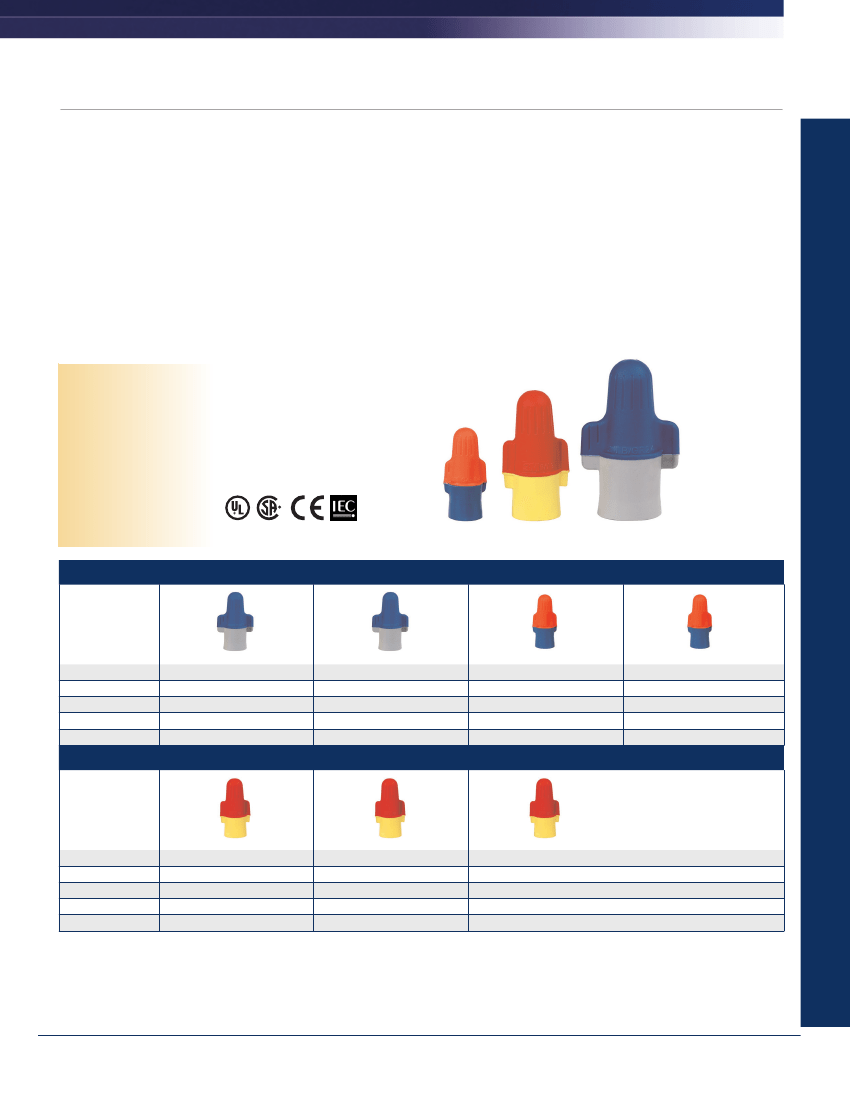

Because of their increased wire range, just three 3M™ Performance Plus Wire Connectors handle the work of eight standard connectors. O/B+ replaces the
orange, blue and gray wire connector style connectors, as well as 70% of the yellow wire connector and wing style connectors. R/Y+ replaces both red and
yellow wing style connectors. B/G+ covers both the large blue and gray connectors.
This simplifies selection of the right connector for a wide range of wiring jobs. There’s also less inventory to manage, and a better chance you’ll have the
connector you need to do every job.
A Better Bite for a Better
Connection.
3M™ Performance Plus Wire Connectors O/B+, R/Y+ and B/G+ now have a better bite. Wires feed into the
connector more easily, improving the security of the connection and increasing the level of pull out.
New Design Allows Easier Installation.
We have modified the internal design of the O/B+, R/Y+ and B/G+ wire connectors. Installation is smooth, fast and
easy on the hands.
Flexible Skirts Provide Safety.
The flexible skirts on the O/B+, R/Y+ and B/G+ wire connectors make the workplace a safer environment. The flexible skirt
provides protection against potential shock situations.
Connection Type
Connector Style
Flame Retardant
Maximum Voltage Rating
Operating Temperature
RoHS 2011/65/EU
Agency Approval
Wire
Twist On
Yes
600 V (1000 V in signs, lighting fixtures
and luminaries)
221°F (105°C)
No
Electrical Wire Connectors and Tools
B/G+BOX
B/G+JUG
O/B+BOX
O/B+JUG
UPC
Color
Conductor Size
Connectors per Carton
Connectors per Case
054007-43150
Blue/Gray
14–6 AWG
50
500
R/Y+BOX
054007-43151
Blue/Gray
14–6 AWG
250
2000
R/Y+JUG
054007-43152
Orange/Blue
22–12 AWG
100
1000
R/Y+KEG
054007-43153
Orange/Blue
22–12 AWG
500
10,000
UPC
Color
Conductor Size
Connectors per Carton
Connectors per Case
054007-43154
Red/Yellow
22–8 AWG
100
1000
054007-43155
Red/Yellow
22–8 AWG
500
4000
051128-57943
Red/Yellow
22–8 AWG
-
17,000
PHONE: 800-245-3573
www.3M.com/Electrical
65
Spring Connectors and Tools
3M™ Wire Connectors for Residential

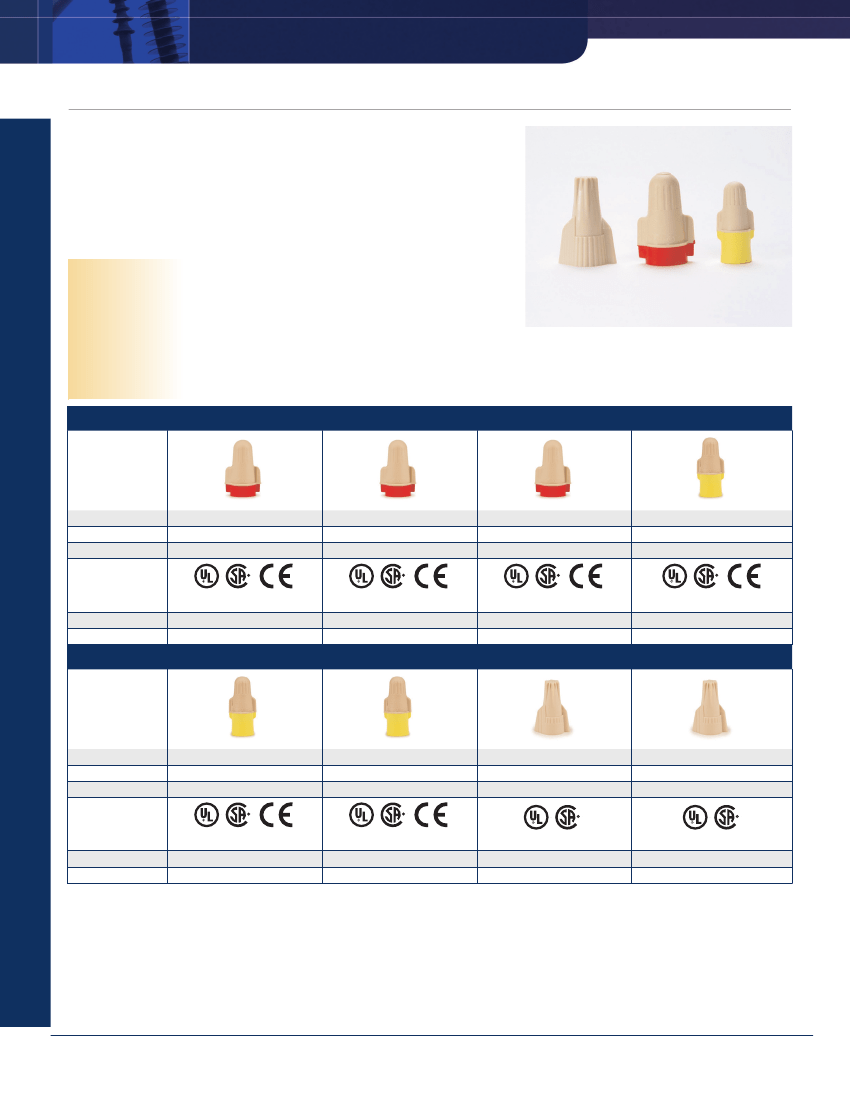

Specifically created for the residential markets, the T/R+ replaces the yellow, tan and red
connectors in the majority of field applications. T/Y+ replaces the yellow, orange, blue and gray
wire nuts in most applications. Use the 412 (tan) connector for wire combinations from 2 #20 to
3 #10 AWG. This simplifies selection of the right connector for a wide range of wiring jobs.
There’s also less inventory to manage, and a better chance you’ll have the connector you need
to do every job.
Connection Type
Wire
Connector Style
Twist On
Flame Retardant
Yes
Maximum Voltage
600 V (1000 V in signs, lighting fixtures and luminar-
Rating
ies)
Operating Temperature
221°F (105°C)
RoHS 2011/65/EU
No
T/R+BOX
T/R+JUG
T/R+KEG
T/Y+BOX
UPC
Color
Conductor Size
Agency Approval
Connectors per Carton
Connectors per Case
051128-54454
Tan/Red
22–8 AWG
051128-54455
Tan/Red
22–8 AWG
051128-54456
Tan/Red
22–8 AWG
051128-55218
Tan/Yellow
22–12 AWG
100
1000
T/Y+JUG
750
6000
T/Y+KEG
-
25,000
412-BOX
100
1000
412-BULK
Electrical Wire Connectors and Tools
UPC
Color
Conductor Size
Agency Approval
Connectors per Carton
Connectors per Case
051128-55219
Tan/Yellow
22–12 AWG
051128-58623
Tan/Yellow
22–12 AWG
051128-54451
Tan
22–10 AWG
051128-54452
Tan
22–10 AWG
500
10,000
-
40,000
100
1000
500
10,000
66
FAX: 800-245-0329
Spring Connectors and Tools
3M™ Wire Connectors for Residential (continued)
412-JUG
412-KEG
Electrical Wire Connectors and Tools
UPC
Color
Conductor Size
Agency Approval
Connectors per Carton
Connectors per Case
051128-55695
Tan
22–10 AWG
051128-54453
Tan
22–10 AWG
500
4000
-
20,000

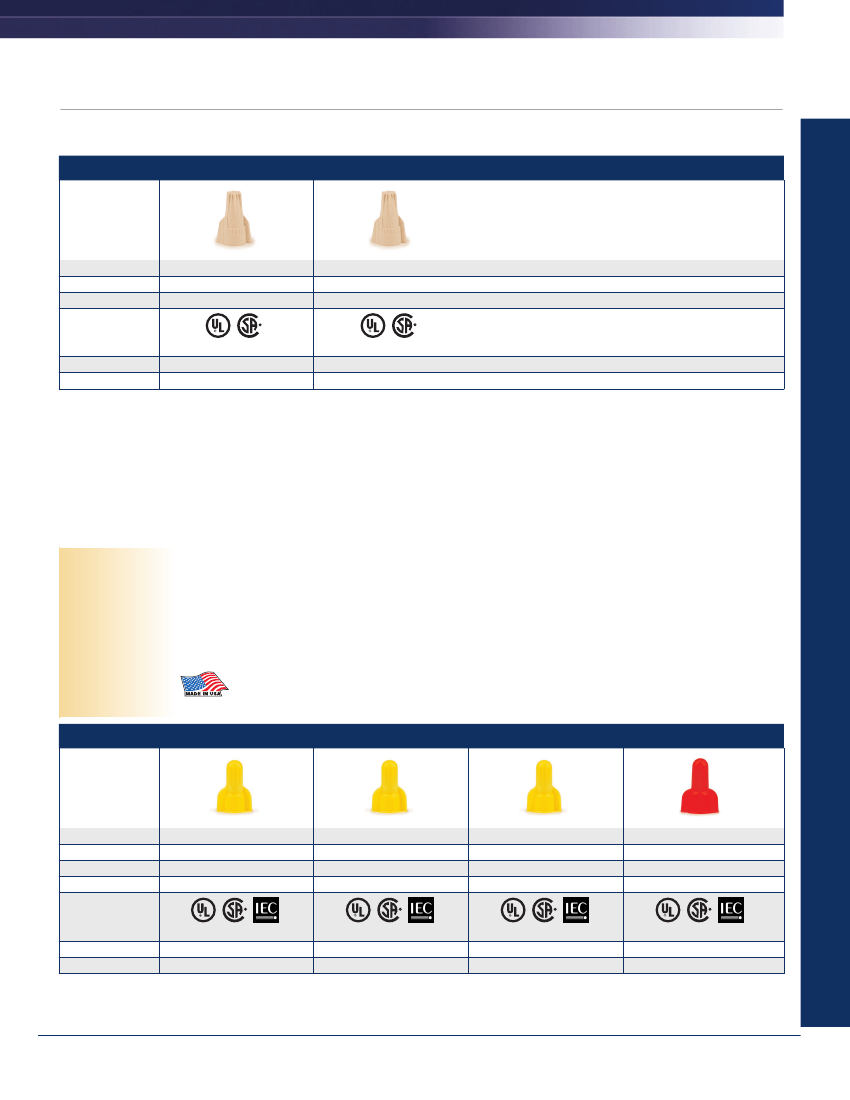

3M™ Scotchlok™ Electrical Spring Connectors 312, 512 and 512G
The quick-spin, wing-torque design of 3M™ Scotchlok™ Electrical Spring Connector 312 and 512 is easy on your fingers. The day’s last connection will
feel almost as good as the first. Generous expansion room accommodates a wide range of solid or stranded wire. Use the 312 (yellow) connector for wire
combinations from 3 #20 to 3 #12 AWG, and the 512 (red) connector for 2 #18 to 5 #12 AWG. The 512G (green) is used for grounding connections.
