BTFW22P-3SBTE4LF datasheet, PDF

Datasheet> All Categories > The connector> Surface plate and sandwich connector> BTFW22P-3SBTE4LF

BTFW22P-3SBTE4LF: DescriptionBOARD TO BOARD & MEZZA CONN BOARD TO BOARD CONN VERT STRAIT SMT PLUG; CategoryThe connector Surface plate and sandwich connector; File Size206KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BTFW22P-3SBTE4LF Overview

BOARD TO BOARD & MEZZA CONN BOARD TO BOARD CONN VERT STRAIT SMT PLUG

BTFW22P-3SBTE4LF Parametric

Parameter Name	Attribute value
Maker	Amphenol
Product Category	Board-to-Board and Mezzanine Connectors
series	BTFW
Encapsulation	Reel
Factory packaging quantity	700

Preview

Download Datasheet

View All

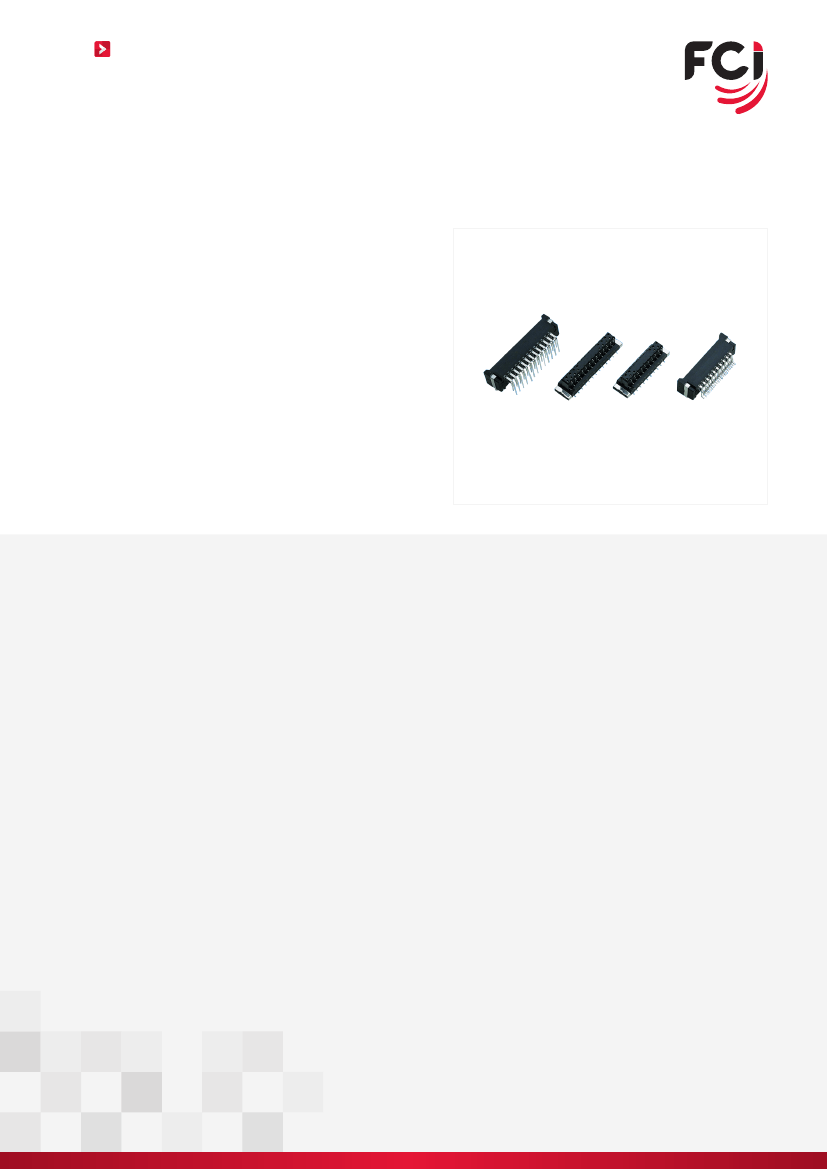

BOARD/WIRE-TO-BOARD

CONNECTORS

BTFW SERIES

OVERVIEW

The BTFW Series is a floating board-to-board connector

system consisting of plugs and receptacles with two rows

of staggered contacts on 1.00mm (0.039in.) centerlines. This

connector system is designed for applications that require

high density and high reliability interconnects with higher pin

counts and surface mount termination, such as audio video

(AV) and navigation systems in automobiles.

The BTFW Series includes: vertical surface mount plugs; right

angle SMT and through hole receptacles. The contacts have

a wide floating allowance of ± 0.80mm (0.031in.) in the pitch

direction and ± 0.50mm (0.020in.) in the width direction. The

rigid entry guide design features a wide guide distance for

mating of ± 2.00mm (0.079in.) in the pitch direction and ± 0.80

mm (0.031in.) in the width direction.

FEATURES & BENEFITS

• 1.00mm (0.039in.) staggered contact design saves

valuable board space

• Wide floating allowance absorbs mating shift

between plug and receptacle, permitting self-alignment

of the mating connectors; and provides highly reliable

mechanical performance

• Rigid entry guide design withstands rough handling

such as angled insertion, preventing contact

deformation; and provides vibration shock absorption

• Wide guide distance for mating assures easy

handling and correct mating of the plug and receptacle,

and allows blind mating

• Mounting plates on both sides of the plug and receptacle

assure PCB retention

• Flat top surfaces of SMT housings allow pickup with

vacuum nozzle and eliminate the need for pickup covers

that must be removed after soldering

TARGET MARKETS/APPLICATIONS

• Consumer

•

PDP displayer & TV

•

LCD displayer & TV

•

Set top boxes

•

DVD players/recorders

•

D-VHS players

• Data

•

Entertainment PC

• Other

•

POS terminals

•

Barcode scanners

•

Other handheld equipment

BTFW22P-3SBTE4LF Related Products

	BTFW22P-3SBTE4LF	BTFW18P-3SBTAE4LF	BTFW10R-3RDA7LF	BTFW14P-3SSTAE4LF	BTFW18R-3RBTAE4LF	BTFW26P-3SBTAE4LF
Description	BOARD TO BOARD & MEZZA CONN BOARD TO BOARD CONN VERT STRAIT SMT PLUG	BOARD TO BOARD & MEZZA CONN BOARD TO BOARD CONN VERT STRAIT SMT PLUG	Board to Board and Mezzanine Connectors BOARD TO BOARD R/A DIP RECEPTACLE	Board to Board and Mezzanine Connectors BOARD TO BOARD, VERT (STRAIGHT) SMT PLUG	Board to Board and Mezzanine ConnectorsBOARD TO BOARD	BOARD TO BOARD & MEZZA CONN BOARD TO BOARD CONN VERT STRAIT SMT PLUG
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Product Category	Board-to-Board and Mezzanine Connectors	Board-to-Board and Mezzanine Connectors	Board-to-Board and Mezzanine Connectors	Board-to-Board and Mezzanine Connectors	Board-to-Board and Mezzanine Connectors	Board-to-Board and Mezzanine Connectors
series	BTFW	BTFW	BTFW	BTFW	BTFW	BTFW
Factory packaging quantity	700	700	1080	700	700	700
Encapsulation	Reel	Reel	Tray	Reel	Reel	Reel
