heavy
|
mate
®
F

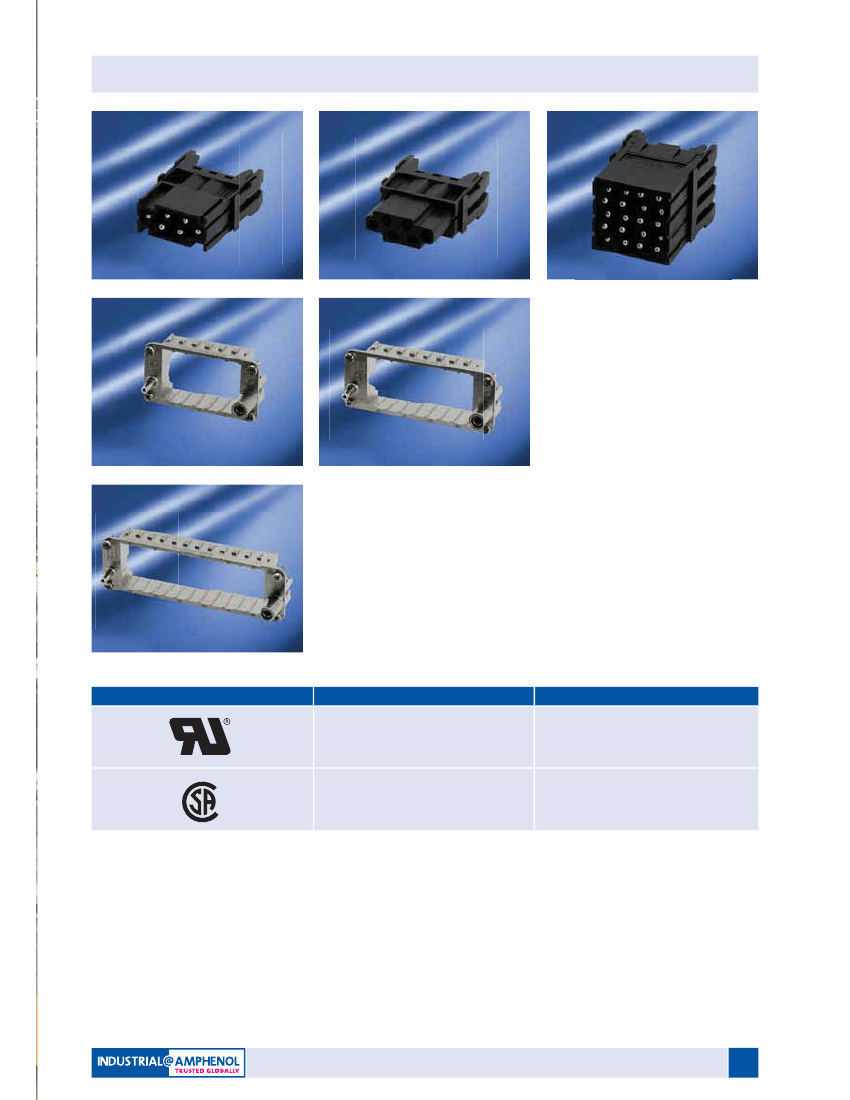

General information
General information
• Modules inserts without crimp contacts, crimping tools see
separate catalogue “Tools”.
• Contacts must be ordered separatly, processing instructions see
catalogue “Tools”.
• Connectors series
heavy
|
mate
®
F may be engaged or disengaged
when live but without electrical load.
If these connectors are mated or unmated under load, the load
shall be reduced to 10 % of rated current.
Advantages of the system
• No standard but interchangeable with competitive products.
• Housings are designed according to DIN EN 175 301 801
• Simply connecting of the modules and frames.
First-to-mate last-to-break protective ground contact
• We recommend using the high profile housings / hoods for the
heavy
|
mate
®
F inserts.
• Empty modul spaces have to be filled with blind modules.
• Torque for PE connection 1.2 Nm

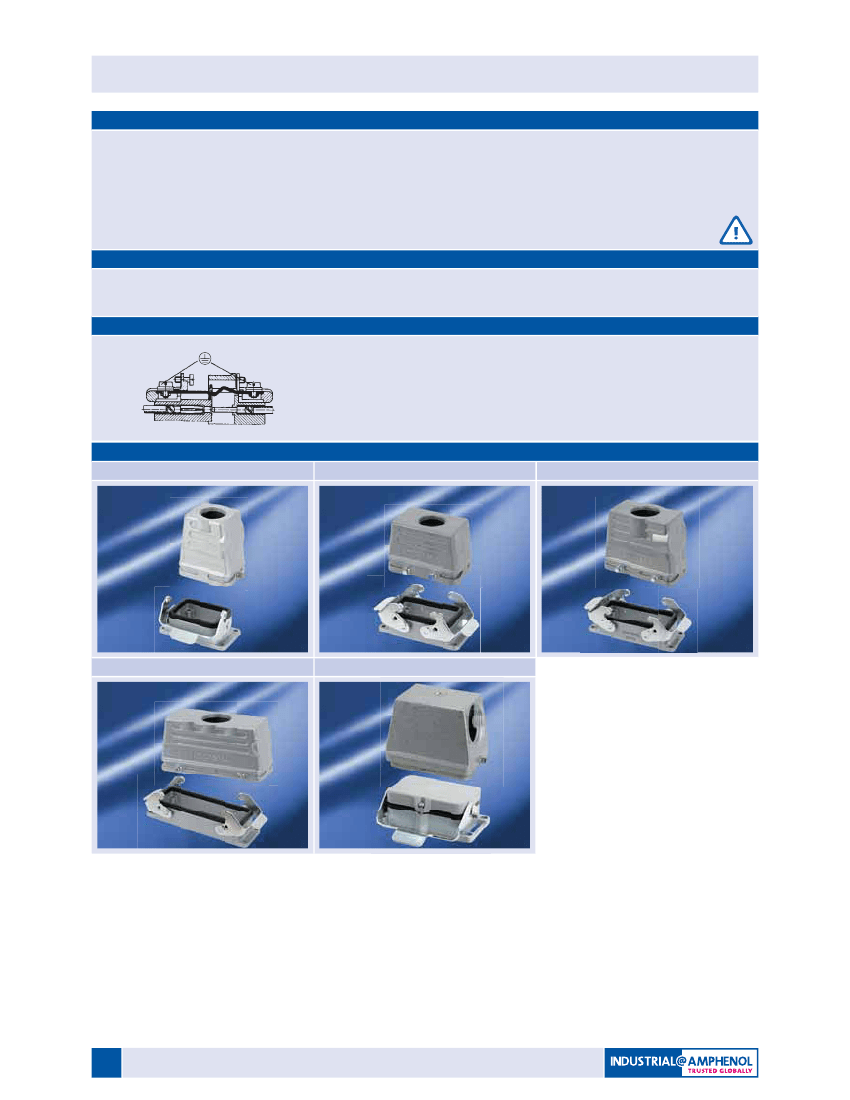

Range of housings
Size E6
Size E10
Size E16
Size E24
Size E48
76
heavy
|
mate
®
F
Requirements
How to select a solution with series
heavy
|
mate
®
F?
• 3 x 400V; 50A; 6mm² wire gauge
• 8 x 250V; 8A; 1.5mm² wire gauge
• 5 x 400V; 15A; 4mm² wire gauge
Solution
1. Check how 16 contacts can be realized; see modules overview on page 78
Possible selection:
a) 1 x 17 contacts
b) 2 x 12 contacts
c) 1 x 6 contacts + 1 x 12 contacts
d) 1 x 3 contacts + 1 x 6 contacts + 1 x 12 contacts
2. Check technical parameters / solution, see detail pages of the modules from page 82
Possible selection:
a) not possible due to voltage
b) not possible due to voltage
c) not possible due to current
d) POSSIBLE
3. Choose matching contact, see detail page of the modules on page 82
Possible selection:
a) 3 contacts = C146 10A003 500 15 → contacts = VN01 040 0013 1C
b) 6 contacts = C146 10A006 500 15 → contacts = VN01 025 0039 1C
c) 12 contacts = C146 10A012 500 15 → contacts = VN01 016 0027 1C
4. Choose matching frame, see frames on page 80
Solution: C146 10P10 000 15
5. Choose matching housing, see housings on page 162
Solution: C146 21R010 600 8

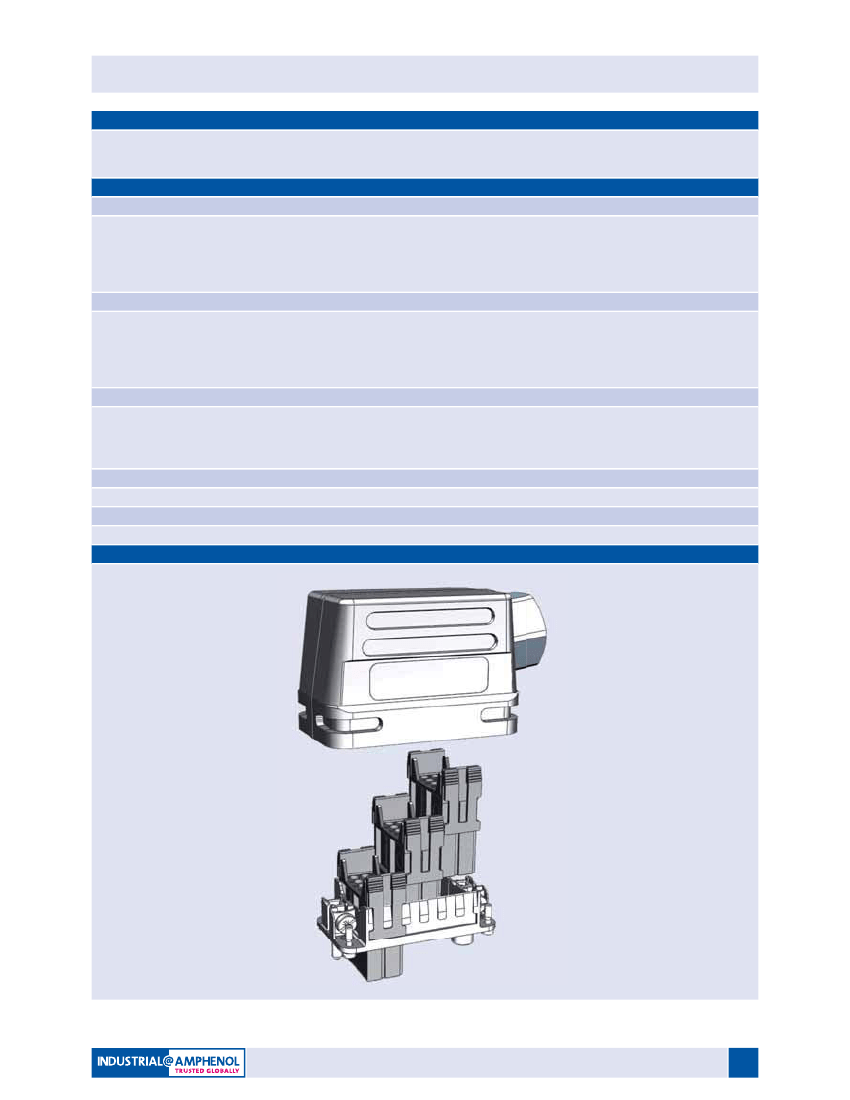

Schematic construction
77
