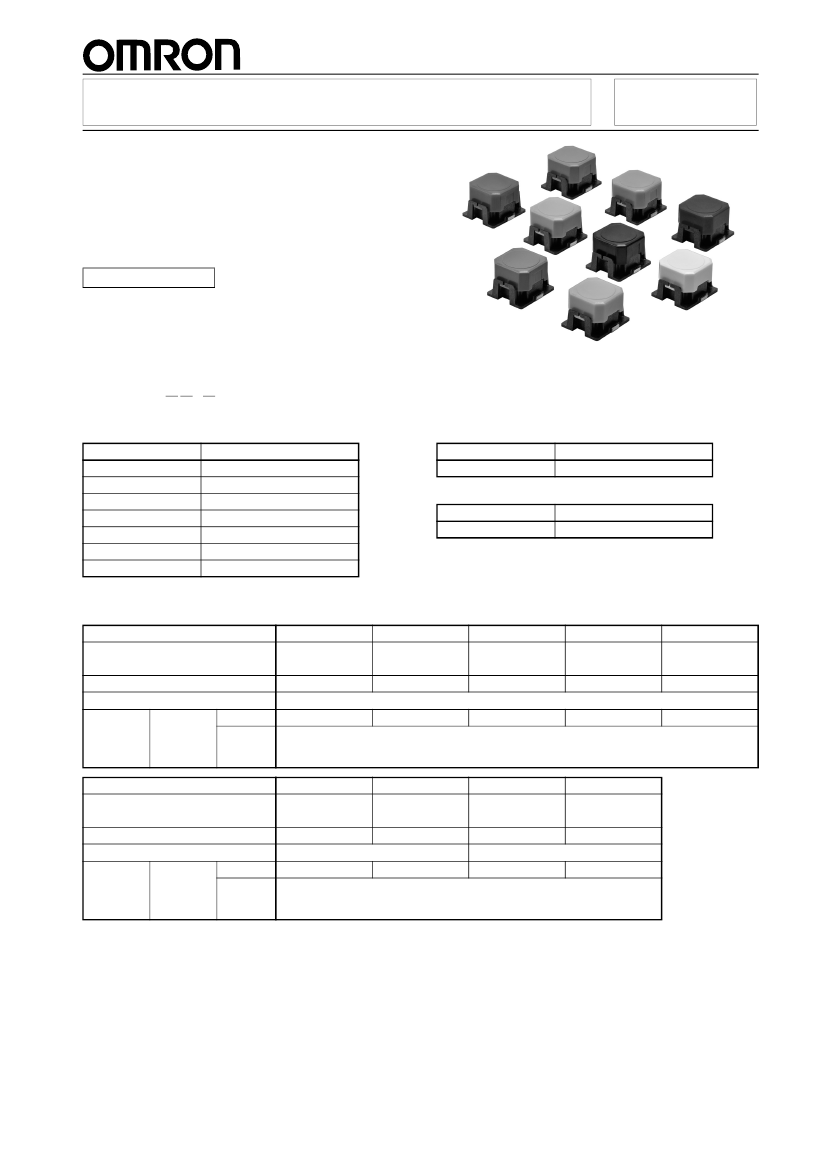

(Reference values: OF = 5 N {510 gf}, Durability =
500,000 operations)
●
Long stroke achieved by using a rubber plunger.
RoHS Compliant
■
Model Number Legend
1
2
3
B3AL-100@@- @
1. Operating Force (OF)
Symbol
0
1
2
3
4
5
6
■
Meaning
1.96 N {200 gf}
2.45 N {250 gf}
3.00 N {306 gf}
3.50 N {357 gf}
5.00 N {510 gf}
4.50 N {459 gf}
4.00 N {408 gf}
2. Packaging
Symbol
P
3. Special Specification
Symbol
MS
Meaning
Switch with middle stroke
Meaning
Embossed tape
List of Models / Operating Characteristics
Red
1.96±0.59 N
{200±60 gf}
Green
2.45±0.69 N
{250±70 gf}
Black
3.00±0.90 N
{306±92 gf}
White (Milky-white)
3.50±1.05 N
{357±107 gf}
Brown
4.00±1.20 N
{408±122 gf}
Color of pushbutton
Operating force (OF)
Releasing force (RF)
Pretravel (PT)
Packaging
0.24 N {24 gf} min. 0.49 N {50 gf} min. 0.60 N {61 gf} min. 0.70 N {71 gf} min. 0.70 N {71 gf} min.
1.3
+0.2
mm
−0.3
B3AL-1001P
B3AL-1002P
B3AL-1003P
B3AL-1006P
Embossed Model
B3AL-1000P
tape
Minimum
1,400 pcs
packing
unit
Pink
4.50±1.35 N
{459±138 gf}
Color of pushbutton
Operating force (OF)
Releasing force (RF)
Pretravel (PT)
Packaging
Blue
5.00±1.50 N
{510±153 gf}
Gray
3.00±0.90 N
{306±92 gf}
1.0±0.25mm
Yellow
3.50±1.05 N
{357±107 gf}
0.70 N {71 gf} min. 1.00 N {102 gf} min. 0.60 N {61 gf} min. 0.70 N {71 gf} min.
1.3
+0.2
mm
−0.3
B3AL-1004P
B3AL-1002P-MS
B3AL-1003P-MS
Embossed Model
B3AL-1005P
tape
Minimum
1,400 pcs
packing
unit
1
B3AL
■
B3AL

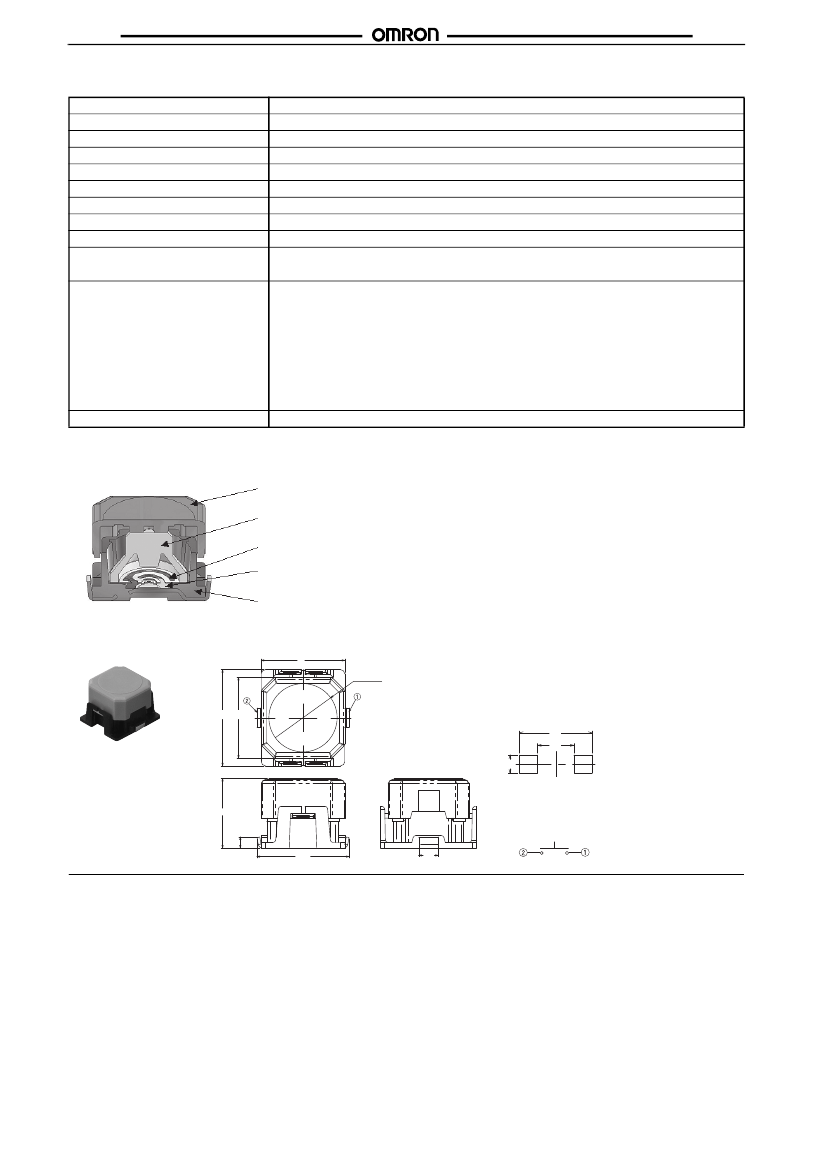

Ratings / Characteristics
1 to 50 mA at 5 to 16 VDC
-40°C to +90°C at 60%RH max. (with no icing or condensation)
35% to 85% (at +5 to +35
°C)
SPST-NO
100 mΩ max.
100 MΩ min. (at 500 VDC with insulation tester)
250 VAC, 50/60 Hz for 1 min
5 ms max. (The center of the plunger is pressed at a speed of 3 or 4 times per second.)
Malfunction: 10 to 55 Hz, 1.5-mm double amplitude
Destruction: 1,000 m/s
2
max.
Malfunction: 100 m/s
2
max.
B3AL-1000P : 1,000,000 operations min.
B3AL-1001P : 1,000,000 operations min.
B3AL-1002P : 1,000,000 operations min.
B3AL-1003P : 1,000,000 operations min.
B3AL-1004P : 500,000 operations min.
B3AL-1005P : 1,000,000 operations min.
B3AL-1006P : 1,000,000 operations min.
B3AL-1002P-MS : 1,000,000 operations min.
B3AL-1003P-MS : 1,000,000 operations min.
Approx. 0.18 g
Rating (resistive load)
Ambient operating temperature
Ambient operating humidity
Contact configuration
Contact resistance
Insulation resistance
Dielectric strength
Bounce time
Vibration resistance
Shock resistance
Durability
Weight
■
Model Structure
Pushbutton
Plunger
Moving contact
Terminal (contact)
Base
■
Dimensions
(Unit: mm)
6
4.9 dia.
6.9 5.8
PCB Pad
(Top View)
8
4
2
5
Terminal Arrangement/
Internal Connections
(Top View)
0.8
6.6
1.4
Note:
Unless otherwise specified, a tolerance of
±0.4
mm applies to all dimensions. No terminal numbers are indicated on the Switches.
2
B3AL
■
B3AL

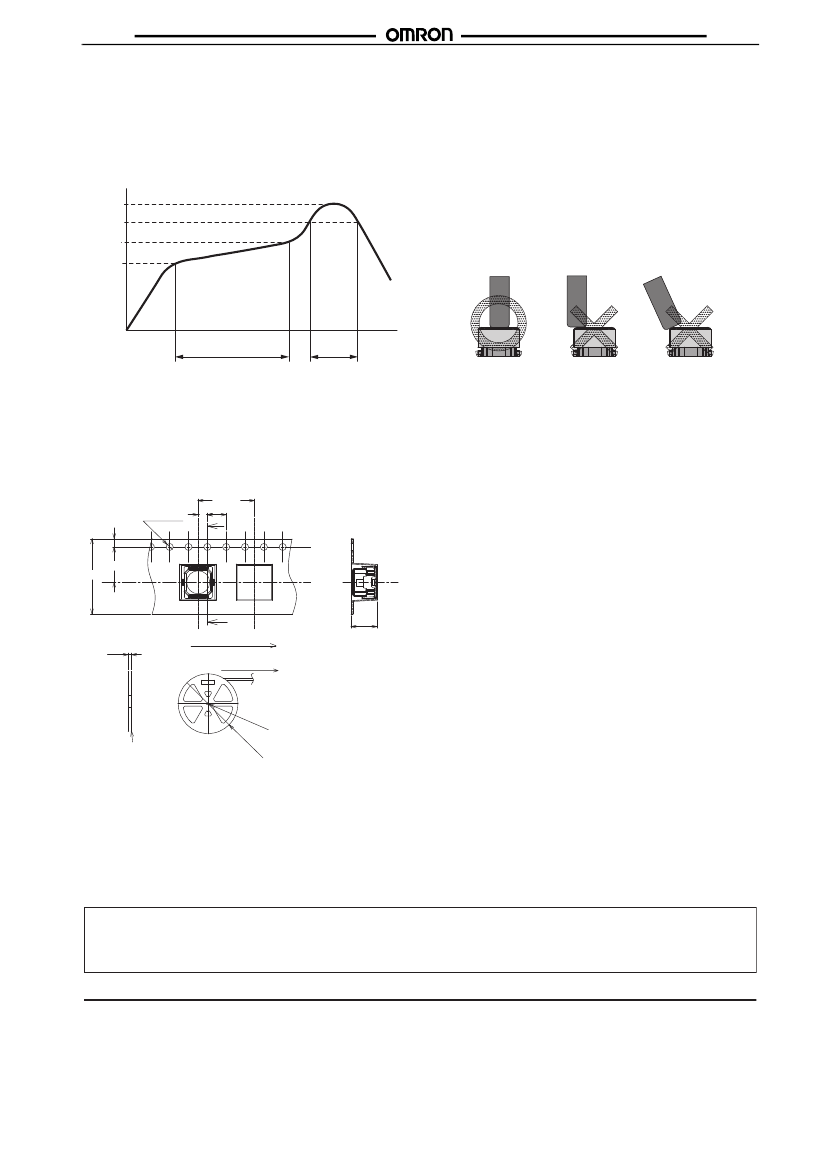

Precautions
Be sure to read the precautions common to all Tactile Switches for correct use.
Operation
• Do not repeatedly operate the Switch with excessive force.
Applying excessive pressure or applying additional force after
the plunger has stopped may deform the disk spring of the
Switch, resulting in malfunction.
• Be sure to set up the Switch so that the plunger will operate in a
straight vertical line.
If the plunger is pressed of-center or from an angle it may cause
deformation or damage to some parts.
• We recommend using a round bar with a diameter of at least 3
mm as the actuator.
Note:
■
Precautions for Correct Use
soldering
Do not exceed the following terminal temperature profile during
soldering in a reflow oven.
260°C
220°C
180°C
150°C
Main
heating
time
60s max.
Time
Preheating time
60 to 120s
Washing
The Switches are not sealed, and cannot be washed.
Doing so will cause the washing agent, together with flux or dust
particles on the PCB, to enter the Switch, resulting in malfunction.
Packaging Specifications
The packaging specifications for B3AL Switches in embossed
taping are given below.
+0.1
0
Dust Countermeasures
Do not mount or use the Switch in areas that are subject to dust.
If dust is unavoidable, protect the Switch with a sheet or other
countermeasure.
Water and Drip Resistance
The switch is not water or drip resistant.
Do not use it in locations subject to water.
1.5
dia.
2
12±0.1
4±0.1
C
Cross section
C-C
1.75
7.50
16
C
Tape drawing direction
(22)
Tape drawing direction
(5.5)
13
38
Reel
dia
.
0
±
2
di
a.
•
