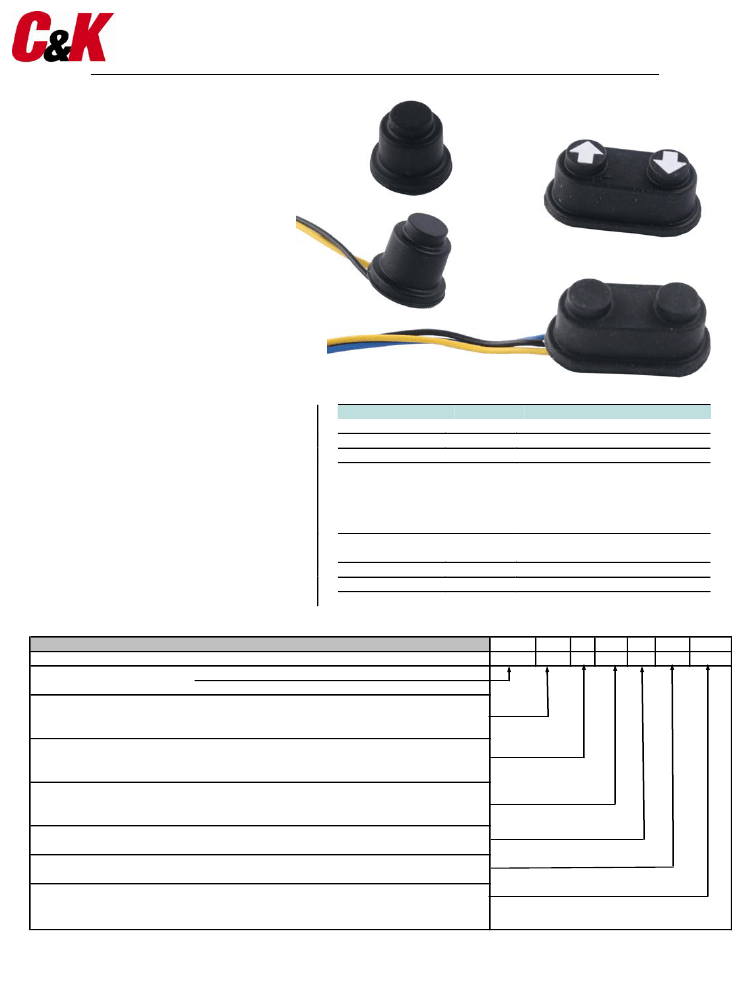

Single & Double Switch Modules – ESM / DSM
The single switch module ESM and
the double switch module DSM are
ready-to-install units, consisting of:
•
Switches:
K12 (for both ESM or DSM)
K12G (DSM only with two
switching-points)
PVA1H4 (ESM only)
PC board
Rubber cap
Optional cable or connector
ESM
DSM
•
•
•
The rubber cap offers the possibility
to use both switch modules under
severe ambient conditions where
dust, water, oil, solvents etc. can
effect or destroy the function of
standard switches.
With the rubber cap the two modules
are sealed to IP 65 when mounted.
Typical Applications
•
Tractors
•
Harvesting equipment
•
Industrial controls
Technical Data
Cap Material
Protection Level
Cable
Switches
Silicone rubber
IP 65 (with cap when mounted)
FLK/FLY 0.5 mm²
K12
(both ESM or DSM)
K12G
(DSM only, two
switching-points)
PVA1H4
(ESM only)
Operating
force
5N
3.5 / 7 N
3N
Travel (mm/inch)
1 / 0.039
1.5 / 0.0591
2.2 / 0.087
K12
K12G
PVA1H4
Ordering code
1
Designation
2
Switch
3
Travel of Switch
4
Operating force
6
Cap
7
Cable
8
Cap decals
(DSM)*
Exam ple
ESM = single switch module
DSM = double switch module
K12 = (for ESM and DSM)
K12G = with 2 switching-points (DSM only)
PVA
= PVA1H4 (ESM only)
1 = 1 mm (K12)
1.5 = 1.5 mm (K12G)
2.2 = 2.2 mm (PVA1H4)
5N
= 5 N (K12)
3.5N = 3.5 / 7 N (K12G)
3N
= 3 N (PVA1H4)
N = none
C = with cap
- = none
L130 = 130 mm cable length
- = none
P = arrows:
U (down), O (Up), L (left), R (right)
1
DSM
2
K12
3
1
4
5N
6
C
7
8
L130 Pu Po
* see drawing overleaf
M-SM-0744
www.ck-components.com

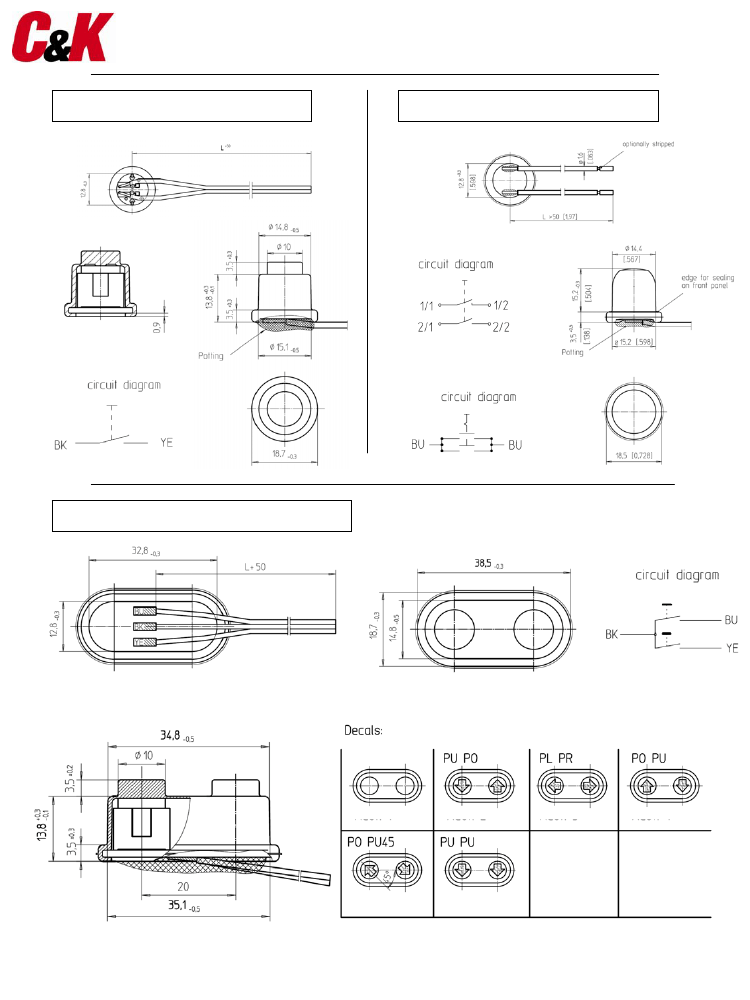

Single & Double Switch Modules – ESM / DSM
ESM
single switch with K12
ESM
single switch with PVA1H4
DSM
double switch module with K12
Layout 1
Layout 2
Layout 3
Layout 4
Layout 5
Layout 6
M-SM-0744
www.ck-components.com
