TXD2SA-2M-1.5V: DescriptionLow Signal Relay - PCB 1A 1.5VDC 250MW SMD RELAY; CategoryMechanical and electronic products relay Low signal relay - PCB; File Size293KB，13 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric View All

TXD2SA-2M-1.5V Overview

Low Signal Relay - PCB 1A 1.5VDC 250MW SMD RELAY

TXD2SA-2M-1.5V Parametric

Parameter Name	Attribute value
Maker	Panasonic
Product Category	Low Signal Relay - PCB
product	Low Profile Relays
coil voltage	1.5 VDC
Contact rating	1 A at 30 VDC
Contact current rating	1 A
Maximum switching current	1 A
coil current	166.7 mA
Coil type	Latching
Power consumption	250 mW
Contact termination	Solder Pin
insulation	20 dB
Insertion loss	0.8 dB
Encapsulation	Tube
Contact form	DPDT (2 Form C)
Coil resistance	9 Ohms
Contact material	Silver (Ag)
Installation style	Through Hole
Factory packaging quantity	40

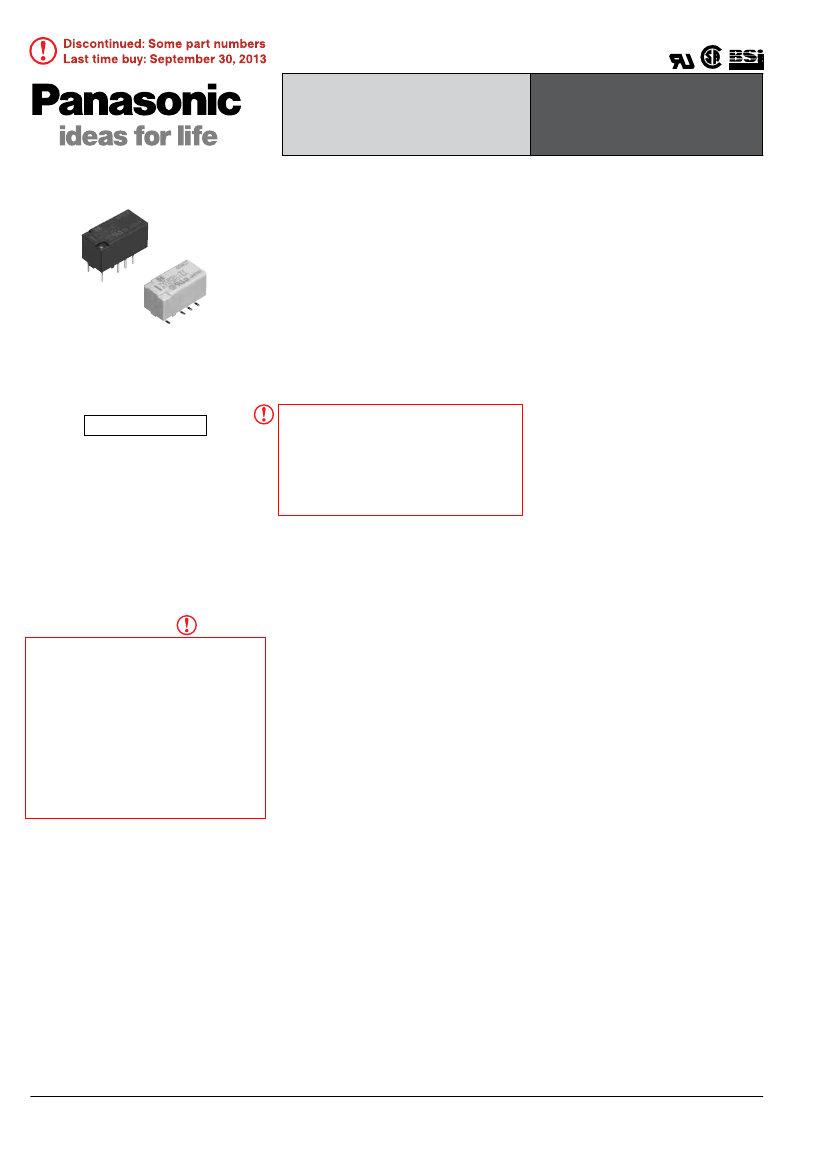

Preview

Download Datasheet

View All

TX-D

High breakdown voltage type

is available (1.5 kV between

open contacts)

2. Approved to the supplementary

insulation class in the EN standards

(EN60950).

The insulation distance between the

contact and coil meet the

supplementary insulation class of the

EN60950 standards as required for

equipment connected to the telephone

lines in Europe.

Satisfies the ollowing conditions:

• Clearances: 2.0 mm

.079 inch

• Creepage distance: 2.5 mm

.098 inch

or more

TESTING

TX-D RELAYS

7. Outstanding vibration and shock

resistance.

Functional shock resistance: 750 m/s

Destructive shock resistance:

1,000 m/s

Functional vibration resistance:

10 to 55 Hz (at double amplitude of

3.3 mm

.130 inch)

Destructive vibration resistance:

10 to 55 Hz (at double amplitude of

5 mm

.197 inch)

8. Sealed construction allows

automatic washing.

9. A range of surface-mount types is

also available.

SA: Low-profile sur ace-mount

terminal type

SS: Space saving surface-mount

terminal type

10. M.B.B. type available (Surge

breakdown voltage 2,500 V type

only)

RoHS compliant

3. 3,000 V breakdown voltage between

contact and coil. (Surge breakdown

voltage 6,000 V type)

The body block construction of the coil

that is sealed formation offers a high

breakdown voltage of 3,000 V between

contact and coil.

4. Nominal operating power:

High sensitivity of 200mW

By using the highly efficient polar

magnetic circuit “seesaw balance

mechanism”, a nominal operating

power of 200 mW has been achieved.

5. High contact capacity: 2 A 30 V DC

6. High contact reliability achieved

with gold-clad crossbar twin

contacts and the use of gas

expelling materials during

formation.

*We also offer a range of products with

AgPd contacts suitable for use in low

level load analog circuits (Max. 10V

DC 10 mA).

TYPICAL APPLICATIONS

1. Facsimile

2. Modem

3. Communications (xDSL)

4. Medical equipment

5. Automotive equipment

6. Security

FEATURES

1. Lineup now includes high

breakdown voltage type that

achieves breakdown voltage

between open contacts of 1,500 V

AC.

Surge breakdown voltage between

open contacts:

1,500 V 10

160

µsec.

(FCC part 68)

Surge breakdown voltage between

contact and coil:

6,000 V 1.2

µsec.

(EN60950)

Panasonic Corporation

Automation Controls Business Unit

industrial.panasonic.com/ac/e

ASCTB19E 201209-T
