B3-15131 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> B3-15131

B3-15131: DescriptionBasic/Snap Action Switch 8A SPDT RA PC Pins HighCurrent MIL; CategoryMechanical and electronic products switch; File Size912KB，2 Pages; ManufacturerOTTO; Websitehttp://www.ottoexcellence.com; Environmental Compliance

Download Datasheet Parametric View All

B3-15131 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B3-15131	-	-	View	Buy Now

B3-15131 Overview

Basic/Snap Action Switch 8A SPDT RA PC Pins HighCurrent MIL

B3-15131 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	OTTO
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator stroke	0.1 mm
Actuator type	AUXILIARY LEVER TYPE
body width	8.89 mm
body height	5.08 mm
Body length or diameter	12.95 mm
Contact (AC) maximum rated R load	5A@115VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@28VDC
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	28 V
Electrical life	50000 Cycle(s)
JESD-609 code	e4
Manufacturer's serial number	B3
Installation features	THROUGH HOLE-RIGHT ANGLE
Maximum operating force	2.22 N
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

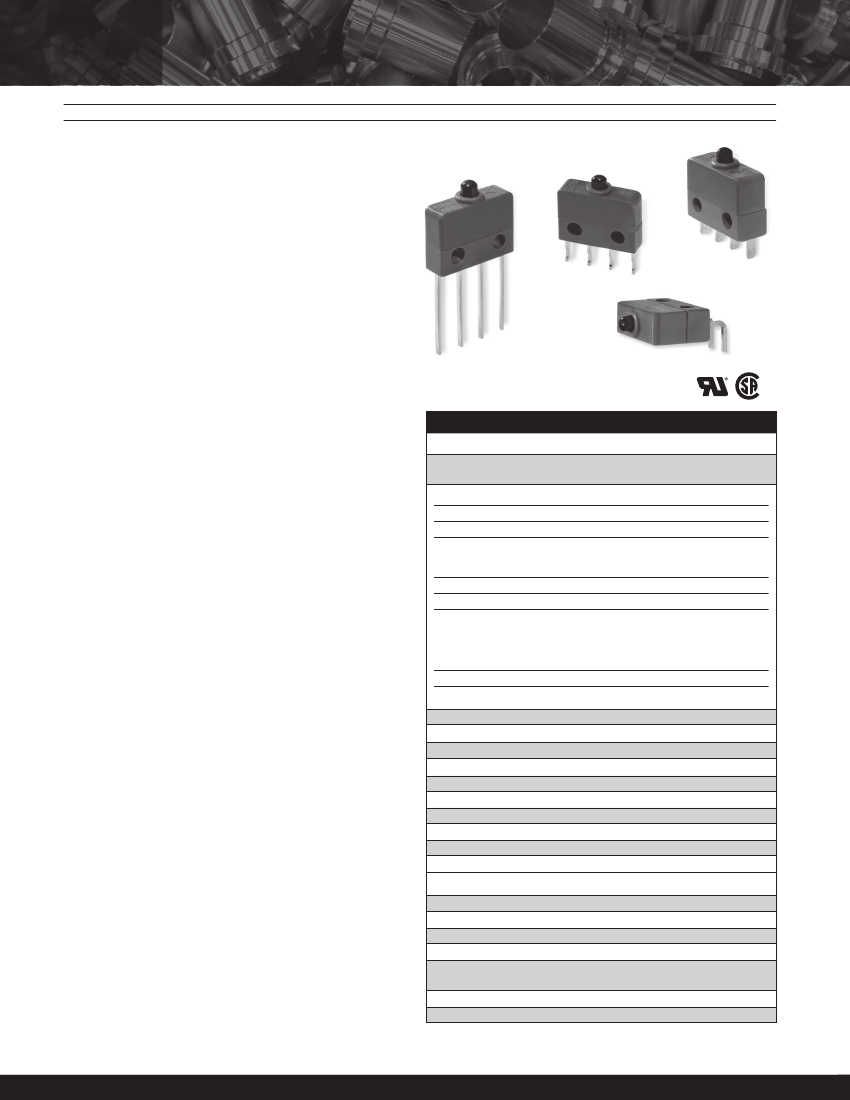

BASIC

SWITCHES

SUBMINIATURE BASIC SWITCHES

DOUBLE BREAK, SNAP-ACTION, COMMERCIAL & MILITARY GRADES, SUBMINIATURE

MIL-PRF-8805/76 (0.200 inches wide)

OTTO’s B3-2XXXX series is a subminiature switch that is qualified

to MIL-PRF-8805/76. Designed to switch at least one million

mechanical cycles, the B3 surpasses the requirements of the military

in these categories: contact resistance less than 25mΩ, contact

bounce and overall cycle life. For MIL-PRF-8805/76 requirements,

B3-22141 has standard silver with gold contacts, SPDT double

break two circuit (Form Z), solder terminals in thermoset case

material. Gold plated contacts are available for non-military

applications. UL recognized and CSA certified models available.

PC Pins

Solder Turret

Terminals

MIL-PRF-8805/101 (0.156 inches wide)

For your really difficult projects, try OTTO’S B3 series. They are

qualified to the OTTO inspired MIL-PRF-8805/101 specification.

Only 0.156” thick, think of all those extra 0.044” you can use in

those tight ganged jobs. With the B3 series, you can get an extra

pole in where only four MIL-PRF-8805/76’s fit, with room to spare.

Examine the characteristics. With the MIL-PRF-8805/101, the only

thing you give up is the extra space the MIL-PRF-8805/76 takes.

Cycle life, very low contact resistance, minimal contact bounce...

everything is exactly as provided by the MIL-PRF-8805/76

specification.

For MIL-PRF-8805/101 requirements, B3-11141 (PC pin) and

B3-12141 (turret) have silver with gold contacts and SPDT

double break (Form Z) contact. For commercial applications,

a variety of contact forms, special forces and gold plate

contacts are available. Most versions are also UL recognized

and CSA certified.

Great circuit versatility is available with either switch style. You

have your choice of normally open (Form X) or closed (Form Y),

3 terminal (Form C) and 4 terminal (Form Z) SPDT double break.

Wire Wrap

Terminals

Right Angle

PC Terminals

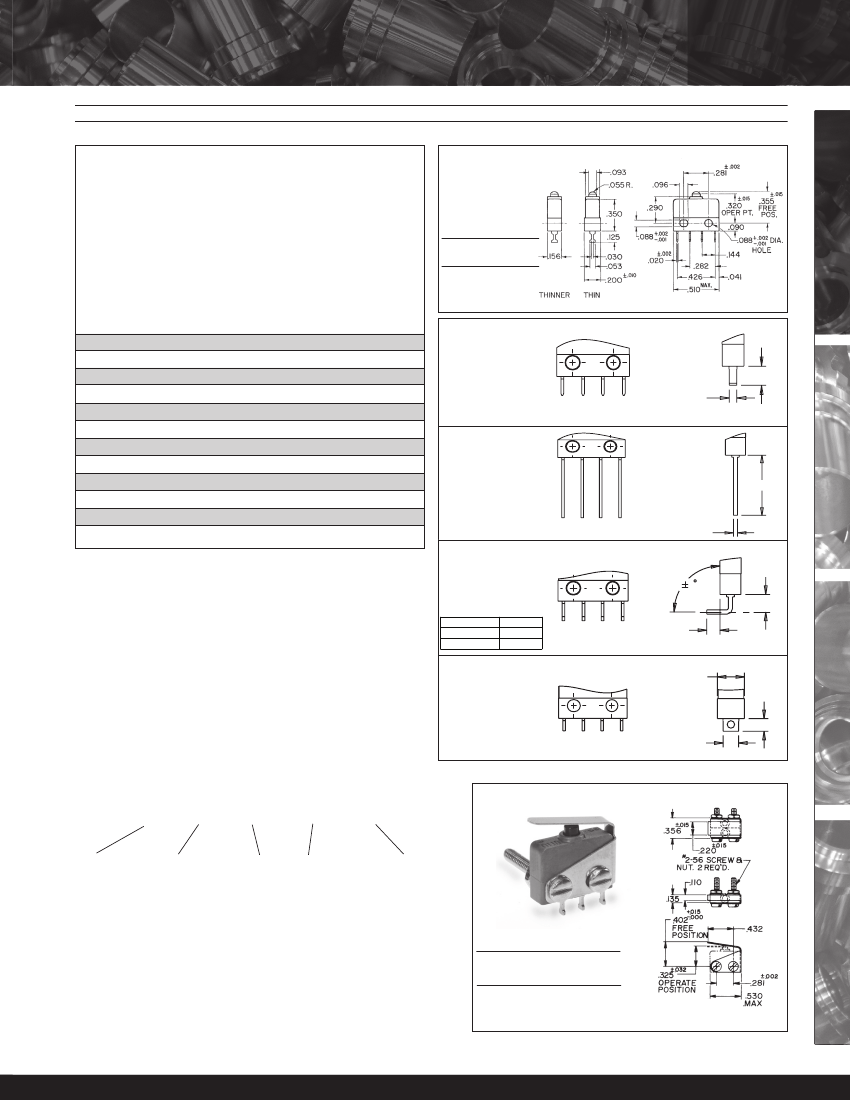

Standard Characteristics/Ratings:

ELECTRICAL RATINGS:

Circuitry

Load

Sea Level

@ 28VDC

2.5A

70,000 feet

@ 28VDC

1.5A

Sea Level @

115VAC, 60/400Hz*

N/A

2.5A

SPST-NO or NC Resistive

Form Z

Form C

Gold Contacts

SPST-NO or NC Inductive**

Form Z

Form C

Gold Contacts

**L/R

= 0.026

Lamp

Motor

DWV

Low Level:

Electrical Life:

Mechanical Life:

Seal:

Operating Force:

Release Force:

Operate Point:

Overtravel:

*Applies

to commercial grade switches

1000Vrms

N/A

400Vrms

Features:

•

Low level switching capability

Less than 25mΩ contact resistance

Up to 8 amps switching capability

Button accepts actuation directly from a cam

Choice of 0.156” & 0.200” wide models

Choice of 6 standard terminal styles or wire leads

Available in Commercial & Military grades

Qualified to MIL-PRF-8805/76 & MIL-PRF-8805/101

UL recognized & CSA certified

RoHS/WEEE/Reach compliant

Gold contacts 10mA @ 30mV

50,000 cycles at full load

1,000,000 cycles

Unsealed

5 oz +3/-2 oz typical, 6 oz max, or 5 oz min options

1.5 oz min

0.320 +/- 0.015 inches from mounting holes

0.004 inches min

Operating Temp Range:

-65°C to +125°C

Movement Differential:

0.018 +/- 0.008 inches

MATERIALS:

Case:

Cover:

Button:

Thermoset, blue

Thermoplastic, blue

Thermoplastic, black

Brass with gold

Stationary: Silver with gold plate

Moveable: Silver with gold plate

None provided, optional wires

None provided

APPLICATIONS

OT TO subminiature switches are designed to meet all

applications requiring MIL-PRF-8805/76 or MIL-PRF-8805/101

switches. Basic switches are designed for miniature spaces

where cam or other limit actuators are used. In addition, toggle,

pushbutton and lever actuators are available.

OTTO Full Line Catalog

Terminals:

Contacts:

Terminal Hardware:

Mounting Hardware:

Specifications Subject To Change Without Notice
