Last Update:
3/21/17
Dimensions: mm (in.)
2
(.08)
Ref. #:
MS-101442
27.2
(1.07)
35
(1.38)
M22x1.0
.50
(.02)
2.75
(.11)
ø25
(ø.98)
13
(.51)
2.8
(.11)
5
(.2)
3
ø22.2
(ø.87)
2
(+)
1
25
(.98)
(-)
Position 1

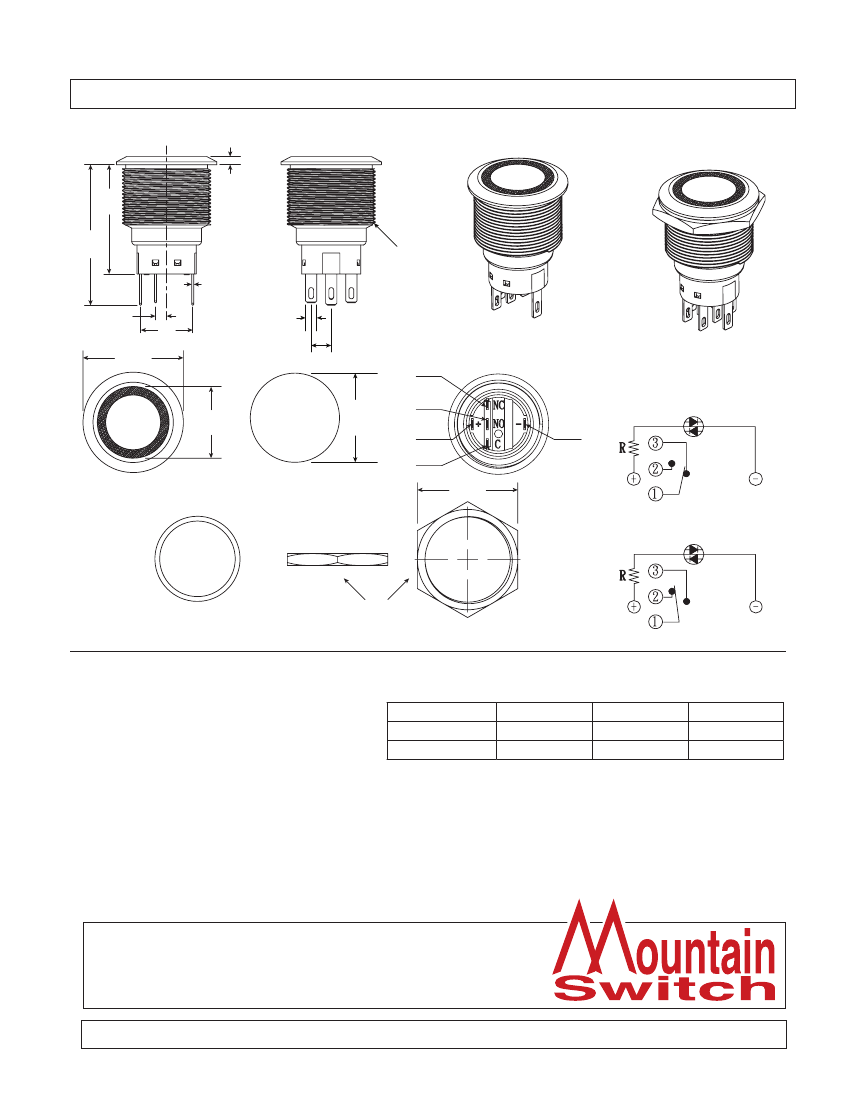

Assembled View
ø17.75
(ø.70)
Panel Cutout
Max. Panel Thickness: 10 (.394)
Exploded View
Position 2
Hex Nut
O-Ring
Mechanical Specifications:
•
Operating Temperature: -20°C to +55°C
•
Travel: About 3.2mm
Mouser Stock No.
108-22105-EVX
108-22123-EVX
Circuit Type
OFF-(ON)
ON-OFF
LED Color
Yellow
Red
LED Voltage
6V
12V
Electrical Specifications:
•
Rating: 5A/250VAC. resistive load 3A/250VAC.
•
Life: 50,000 Make-and Break Cycles at Full Load
•
Insulation Resistance: 1,000MΩ Min. at 500VDC.
•
Dielectric Strength: 2,000V RMS @sea level.
•
Contact Resistance: 50mΩ Max. @1A 12VDC (initial value)
Material:
•
Body Type & Color: Aluminum alloy, Black Anodized
Note:
•
RoHS Compliant by Exemption
Illuminated Pushbutton Switches
108-22105-EVX, 108-22123-EVX
Available from Mouser Electronics
www.mouser.com
1-800-346-6873
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Mountain Switch
:
108-22123-EVX 108-22105-EVX
