SS-39300-001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Modular connectors/Ethernet connector> SS-39300-001

SS-39300-001: DescriptionModular Connector/Ethernet Connector Cat6 RJ45 Punch Down Plug; CategoryThe connector Modular connectors/Ethernet connector; File Size366KB，2 Pages; ManufacturerBel; Websitehttp://www.belfuse.com; Environmental Compliance

Download Datasheet Parametric View All

SS-39300-001 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SS-39300-001	-	-	View	Buy Now

SS-39300-001 Overview

Modular Connector/Ethernet Connector Cat6 RJ45 Punch Down Plug

SS-39300-001 Parametric

Parameter Name	Attribute value
Maker	Bel
Product Category	Modular Connector/Ethernet Connector
product	Modular Plugs
USOC code	RJ45
Number of locations	8 Position
Number of ports	1 Port
performance category	Cat 6
Installation style	Cable
Termination type	IDC
shield	Shielded
series	Cat6
Contact plating	Gold
Type	Male
Installation angle	Straight
Number of contacts	8 Contact
Contact material	Phosphor Bronze
Flammability rating	UL 94 V-0
Pitch	-
Insulation resistance	500 MOhms

Preview

Download Datasheet

View All

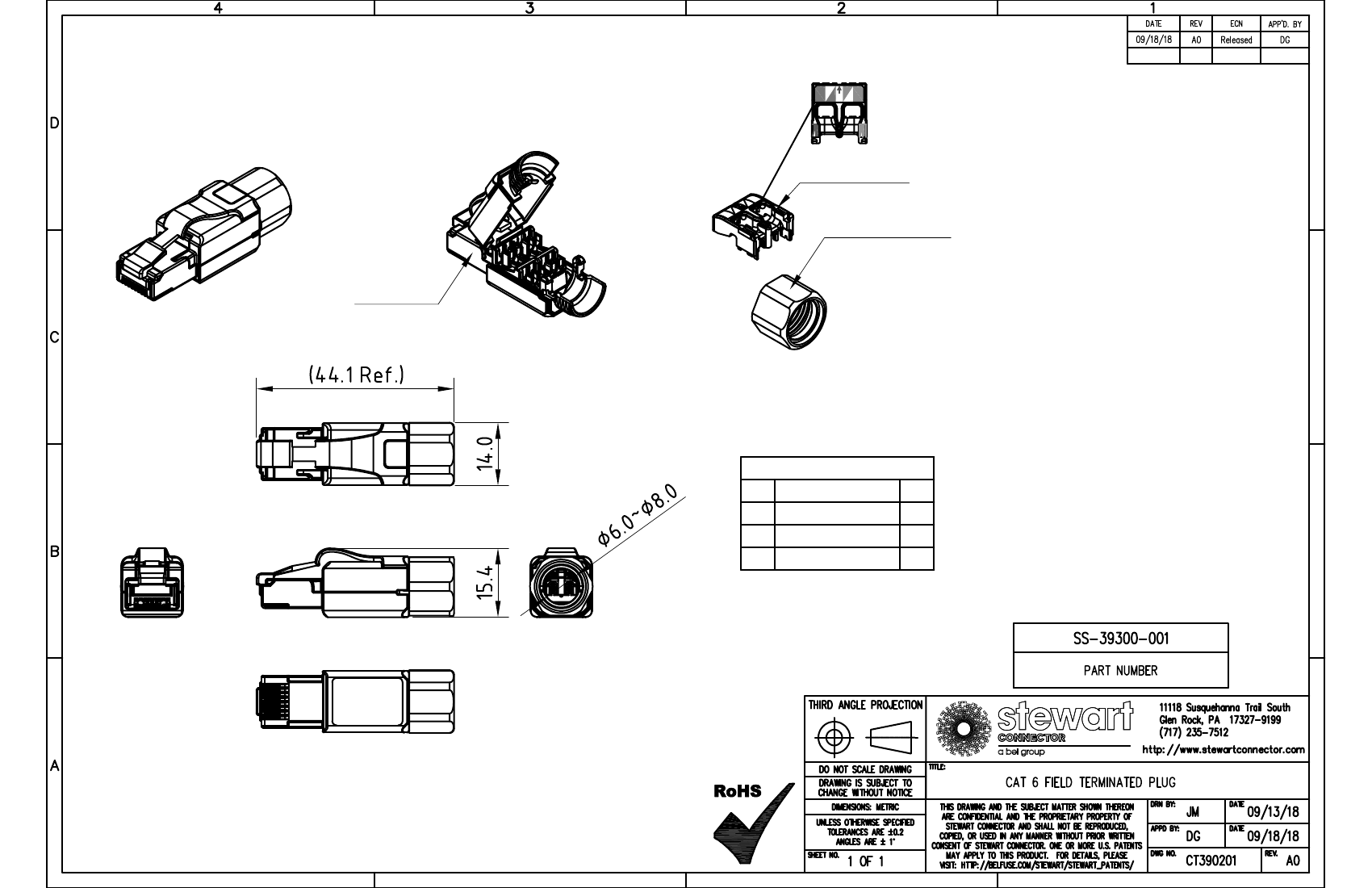

WIRE GUIDE CAP

STRAIN RELIEF NUT

PLUG BODY

TRANSMISSION PERFORMANCE

Meet all requirements specified in Patch Cord

requirement of

ANSI/TIA-568-C.2, Category 6

ELECTRICAL

Electrical Insulation Resistance : 500ΜΩ min. @100V d.c

Dielectric Withstanding Voltage : 1000V D.C or A.C Peak,

Contact to Contact;1500V D.C or A.C Peak,

Contact to Shield @ 60Hz for 1 Minute.

COMPONENTS

ITEM

PART NAME

PLUG BODY

STRAIN RELIEF NUT

WIRE GUIDE CAP

Q'TY

MECHANICAL

IDC Wire Gauge : 23 ~ 26 AWG

PHYSICAL

Housing : Zinc-alloy fully shielded

Contact pin : Phosphor Bronze Alloy Plated With

50 micro-inch of Gold

IDC : Phosphor Bronze Alloy With 100

micro-inch 100% Sn Alloy

CAT 6
