SUCOFORM_47_CU

Description
coaxial cable
CategoryWire/cable    Coaxial cable
File Size140KB,3 Pages
ManufacturerHUBER+SUHNER
Download Datasheet Parametric View All

SUCOFORM_47_CU Online Shopping

Suppliers Part Number Price MOQ In stock
SUCOFORM_47_CU - - View Buy Now

SUCOFORM_47_CU Overview

coaxial cable

SUCOFORM_47_CU Parametric

Parameter NameAttribute value
MakerHUBER+SUHNER
Product Categorycoaxial cable
conductor materialSilver Plated Copper (SPC)
impedance50 Ohms
outer diameter1.19 mm
Coaxial quantity1
shieldShielded
Voltage rating1 kV
maximum temperature+ 165 C
Data Sheet

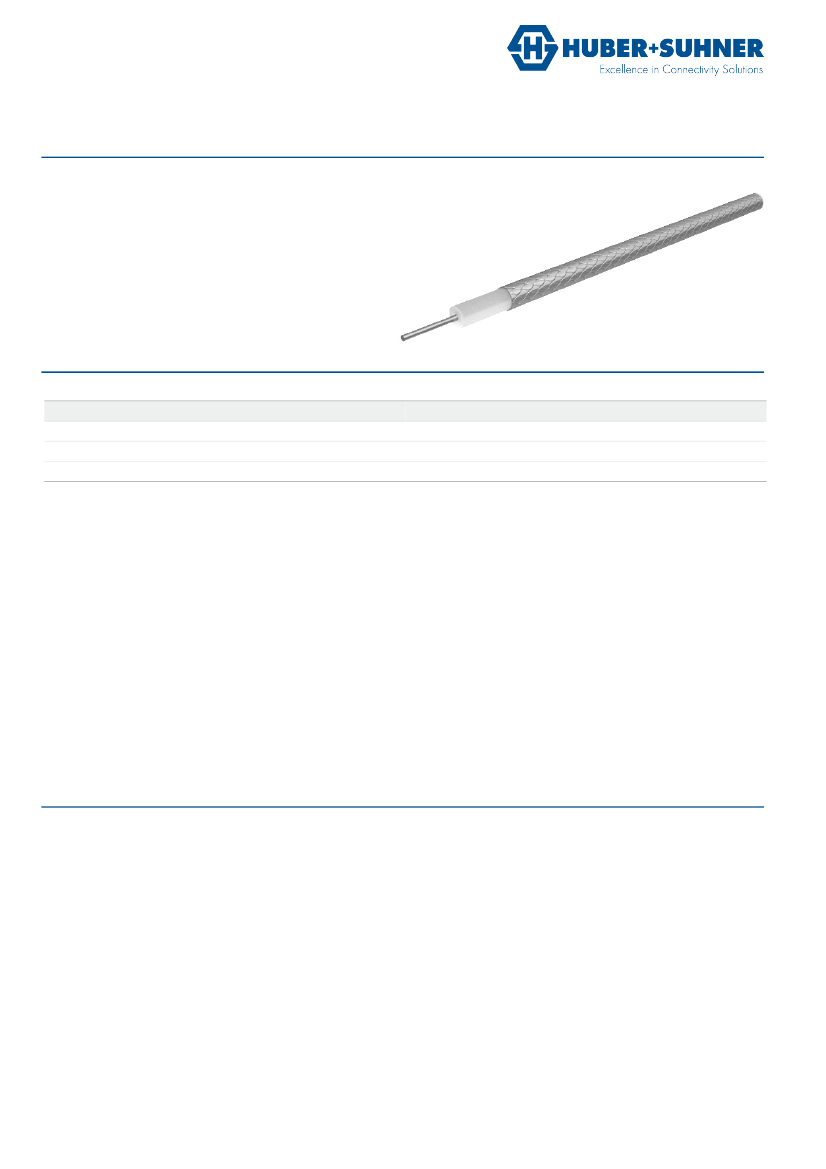

Flexible RF cable
SUCOFORM_47_CU
Description
Sucoform: Formstabe, hand-formable alternatives to semi-rigid microwave cables
Non-magnetic, 50 Ohm, 40 GHz, 165°C, ø1.19 mm, no jacket
Technical Data
Construction
Material
Centre conductor
Dielectric
Outer conductor
Copper, Silver plated
PTFE (Polytetrafluoroethylene)
Copper, Tin plated
Tin soaked braid, 100%
Detail
Wire
Diameter
0.31 mm
0.94 mm
1.19 mm
Electrical Data
Impedance
Operating Frequency
Capacitance
Velocity of signal propagation
Signal delay
Insulation resistance
Min. screening effectiveness
Max. operating voltage
Test voltage
50 Ω +/- 2
40 GHz
95 pF/m
71 %
4.7 ns/m
≥ 1 x 10
8
MΩm
≥ 100 dB (up to 18 GHz)
≤ 1 kV
rms
(at sea level)
2 kV
rms
(50 Hz/1 min)
Mechanical Data
Weight
Min. bending radius
static
0.55 kg/100 m
3.18 mm
Environmental Data
Temperature range
Installation temperature
2011/65/EU (RoHS)
-65 °C... +165 °C
-20 °C... +60 °C
compliant
Additional Information
Ordering Information
Order as
SUCOFORM_47_CU
Remarks
(For details refer to the HUBER+SUHNER RF CABLES GENERAL CATALOGUE or contact your nearest HUBER+SUHNER partner)
Suitable Connectors
Cable group
Y2 1 mm / 50 Ohm
Document: DOC-0000178018 AJ / PDO J / date of publication: 11.12.2018 17:43:29 / uncontrolled copy
