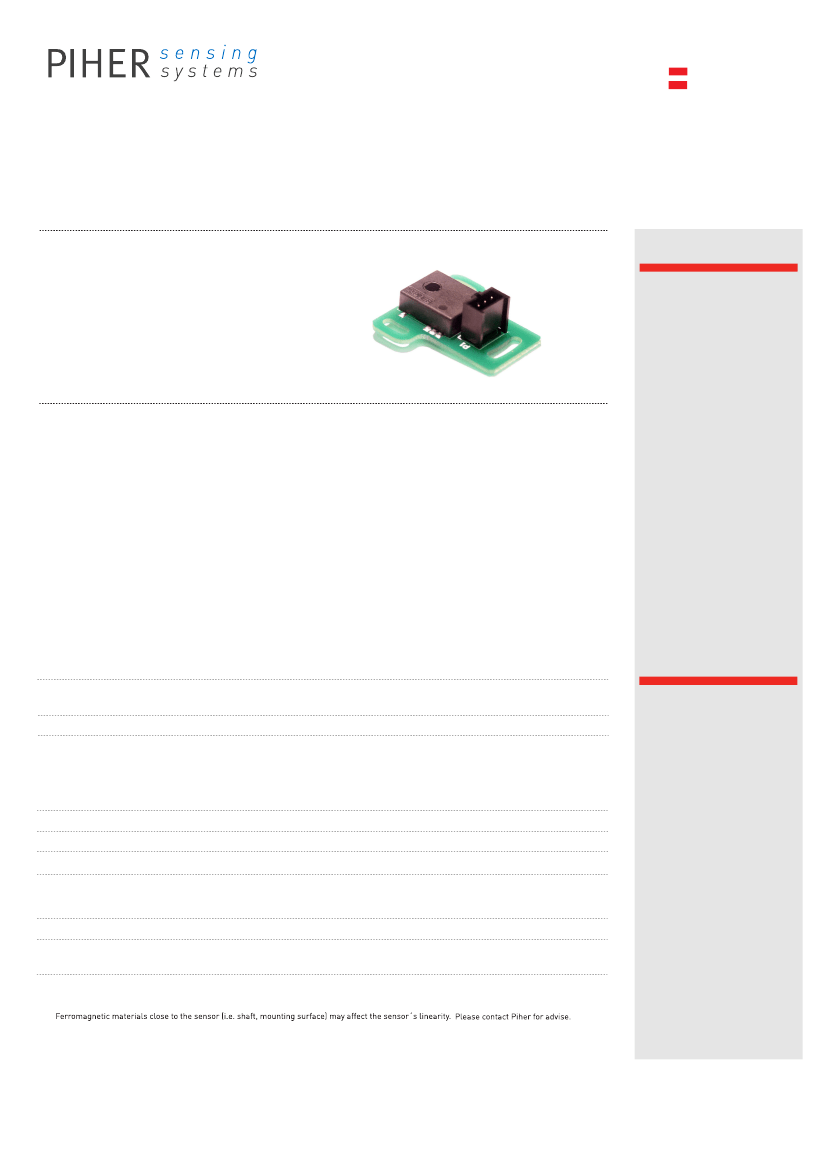

Magnetic rotary angle and position sensor-control.
Through-hole contactless sensor.
MTS-360PCB
Key features
• Simple & robust magnetic
design.
• Low profile.
• Endless rotation.
• Two programmable switch
outputs (6 pin version).
Designed with the sensor directly mounted onto a PCB, the innovative MTS-360 Sensor/PCB Combo package allows
engineers to easily mount a fully featured rotary sensor without first having to design a printed circuit board for the sensor.
The result is time-savings and convenience.
The MTS-360 Sensor/PCB assembly is available with or without 2.54 mm pitch connector, both easily secured with standard
M3 screws. The entire assembly measures just 35mm wide by 36mm long, allowing for applications with tight packaging
constraints.
The new MTS-360PCB Mechanical Mount sensor model incorporates all the breakthrough sensor technology performance
features of the original MTS-360 by merging a through-shaft design with 360º absolute position feedback in a small size
package. The result is an extremely small fully featured rotary sensor with reliability up to 50 million cycles. The MTS-
360 relies on patented Hall effect technology to enable true non-contacting through-hole shaft sensing now using a simple
three eared mounting. The standard model features a 4mm double D-flat through-hole and (3) slotted mounting holes
allowing final rotational adjustment at assembly.
• Programmable Linear Transfer
Characteristic:
(some positive slopes & one
negative slope can be
programmed in the same transfer
characteristic;
up to 4 programmable points; see
last page).
• Self-diagnostic features.
• Over voltage protection and
reverse voltage protection.
• Shaft insertable from both sides.
Also upon request:
• True full redundant version.
Mechanical specifications
Rotational life
(depends on application and mounting)
up to 50.000.000 cycles.
with connector
without connector
up to -40ºC to +105
up to -40ºC to +125ºC
IP50
Applications
• Non-Contacting long life
angle/position sensor.
• Absolute rotary position sensor
• Pedal position Sensor.
• Optical imaging stabilization.
• Biomedical devices.
• Optical zoom devices.
• Consumer electronics.
• HVAC systems.
• Automotive control systems.
• Marine controls.
• Fork lift trucks.
• Farm equipment.
• Sports and recreational.
equipment.
• Unmanned vehicles and aircraft.
• Industrial vehicles.
• Instrumentation.
• Valve position sensors.
• Robotic and automation
feedback system.
Operating temperature
Sealing
1
1
Electrical specifications
Linearity
1,2
±1% absolute (±0.5% check availability).
Programmable from 15 to 360 degrees (without dead band).
Analog (Ratiometric), PWM, Serial Protocol.
Yes, programmable.
Analog & PWM: up to 12 bits.
Serial Protocol (SPI): up to 14 bits.
5V ±10%
Typ 8.5mA for single version.
Typ 17mA for redundant version.
Angular range
Output
Switch output
Angular Resolution
(depends on electrical angle and rotational speed)
Supply voltage
Supply current
1
1
2
Others check availability.
Piher Sensors & Controls SA
Our product competencies and services:
Potentiometers
|
Position / angle sensors
| Rotary switches | Incremental encoders
Printed circuit resistors | Mechatronics | Value added assemblies
Magnetic rotary angle and position sensor-control.
Mechatronics
Electromechanical
Sensors
Controls
Through-hole contactless sensor.
MTS-360PCB
How to order.
3 pin version - Simple output (analogic / PWM)
MTS360PCB3
Series
_
_
Output1
A = Analogic
P = PWM
(see note 1)
_____
______
__
_
____
_
Type
1 = simple
Output
function
C0000
C0001
(see note 3)
Electrical
rotation
angle
ERA015
ERA016
....
ERA360
Voltage
supply
05
Temp. range
E = -40 to +85ºC
K= -40 to +125ºC
(see note 4)
PWM Frecuency (Hz.)1
F100
...
F999
(see note 5)
Connector
C = with
N = without
6 pin version - Simple output (analogic / PWM)
MTS360PCB6
Series
_
_
_
_____
_____
______
__
_
____
_
Type
1 = simple
Switch
[empty] = none
W = switch
Switch
ON
001
001
016
...
316
359
(see note 2)
Output
function
C0000
C0001
(see note 3)
Electrical
rotation
angle
ERA015
ERA016
....
ERA360
Voltage
supply
05
Temp. range
E = -40 to +85ºC
K= -40 to +125ºC
(see note 4)
Connector
C = with
N = without
Output1
A = Analogic
P = PWM
(see note 1)
PWM Frecuency (Hz.)1
F100
...
F999
(see note 5)
6 pin version - Redundant output (analogic / PWM)
MTS360PCB6
Series
_
_
Output
AA = Analogic
PP = PWM
(see note 1)
_
___
_
___
_____
______
__
_
____
____
_
Connector
C = with
N = without
Type
2 = redundant
Switch1
ON
001
016
...
359
(see note 2)
Switch2
ON
001
016
...
359
(see note 2)
Output
function
C0002
C0003
(see note 3)
Electrical
rotation
angle
ERA015
ERA016
....
ERA360
Voltage
supply
05
PWM Frecuency
(Hz.)1
F100
...
F999
(see note 5)
PWM Frecuency
(Hz.)2
F100
...
F999
(see note 5)
Temp. range
Switch1
[empty] = none
W = switch
Switch2
[empty] = none
W = switch
E = -40 to +85ºC
K= -40 to +125ºC
(see note 4)
Other product configurations will be studied case by case.
(1)
The analog output is a ratiometric output, proportional to input supply voltage.
(2)
Leave empty if no applicable.
Switch function diagram:
Positive slope
v
Negative slope
v
Notes
SW On
360º
SW Off
360º
SW On
SW Off
(3)
Other output functions available check availability.In the How To Order reference, enter
CXXXX
meanwhile the new output function reference is not defined.
(4)
If “with” connector, then K is limited to +105ºC
(5)
Leave empty if no applicable. Default frequency is 200 Hz
Piher Sensors & Controls SA
Our product competencies and services:
Potentiometers
|
Position / angle sensors
| Rotary switches | Incremental encoders
Printed circuit resistors | Mechatronics | Value added assemblies
Magnetic rotary angle and position sensor-control.
Mechatronics
Electromechanical
Sensors
Controls
Through-hole contactless sensor.
MTS-360PCB
Options
• Special outputs slopes and protocols.
• Full redundant version with switches.
• Energy harvesting versions.
• Fast versions.
• Connectors.
• IP sealing.
• Shaft interfaces.
• Contact the factory for other options.

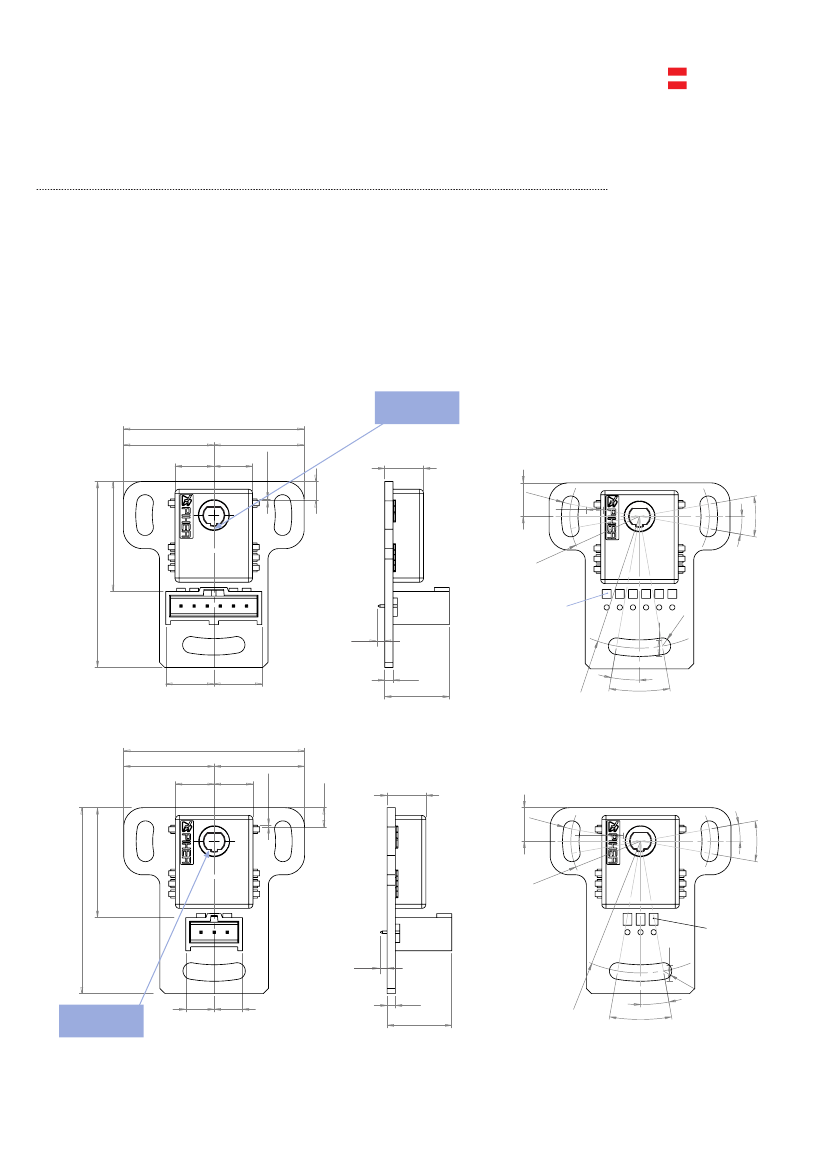

Dimensions
6 pin version
35
=
=
=
=
Rotor is shown at zero position.
Sensor is delivered at random
position.
0.3
7.5
3.7
Assembly without connector
6.5
R1.6
21.3
3.5
R1
36
Welding pads
3.2
1.3
.5
R25
=
=
1.6
12.5
10º
20º
3 pin version
35
=
=
=
=
0.3
3.7
7.5
Assembly without connector
3.7
R1.6
10º
R1
.6
10º
.5
R13
36
21.3
Welding
pads
1.3
1.6
12.5
R25
.5
3.2
R1
.6
Rotor is shown at zero position.
Sensor is delivered at random
position.
=
=
10º
20º
Piher Sensors & Controls SA
Our product competencies and services:
Potentiometers
|
Position / angle sensors
| Rotary switches | Incremental encoders
Printed circuit resistors | Mechatronics | Value added assemblies
20º
20º
Magnetic rotary angle and position sensor-control.
Mechatronics
Electromechanical
Sensors
Controls
Through-hole contactless sensor.
MTS-360PCB
Mounting instructions.
Electronic semiconductor products are sensitive to Electro Static Discharge (ESD).
Always observe Electro Static Discharge control procedures whenever handling semiconductor products.
By default this sensor is programmed at the factory using a ferromagnetic actuator. If your application´s actuator/shaft
is not ferromagnetic please let us know before ordering.
Connections scheme.
Detail of header connector for 3 pin
version. (Molex 90136-1203)
Recommended mate connector:
Molex 90156-0143
Recommended crimp terminals:
Molex 90119-2120
Molex 90119-2121
Molex 90119-2122
GND
Detail of header connector for 6 pin version.
(Molex 90136-1206)
Recommended mate connector:
Molex 90156-0146
Recommended crimp terminals:
Molex 90119-2120
Molex 90119-2121
Molex 90119-2122
OUT2
SW2
SW1
OUT1
VCC
VCC
OUT
GND
Output.
C0000
100%
90%
CW
C0002
(redundancy)
100%
90%
CW
%
%
10%
0%
0º
90º
180º
270º
360º
0º
90º
180º
270º
360º
50%
50%
10%
0%
C0001
100%
90%
C0003
(redundancy)
CW
100%
90%
CW
%
%
50%
45%
20%
10%
0%
0º
90º
180º
270º
360º
10%
0%
0º
90º
180º
270º
360º
Piher Sensors & Controls SA
Our product competencies and services:
Potentiometers
|
Position / angle sensors
| Rotary switches | Incremental encoders
Printed circuit resistors | Mechatronics | Value added assemblies
Mechatronics
Electromechanical
Sensors
Controls
Magnetic rotary angle and position sensor-control.
Through-hole contactless sensor.
MTS-360PCB
Disclaimer
Ferromagnetic parts close to the sensor, including the shaft, may modify the performance of the sensor. Therefore, this has to be
communicated to Piher for prior analysis.
No external magnetic perturbations are considered on the application where the sensor is mounted. If so, amplitude and direction of
flux density generator type and characteristics (magnet, cable, motor...) must be notified to Piher.
The product information in this catalogue is for reference purposes. Please consult for the most up to date and accurate design
information.
Piher Sensors & Controls S.A., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Piher”),
disclaim any and all liability for any errors, inaccuracies or incompleteness contained herein or in any other disclosure relating to any
product described herein.
Piher disclaims any and all liability arising out of the use or application of any product described herein or of any information provided
herein to the maximum extent permitted by law. The product specifications do not expand or otherwise modify Piher’s terms and
conditions of sale, including but not limited to the warranty expressed therein, which apply to these products.
No licence, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any
conduct of Piher.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications unless otherwise expressly
indicated. Customers using or selling Piher products not expressly indicated for use in such applications do so entirely at their own
risk and agree to fully indemnify Piher for any damages arising or resulting from such use or sale. Please contact authorised Piher
personnel to obtain written terms and conditions regarding products designed for such applications.
Product names and markings noted herein may be trademarks of their respective owners.
Information contained in and/or attached to this catalogue may be subject to export control regulations of the European Community,
USA, or other countries. Each recipient of this document is responsible to ensure that usage and/or transfer of any information
contained in this document complies with all relevant export control regulations. If you are in any doubt about the export control
restrictions that apply to this information, please contact the sender immediately. For any Piher Exports, Note: All products / technologies
are EAR99 Classified commodities. Exports from the United States are in accordance with the Export Administration Regulations.
Diversion contrary to US law is prohibited.
Piher is an Amphenol
TM
company.
00
20
Contact
Piher Sensors & Controls SA
Polígono Industrial Municipal
Vial T2 Nº22
31500 Tudela - Spain
Tel: +34-948-820450
sales@piher.net
www.piher.net
/
5
3
/E
C
)
/
R
o
H
S3
(2
01
i
ng
to
ELV
or
d
(
Pb
)
5
/
86
3
/
EU
All Piher products can be adapted to meet customer´s requirements.
Due to continuous process improvement, specifications are subject to change without notice.
Please always use the datasheets published at our website www.piher.net for the most up-to-date information.
v271118
Piher Sensors & Controls SA
Our product competencies and services:
Potentiometers
|
Position / angle sensors
| Rotary switches | Incremental encoders
Printed circuit resistors | Mechatronics | Value added assemblies
A
cc
京公网安备 11010802033920号
EEWORLD
