UPOS-M15R-AST00 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Embedded solution> Display module> UPOS-M15R-AST00

Preview

UPOS-M15R-AST00: DescriptionDisplay module 15" 4:3 POS monitor with resistive touch, HDMI, VGA; CategoryEmbedded solution Display module; File Size446KB，3 Pages; ManufacturerAdvantech; Websitehttp://www.advantech.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

UPOS-M15R-AST00 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	UPOS-M15R-AST00	-	-	View	Buy Now

UPOS-M15R-AST00 Overview

Display module 15" 4:3 POS monitor with resistive touch, HDMI, VGA

UPOS-M15R-AST00 Parametric

Parameter Name	Attribute value
Maker	Advantech
Product Category	display module
series	UPOS-M15
product	TFT-LCD Displays
type	Resistive
Display resolution—pixels	1024 x 768
diagonal	15 in
Backlight type	LED
Interface Type	Serial
Working power voltage	12 V
Minimum operating temperature	0 C
Maximum operating temperature	+ 40 C
size	353.92 mm x 277.97 mm x 52.7 mm
Factory packaging quantity	1

Preview

Download Datasheet

View All

UPOS-M15 Series

POS monitor

UPOS-M15

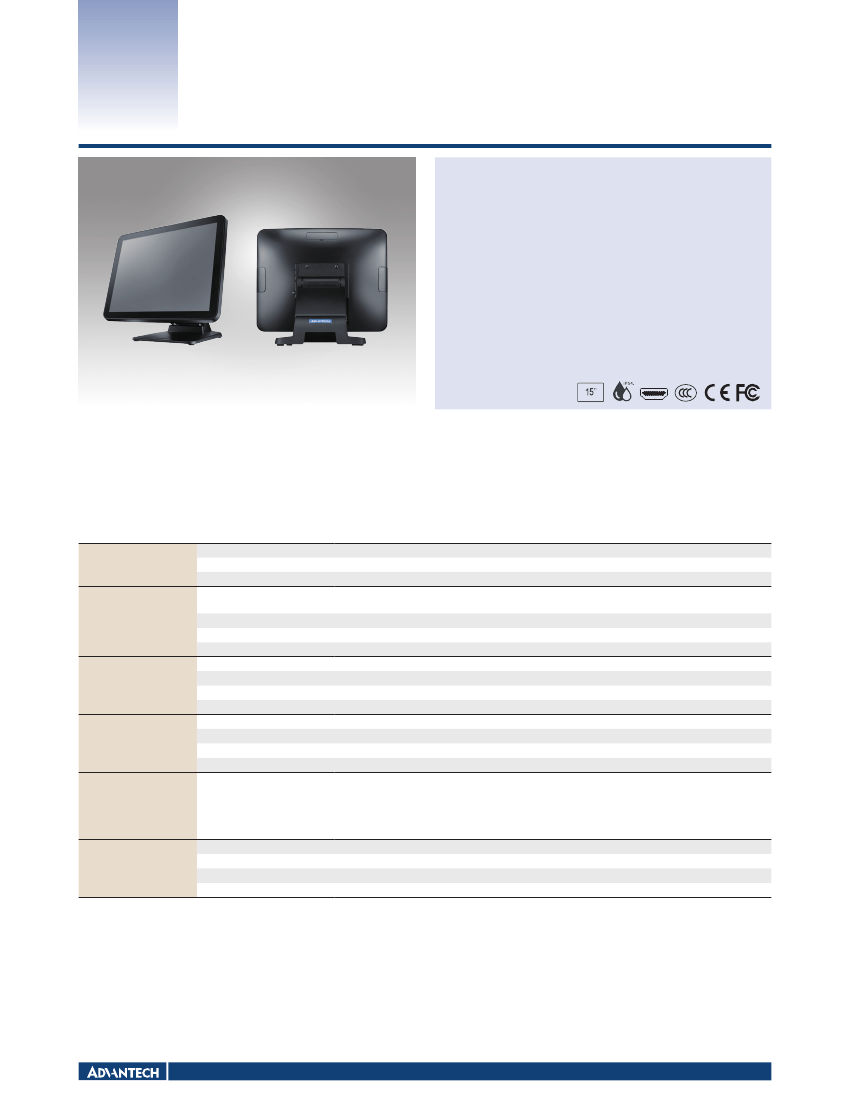

Features

15.1" TFT display in LED backlight

Flat and borderless front P-CAP touch panel design

IP65 on front panel

Reserved side hatch for optional module.

75 x 75mm VESA mount

VGA input

Build in speaker

Introduction

M15 monitor is designed to fit your point of sale system need. Monitor mounted borderless touch panel allow you to finger touch operating the system. Sleek and thin design provide

a modern looking. M15 be able to mount through the standard VESA holes on pole, arm or wall mount. Desktop stand option is also available. Display back reserved hatched to

mount the optional perepherals.

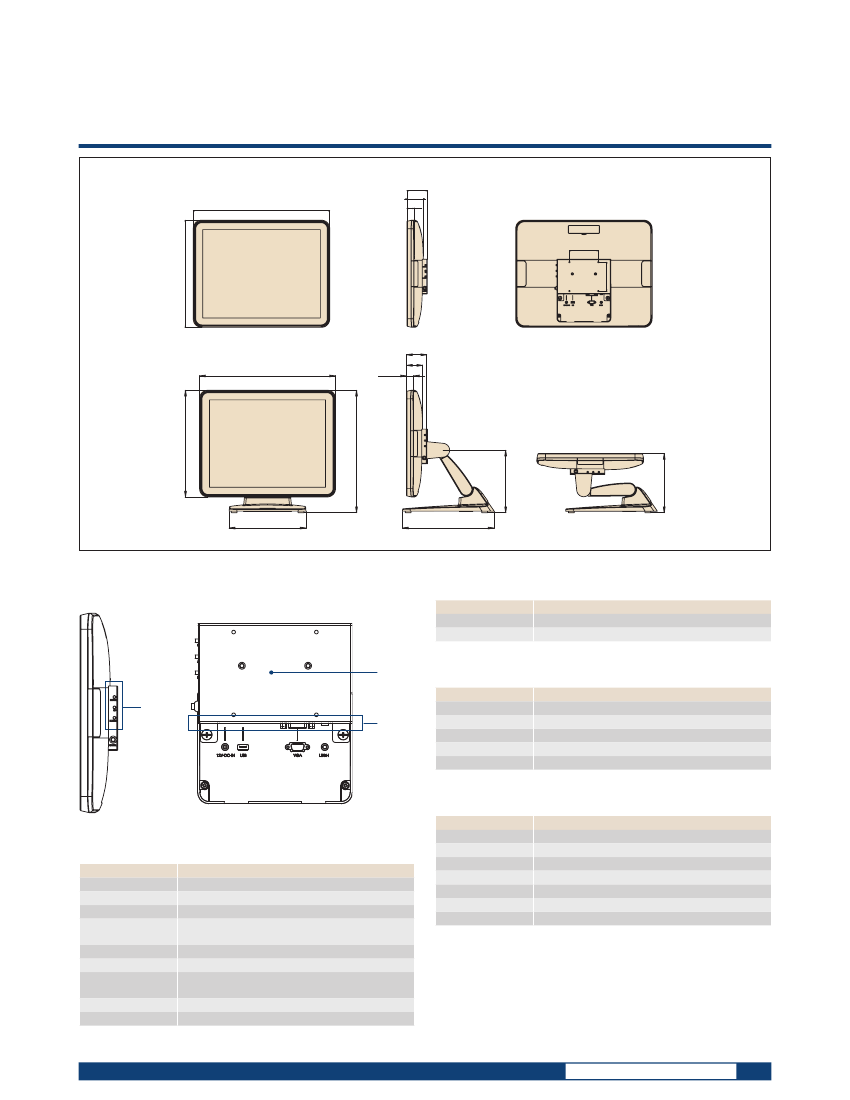

Specifications

Display

Panel Resolution

Brightness

Touch Screen

Video in

External I/O

Audio in

USB

DC-In

Power

Menu

Up

Down

Speaker

Mount

Hatch

Adapter

15" TFT LCD (LED backlight) / 1024 x 768

250 cd/ m

2

(400cd/ m

2

optional)

P-Cap Touch

VGA Port (DSUB-15)

HDMI (Optional)

3.5mm jack

For Touch panel

2-pin power jack

Power on/off

OSD menu

selection up

selection down

2W x 2

VESA mount 75 x 75 mm

Right/Left/Top hatch reserved mounting for optional modular

12V 25 wattage power adapter

MSR

MSR + iButton

MSR + Fingerprint

MSR + RFID

MSR + IC card

Black /White / Black + Orange

0 ~ 40° C (32 ~ 104° F)

10 ~ 95% @ 40° C non-condensing

FCC/CE/CCC/CB/UL

Control Button

Others

Optional Modular

side mount Peripherals

Mechanical &

Environmental

Case Color

Operation Temperature

Humility

EMI / Safety

POS Terminals

All product specifications are subject to change without notice.

Last updated: 6-Feb-2018

UPOS-M15R-AST00 Related Products

	UPOS-M15R-AST00	UPOS-M15P-WST02
Description	Display module 15" 4:3 POS monitor with resistive touch, HDMI, VGA	Display module (CN) 15" 4:3 monitor P-touch WH w/USB,VG
Maker	Advantech	Advantech
Product Category	display module	display module
series	UPOS-M15	UPOS-M15
product	TFT-LCD Displays	TFT-LCD Displays
type	Resistive	Capacitive
Display resolution—pixels	1024 x 768	1024 x 768
diagonal	15 in	15.1 in
Backlight type	LED	LED
Interface Type	Serial	HDMI
Working power voltage	12 V	12 V
size	353.92 mm x 277.97 mm x 52.7 mm	353.92 mm x 277.97 mm x 52.7 mm

Recommended Resources

Disconnected anti-theft alarm circuit diagram

FM-AM tuner circuit (UTC TA7640AP)

555 magnetic control signaling circuit

Programmable voltage amplifier

Intelligent carbon monoxide alarm circuit

Animation demonstration of double control switch principle
