Data Sheet
Between Series Adaptor
33_PC35-NEX10-50-1/199_N
Description

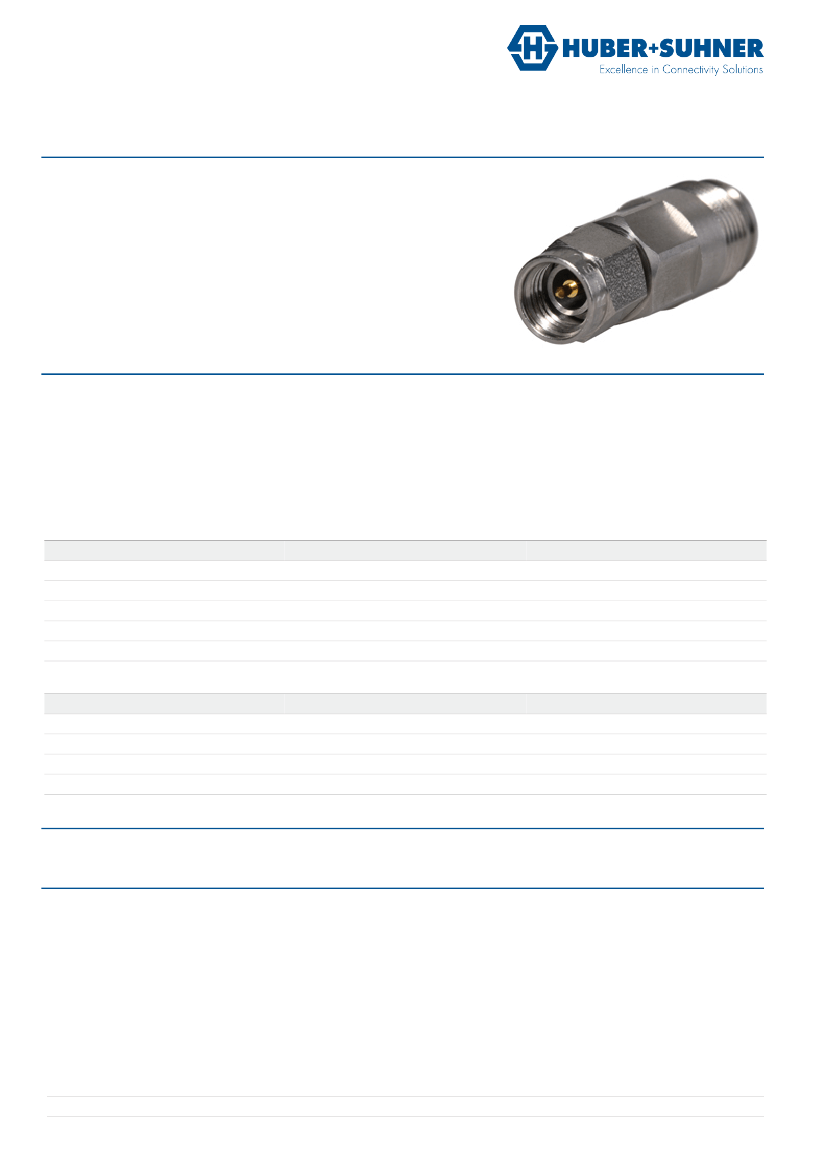

Adaptor plug/jack
PC 3.5 plug (male) / NEX10 jack (female)
Interface standards
Series PC 3.5 - IEC 60169-23
Series NEX10 - Standard
Technical Data
Electrical Data
Impedance
Interface frequency max.
50 Ω
20 GHz
Environmental Data
Operating temperature
2011/65/EC (RoHS)
-55 °C to 100 °C
compliant
Material Data
Interface - PC 3.5 plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Coupling nut
Stainless Steel
Material
Copper Beryllium Alloy
Stainless Steel
Stainless Steel
Surface Plating
SUCOPRO Plating
Interface - NEX10 jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Stainless Steel
Stainless Steel
PTFE (Polytetrafluoroethylene)
Surface Plating
SUCOPRO Plating
Related Documents
Catalogue drawing
DCA-00343963
Ordering Information
Single package
33_PC35-NEX10-50-1/199_NE
