33_NEX10-N-50-X1/1-3_NE

Description
RF Adapter - Series NEX10 to N plug plug(M)/jack(F)
CategoryThe connector    Rf interconnection    Rf adapter    Rf adapter - series2
File Size126KB，2 Pages
ManufacturerHUBER+SUHNER
Environmental Compliance
Download Datasheet Parametric View All

33_NEX10-N-50-X1/1-3_NE Overview

RF Adapter - Series NEX10 to N plug plug(M)/jack(F)

33_NEX10-N-50-X1/1-3_NE Parametric

Parameter NameAttribute value
MakerHUBER+SUHNER
Product CategoryRF Adapters - Between Series
Side 1 RF SeriesNEX10
side 1 sexPlug (Male)
Side 2 RF SeriesN
side 2 sexJack (Female)
impedance50 Ohms
minimum frequency-
maximum frequency6 GHz
Frequency Range4 GHz
Main materialBrass
Contact platingGold
Connector typeNEX10 N
directionStraight
Contact materialCopper Alloy
Installation styleFree Hanging
Factory packaging quantity1

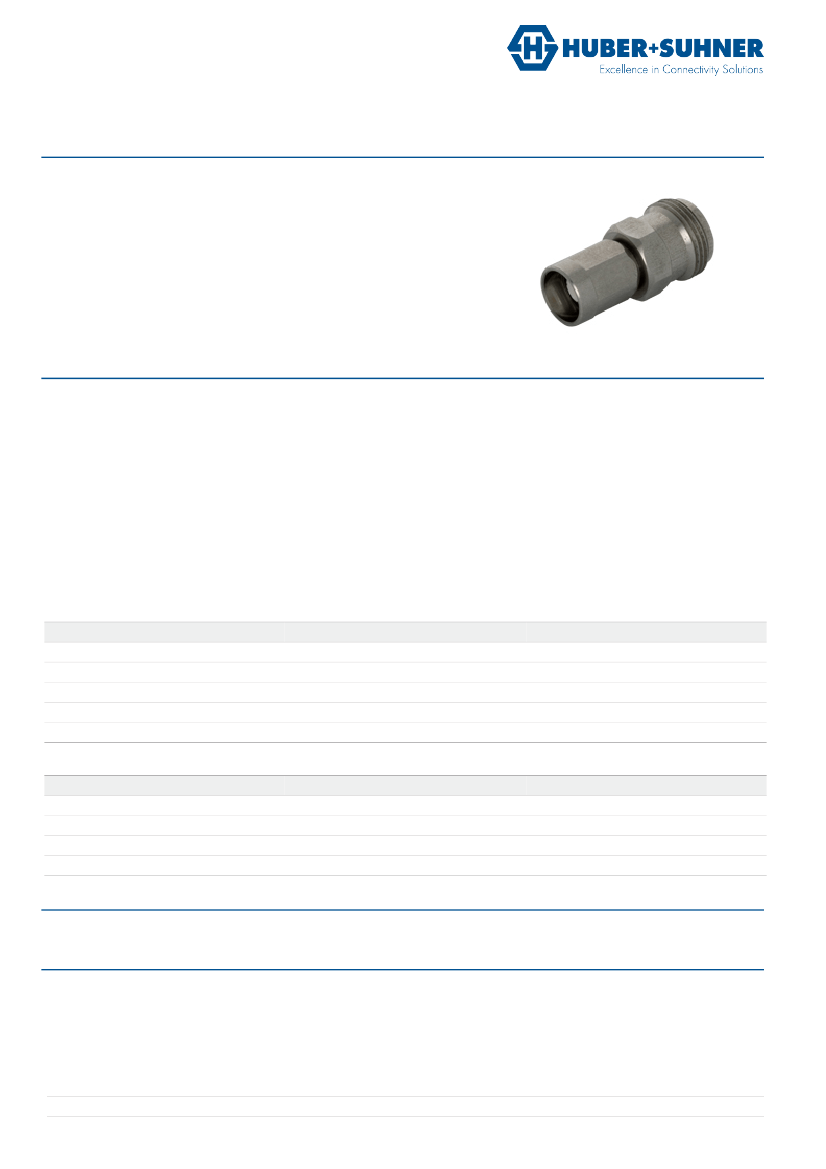

Preview

Download Datasheet
Data Sheet
Between Series Adaptor
33_NEX10-N-50-X1/1-3_N
Description
Adaptor plug/jack
NEX10 plug (male) / N jack (female)
Interface standards
Series NEX10 - Standard
Series N - IEC 61169-16_MIL-STD-348A/402_CECC 22210
Technical Data
Electrical Data
Impedance
Frequency range
Return loss
Intermodulation
50 Ω
DC to 4 GHz
≥ 34 dB
Static 160 dBc (2 x 43 dBm carrier)
4 to 6 GHz
≥ 30 dB
Mechanical Data
Number of matings
100
Environmental Data
Operating temperature
2011/65/EC (RoHS)
-55 °C to 100 °C
compliant
Material Data
Interface - NEX10 plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Coupling nut
Material
Copper Beryllium Alloy
Bronze
Brass
PTFE (Polytetrafluoroethylene)
Brass
SUCOPLATE (R) Plating
Surface Plating
SUCOPRO Plating
Silver Plating
SUCOPLATE (R) Plating
Interface - N jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Brass
Brass
PTFE (Polytetrafluoroethylene)
Surface Plating
SUCOPRO Plating
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Related Documents
Outline drawing
DOU-00341974
Ordering Information
Single package
33_NEX10-N-50-X1/1-3_NE
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, AS/EN9100, ISO/TS 16949 and IRIS.
Waiver: Fact and figures herein are for information only and do not represent any warranty of any kind.
www.hubersuhner.com
Document: DOC-0000796586 N / PDO G / date of publication: 07.06.2019 17:20:25 / uncontrolled copy
Page 1/1
