D38999/20FD35PB: DescriptionMIL Series Connector, 37 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle,; CategoryThe connector; File Size85KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/; Environmental Compliance

Download Datasheet Parametric View All

D38999/20FD35PB Overview

MIL Series Connector, 37 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle,

D38999/20FD35PB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ITT
Reach Compliance Code	compliant
Is Samacsys	N
Other features	STANDARD: MIL-DTL-38999, EMI SHIELDING, POLARIZED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact size	22D
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION/ENVIRONMENT/FLUID RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Maximum operating temperature	200 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	ALUMINUM ALLOY
Housing size	D
Termination type	CRIMP
Total number of contacts	37
Base Number Matches	1

Preview

Download Datasheet

View All

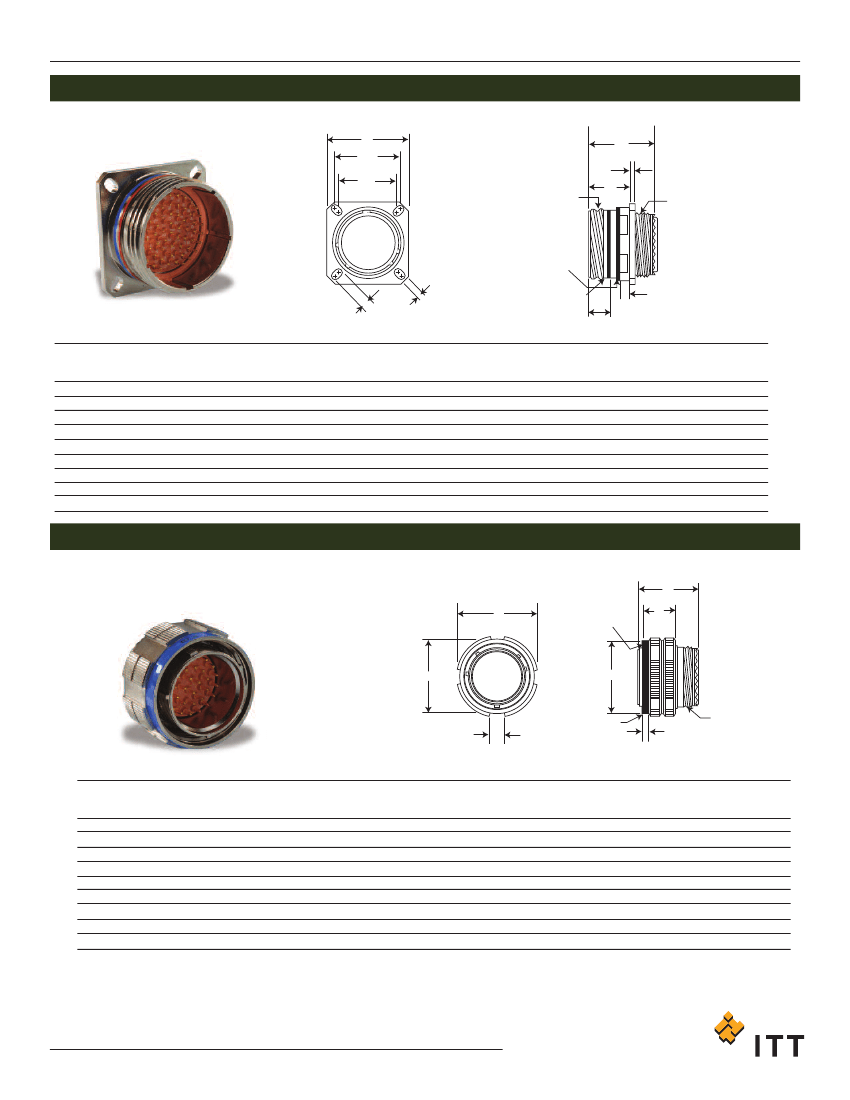

Cannon KJA/KJB

MIL-DTL-38999 Series III Connectors

Wall Mount Receptacle

D38999/20

KJA0T

S

R

1

R

2

B

THREAD

W

MAX.

M

V THREAD

Z

BLUE BAND

(INDICATES REAR

RELEASE CONTACT

RETENTION SYSTEM)

T

4 PLACES

RED BAND

(FULLY MATED

INDICTAOR BAND)

.230 MAX PANEL

THICKNESS (including mounting hardware)

.520 (13.20) MAX

TT 4 PLACES

Shell

Size

9

11

13

15

17

19

21

23

25

MS

Shell size

Code

A

B

C

D

E

F

G

H

J

B Thread

Class 2A

(Plated)

.6250-0.1P-0.3L-TS

.7500-0.1P-0.3L-TS

.8750-0.1P-0.3L-TS

1.0000-0.1P-0.3L-TS

1.1875-0.1P-0.3L-TS

1.2500-0.1P-0.3L-TS

1.3750-0.1P-0.3L-TS

1.5000-0.1P-0.3L-TS

1.6250-0.1P-0.3L-TS

M

+.000 (.000)

-.005 (.130)

.820 (20.83)

.790 (20.07)

R 1

.719 (18.26)

.812 (20.62)

.906 (23.01)

.969 (24.61)

1.062 (26.97)

1.156 (29.36)

1.250 (31.75)

1.375 (34.92)

1.500 (38.10)

R 2

.594 (15.09)

.719 (18.26)

.812 (20.62)

.906 (23.01)

.969 (24.61)

1.062 (26.97)

1.156 (29.36)

1.250 (31.75)

1.375 (34.92)

T

TT

S

+.004 (.100) +.004 (.100)

+_.012 (.300) -.002 (.050) -.002 (.050)

.938 (23.83)

1.031 (26.19)

1.125 (28.58)

1.219 (30.96)

1.312 (33.32)

1.438 (36.53)

1.562 (39.67)

1.688 (42.88)

1.812 (46.02)

.128 (3.25)

.154 (3.91)

.216 (5.49)

.194 (4.93)

.173 (4.39)

.194 (4.93)

.242 (6.15)

Metric V

Thread

(Plated)

M12X1-6g0.100R

M15X1-6g0.100R

M18X1-6g0.100R

M22X1-6g0.100R

M25X1-6g0.100R

M28X1-6g0.100R

M31X1-6g0.100R

M34X1-6g0.100R

M37X1-6g0.100R

W

Max.

.098 (2.50)

.126 (3.20)

Z

+.005 (.130)

-.010 (.250)

1.235 (31.36)

Straight Plug Grounded

D38999/26

KJA6T

L

Q

D THREAD

W

K

B

.244 (6.20)+.012 (0.30)

-.000 (0.00)

BLUE BAND

(INDICATES REAR

RELEASE CONTACT

RETENTION SYSTEMS

V THREAD

.185 (4.70) +_ .016 (0.40)

Shell

Size

9

11

13

15

17

19

21

23

25

MS

Shell size

Code

A

B

C

D

E

F

G

H

J

B

+.008 (.200)

-.000 (.000)

.724 (18.40)

.831 (21.10)

1.000 (25.40)

1.130 (28.70)

1.268 (32.20)

1.374 (34.90)

1.500 (38.10)

1.618 (41.40)

1.744 (44.30)

D Thread

Class 2B

(Plated)

.6250-0.1P-0.3L-TS

.7500-0.1P-0.3L-TS

.8750-0.1P-0.3L-TS

1.0000-0.1P-0.3L-TS

1.1875-0.1P-0.3L-TS

1.2500-0.1P-0.3L-TS

1.3750-0.1P-0.3L-TS

1.5000-0.1P-0.3L-TS

1.6250-0.1P-0.3L-TS

K

Max.

.748 (19.00)

.862 (21.90)

1.027 (26.10)

1.153 (29.30)

1.291 (32.80)

1.398 (35.50)

1.524 (38.70)

1.642 (41.70)

1.768 (44.90)

L

Max.

1.234 (31.34)

Q

Dia Max.

.859 (21.82)

.969 (24.61)

1.141 (28.98)

1.266 (32.16)

1.391 (35.53)

1.500 (38.10)

1.625 (41.28)

1.750 (44.45)

1.875 (47.62)

Metric V

Thread

(Plated)

M12X1-6g0.100R

M15X1-6g0.100R

M18X1-6g0.100R

M22X1-6g0.100R

M25X1-6g0.100R

M28X1-6g0.100R

M31X1-6g0.100R

M34X1-6g0.100R

M37X1-6g0.100R

W

+.008 (.200)

-.004 (.100)

.760 (19.30)

Performance Specifications-Pages 3 and 4.

Contacts, Sealing Plugs, Assembly Tools - Pages 22, 28, and 29.

Contact Arrangements - Pages 20 and 21.

Dimensions shown in inches (mm)

Specifications and dimensions subject to change

www.ittcannon.com
