QPQ1295
®
Band 25 Downlink BAW Filter
Product Overview
The QPQ1295 is an exceptionally high performance BAW
filter for Band 25 Downlink. This filter is housed in a
compact 3.00 x 3.00 x 0.91 mm package for base station
applications.
Low insertion loss, coupled with high attenuation makes
this filter an ideal choice for RF filtering needs.
The QPQ1295 is part of Qorvo’s extensive portfolio of RF
BAW and SAW filters.
6 Pad 3.00 mm x 3.00 mm x 0.91 mm SMP
Key Features
•
•
•
•
•
•
•
65 MHz Bandwidth
High Attenuation
Low Loss
Single-ended Operation
Small Size: 3.00 x 3.00 x 0.91 mm
Surface Mount Device
RoHS Compliant, Pb-Free

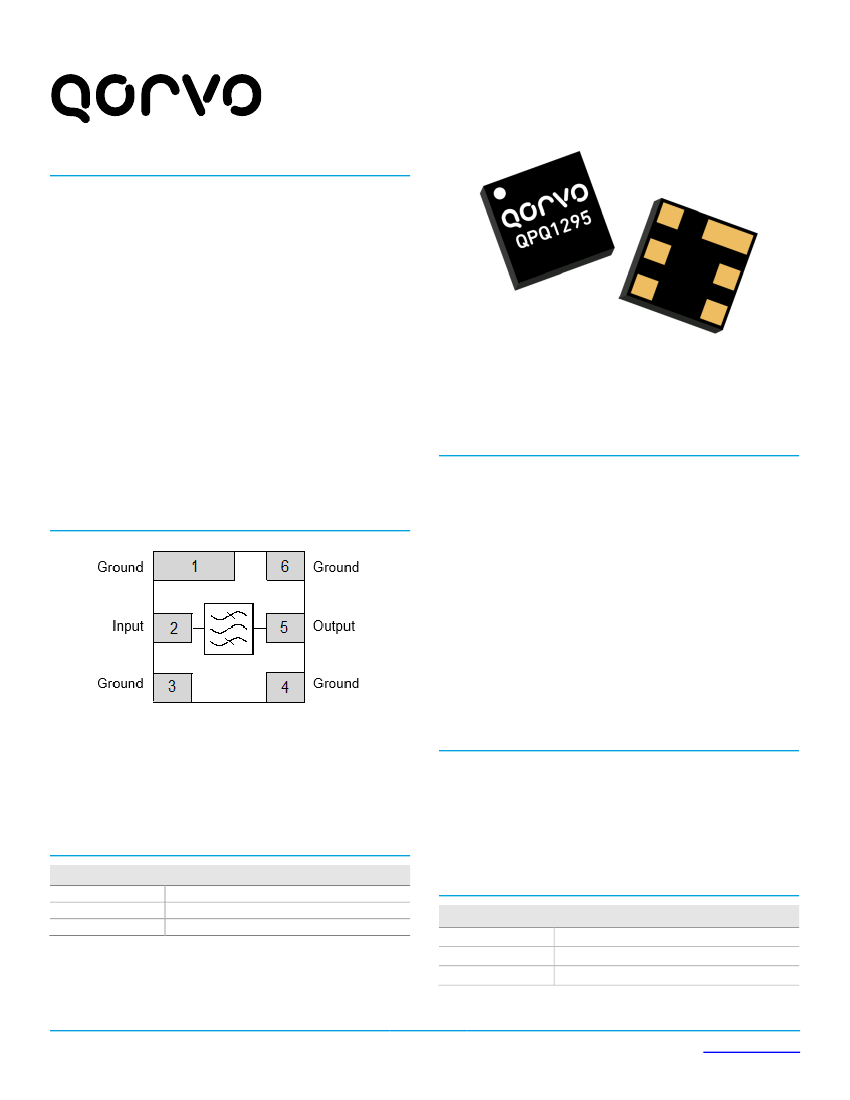

Functional Block Diagram
Top View
Applications
•
•
•
•
Band 25 DL
Small Cell
Base Station Infrastructure
General Purpose Wireless
Pin Configuration - Single Ended
Pin No.
2
5
1, 3, 4, 6
Label
Input
Output
Ground
Ordering Information
Part No.
QPQ1295SR
QPQ1295TR7
QPQ1295EVB
Description
Sample Reel with 100 pieces
7” Taped Reel with 2500 pieces
Assembled Evaluation Board
Datasheet, May 15, 2018 | Subject to change without notice
1 of 8
www.qorvo.com
QPQ1295
®
Band 25 Downlink BAW Filter
Absolute Maximum Ratings
(1)
Parameter
Storage Temperature
Operating Temperature
RF in
(2)
Minimum Lifetime Ratings
Rating
Conditions
+27 dBm DL, +70°C, CW
+30 dBm DL, +55°C, CW
Rating
>1,000,000 hours
>10,000 hours
−40 to +125°C
0 to +70 °C
+39 dBm
Notes:
1. Operation of this device outside the parameter ranges given may
cause permanent damage.
2. CW pulses of 500ms ON time, 10s OFF time.
Electrical Specifications
(1)
Test conditions unless otherwise specified. Temperature Range: 0 to +70 °C
Parameter
Insertion Loss
(2)
Conditions
(1, 2)
1930 – 1932 MHz
1932 – 1935 MHz
1935 – 1995 MHz
1930 – 1995 MHz
1710 – 1755 MHz
1850 – 1910 MHz
1910 – 1915 MHz
Min
-
-
-
-
30
35
32
20
15
30
20
Ty p
3.4
2.7
1.9
1.6:1
35
43
41
36
22
37
29
Max
5.0
4.1
3.0
2.1:1
-
-
-
-
-
-
-
Unit
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
Input / Output VSWR
Attenuation
(4)
1915 – 1920 MHz
1915 – 1922.5 MHz at +25°C
2100 – 3000 MHz
3000 – 6000 MHz
Notes:
1. All specifications are based on the QORVO schematic for the main reference design.
2. Maximum Insertion Loss within defined frequency range.
3. Attenuation is referenced to zero dB

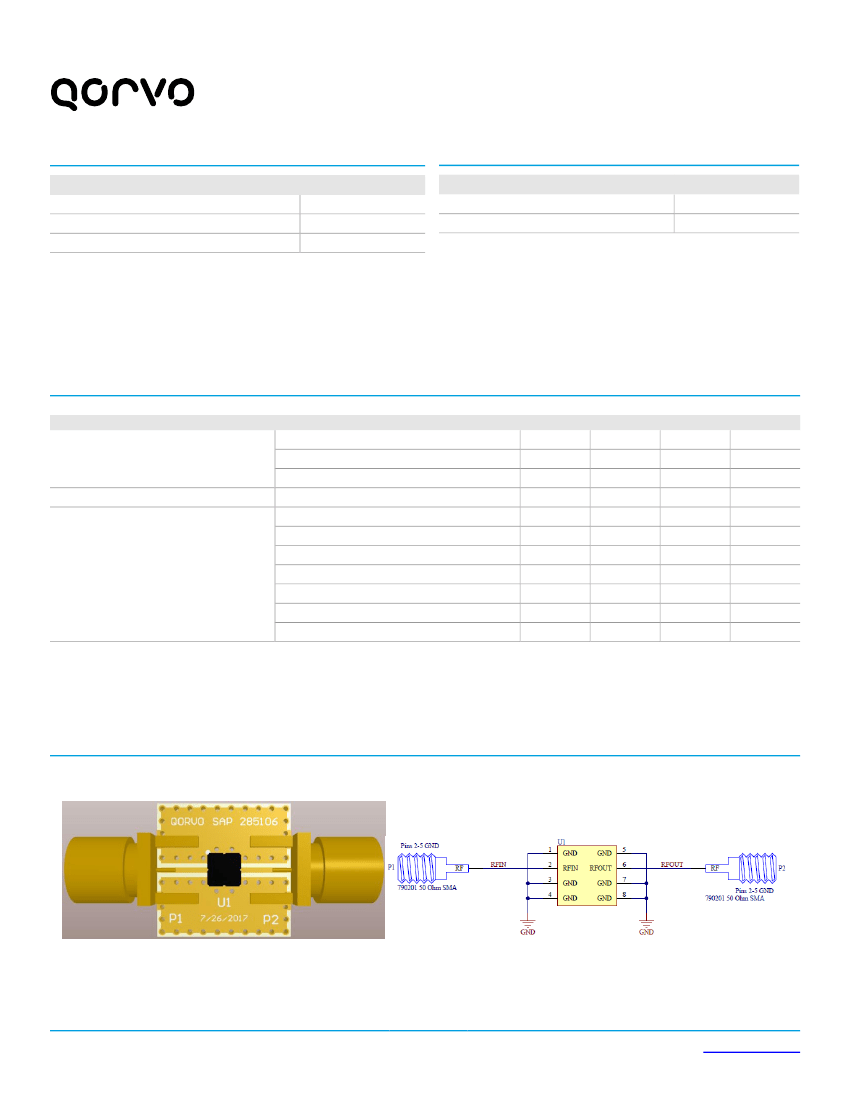

Evaluation Board and Schematic – QPQ1295EVB
Datasheet, May 15, 2018 | Subject to change without notice
2 of 8
www.qorvo.com
QPQ1295
®
Band 25 Downlink BAW Filter

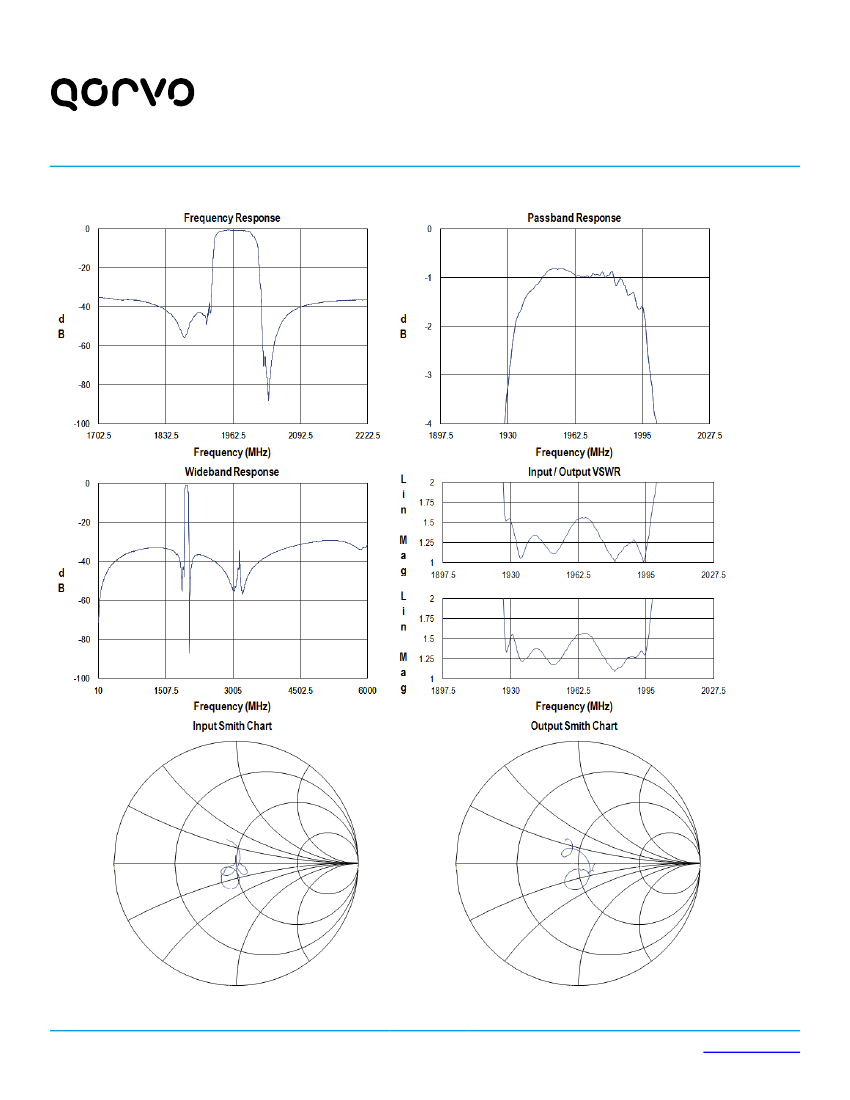

Performance Plots
Test conditions unless otherwise noted: Temp= +25°C
Datasheet, May 15, 2018 | Subject to change without notice
3 of 8
www.qorvo.com
QPQ1295
®
Band 25 Downlink BAW Filter

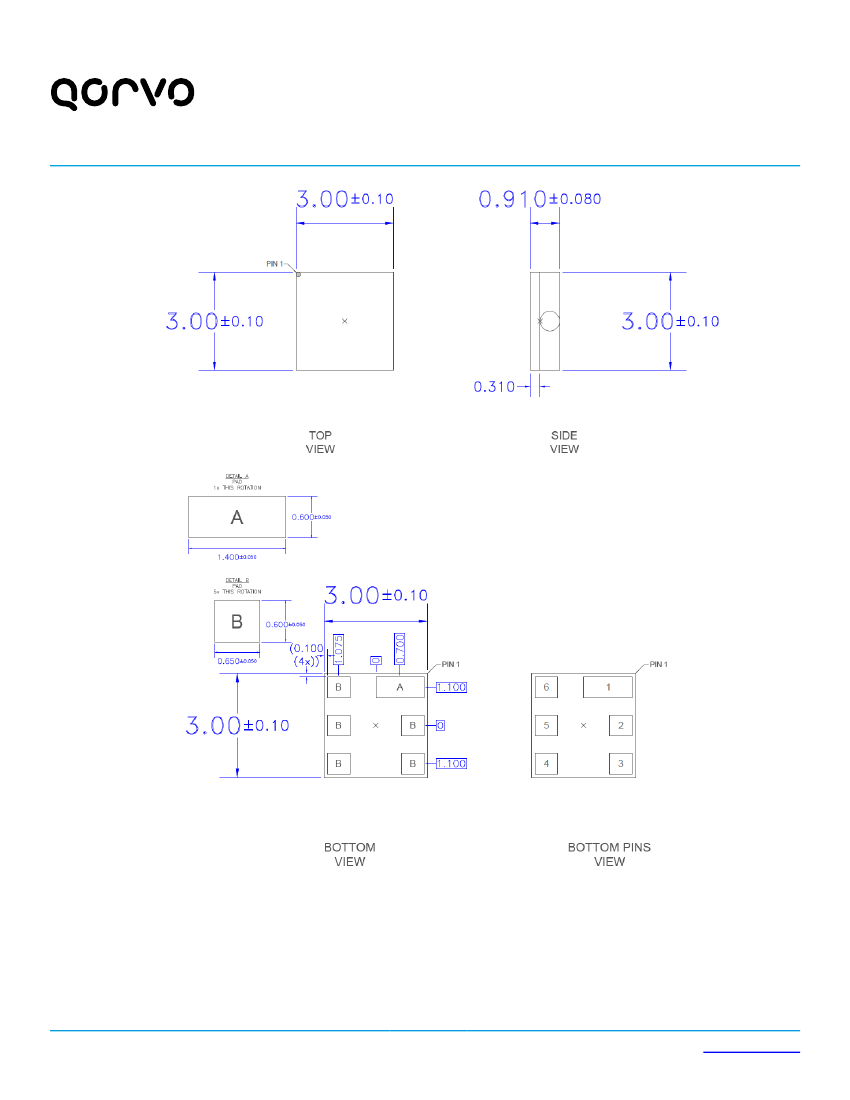

Package Dimensions
Notes:
1. All dimensions are in millimeters. Angles are in degrees.
2. Dimension and tolerance formats conform to ASME Y14.4M-1994.
3. The terminal #1 identifier and terminal numbering conform to JESD 95-1 SPP-012.
Datasheet, May 15, 2018 | Subject to change without notice
4 of 8
www.qorvo.com
QPQ1295
®
Band 25 Downlink BAW Filter

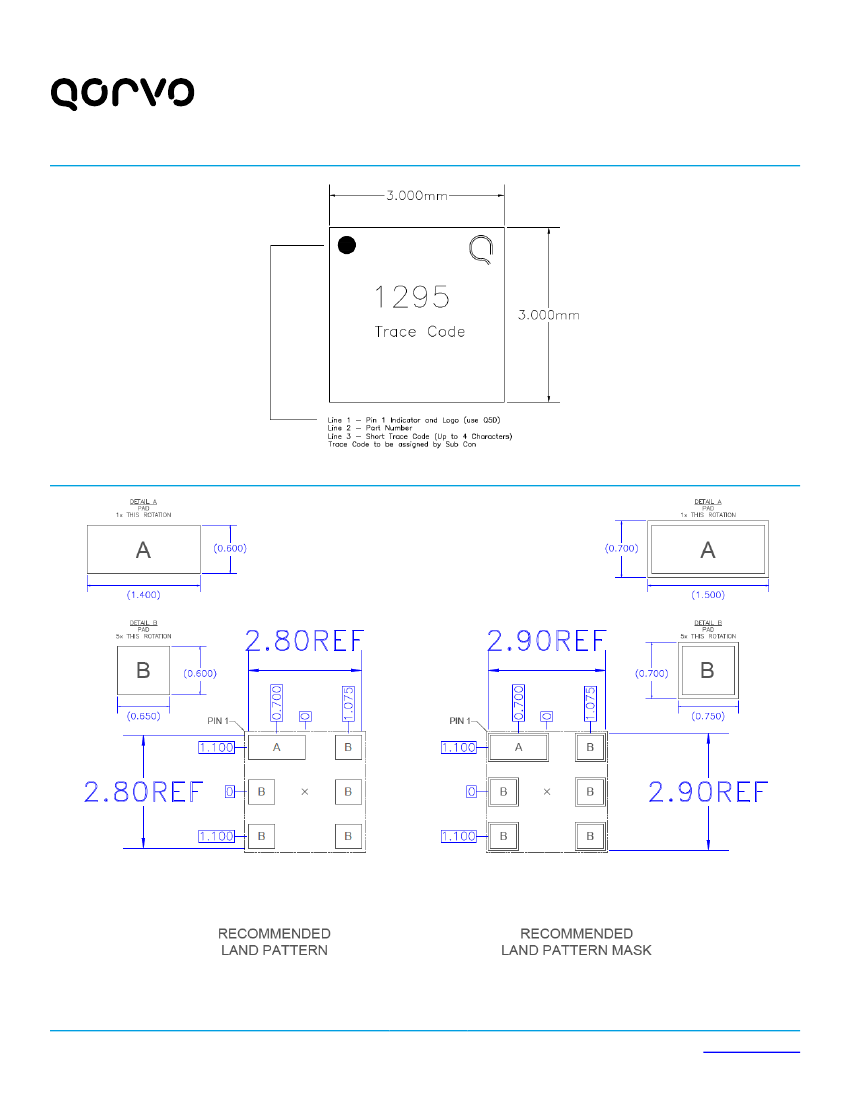

Package Marking
PCB Mounting Pattern
Notes:
1.
2.
All dimensions are in millimeters. Angles are in degrees.
This drawing specifies the mounting pattern used on the Qorvo evaluation board for this product. Some modification may be
necessary to suit end user assembly materials and processes.
5 of 8
Datasheet, May 15, 2018 | Subject to change without notice
www.qorvo.com
