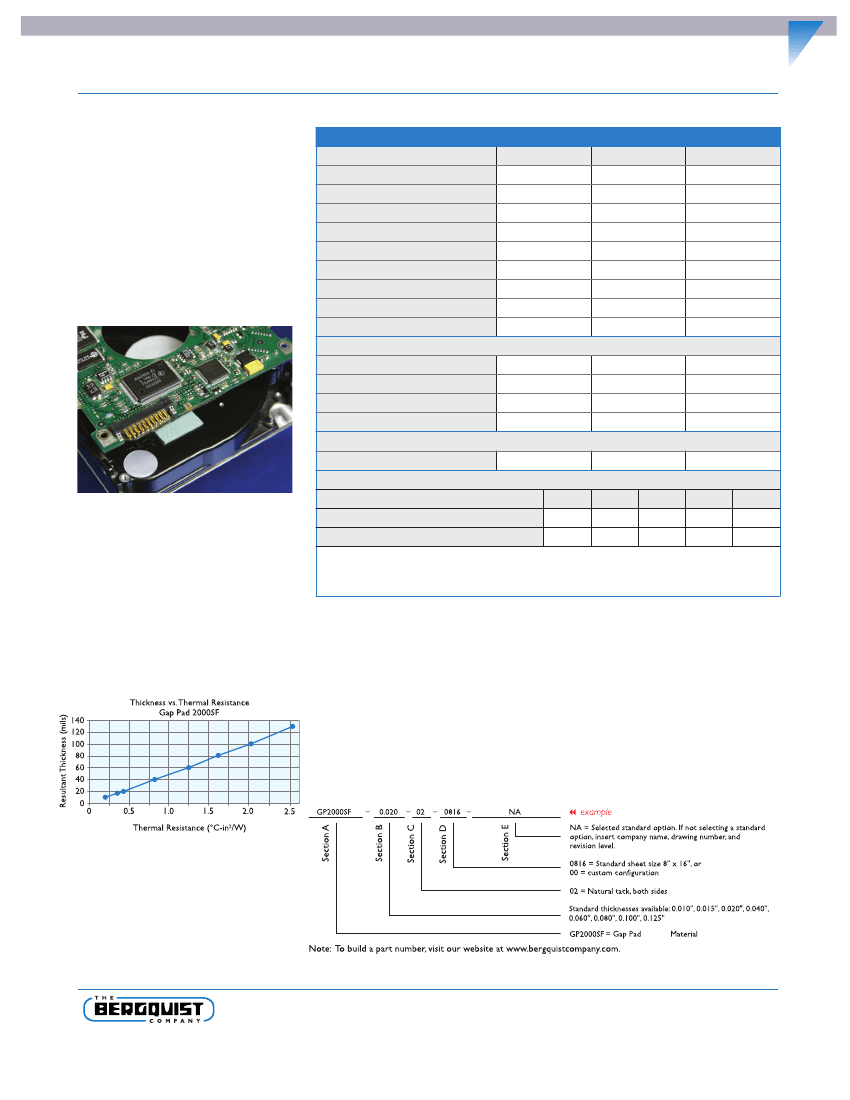

Gap Pad 2000SF
®
Thermally Conductive, Silicone-Free Gap Filling Material
Features and Benefits
• High thermal conductivity: 2 W/m-K
• Natural inherent tack reduces interfacial
thermal resistance and aids assembly
• Conforms to demanding contours
and maintains structural integrity with
little stress applied to fragile component
leads
• Fiberglass reinforced for puncture, shear
and tear resistance
PROPERTY
Color
Reinforcement Carrier
Thickness (inch) / (mm)
Inherent Surface Tack (1or 2 sided)
Density (g/cc)
Heat Capacity (J/g-K)
Hardness (Bulk Rubber) (Shore 00) (1)
Young’s Modulus (psi) / (kPa) (2)
Continuous Use Temp (°F) / (°C)
ELECTRICAL
Dielectric Breakdown Voltage (Vac)
Dielectric Constant (1000 Hz)
Volume Resistivity (Ohm-meter)
Flame Rating
THERMAL
Thermal Conductivity (W/m-K)
THERMAL PERFORMANCE
VS
.
TYPICAL PROPERTIES OF GAP PAD 2000SF
IMPERIAL VALUE
Green
Fiberglass
0.010 to 0.125
2
2.8
1.0
70
33
-76 to 257
METRIC VALUE
Green
Fiberglass
0.254 to 3.175
2
2.8
1.0
70
228
-60 to 125
TEST METHOD
Visual
—
ASTM D374
—
ASTM D792
ASTM C351
ASTM D2240
ASTM D575
—
>5000
6.0
10
8
V-O
>5000
6.0
10
8
V-O
ASTM D149
ASTM D150
ASTM D257
U.L. 94
2.0
PRESSURE
Pressure (psi)
10
2.26
0.67
25
2.22
0.50
2.0
ASTM D5470
50
2.10
0.42
100
1.95
0.39
200
1.74
0.37
Gap Pad 2000SF is a silicone-free insulating
material. Silicone-sensitive applications benefit
from this fiberglass-reinforced gap filling
material, which combines electrical isolation
with exceptional thermal performance
(2.0 W/mK).While highly thermally conduc-
tive, the material is exceptionally soft and
more compliant than other silicone-free
materials. Gap Pad 2000SF is capable of
conforming to the most demanding contours
while applying little stress on component
leads.
TO-220 Thermal Performance (ºC/W) (10 mil)
Thermal Impedance (ºC-in /W) (3)
2
1) Thirty second delay value Shore 00 hardness scale. 2) Young’s Modulus, calculated using 0.01 in/min. step rate of strain with a sample
size of 0.79 inch
2
. For more information on Gap Pad modulus, refer to Bergquist Application Note #116. 3) The ASTM D5470 test fix-
ture was used.The recoded value includes interfacial thermal resistance.These values are provided for reference only. Actual application
performance is directly related to the surface roughness, flatness and pressure applied.
Typical Applications
• Set top boxes
• Automotive brushed motors
• Hard Drives
• Optical Applications
• Relays or other electrical components with open contacts
Configurations Available:
• Die-cut parts are available in any shape or size, separated or in sheet form.
• Standard material thicknesses of 10, 15, 20, 40, 60, 80, 100 and 125 mil.
• Custom thicknesses available upon request.
Building a Part Number
Note: Resultant thickness is defined as the final gap thickness of
the application.
Standard Options
2000SF
Gap Pad
®
: U.S. Patent 5,679,457 and others
